How to Create Wire for Doorbell

Materials

• Doorbell wire (18- or 20-gauge stranded): Stranded wire is more flexible and better for tight spaces than solid core.
• Wire staples or clips: To secure wire along baseboards or studs.
• Electrical tape: For insulating connections and marking wires.
• Wire nuts (optional): For splicing wires if needed.
• Conduit (optional): Protects wire in exposed or high-traffic areas.
• Doorbell transformer (if replacing): Ensures correct voltage output.
• Doorbell button and chime unit: Make sure they’re compatible with your wiring setup.

Understanding Doorbell Wiring Basics

Before you start cutting or connecting wires, it’s important to understand how a doorbell system works. Most traditional doorbells use a simple low-voltage circuit:

• Transformer: Steps down household voltage (120V) to 16–24V AC, which powers the system.
• Doorbell button: When pressed, it completes the circuit, sending power to the chime.
• Chime unit: Receives the signal and produces the sound (ding-dong).
• Wiring: Connects all components in a loop from the transformer to the button and back to the chime.

This is a closed-loop system. When the button is not pressed, the circuit is open, and no power flows. Pressing the button closes the circuit, allowing current to flow and activate the chime.

Smart doorbells may require constant power, so they often need a “C-wire” (common wire) or a power kit to ensure stable operation. This guide covers both traditional and smart doorbell wiring needs.

Step 1: Turn Off Power and Assess the Current Setup

Safety is critical—even though doorbell systems use low voltage, the transformer is connected to your home’s main electrical supply. Always turn off power at the breaker before working.

Turn Off the Power

1. Locate your home’s electrical panel (breaker box).
2. Find the breaker labeled “doorbell,” “chime,” or “transformer.” If unsure, turn off the main breaker to be safe.
3. Use a non-contact voltage tester at the transformer and chime to confirm power is off.

Inspect Existing Wiring

• Remove the doorbell button and chime cover to examine the wires.
• Look for signs of damage: fraying, corrosion, loose connections, or burnt insulation.
• Check the transformer (usually near the furnace, attic, or basement). Ensure it’s securely mounted and not overheating.
• Note the wire gauge and type. If it’s solid core and brittle, consider replacing it with stranded wire for better flexibility.

If the existing wire is in good condition, you may only need to repair or extend it. If it’s damaged, proceed to create new wire.

Step 2: Plan Your Wire Route

A well-planned route saves time and reduces the risk of damage. Follow these steps to map out the best path.

Determine the Path

• Start at the transformer location.
• Plan a route to the doorbell button (usually near the front door).
• Then route from the button to the chime (often inside the house, near the entrance).
• Use the shortest, most direct path possible to minimize wire length and voltage drop.

Avoid Interference and Hazards

• Stay away from electrical wires: Keep doorbell wire at least 6 inches from high-voltage lines to prevent interference.
• Avoid sharp edges: Don’t run wire through metal studs without grommets or conduit.
• Protect from moisture: If running wire outside or in damp areas, use outdoor-rated wire and conduit.
• Minimize bends: Sharp kinks can damage wire insulation and conductors.

Measure and Cut Wire

• Measure the total distance from transformer → button → chime → back to transformer.
• Add 10–15% extra length for slack and connections.
• Cut two strands of 18- or 20-gauge stranded wire to this length. These will form the two conductors in your circuit.

Tip: Use different colored wires (e.g., red and white) to easily identify which is which during installation.

Step 3: Run the Wire Through Walls or Conduit

Now it’s time to install the wire. This step varies depending on your home’s construction, but here’s a general approach.

Drill Access Holes

• Drill a small hole (¼” to ½”) at the starting point (near the transformer).
• Drill another hole at the doorbell button location.
• If running wire through walls, drill through studs or use existing openings (like electrical boxes).

Use Fish Tape to Pull Wire

• Attach the wire to the end of the fish tape using electrical tape.
• Feed the fish tape through the wall or conduit from one hole to the next.
• Gently pull the wire through as you retract the fish tape.
• Repeat for the second wire if running them separately.

Alternative: Surface-Mount Installation

If you can’t run wire inside walls, use surface-mounted wire channels or raceways. These are plastic covers that hide and protect wires along baseboards or door frames. They’re easy to install with adhesive or screws and look neat when painted.

Secure the Wire

• Use plastic wire staples or clips to secure the wire every 3–4 feet.
• Avoid over-tightening, which can crush the insulation.
• In exposed areas, consider using flexible conduit for extra protection.

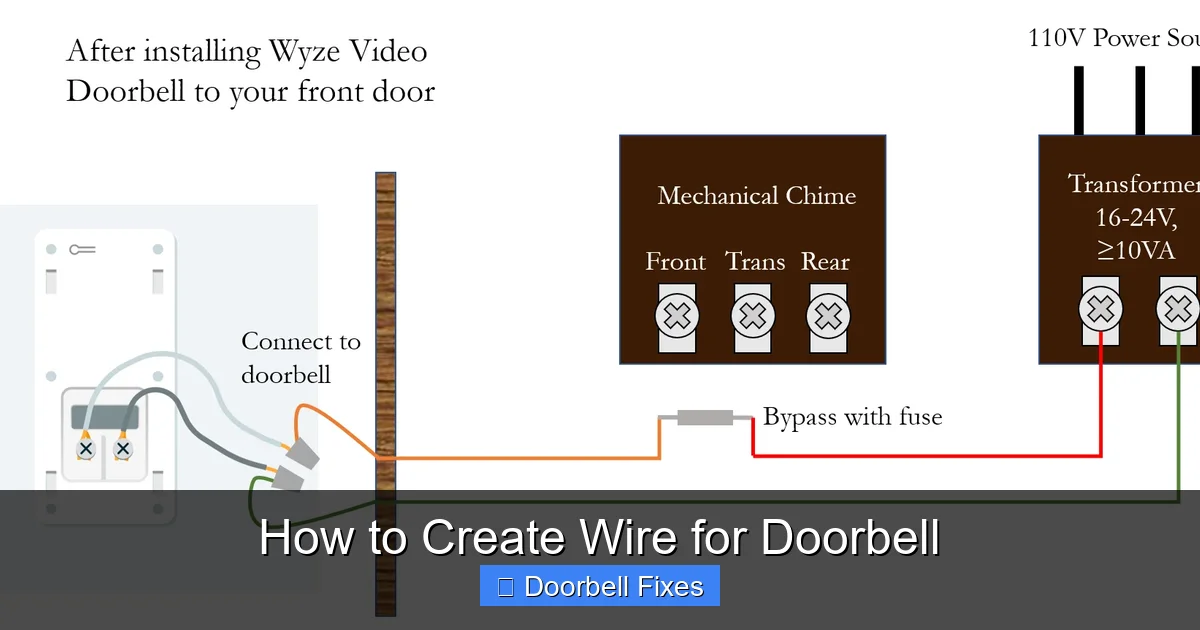

Step 4: Connect the Wire to Components

With the wire in place, it’s time to connect everything. Follow this sequence: transformer → chime → button → back to transformer.

Connect to the Transformer

• Locate the transformer terminals (usually labeled “Common” and “Doorbell” or “Front”).
• Strip about ½” of insulation from each wire end.
• Connect one wire to the “Common” terminal and the other to the “Doorbell” terminal.
• Tighten the screws securely. Do not overtighten.

Connect to the Chime Unit

• Remove the chime cover and locate the terminal screws (often labeled “Front,” “Trans,” and “Transformer”).
• Connect one wire from the transformer to the “Trans” terminal.
• Connect the wire from the doorbell button to the “Front” terminal.
• If you have a second button (e.g., rear door), use the “Rear” terminal.

Connect to the Doorbell Button

• Remove the old button (if replacing).
• Strip the wire ends and connect one wire to each terminal on the new button.
• Most buttons are non-polarized, so wire direction doesn’t matter.
• Secure the button to the wall with screws.

Double-Check Connections

• Ensure all screws are tight and wires are fully inserted.
• No bare copper should be exposed outside the terminals.
• Use electrical tape to wrap connections for extra insulation if needed.

Step 5: Test the System

Before closing everything up, test your work to ensure the doorbell functions correctly.

Restore Power

• Turn the breaker back on.
• Wait a few seconds for the system to power up.

Test the Doorbell

• Press the doorbell button.
• Listen for the chime. It should sound clearly and consistently.
• If using a smart doorbell, check the app for connectivity and video feed.

Use a Multimeter to Verify Voltage

• Set the multimeter to AC voltage (V~).
• Touch the probes to the transformer terminals.
• You should read 16–24V AC. If it’s too low, the transformer may be faulty or undersized.
• Check voltage at the button terminals when pressed. It should match the transformer output.

Check for Continuity

• Turn off power again.
• Set the multimeter to continuity (beep mode).
• Touch the probes to the two wires at the button. Press the button—you should hear a beep, indicating a complete circuit.
• If no beep, there’s a break in the wire or a loose connection.

Troubleshooting Common Doorbell Wiring Issues

Even with careful installation, problems can occur. Here’s how to fix the most common issues.

Doorbell Doesn’t Ring

• Check power: Use a multimeter to verify voltage at the transformer and chime.
• Inspect connections: Loose or corroded terminals are a frequent cause.
• Test the button: Remove it and touch the two wires together. If the chime rings, the button is faulty.
• Check for breaks: Use continuity mode to test the entire wire run.

Weak or Intermittent Sound

• Low voltage: The transformer may be undersized or overloaded. Upgrade to a 16V or 24V transformer.
• Long wire runs: Excessive length can cause voltage drop. Use thicker wire (16-gauge) for runs over 50 feet.
• Loose connections: Re-tighten all terminal screws.

Smart Doorbell Not Getting Enough Power

• Add a C-wire: Run an extra wire from the transformer to the chime to provide constant power.
• Install a power kit: Some smart doorbells include a power kit that connects to the chime to boost voltage.
• Use a plug-in transformer: For hardwired systems, a plug-in transformer near the doorbell can provide reliable power.

Buzzing or Humming Sound

• Transformer issues: A failing transformer can cause irregular voltage.
• Interference: Keep doorbell wire away from fluorescent lights, motors, or other electrical devices.
• Faulty chime: Replace the chime unit if it’s old or damaged.

Safety Tips and Best Practices

Even though doorbell wiring is low voltage, safety should always come first.

• Turn off power at the breaker before working on any electrical component.
• Use insulated tools to prevent accidental shocks.
• Never work in wet conditions.
• Label wires during installation to avoid confusion.
• Follow local building codes—some areas require permits for electrical work.
• When in doubt, consult a licensed electrician.

Conclusion

Creating wire for doorbell systems is a practical and rewarding DIY project. With the right tools, materials, and a clear plan, you can install or repair doorbell wiring safely and effectively. Whether you’re fixing a broken chime or upgrading to a smart doorbell, this guide gives you the knowledge to get the job done right.

Remember to prioritize safety, test your connections thoroughly, and don’t hesitate to troubleshoot if something isn’t working. A well-wired doorbell not only adds convenience but also enhances your home’s security and curb appeal.

Now that you know how to create wire for doorbell systems, you’re ready to tackle this project with confidence. Grab your tools, follow the steps, and enjoy the satisfaction of a job well done!
