Why This Matters / Understanding the Problem
You’re standing in your garage, holding a new smart doorbell in one hand and a tangled mess of wires in the other. You’ve read the instructions—twice—and they all say the same thing: “Ensure your transformer outputs 16–24V AC.” But how do you actually check that? If you’ve ever stared at your existing doorbell setup wondering, “Is this even the right voltage?”—you’re not alone.
Getting the voltage right isn’t just about making your doorbell work. It’s about safety, compatibility, and avoiding fried electronics. Too little voltage, and your doorbell might not ring or connect to Wi-Fi. Too much, and you could damage the device—or worse, create a fire hazard. That’s why knowing how to determine voltage of doorbell transformer is one of those homeowner skills that sounds niche but saves you time, money, and headaches down the road.
I learned this the hard way when I installed my first video doorbell. It kept rebooting every few minutes. After hours of troubleshooting, I discovered the transformer was only putting out 8 volts—half what it needed. Replacing it fixed everything. Since then, I’ve made checking the transformer voltage my first step with any doorbell upgrade. It’s quick, easy, and gives you peace of mind before you drill a single hole.
Whether you’re installing a Ring, Nest, or a classic mechanical chime, understanding your transformer’s output ensures your system runs smoothly from day one. Plus, it helps you decide if you need an upgrade—or if your current setup is perfectly fine.
What You Need
Before we dive in, let’s gather the essentials. Don’t worry—you probably already have most of these lying around.

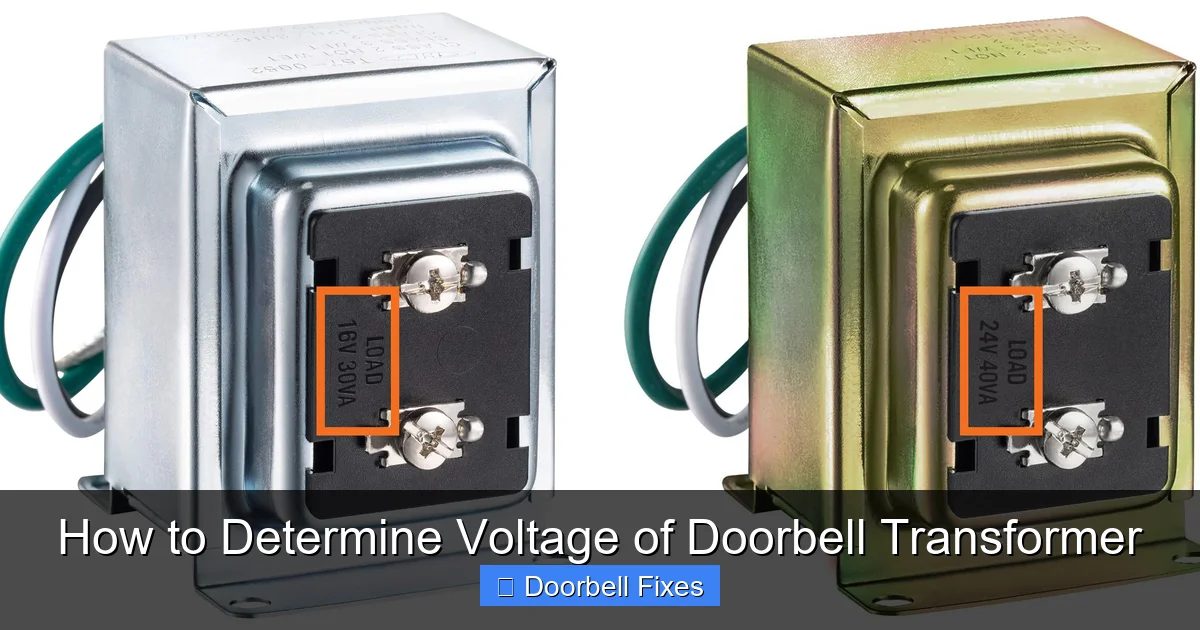

Visual guide about How to Determine Voltage of Doorbell Transformer
Image source: lorextechnology.com
- Digital multimeter (also called a voltmeter) – This is the key tool. Look for one with AC voltage settings (usually labeled “V~” or “ACV”). Even basic models under $20 work great.
- Screwdriver – Typically a flathead or Phillips, depending on your doorbell chime or transformer cover.
- Safety gloves and glasses – Not always necessary, but smart if you’re working near electrical panels.
- Flashlight – Transformers are often tucked away in dim corners of your basement, closet, or garage.
- Your doorbell’s manual – Just in case you need to double-check required voltage specs.
Optional but helpful: a helper to hold the flashlight or multimeter probes while you take readings. And if your transformer is hard to reach, a small step stool can make a big difference.
One thing you don’t need? An electrician—unless you’re uncomfortable working near live wires. This task is totally DIY-friendly once you know the steps.
Step-by-Step Guide to How to Determine Voltage of Doorbell Transformer

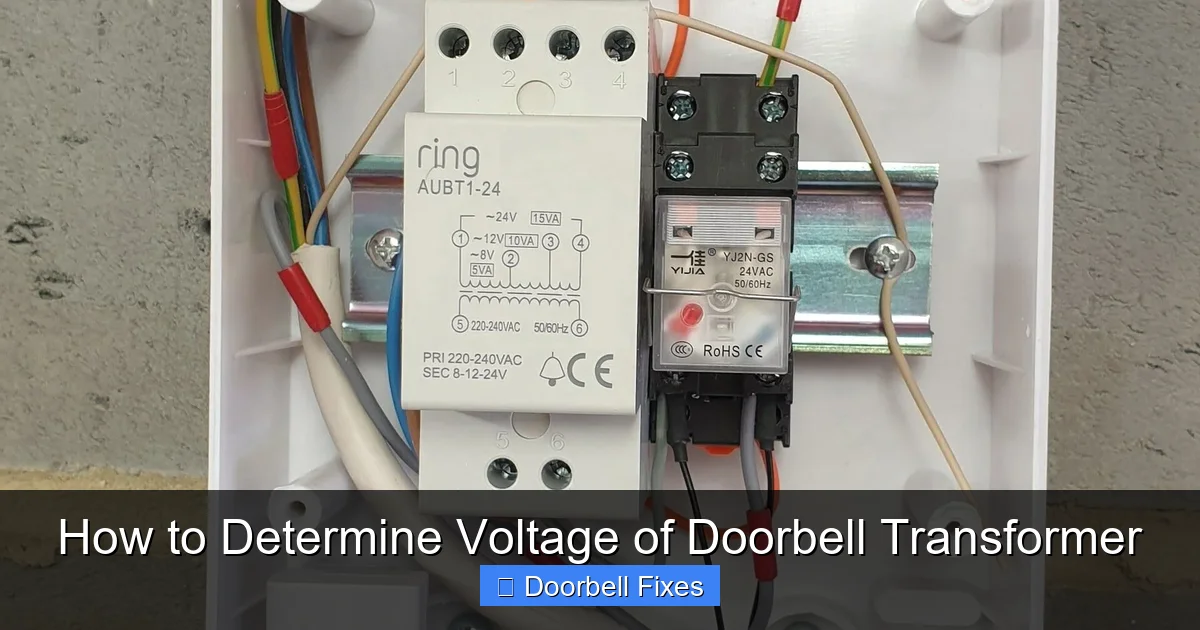

Step 1: Locate Your Doorbell Transformer
The transformer is the little black box that steps down your home’s 120V power to the low voltage (usually 8V–24V) used by your doorbell. It’s often hiding in plain sight.
Common spots include:
- Inside your electrical panel (breaker box)
- Behind the doorbell chime unit on your wall
- In your basement, attic, or utility closet
- Tucked near your furnace or water heater
I found mine behind the chime in my hallway—behind a decorative cover that looked like part of the wall. If you’re not sure, turn off your doorbell at the breaker, remove the chime cover, and look for two thin wires (usually white and red or white and black) connected to terminals. Those wires lead back to the transformer.
Pro tip: Label the wires with tape before disconnecting anything. It saves confusion later!
Step 2: Turn Off Power (But Not Always!)
Here’s a common misconception: you must shut off power to test voltage. Actually, you need the circuit live to get a reading—but safety comes first.
If your transformer is in the breaker panel, turn off the correct breaker. Use a non-contact voltage tester to confirm it’s dead before touching anything. But if it’s behind the chime or elsewhere, you can often test it live—just be extra careful.
Why? Because transformers only output voltage when the main power is on. If you shut everything off, you’ll get a zero reading—and think your transformer is dead when it’s actually fine.
So: turn off power only if you’re working inside the breaker panel or feel unsure. Otherwise, keep it on, but treat every wire as live. Never touch bare conductors with your fingers.
Step 3: Set Up Your Multimeter
Grab your digital multimeter. You’ll see several ports and dial settings. Here’s how to configure it:
- Plug the black probe into the “COM” port.
- Plug the red probe into the port labeled “VΩ” or “V” (for voltage).
- Turn the dial to the AC voltage setting—usually marked “V~” or “ACV.” If there’s a range (like 200V or 600V), start with the higher one.
Most doorbell transformers output between 8V and 24V AC, so if your meter has a 200V AC setting, that’s perfect. Avoid DC settings—they won’t give accurate readings for doorbell circuits.
Quick test: touch the probes together. The display should read near zero. If it shows random numbers, check your connections or battery.
Step 4: Access the Transformer Terminals
Now, locate the two output terminals on your transformer. These are where the low-voltage wires connect—usually labeled “Common” and “Front” or just two screw terminals.
If your transformer is behind the chime:
- Remove the chime cover.
- Unscrew the two wires connected to the transformer (remember which goes where!).
- You’ll now have two bare wire ends or terminal screws exposed.
If it’s in the breaker panel, look for a small transformer mounted near the main bus bars. It will have two low-voltage terminals—often with wire nuts or screws.
Don’t worry about polarity—AC voltage doesn’t have positive/negative like DC. Either probe can go on either terminal.
Step 5: Take the Voltage Reading
This is the moment of truth. With the power on (and your multimeter set to AC voltage):
- Touch the black probe to one terminal.
- Touch the red probe to the other terminal.
- Hold steady for 2–3 seconds.
- Read the display.
A healthy doorbell transformer should read between 16V and 24V AC for modern smart doorbells. Older mechanical chimes often run fine on 8V–16V.
In my case, the reading was 18.5V—perfect for my Ring Video Doorbell Pro. But remember: fluctuations happen. If it reads 15.8V or 24.3V, that’s still acceptable. What matters is consistency and staying within your device’s range.
If you get 0V, double-check that power is on. If it’s still zero, your transformer may be dead. If it reads over 30V, stop immediately—that’s dangerous and could damage your doorbell.
Step 6: Reconnect and Test
Once you’ve recorded the voltage, carefully reattach the wires to the correct terminals. Tighten the screws securely—loose connections can cause intermittent issues.
Replace the chime cover or panel door. Turn power back on if you turned it off. Then, press your doorbell button and listen.
Does it ring clearly? Does your smart doorbell stay connected? Great! You’ve successfully verified your transformer is up to spec.
If not, don’t panic. Sometimes the issue isn’t voltage—it could be wiring, Wi-Fi signal, or a faulty button. But at least now you know the power source isn’t the problem.
Pro Tips & Common Mistakes to Avoid
Pro Tip: Test under load. Some transformers show correct voltage when idle but drop significantly when the doorbell rings. To simulate this, press the doorbell button while taking the reading. If voltage drops below 14V, your transformer may be underpowered.
Warning: Never test voltage with wet hands or on a damp surface. Even low-voltage circuits can give a nasty shock if you’re grounded.
A common mistake? Assuming all transformers are the same. I once helped a friend install a doorbell, and we didn’t check the voltage. His transformer was 6V—way too low for his new video doorbell. The result? Constant disconnections and a frustrated homeowner. Always verify before installing.
Another pitfall: using a multimeter set to DC voltage. Doorbell circuits use alternating current (AC), so DC settings will give misleading or zero readings. Double-check your meter’s dial!
Also, don’t confuse the transformer’s input (120V from your house) with its output (low voltage to the doorbell). Testing the input side without proper training is risky—and unnecessary for this task.
Finally, if your reading is consistently low (under 14V), consider upgrading to a 16V or 24V transformer. They’re inexpensive ($10–$20) and widely available at hardware stores. A higher-voltage transformer won’t harm most modern doorbells—they’re designed to handle a range.
FAQs About How to Determine Voltage of Doorbell Transformer
Q: Can I determine the voltage without a multimeter?
A: Not accurately. Some smart doorbells have diagnostic modes that estimate voltage, but they’re not reliable. A multimeter is the only sure way. Borrow one from a friend or buy a basic model—it’s worth it for future DIY projects too.
Q: What if my transformer reads 0 volts?
A: First, confirm power is on at the breaker. If it is, the transformer is likely dead. You’ll need to replace it. Look for a matching voltage and VA rating (e.g., 16V 10VA) on the old unit’s label.
Q: Is it safe to test a live transformer?
A: Yes—if you’re careful. The voltage is low (under 24V), so it won’t electrocute you. But always use insulated probes, avoid touching metal parts, and keep one hand in your pocket to reduce shock risk.
Q: My doorbell works fine—do I still need to check the voltage?
A: If you’re keeping the same doorbell, probably not. But if you’re upgrading to a smart model or adding a second chime, checking ensures compatibility. Better safe than sorry!
Q: Can I use a 24V transformer with a 16V doorbell?
A: Most modern smart doorbells accept 16–24V, so yes. But check your manual first. Older mechanical chimes may overheat with higher voltage. When in doubt, match the original rating.
Q: Where can I buy a replacement transformer?
A: Home improvement stores (like Home Depot or Lowe’s), hardware stores, or online retailers like Amazon. Look for “doorbell transformer” and choose 16V or 24V based on your needs.
Q: How often should I test my doorbell transformer?
A: Only when installing a new doorbell or if you notice issues (weak ring, frequent disconnects). Transformers rarely fail unless there’s a power surge or age-related wear.
Final Thoughts
Figuring out how to determine voltage of doorbell transformer might seem like a small step—but it’s one of the most important ones in any doorbell installation. It saves you from buying the wrong gear, prevents damage to your new device, and gives you confidence that your system will work reliably from day one.
You don’t need to be an electrician. With a $15 multimeter and 10 minutes of your time, you can verify your setup like a pro. And once you’ve done it once, you’ll wonder why you ever hesitated.
So next time you’re upgrading your doorbell, skip the guesswork. Grab your tools, follow these steps, and know exactly what you’re working with. Your future self—and your doorbell—will thank you.
“`
