Why This Matters / Understanding the Problem

Ever stood at your front door, pressed the button, and… nothing? No chime, no buzz, just silence. You check the batteries in your wireless doorbell receiver, but it’s still dead. Frustrating, right? Before you assume the whole system is broken, there’s one critical thing you might be missing: voltage.

Most people don’t realize that doorbells run on low-voltage electrical systems—usually between 8V and 24V AC. But if the voltage is too low, your doorbell won’t work. And if it’s too high? You could fry the chime or even create a fire hazard. That’s why knowing how to determine voltage of doorbell isn’t just helpful—it’s essential for safety and functionality.

I learned this the hard way. Last winter, my doorbell stopped working during a snowstorm. I replaced the transformer, rewired the button, and even bought a new chime unit. Nothing worked. Turns out, the old transformer was outputting only 6V—way below the 16V my doorbell needed. Once I tested the voltage properly, the fix was simple. That’s when I realized: you can’t troubleshoot what you don’t measure.

Whether you’re installing a new smart doorbell, replacing an old one, or just trying to figure out why your current setup isn’t working, understanding how to determine voltage of doorbell saves time, money, and headaches. It’s a small step that makes a big difference—especially if you’re dealing with Ring, Nest, or other Wi-Fi-enabled models that have strict voltage requirements.

In this guide, I’ll walk you through exactly how to test your doorbell voltage safely and accurately—no electrical degree required. We’ll cover the tools you need, step-by-step instructions, and real-world tips I’ve picked up from years of DIY home repairs. By the end, you’ll know whether your doorbell is getting the power it needs—and what to do if it’s not.

What You Need

Don’t worry—you don’t need a full electrician’s toolkit. Testing doorbell voltage is surprisingly simple, and most of the tools are affordable and easy to find. Here’s what you’ll need to get started:

• Multimeter (digital is best): This is the star of the show. A basic multimeter costs around $15–$25 and can measure voltage, current, and resistance. Look for one with an AC voltage setting (usually labeled “V~” or “VAC”).
• Screwdriver (flathead or Phillips, depending on your doorbell): You’ll need this to remove the doorbell button or access the chime unit.
• Insulated gloves (optional but recommended): While doorbell voltage is low, it’s still electricity. A little precaution goes a long way.
• Flashlight: Basements and utility closets aren’t always well-lit. A small flashlight helps you see what you’re doing.
• Pen and paper: Jot down your readings so you don’t forget them later.

Most of these items are probably already in your toolbox. If you don’t have a multimeter, I recommend the Klein Tools MM300 or Fluke 101—both are reliable, user-friendly, and under $30. Avoid super-cheap models; they can give inaccurate readings, which defeats the whole purpose.

Pro tip: If you’re planning to install a smart doorbell like Ring Video Doorbell Pro or Nest Hello, check their voltage requirements first. Most need 16V–24V AC. If your current system is below that, you’ll need a new transformer—but you won’t know until you test.

Step-by-Step Guide to How to Determine Voltage of Doorbell

Step 1: Turn Off Power (Just to Be Safe)

Even though doorbell systems use low voltage, it’s always smart to turn off the power at the circuit breaker before you start. I know—it sounds overcautious. But trust me, a moment of caution beats a shock (or worse).

Head to your electrical panel and look for the breaker labeled “doorbell,” “chime,” or “low voltage.” If you don’t see one, turn off the main breaker to be extra safe. Use a flashlight if the panel is in a dark basement or closet.

Once the power is off, remove the doorbell button from the wall. Most buttons snap off with a gentle pull or unscrew with a small screwdriver. Set it aside—you’ll need access to the wires behind it.

Warning: Never work on live wires without proper training. Even low voltage can cause a shock if you’re wet or standing on a conductive surface. When in doubt, call an electrician.

Step 2: Set Up Your Multimeter

Now it’s time to prepare your multimeter. Here’s how to do it right:

• Turn the dial to the AC voltage setting (look for “V~” or “VAC”).
• Set the range to 200V AC or higher. Most multimeters auto-range, but if yours doesn’t, start high and adjust down if needed.
• Plug the black probe into the COM port and the red probe into the VΩ port (or similar).

If you’re new to multimeters, don’t stress. Think of it like a digital thermometer—but for electricity. The probes are like the thermometer’s tip: they sense what’s going on and send the info to the display.

Double-check your settings before touching any wires. A wrong setting could give a false reading or damage the meter.

Step 3: Locate the Doorbell Transformer

The transformer is the device that steps down your home’s 120V power to the low voltage your doorbell needs. It’s usually hidden in one of three places:

• Inside the doorbell chime unit (most common in older homes)
• In the basement or utility closet (often near the furnace or electrical panel)
• Inside the junction box behind the doorbell button (less common, but possible)

To find it, start at the chime unit. Open the cover (usually held by two screws) and look for a small black or gray box with wires connected to it. That’s your transformer.

If you don’t see it there, check near your furnace or water heater. Transformers are often tucked away in out-of-sight spots. Look for a small metal box with two wires coming out—those are your doorbell wires.

Once you’ve found it, note the voltage rating printed on the transformer. It might say “16V,” “24V,” or “8VA.” This tells you what the transformer should be outputting—but not what it is outputting. That’s why we test.

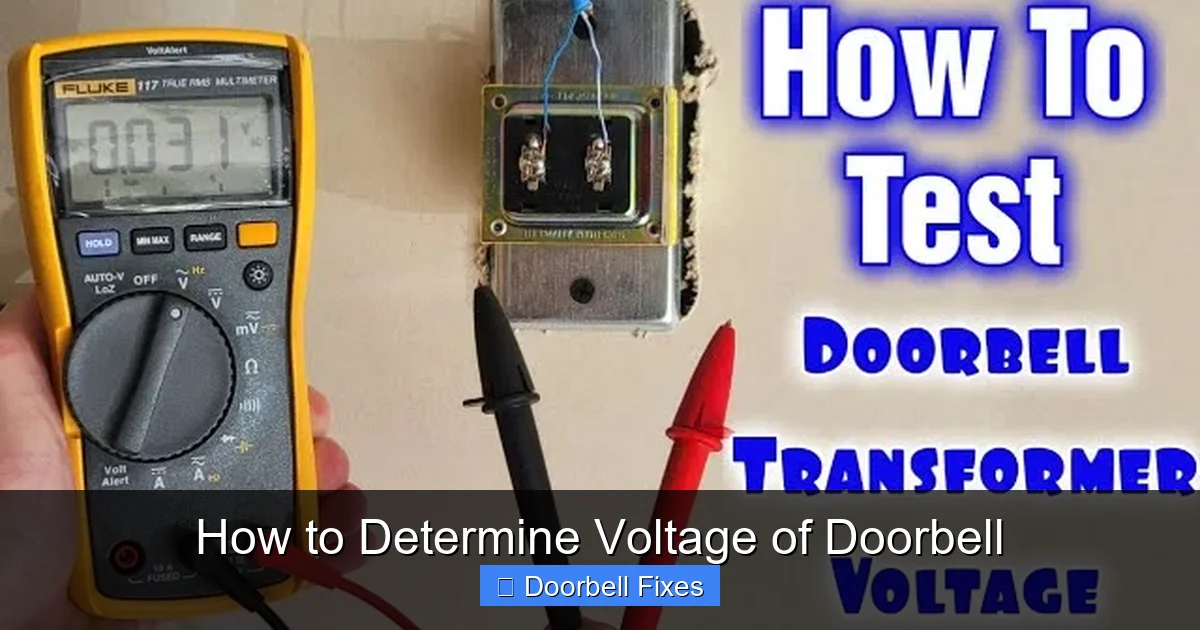

Step 4: Test Voltage at the Transformer

This is the most accurate way to determine voltage of doorbell. By testing at the source, you eliminate variables like wire resistance or loose connections.

With the power back on (yes, turn it back on now), carefully touch the multimeter probes to the two screw terminals on the transformer. It doesn’t matter which probe goes where—AC voltage has no polarity.

Watch the display. A healthy transformer should show a reading close to its labeled voltage. For example:

• A 16V transformer should read between 14V and 18V
• A 24V transformer should read between 22V and 26V

If the reading is way off—say, 6V on a 16V transformer—your transformer is failing. Time to replace it.

If the reading is zero, double-check your connections. Make sure the probes are touching metal and not just insulation. Also, confirm the breaker is on.

Step 5: Test Voltage at the Doorbell Button

Now let’s see what’s actually reaching your doorbell. This test tells you if voltage is being lost along the wire run.

Reconnect the doorbell button wires to the terminals (if they came loose). Then, press and hold the button. While it’s pressed, touch the multimeter probes to the two screws on the back of the button.

You should see a voltage reading close to what you measured at the transformer. If it’s significantly lower—say, 10V when the transformer outputs 16V—there’s resistance in the wires. This could be due to:

• Long wire runs (over 50 feet)
• Corroded or loose connections
• Undersized wire (thinner than 18-gauge)

In this case, you might need to upgrade your wiring or install a higher-capacity transformer.

Step 6: Test Voltage at the Chime Unit

Finally, test at the chime itself. This confirms whether the chime is getting enough power to operate.

Open the chime cover and locate the two terminals labeled “Front” and “Trans” (or similar). These are where the doorbell wires connect.

With the doorbell button pressed, touch the probes to these terminals. Again, you want a reading within 10–15% of the transformer’s output.

If the voltage is too low here, but fine at the transformer, the issue is likely in the wiring between the transformer and chime. Check for loose connections, damaged wires, or splices that may be causing resistance.

Pro Tips & Common Mistakes to Avoid

After testing dozens of doorbell systems, I’ve seen the same mistakes over and over. Here’s how to avoid them:

Pro Tip: Always test under load. That means pressing the doorbell button while measuring. Voltage can look fine when idle but drop when current flows. This is called “voltage sag,” and it’s a common cause of doorbell failure.

Another mistake? Assuming all doorbells use the same voltage. Older mechanical chimes often run on 8V–12V, while modern smart doorbells need 16V–24V. Always check your device’s specs before assuming compatibility.

Don’t ignore the transformer’s VA rating. VA (volt-ampere) measures power capacity. A 16V, 10VA transformer might not be enough for a power-hungry smart doorbell. Look for at least 16V, 30VA for devices like Ring Pro.

And please—don’t use a non-contact voltage tester. These tools detect live wires but can’t measure exact voltage. You need a multimeter for accuracy.

One last thing: if your doorbell uses batteries (like many wireless models), don’t assume the problem is voltage. Test the batteries first. A dead battery can mimic a power issue.

FAQs About How to Determine Voltage of Doorbell

Q: Can I test doorbell voltage without a multimeter?
A: Not accurately. You could use a non-contact voltage tester to confirm power is present, but it won’t tell you the actual voltage. For precise readings, a multimeter is essential.

Q: What if my multimeter shows 0V?
A: First, check that the breaker is on and the transformer is connected. If those are fine, the transformer may be dead. Replace it with one that matches your doorbell’s voltage and VA requirements.

Q: Is it safe to test doorbell voltage myself?
A: Yes—doorbell systems use low voltage (under 24V), which is generally safe. But always turn off the power before handling wires, and avoid working in wet conditions.

Q: My doorbell works sometimes but not always. Could it be a voltage issue?
A: Absolutely. Intermittent operation often points to low or fluctuating voltage. Test under load (with the button pressed) to catch voltage drops that happen only when the circuit is active.

Q: Can I use a 24V transformer with a 16V doorbell?
A: Not recommended. Too much voltage can damage the chime or button. Always match the transformer voltage to your doorbell’s specs. If in doubt, choose a 16V transformer—it’s the most common and works with most systems.

Q: How often should I test my doorbell voltage?
A: Only when troubleshooting or installing a new doorbell. There’s no need for regular testing unless you notice performance issues.

Q: What if my smart doorbell says “insufficient power”?
A: This is a classic sign of low voltage. Test your transformer output. If it’s below 16V, upgrade to a 16V, 30VA transformer. Also, ensure your wiring is 18-gauge or thicker.

Final Thoughts

Knowing how to determine voltage of doorbell might seem like a niche skill—but it’s one of those quiet heroes of home maintenance. It saves you from unnecessary replacements, prevents damage to expensive smart devices, and keeps your front door functioning when you need it most.

Remember: most doorbell problems aren’t about the button or chime. They’re about power. And power starts with voltage.

So the next time your doorbell goes silent, don’t panic. Grab your multimeter, follow these steps, and test the voltage. Nine times out of ten, you’ll find the answer—and the fix—in just a few minutes.

And if you’re upgrading to a smart doorbell, do this test first. It’ll save you hours of frustration and maybe even a service call.

You’ve got this. Stay safe, stay curious, and keep that doorbell ringing.

“`
