This guide walks you through how to fish doorbell wire through a wall without damaging your drywall or siding. You’ll learn the right tools, techniques, and safety steps to get your doorbell wired correctly on the first try.
Key Takeaways
- Plan your wire path first: Identify the shortest, safest route from the doorbell button to the chime or transformer to avoid obstacles like studs and electrical wires.
- Use the right tools: A fish tape, flexible drill bit, and stud finder are essential for safely pulling wire through walls without causing damage.
- Turn off power when needed: While doorbell circuits are low voltage, always turn off power at the breaker if working near electrical wires or outlets.
- Protect the wire during installation: Use wire lubricant and avoid sharp bends to prevent damage to the thin doorbell cable.
- Test before finishing: Always test the doorbell connection before patching holes or securing trim to ensure everything works properly.
- Work with a partner if possible: Fishing wire is easier with two people—one feeding and one pulling—especially in long runs.
- Know when to call a pro: If you hit major obstacles or feel unsure, hiring an electrician prevents costly mistakes.
How to Fish Doorbell Wire Through Wall: A Complete Step-by-Step Guide
So, you’ve decided to install a new doorbell or replace an old one—great choice! But now you’re staring at the wall, wondering, “How in the world do I get that tiny wire from the front door to the chime inside?” Don’t worry. You’re not alone. Many homeowners face this exact challenge, and the good news is: it’s totally doable with the right approach.
Fishing doorbell wire through a wall might sound intimidating, but it’s actually one of the more manageable DIY electrical tasks—especially because doorbell systems use low-voltage wiring (usually 16–24 volts). That means there’s no risk of electric shock, and the wires are thin and flexible. Still, it requires patience, the right tools, and a bit of planning.
In this guide, you’ll learn exactly how to fish doorbell wire through a wall—from planning your route to testing your connection. Whether you’re installing a wired doorbell for the first time or replacing old, frayed wiring, these steps will help you do it safely, efficiently, and without tearing up your walls.
We’ll cover everything: tools you’ll need, how to locate studs and avoid obstacles, techniques for feeding the wire, and what to do if things don’t go as planned. By the end, you’ll have a working doorbell and the confidence to tackle similar projects in the future.
Let’s get started!
Understanding Doorbell Wiring Basics

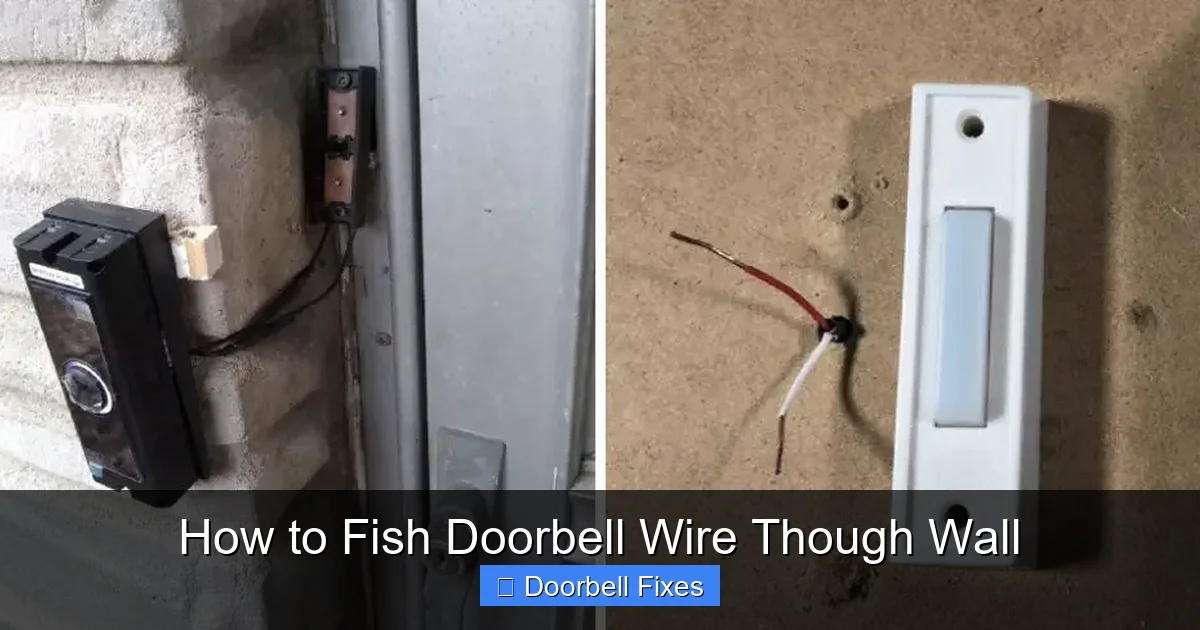

Visual guide about How to Fish Doorbell Wire Though Wall
Image source: safetywish.com
Before you start drilling or fishing wire, it helps to understand how a doorbell system works. Most traditional wired doorbells have three main components:
– The doorbell button (mounted outside near the door)
– The chime unit (inside the house, usually in a hallway or living area)
– The transformer (converts household voltage to low voltage, often located near the electrical panel, furnace, or in a closet)
The doorbell wire connects the button to the chime and transformer, completing a low-voltage circuit. When you press the button, it closes the circuit, sending power to the chime and making it ring.
Doorbell wire is typically 18- or 20-gauge, with two or more insulated conductors (usually red and white, sometimes black). It’s lightweight, flexible, and designed to be run through walls, attics, or basements.
Because it’s low voltage, you don’t need to worry about the same safety risks as with standard 120V household wiring. However, you should still be cautious—especially if you’re working near electrical outlets, switches, or other wires.
Also, note that some modern smart doorbells (like Ring or Nest) are battery-powered or can be wired, but if you’re choosing the wired option, the installation process is the same.
Gathering the Right Tools and Materials
Having the right tools makes all the difference. You don’t need a full electrician’s kit, but a few key items will save you time and frustration.
Here’s what you’ll need:
- Fish tape (or flexible wire puller): This is the most important tool. It’s a long, flat, spring-like metal strip that you feed through walls to pull wire. Look for one that’s at least 25–50 feet long.
- Drill with long drill bits: A cordless drill and a 1/4-inch or 3/8-inch flexible drill bit (also called a “flex bit” or “installation bit”) help you create access holes and navigate through wall cavities.
- Stud finder: Essential for locating wall studs, electrical wires, and plumbing so you can avoid them.
- Wire lubricant (optional but helpful): A slippery gel that reduces friction when pulling wire through tight spaces.
- Tape measure and pencil: For marking drill points and measuring distances.
- Flashlight or headlamp: To see inside wall cavities, especially in dark areas like basements or attics.
- Electrical tape: For securing wire to the fish tape and protecting connections.
- Screwdrivers and wire strippers: For connecting the wire to the doorbell and chime.
- Drywall saw or hole saw (optional): If you need to make a larger access hole for fishing.
- Safety gear: Safety glasses and gloves to protect your eyes and hands.
You’ll also need the doorbell wire itself—usually sold in spools of 50, 100, or 250 feet. For most homes, 50 feet is enough, but measure your planned route to be sure.
Pro tip: Buy a few extra feet of wire just in case. It’s better to have too much than not enough.
Planning the Wire Route
Before you drill a single hole, take time to plan your wire path. A little planning now can save you hours of frustration later.
Start by identifying where your doorbell button will go (usually on the door frame or siding, about 4–5 feet above the ground) and where the chime will be installed (often in a central hallway).
Then, trace the shortest possible path between the two points. Ideally, you want to go:
– From the doorbell button → into the wall cavity → up or down to the attic or basement → across to the chime location → into the wall near the chime.
Why go through the attic or basement? Because these spaces are usually unfinished and easier to access. Running wire through them avoids having to drill through multiple studs or floors.
Use your stud finder to map out studs, electrical wires, and pipes in the walls. You’ll want to avoid drilling into these. Most studs are 16 or 24 inches apart, so you can often find a gap between them to feed the wire.
If you’re going through the attic, check that there’s a clear path from the exterior wall to the interior wall where the chime will go. Look for insulation, HVAC ducts, or other obstructions.
For basements, make sure the wire can reach from the exterior wall up to the floor joists and across to the chime location.
Mark your entry and exit points with a pencil. For the doorbell button, this is usually a small hole drilled through the siding or brick. For the chime, it’s often behind the mounting plate.
Step 1: Turn Off Power (If Necessary)
Even though doorbell systems are low voltage, it’s smart to turn off power if you’re working near electrical outlets, switches, or the transformer.
Locate your doorbell transformer—it’s usually near your electrical panel, furnace, or in a closet. It looks like a small black box with wires coming out. Some are plugged into an outlet; others are hardwired.
If it’s plugged in, unplug it. If it’s hardwired, turn off the breaker that controls it (this may be labeled “doorbell” or “transformer”). Use a non-contact voltage tester to confirm the power is off.
This step isn’t always necessary, but it’s a good habit—especially if you’re drilling near electrical wires.
Step 2: Drill the Entry and Exit Holes
Now it’s time to create access points for the wire.
Drilling at the Doorbell Button Location
Use a 1/4-inch drill bit to drill a hole through the exterior wall at the spot where the doorbell button will mount. Angle the drill slightly downward to prevent water from entering the wall.
If you’re drilling through brick or masonry, use a masonry bit and a hammer drill. Go slow and wear safety glasses.
Drilling at the Chime Location
Inside, drill a small hole (1/4-inch) in the wall where the chime will go. This hole should line up with the path you planned—ideally between two studs.
If you’re going through the attic or basement, you may need to drill a larger hole (up to 1 inch) in the top or bottom plate of the wall to feed the fish tape through.
Connecting the Holes (If Needed)
If your route involves going through a wall cavity (not via attic or basement), you’ll need to connect the two holes inside the wall.
Use your flexible drill bit to drill from one hole toward the other. Go slowly and listen for changes in sound—this can tell you if you’re hitting a stud or obstruction.
If you hit a stud, you may need to drill through it (use a longer bit) or adjust your route.
Step 3: Feed the Fish Tape
Now comes the fun part—fishing the wire.
Insert the Fish Tape
Feed the fish tape into one of the holes (usually the exterior one). Push it gently through the wall cavity, guiding it toward the other hole.
If you’re going through the attic or basement, feed the fish tape down from the attic or up from the basement into the wall cavity.
Navigate Obstacles
As you feed the tape, you may encounter insulation, nails, or other debris. Go slowly and use a twisting motion to help it move through.
If the tape gets stuck, don’t force it. Pull it back slightly and try a different angle.
Retrieve the Fish Tape
Once the tip of the fish tape appears at the other hole, carefully pull it out. Have a helper hold the tape steady if possible.
Step 4: Attach the Doorbell Wire
Now it’s time to connect the wire to the fish tape.
Strip the Wire Ends
Strip about 1/2 inch of insulation from the end of the doorbell wire. Be careful not to cut the copper strands inside.
Secure the Wire to the Fish Tape
Fold the stripped end of the wire back on itself to create a loop. Insert it into the hook or eye at the end of the fish tape. Wrap the connection tightly with electrical tape to prevent it from slipping.
Make sure the tape doesn’t create a bulge that could get caught in the wall.
Apply Wire Lubricant (Optional)
If the wall is long or tight, apply a small amount of wire lubricant to the wire. This reduces friction and makes pulling easier.
Step 5: Pull the Wire Through
With the wire securely attached, slowly pull the fish tape back through the wall.
Pull Gently and Steadily
Don’t yank the tape. Pull with steady, even pressure. If it gets stuck, stop and wiggle the tape slightly to free it.
Use a Helper
If possible, have someone feed the wire from the other side to prevent it from kinking or snagging.
Watch for Damage
As the wire comes through, inspect it for cuts, frays, or kinks. If the wire is damaged, you may need to start over with a new section.
Step 6: Connect the Wire to the Doorbell and Chime
Once the wire is through, it’s time to make the connections.
At the Doorbell Button
Strip the ends of the wire and connect them to the terminals on the back of the doorbell button. Most buttons have two screws—usually labeled “front” and “trans.” It doesn’t matter which wire goes where.
Secure the button to the wall with screws.
At the Chime Unit
Connect the wires to the corresponding terminals on the chime (usually labeled “Front” and “Trans”). Again, polarity doesn’t matter for doorbells.
Mount the chime to the wall or ceiling.
Connect to the Transformer
The transformer should already be connected to power. Connect the two wires from the chime to the transformer terminals. If the transformer is hardwired, make sure the power is off before making connections.
Step 7: Test the Doorbell
Before you patch any holes or clean up, test the system.
Press the doorbell button. The chime should ring.
If it doesn’t work, check the following:
– Are the wires securely connected?
– Is the transformer receiving power?
– Is the doorbell button functioning? (Test with a multimeter if needed)
If the chime rings weakly or inconsistently, the wire may be damaged or too long. Consider using a higher-gauge wire or a stronger transformer.
Troubleshooting Common Issues
Even with careful planning, problems can happen. Here’s how to fix the most common ones.
The Fish Tape Won’t Go Through
If the fish tape gets stuck, it may be hitting a stud, insulation, or another obstacle. Try feeding it from the other direction. Use a longer, more flexible fish tape. Or, create an access hole in the wall (patch it later with drywall).
The Wire Gets Damaged While Pulling
Thin doorbell wire can tear or kink. To prevent this, use wire lubricant, avoid sharp bends, and pull slowly. If the wire is damaged, cut out the bad section and splice in a new piece using wire nuts or solder.
The Doorbell Doesn’t Ring
Check connections at the button, chime, and transformer. Test the transformer output with a multimeter—it should read 16–24 volts. Replace the button or chime if necessary.
The Wire Is Too Short
If you run out of wire, splice in an extension using wire nuts. Make the connection inside a junction box or behind the chime.
Water Is Getting Into the Wall
If you drilled through siding or brick, seal the hole with exterior-grade caulk to prevent moisture intrusion.
Safety Tips and Best Practices
– Always wear safety glasses and gloves.
– Use a stud finder to avoid drilling into electrical wires or plumbing.
– Don’t force tools—gentle pressure works better.
– Label your wires so you know which is which.
– Keep children and pets away from work areas.
– If you’re unsure, consult an electrician.
When to Call a Professional
Most homeowners can fish doorbell wire with basic tools and patience. But if you encounter any of the following, it’s time to call a pro:
– You can’t find a clear path through the walls.
– You hit electrical wires or plumbing and aren’t sure how to proceed.
– The wall is made of concrete or solid brick.
– You’re uncomfortable with drilling or electrical work.
A licensed electrician can complete the job quickly and safely, often in under an hour.
Conclusion
Fishing doorbell wire through a wall might seem like a daunting task, but with the right tools, planning, and patience, it’s well within the reach of most DIYers. By following this guide, you’ve learned how to safely and effectively run wire from your doorbell button to your chime—without damaging your walls or risking electrical hazards.
Remember: take your time, plan your route, use the right tools, and always test before you finish. A little effort now will give you a reliable, hardwired doorbell that lasts for years.
So grab your drill, your fish tape, and your sense of adventure—and get that doorbell installed like a pro!
