How to Fix a Broken Doorbell Transformer

Is your doorbell not working? It might be a faulty transformer. This guide walks you through diagnosing, replacing, and testing a broken doorbell transformer safely and efficiently. Perfect for DIYers who want to save on electrician costs.

Key Takeaways

Safety First: Always turn off power at the circuit breaker before working on electrical components to prevent shocks or injury.
Identify the Problem: A non-working doorbell could be due to a dead button, wiring issues, or a failed transformer—test each part systematically.
Locate the Transformer: Most doorbell transformers are hidden in the basement, attic, or near the main electrical panel—look for a small box with wires.
Choose the Right Replacement: Match voltage (usually 16V) and power (10–30VA) when buying a new transformer to ensure compatibility.
Use Proper Tools: A non-contact voltage tester, screwdrivers, wire strippers, and electrical tape are essential for a safe and effective repair.
Test After Installation: Always verify the new transformer works by pressing the doorbell button and checking for sound or chime response.
When to Call a Pro: If you’re uncomfortable with electrical work or the issue persists after replacement, consult a licensed electrician.

So your doorbell isn’t working—again. You press the button, but there’s no chime, no buzz, nothing. You’ve already checked the batteries in the button (if it’s wireless), and the wires look fine. What now?

Chances are, the culprit is a broken doorbell transformer. This small but crucial component converts your home’s standard 120-volt electrical supply into the low-voltage power (usually 16 volts) that your doorbell needs to function. When it fails, your doorbell goes silent—even if everything else seems fine.

The good news? Fixing a broken doorbell transformer is one of the most straightforward DIY electrical repairs you can do. You don’t need to be an electrician. With the right tools, a bit of caution, and this step-by-step guide, you can replace a faulty transformer in under an hour and save yourself a costly service call.

In this guide, you’ll learn how to safely diagnose a broken doorbell transformer, locate it in your home, remove the old one, install a new one, and test your doorbell to make sure it’s working perfectly. We’ll also cover common mistakes to avoid and when it’s time to call in a professional.

Let’s get started.

What Is a Doorbell Transformer?

Before we dive into the repair, it’s important to understand what a doorbell transformer does—and why it matters.

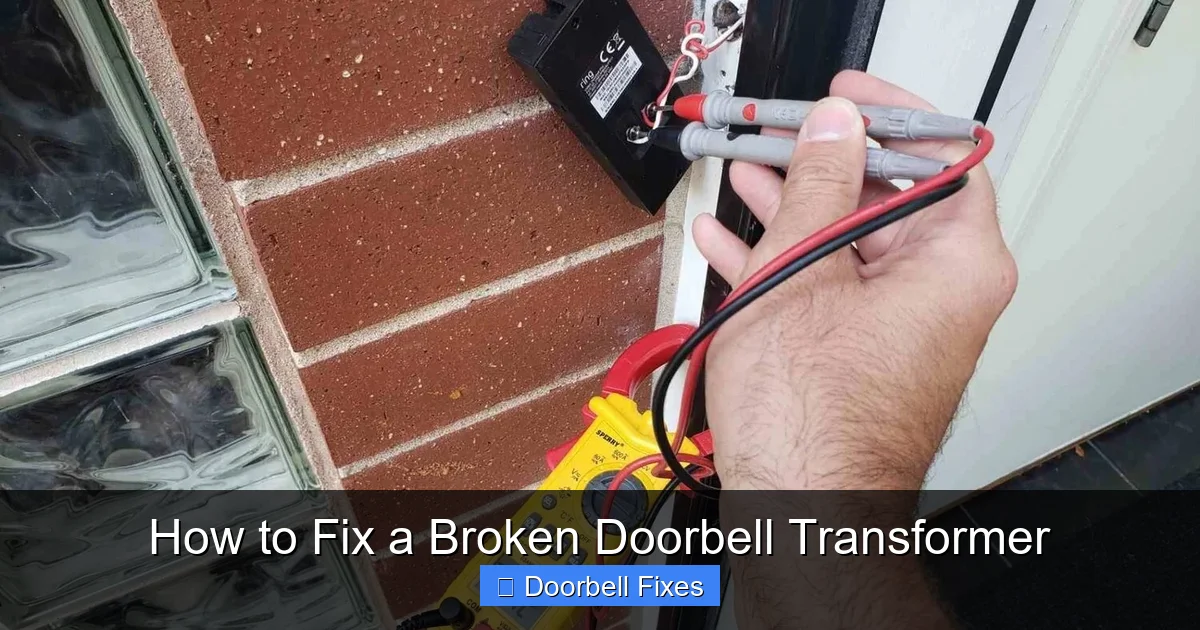

Visual guide about How to Fix a Broken Doorbell Transformer

Image source: i2.wp.com

A doorbell transformer is a small electrical device that steps down the high voltage from your home’s main electrical system (typically 120 volts AC) to a much safer, lower voltage (usually 8 to 24 volts AC) that your doorbell can use. Most residential doorbells operate on 16 volts, though some older or high-end models may use 10 or 24 volts.

The transformer is usually mounted near your home’s electrical panel, inside the basement, in the attic, or even inside a junction box near the doorbell chime. It’s often tucked away and easy to overlook, which is why many homeowners don’t know where to find it when their doorbell stops working.

Transformers can fail for several reasons: age, overheating, power surges, or moisture exposure. When they do, the doorbell receives no power—even if the button and chime are in perfect condition.

So how do you know if the transformer is the problem? Let’s look at the signs.

Signs Your Doorbell Transformer Is Broken

Not every silent doorbell means a dead transformer. But if you’ve ruled out other common issues—like a loose wire, a stuck button, or a dead chime—then the transformer is a likely suspect.

Here are the most common signs that your doorbell transformer has failed:

No sound at all when the button is pressed: If the chime doesn’t buzz, click, or ring—even faintly—the transformer may not be supplying power.
Intermittent operation: The doorbell works sometimes but not others. This could indicate a loose connection or a failing transformer.
Weak or distorted sound: A faint buzz or crackling noise instead of a clear chime often points to low voltage from a struggling transformer.
Burning smell near the electrical panel or chime: This is a serious red flag. A burning odor could mean the transformer is overheating and needs immediate replacement.
Visible damage: If you can access the transformer and see burn marks, melted plastic, or a bulging casing, it’s definitely time for a new one.

If you notice any of these symptoms, it’s time to test the transformer. But first—safety first.

Safety First: Preparing for the Repair

Working with electricity is never something to take lightly. Even though doorbell transformers use low voltage, they’re still connected to your home’s main power supply. A mistake could result in electric shock, fire, or damage to your doorbell system.

Follow these safety steps before you begin:

Turn Off the Power

The most important step is to shut off the power to the doorbell circuit at the main electrical panel (breaker box). Here’s how:

Locate your home’s electrical panel. It’s usually in the basement, garage, or utility closet.
Look for the breaker labeled “Doorbell,” “Chime,” or “Front Door.” If there isn’t a label, you may need to test breakers one by one.
Flip the breaker to the “OFF” position. Use a non-contact voltage tester to confirm the power is off at the transformer location.

Pro Tip: If you can’t find a dedicated doorbell breaker, turn off the main breaker to be safe. This cuts power to the entire house, so plan accordingly.

Gather Your Tools and Materials

You’ll need a few basic tools to complete this repair. Here’s what to have on hand:

Non-contact voltage tester (essential for safety)
Screwdrivers (flathead and Phillips)
Wire strippers
Electrical tape
Replacement doorbell transformer (match voltage and VA rating)
Wire nuts (usually included with the new transformer)
Flashlight (if working in a dark area like an attic or basement)

Most of these items are inexpensive and available at any hardware store or online. If you’re missing something, now’s the time to grab it.

Wear Protective Gear

While the risk is low, it’s smart to wear safety glasses and work gloves. This protects your eyes from dust and your hands from sharp edges or accidental contact with live wires.

Now that you’re prepared, let’s find that transformer.

Step 1: Locate the Doorbell Transformer

The transformer is the heart of your doorbell system, but it’s often hidden in an unexpected place. Here’s where to look:

Common Locations

Near the electrical panel: Many transformers are mounted directly on or near the main breaker box. Look for a small metal or plastic box with two or three wires coming out.
Basement or crawlspace: If your home has a basement, check the ceiling joists or walls near the front door. The transformer may be tucked between beams.
Attic: In some homes, especially older ones, the transformer is installed in the attic above the front door or chime location.

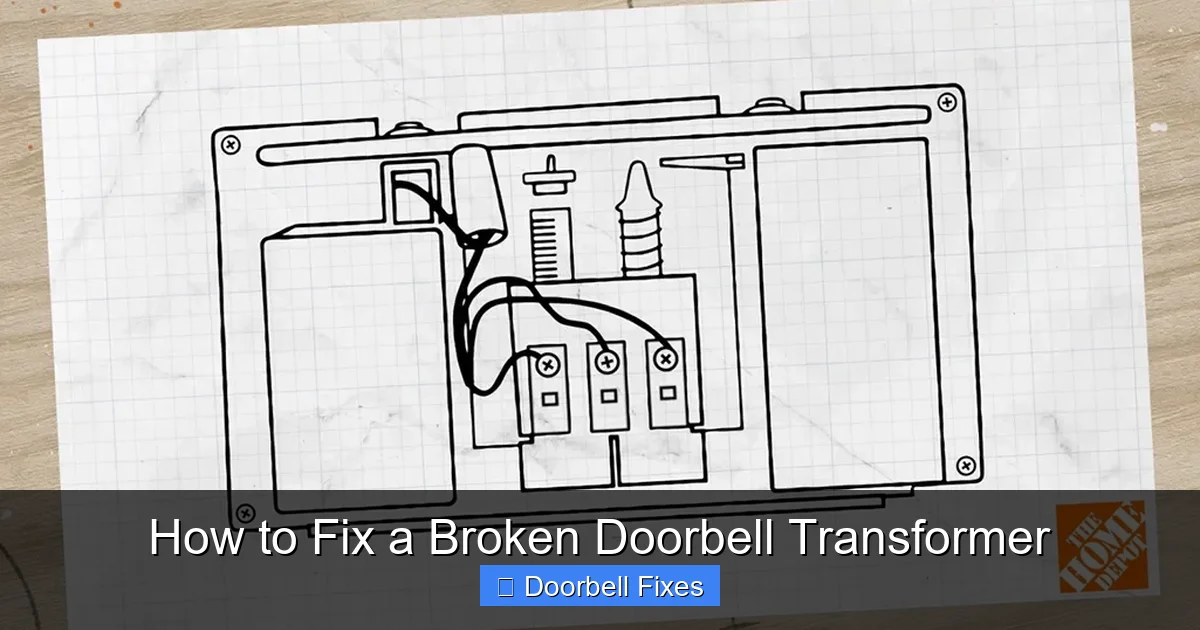

Inside the doorbell chime box: Some models have the transformer built into the chime unit itself. Open the chime cover to check.
Inside a junction box: The transformer might be housed in a standard electrical junction box near the doorbell wiring path.

How to Identify It

The transformer will typically have:

A small rectangular or cylindrical shape (about the size of a deck of cards)
Two or three wires connected to it (usually black, white, and sometimes red)
A label indicating voltage (e.g., “16V”) and power rating (e.g., “10VA” or “30VA”)
Mounting screws or clips holding it in place

If you’re having trouble finding it, follow the doorbell wires from the chime or button. They should lead back to the transformer.

Pro Tip: Take a photo of the wiring setup before disconnecting anything. This will help you reconnect the new transformer correctly.

Step 2: Test the Transformer (Optional but Recommended)

Before replacing the transformer, it’s wise to confirm it’s actually broken. You can do this with a multimeter or a simple voltage test.

Using a Multimeter

If you have a digital multimeter, follow these steps:

Set the multimeter to measure AC voltage (usually marked “V~”).
Turn the power back on at the breaker (temporarily).
Touch the multimeter probes to the two low-voltage terminals on the transformer (usually labeled “Common” and “Front” or “Trans”).
Read the voltage. A working 16V transformer should show between 14 and 18 volts.

If the reading is 0 or very low (under 10V), the transformer is likely faulty.

Using a Non-Contact Voltage Tester

If you don’t have a multimeter, you can use a non-contact voltage tester to check for power:

Turn the power back on.
Hold the tester near the transformer’s low-voltage wires.
If the tester beeps or lights up, power is present—but that doesn’t guarantee the transformer is outputting the correct voltage.

This method is less precise but can help rule out a complete power failure.

If the transformer is dead, it’s time to replace it. Turn the power back off before proceeding.

Step 3: Remove the Old Transformer

Now that you’ve confirmed the transformer is faulty, it’s time to remove it. Follow these steps carefully:

Disconnect the Wires

Use your screwdriver to loosen the terminal screws on the transformer.
Carefully remove the wires. Note which wire goes where—usually, one connects to the doorbell button and the other to the chime.
If the wires are connected with wire nuts, unscrew the nuts and separate the wires.

Important: Do not let the bare wire ends touch each other or any metal surface. This could cause a short circuit when power is restored.

Remove the Mounting Screws

Use a screwdriver to remove the screws holding the transformer to the electrical box or mounting bracket.
Gently pull the transformer away from the wall or panel.

Set the old transformer aside. You can dispose of it with regular household trash—most are not recyclable.

Step 4: Install the New Transformer

Now for the fun part—installing the new transformer. Make sure you’ve purchased the correct replacement.

Choosing the Right Transformer

When buying a new transformer, match these specifications:

Voltage: Most doorbells use 16 volts. Check your old transformer or doorbell manual to confirm.
Power (VA): This stands for volt-amperes. Common ratings are 10VA, 15VA, 20VA, and 30VA. Higher VA means more power—useful if you have multiple chimes or a video doorbell.
Mounting style: Choose a transformer that fits your existing setup (e.g., screw-in, snap-in, or inline).

If you’re unsure, a 16V, 10VA transformer works for most standard doorbells. For Ring or Nest doorbells, check the manufacturer’s requirements—some need 16V 30VA.

Mount the New Transformer

Position the new transformer in the same location as the old one.
Secure it with the provided screws or mounting clips.
Make sure it’s firmly attached and won’t vibrate or loosen over time.

Connect the Wires

Strip about 1/2 inch of insulation from the ends of the wires if needed.
Connect the wires to the corresponding terminals on the new transformer. Usually, it doesn’t matter which wire goes where—doorbell circuits are not polarized.
Tighten the terminal screws securely.
If using wire nuts, twist the wires together and screw on the nut until tight.
Wrap connections with electrical tape for extra safety.

Pro Tip: Label the wires with tape if you’re worried about mixing them up. For example, “Front Door” and “Chime.”

Step 5: Restore Power and Test the Doorbell

You’re almost done! Now it’s time to turn the power back on and see if your doorbell works.

Turn the Power Back On

Go to the electrical panel and flip the breaker back to the “ON” position.
Listen for any unusual sounds (buzzing, clicking) from the transformer or chime.

Test the Doorbell

Press the doorbell button.
Listen for the chime or buzzer.
If it works, great! You’ve successfully fixed your doorbell.
If not, proceed to the troubleshooting section below.

Bonus Test: Use your multimeter to check the voltage at the chime terminals. You should see the expected voltage (e.g., 16V). This confirms the transformer is working correctly.

Troubleshooting Common Issues

Even after replacing the transformer, your doorbell might still not work. Here’s how to fix common problems:

Doorbell Still Doesn’t Ring

Check the button: The button itself might be faulty. Remove it and touch the two wires together. If the chime rings, the button is the problem.
Inspect the wiring: Look for loose, corroded, or broken wires between the transformer, button, and chime.
Test the chime: If the chime is mechanical, it might have a stuck mechanism. Tap it gently or replace it.

Transformer Hums or Gets Hot

This could mean the transformer is overloaded or defective.
Check the VA rating—your doorbell may need more power than the transformer can provide.
Ensure the wires are not shorted or touching metal.

Intermittent Operation

Loosen connections can cause this. Double-check all wire connections and tighten them.
Look for corrosion on terminals—clean with a wire brush if needed.

No Power at the Transformer

Double-check the breaker. It may have tripped again.
Use a voltage tester to confirm power is reaching the transformer’s input terminals.
If no power, the issue may be with the circuit wiring—call an electrician.

When to Call a Professional

While replacing a doorbell transformer is a DIY-friendly task, there are times when it’s best to call a licensed electrician:

You’re uncomfortable working with electricity.
The transformer is hardwired into a complex system or buried behind walls.
You can’t locate the transformer after a thorough search.
The breaker trips immediately when turned on.
You suspect broader electrical issues, like faulty wiring or overloaded circuits.

Your safety is more important than saving a few dollars. If in doubt, get help.

Final Thoughts

Fixing a broken doorbell transformer is a simple, rewarding DIY project that can save you time and money. With the right tools, a bit of caution, and this guide, you can restore your doorbell to full working order in under an hour.

Remember: always turn off the power, test before you replace, and double-check your connections. And if something doesn’t feel right, don’t hesitate to call a pro.

Now go enjoy the satisfying *ding-dong* of a working doorbell—you’ve earned it.
