Hardwiring a battery Ring Doorbell ensures uninterrupted power and eliminates the need for frequent battery changes. This guide walks you through the entire process—from checking compatibility to final testing—so you can enjoy reliable, always-on smart doorbell functionality.
Key Takeaways
- Check compatibility first: Not all battery Ring Doorbells support hardwiring—only models like the Ring Video Doorbell 2, 3, 3 Plus, 4, and Pro can be hardwired while retaining battery backup.
- Turn off power at the breaker: Safety is critical—always shut off electricity at the circuit breaker before working with doorbell wiring.
- Use the right tools: A voltage tester, screwdriver, wire strippers, and drill (if needed) are essential for a clean, safe installation.
- Follow wiring color codes: Match transformer wires (usually red and white) to the corresponding terminals on your doorbell chime and Ring device.
- Test before finalizing: Always test the connection and chime operation before securing the Ring Doorbell to the mounting bracket.
- Enable hardwired mode in the app: After installation, update your Ring app settings to switch from battery to hardwired power mode for optimal performance.
- Keep the battery installed: Even when hardwired, leave the battery in place—it acts as a backup during power outages.
How to Hardwire a Battery Ring Doorbell: A Complete Step-by-Step Guide
If you’re tired of constantly recharging your Ring Doorbell battery, hardwiring it might be the perfect solution. While Ring’s battery-powered doorbells offer flexible installation, they do require regular maintenance. By hardwiring your battery Ring Doorbell, you get continuous power, fewer interruptions, and peace of mind knowing your smart doorbell is always online.
In this comprehensive guide, we’ll walk you through the entire process of hardwiring a battery Ring Doorbell—safely and correctly. You’ll learn which models are compatible, what tools you need, how to connect the wires, and how to configure your Ring app for hardwired mode. Whether you’re a DIY enthusiast or a first-time installer, this guide will help you get the job done right.
Why Hardwire Your Battery Ring Doorbell?
Visual guide about How to Hardwire a Battery Ring Doorbell
Image source: i2.wp.com
Before diving into the installation, it’s important to understand why hardwiring is beneficial. Ring’s battery doorbells are designed for easy setup—no wires needed. But that convenience comes with a trade-off: you’ll need to remove and recharge the battery every few months, depending on usage.
Hardwiring solves this problem. It provides constant power from your home’s electrical system, so your doorbell never runs out of juice. Plus, hardwired models often support advanced features like pre-roll video, two-way audio, and faster motion detection—features that can be limited on battery-only mode.
Another advantage? Hardwiring reduces wear and tear on the battery. Over time, frequent charging can degrade battery life. With hardwiring, the battery acts as a backup, preserving its longevity.
Finally, hardwired doorbells are less likely to disconnect due to low power, ensuring you never miss a visitor or package delivery.
Is Your Ring Doorbell Compatible with Hardwiring?
Not all Ring Doorbells can be hardwired. Only certain battery-powered models support dual power—battery and wired. Here’s a quick breakdown:
- Ring Video Doorbell 2 – Compatible with hardwiring
- Ring Video Doorbell 3 – Compatible
- Ring Video Doorbell 3 Plus – Compatible
- Ring Video Doorbell 4 – Compatible
- Ring Video Doorbell Pro – Compatible (but requires a Pro Power Kit)
Models like the Ring Video Doorbell (1st Gen) and Ring Video Doorbell Wired are not compatible with battery operation and cannot be hardwired in the same way.
To confirm your model, check the back of the device or go to the Ring app > Device Settings > Device Health. If you see an option for “Power Source” or “Hardwired Mode,” your doorbell supports hardwiring.
Tools and Materials You’ll Need
Before starting, gather the following tools and materials:
- Voltage tester (non-contact)
- Screwdriver (Phillips and flathead)
- Wire strippers
- Electrical tape
- Drill and drill bits (if mounting on brick or concrete)
- Level
- Pencil or marker
- Optional: Fish tape or wire puller (for running new wires)
You’ll also need access to your existing doorbell wiring and transformer. Most homes have a doorbell transformer that steps down household voltage (120V) to 8–24V AC, which is safe for doorbells.
If your current transformer is underpowered (less than 16V, 10VA), you may need to upgrade it. Ring recommends a 16–24V AC transformer with at least 20VA for optimal performance.
Step 1: Turn Off Power at the Breaker
Safety first! Before touching any wires, turn off the power to your doorbell circuit at the main electrical panel. This is crucial to avoid electric shock.
Locate the breaker labeled “Doorbell,” “Chime,” or something similar. If you’re unsure, turn off the main breaker to be safe.
Once the power is off, use a non-contact voltage tester to confirm that the wires are not live. Touch the tester to the doorbell wires at the wall or chime unit. If it doesn’t beep or light up, you’re good to proceed.
Step 2: Remove the Existing Doorbell
If you have an old doorbell, you’ll need to remove it to access the wiring.
Unscrew the Old Doorbell
Use a screwdriver to remove the mounting screws holding the old doorbell to the wall. Gently pull the device away from the wall to expose the wires.
Disconnect the Wires
Take a photo of the wiring setup for reference. Then, loosen the terminal screws and disconnect the two wires (usually red and white). Be careful not to let the wires fall back into the wall.
If the wires are short, you may need to gently pull them out to work with them comfortably.
Step 3: Prepare the Wiring
Now it’s time to prepare the wires for your Ring Doorbell.
Strip the Wire Ends
Use wire strippers to remove about 1/4 inch of insulation from the ends of both wires. This exposes fresh copper for a solid connection.
Twist the Strands
If the wires are stranded (multiple thin wires), twist them gently to keep them together. This prevents fraying and ensures a clean connection.
Secure with Electrical Tape (Optional)
If the wires are loose or frayed, wrap the exposed ends with electrical tape to prevent short circuits.
Step 4: Install the Ring Mounting Bracket
The Ring Doorbell comes with a mounting bracket that holds the device securely. You’ll attach this bracket to your wall first.
Position the Bracket
Hold the bracket against the wall where you want to install the doorbell. Use a level to ensure it’s straight. Mark the screw holes with a pencil.
Drill Pilot Holes
If you’re mounting on wood, you can screw directly into the wall. For brick, stucco, or concrete, drill pilot holes using a masonry bit. Insert wall anchors if needed.
Attach the Bracket
Secure the bracket with the provided screws. Make sure it’s tight and level.
Route the Wires Through the Bracket
Feed the two doorbell wires through the center hole of the mounting bracket. This keeps them neat and accessible.

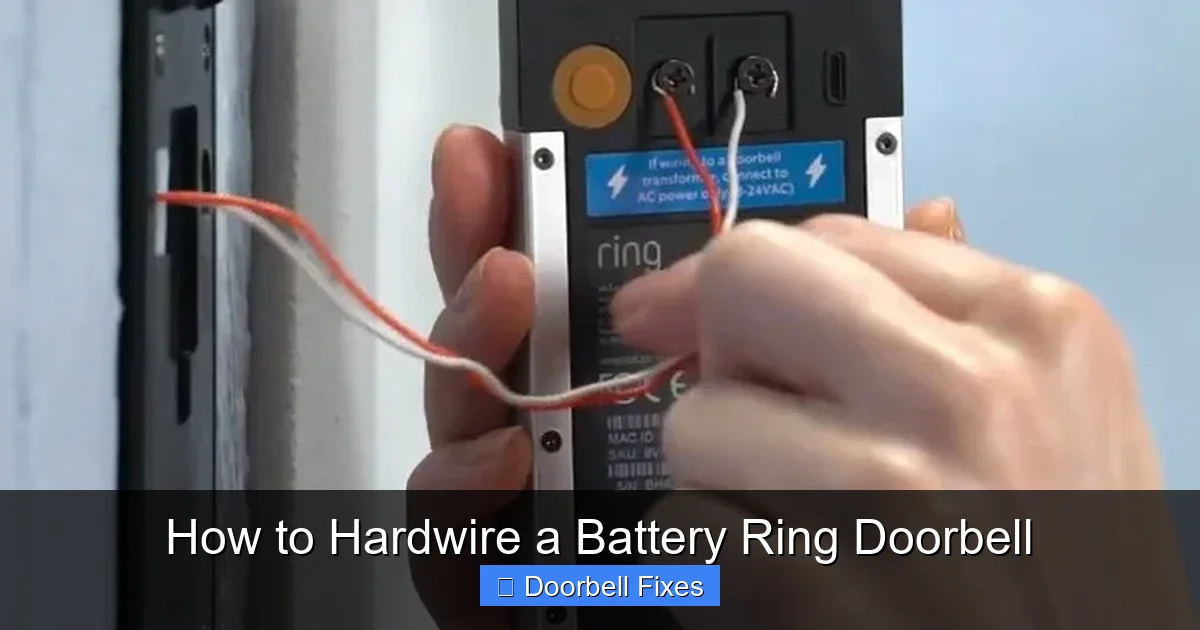

Step 5: Connect the Wires to the Ring Doorbell
Now it’s time to connect the wires to your Ring Doorbell.
Open the Terminal Cover
On the back of the Ring Doorbell, you’ll see two small terminal screws labeled “Front” and “Trans.” These are for connecting the wires.
Connect the Wires
Loosen the terminal screws slightly. Insert one wire into the “Front” terminal and the other into the “Trans” terminal. Tighten the screws to secure the wires.
Note: The wire colors don’t matter—just make sure each wire goes into a different terminal. Ring’s system is polarity-agnostic.
Double-Check Connections
Give each wire a gentle tug to ensure it’s secure. Loose connections can cause power issues or intermittent operation.
Step 6: Attach the Ring Doorbell to the Bracket
With the wires connected, it’s time to mount the doorbell.
Align the Device
Hold the Ring Doorbell against the mounting bracket. Align the screw holes on the back of the device with the bracket.
Secure with Screws
Use the provided security screws to attach the doorbell to the bracket. These screws require a special tool (included) to prevent tampering.
Tuck Excess Wire
If there’s extra wire, gently tuck it into the wall cavity behind the bracket. Avoid pinching or bending the wires sharply.
Step 7: Restore Power and Test the System
Now that everything is connected, it’s time to test your work.
Turn the Power Back On
Go to your breaker panel and turn the doorbell circuit back on.
Check the Chime
Press the doorbell button. Your existing chime should ring. If it doesn’t, double-check the wiring and connections.
Test the Ring App
Open the Ring app on your phone. Go to Device Settings > Device Health. You should see a notification that the doorbell is receiving power.
If the app shows “Hardwired Mode” or “Wired Power,” you’re all set. If it still shows “Battery Power,” you may need to enable hardwired mode manually.
Step 8: Enable Hardwired Mode in the Ring App
Even with wires connected, your Ring Doorbell may still operate in battery mode by default. You need to switch it to hardwired mode for full functionality.
Open the Ring App
Launch the app and select your doorbell from the dashboard.
Go to Device Settings
Tap the gear icon to access settings.
Select Power Settings
Look for “Power Source” or “Power Settings.” Choose “Hardwired” or “Wired Power.”
Confirm the Change
The app will prompt you to confirm. Tap “Yes” or “Enable.”
Once enabled, your doorbell will prioritize wired power and use the battery only as a backup.
Step 9: Adjust Motion and Notification Settings
With hardwired power, your doorbell can support enhanced features. Take a moment to optimize your settings.
Enable Pre-Roll Video
This feature captures a few seconds of video before motion is detected. Go to Device Settings > Video Settings > Pre-Roll and turn it on.
Adjust Motion Zones
Customize motion detection areas to reduce false alerts. Use the motion zone tool in the app to draw boundaries.
Set Notification Preferences
Choose when and how you receive alerts—immediately, during certain hours, or only for specific motion types.
Troubleshooting Common Issues
Even with careful installation, you might run into problems. Here are solutions to common issues.
Doorbell Won’t Power On
- Check that the breaker is on.
- Use a voltage tester to confirm power at the wires.
- Ensure wires are securely connected to the terminals.
- Verify the transformer is providing at least 16V AC.
Chime Doesn’t Ring
- Make sure the wires are connected to the correct terminals on the chime unit.
- Check that the chime is compatible with Ring (most mechanical chimes are).
- If using a digital chime, you may need a Ring Chime Pro.
App Shows “Low Power” or “Battery Only”
- Confirm hardwired mode is enabled in the app.
- Check for loose or corroded wires.
- Ensure the transformer is powerful enough (20VA recommended).
Video Quality Is Poor or Laggy
- Hardwired power should improve performance, but Wi-Fi strength also matters.
- Move your router closer or use a Wi-Fi extender.
- Check for interference from other devices.
Battery Drains Quickly Even When Hardwired
- This shouldn’t happen—if it does, the doorbell may not be receiving enough power.
- Test the voltage at the doorbell terminals.
- Consider upgrading the transformer.
Tips for a Successful Installation
- Label your wires before disconnecting the old doorbell to avoid confusion.
- Use a fish tape if you need to run new wires through walls.
- Install during daylight for better visibility and safety.
- Keep the battery installed—it’s a backup during outages.
- Update your Ring app before starting to ensure compatibility.
- Take photos at each step to help with troubleshooting.
When to Call a Professional
While hardwiring a Ring Doorbell is a manageable DIY project, some situations call for professional help:
- You’re unsure about your electrical system or breaker panel.
- Your home lacks existing doorbell wiring.
- You need to install a new transformer or run new wires through walls.
- You’re uncomfortable working with electricity.
A licensed electrician can ensure safe, code-compliant installation and prevent damage to your home’s wiring.
Conclusion
Hardwiring your battery Ring Doorbell is a smart upgrade that enhances reliability, performance, and convenience. By following this step-by-step guide, you can safely connect your doorbell to your home’s electrical system and enjoy uninterrupted smart doorbell functionality.
Remember to prioritize safety—always turn off power at the breaker and use a voltage tester. Double-check your connections, enable hardwired mode in the app, and test everything before finishing. With the right tools and a little patience, you’ll have a professionally installed Ring Doorbell that never runs out of power.
Whether you’re upgrading from battery-only mode or replacing an old doorbell, hardwiring is a worthwhile investment in home security and peace of mind.
