How to Hook Up Doorbell Transformer to a Junction Box
If your doorbell has stopped working or you’re installing a new one, the issue might be a faulty or improperly connected transformer. The transformer is the heart of your doorbell system—it steps down your home’s standard 120-volt electrical supply to a safe, low-voltage level (usually 16V or 24V) that powers the doorbell button and chime. One of the most common and effective ways to install or replace this component is by hooking it up to a junction box.
In this comprehensive guide, you’ll learn exactly how to hook up a doorbell transformer to a junction box safely and correctly. Whether you’re a DIY enthusiast or a homeowner tackling your first electrical project, we’ll walk you through every step—from gathering tools to testing the final connection. We’ll also cover safety tips, troubleshooting common issues, and best practices to ensure your doorbell works reliably for years to come.
By the end of this guide, you’ll have the confidence and knowledge to install a doorbell transformer like a pro—no electrician required (unless you prefer one, of course!).
What Is a Doorbell Transformer and Why Does It Matter?
Visual guide about How to Hook Up Doorbell Transformer to a Junction Box

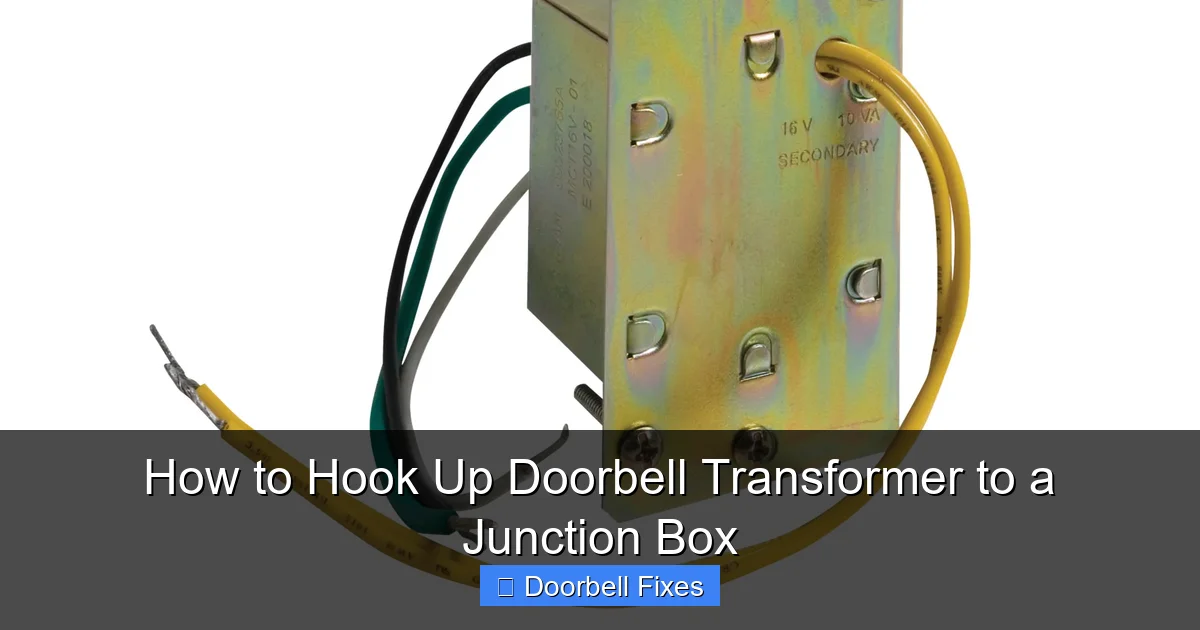

Image source: broan-nutone.com
Before diving into the installation, it’s important to understand what a doorbell transformer does and why it’s essential.
A doorbell transformer is a small electrical device that converts high-voltage household current (120 volts AC) into low-voltage current (typically 16 to 24 volts AC). This lower voltage is safe for the doorbell button, wiring, and chime unit. Without a functioning transformer, your doorbell won’t receive power, and pressing the button won’t produce a ring.
Most modern doorbells use a plug-in transformer that connects to an electrical outlet, but many older homes—and some newer installations—use a hardwired transformer mounted directly to a junction box inside the wall or attic. This method is more permanent and often preferred for reliability and aesthetics.
Mounting the transformer to a junction box offers several advantages:
– It keeps the transformer out of sight.
– It protects the wiring from damage.
– It provides a secure, code-compliant connection point.
– It allows for easier maintenance and future upgrades.
Now that you understand its role, let’s get into the step-by-step process of hooking up your doorbell transformer to a junction box.
Tools and Materials You’ll Need
Before starting, gather all the necessary tools and materials. Having everything ready will make the process smoother and safer.
Essential Tools
- Screwdrivers: Both flathead and Phillips head for removing covers and tightening terminals.
- Voltage tester or multimeter: To confirm power is off and verify output voltage.
- Wire strippers: For removing insulation from electrical wires.
- Needle-nose pliers: Useful for bending and securing small wires.
- Electrical tape: For insulating connections.
- Wire nuts: To safely join wires together.
- Drill and drill bits (optional): If you need to create new mounting holes.
- Safety gloves and goggles: Protect your hands and eyes from accidental shocks or debris.
Materials
- Doorbell transformer: Choose one compatible with your doorbell system (usually 16V or 24V, 10–30VA).
- Junction box: A standard electrical junction box (metal or plastic) with mounting holes.
- Screws or mounting brackets: To secure the transformer to the junction box.
- Low-voltage doorbell wire: Typically 18- or 20-gauge, used to connect the transformer to the doorbell and chime.
- Wire labels or colored tape: Helps identify wires during installation.
Safety First
Always prioritize safety when working with electricity. Even though the transformer outputs low voltage, the input side connects directly to your home’s 120V circuit—enough to cause serious injury or death if mishandled.
Before touching any wires, turn off the power at the main electrical panel. Use a voltage tester to double-check that the circuit is dead. Never assume a circuit is off just because a switch is flipped.
Step 1: Turn Off the Power
Safety cannot be overstated. The first and most critical step is to shut off the power to the circuit you’ll be working on.
Locate the Correct Circuit Breaker
Go to your home’s main electrical panel (breaker box). Look for the breaker labeled “Doorbell,” “Front Door,” or something similar. If there’s no label, you may need to test circuits one by one.
To do this safely:
– Turn off one breaker at a time.
– Go to the doorbell location and press the button.
– If the chime doesn’t ring, that’s likely the correct circuit.
– Label the breaker once identified.
Test for Power
Even after turning off the breaker, use a non-contact voltage tester to confirm no electricity is flowing to the wires. Touch the tester to the wires inside the junction box. If it beeps or lights up, the power is still on—double-check the breaker.
Lock Out the Breaker (Optional but Recommended)
If you’re working alone or want extra safety, use a breaker lock or tape to prevent someone from accidentally turning the power back on while you’re working.
Step 2: Access the Junction Box
Now that the power is off, locate the junction box where you’ll install the transformer. This is typically found in the attic, basement, garage, or inside a wall near the doorbell chime.
Remove the Cover Plate
Use a screwdriver to remove the cover plate of the junction box. Inside, you should see the existing electrical wires—usually black (hot), white (neutral), and possibly a bare copper or green (ground) wire.
Inspect the Wiring
Check the condition of the wires. Look for fraying, burn marks, or loose connections. If you see damage, it may indicate a previous fault or overheating—consider consulting an electrician.
Plan the Layout
Decide where to mount the transformer inside or on the junction box. Most transformers come with mounting holes or brackets. Ensure there’s enough space for the transformer and that it won’t interfere with other components.
Step 3: Mount the Transformer
With the junction box open and power confirmed off, it’s time to install the transformer.
Position the Transformer
Place the transformer inside the junction box or attach it to the side using screws or a mounting bracket. Make sure it’s secure and won’t move around.
Some transformers are designed to snap into a standard electrical box knockout. If yours has this feature, remove a knockout plug from the junction box and insert the transformer until it clicks into place.
Secure with Screws
If your transformer uses screws, drill pilot holes (if necessary) and fasten it tightly. Avoid over-tightening, which can crack plastic components.
Leave Room for Wiring
Ensure there’s enough space to route wires without pinching or bending them sharply. Good wire management prevents future shorts and makes troubleshooting easier.
Step 4: Connect the Line Voltage Wires (120V Side)
This step involves connecting the transformer’s input side to your home’s 120-volt electrical supply. Handle with extreme care.
Identify the Input Terminals
Most transformers have clearly labeled input terminals: “Line,” “Hot,” or “120V.” These are usually screw terminals or wire leads.
Strip the Wires
Use wire strippers to remove about ½ inch of insulation from the ends of the black (hot) and white (neutral) wires from the junction box.
Connect the Hot Wire
Attach the black (hot) wire to the “Line” or “Hot” terminal on the transformer. Tighten the screw securely. If your transformer has wire leads instead of terminals, twist the wires together and secure with a wire nut.
Connect the Neutral Wire
Attach the white (neutral) wire to the corresponding terminal or wire lead. Again, ensure a tight connection.
Ground the Transformer (If Applicable)
If your transformer has a green or bare copper ground wire, connect it to the ground wire in the junction box using a wire nut. If the junction box is metal, you may also need to attach the ground wire to the box’s grounding screw.
Double-Check Connections
Before moving on, verify that all line voltage connections are tight and insulated. Loose wires can cause arcing, overheating, or fire.
Step 5: Connect the Low-Voltage Wires (Output Side)
Now it’s time to connect the output side of the transformer to your doorbell system.
Identify the Output Terminals
Look for terminals labeled “Low Voltage,” “Secondary,” or “16V/24V.” These are where you’ll connect the doorbell wires.
Run New Doorbell Wire (If Needed)
If you’re replacing an old transformer or installing a new system, you may need to run new low-voltage wire from the transformer to the doorbell button and chime. Use 18- or 20-gauge solid-core wire, which is ideal for doorbell circuits.
Route the wire through walls, attic spaces, or baseboards. Avoid sharp bends and keep it away from high-heat areas or moving parts.
Strip and Connect the Wires
Strip about ½ inch of insulation from the ends of the low-voltage wires. Connect one wire to each output terminal on the transformer. It doesn’t matter which wire goes where—doorbell circuits are not polarized.
Tighten the screws securely. If using wire leads, twist them together with the doorbell wires and secure with wire nuts.
Label the Wires (Optional but Helpful)
Use colored tape or labels to mark which wire goes to the doorbell button and which goes to the chime. This makes future troubleshooting much easier.
Step 6: Secure and Organize the Wiring
A neat and secure wiring job prevents future problems and makes your installation look professional.
Tuck Wires Neatly
Gently fold and tuck all wires into the junction box. Avoid overcrowding, which can cause overheating or short circuits.
Use Cable Clamps (If Available)
If your junction box has built-in cable clamps, use them to secure the wires. This prevents strain on the connections.
Insulate Exposed Connections
Wrap any exposed wire nuts or splices with electrical tape for added protection.
Close the Junction Box
Once everything is secure, replace the cover plate. Make sure no wires are pinched between the cover and the box.
Step 7: Restore Power and Test the System
You’re almost done! Now it’s time to turn the power back on and test your work.
Turn On the Breaker
Go back to the electrical panel and flip the breaker back on.
Test the Transformer Output
Use a multimeter set to AC voltage. Touch the probes to the low-voltage output terminals of the transformer. You should read close to the rated voltage (e.g., 16V or 24V). If the reading is zero or very low, double-check your connections.
Test the Doorbell
Go to your front door and press the doorbell button. The chime should ring clearly. If it doesn’t, proceed to the troubleshooting section below.
Check for Heat or Smell
After a few minutes, feel the transformer. It should be slightly warm but not hot. If it’s overheating or you smell burning, turn off the power immediately and recheck your wiring.
Troubleshooting Common Issues
Even with careful installation, problems can occur. Here’s how to fix the most common issues.
Doorbell Doesn’t Ring
- Check the breaker: Ensure power is restored and the correct breaker is on.
- Test the transformer output: Use a multimeter to confirm it’s producing the correct voltage.
- Inspect the doorbell button: A stuck or faulty button can prevent the circuit from completing.
- Check the chime unit: Make sure it’s receiving power and the mechanical parts aren’t jammed.
- Look for loose wires: Vibration or poor connections can cause intermittent failures.
Transformer Overheats
- Overloaded circuit: Ensure the transformer is rated for your doorbell’s power requirements.
- Short circuit: Check for crossed wires or damaged insulation.
- Poor ventilation: Make sure the transformer isn’t enclosed in a tight space without airflow.
Weak or Intermittent Ring
- Low voltage: Measure the output—if it’s below spec, the transformer may be faulty or undersized.
- Long wire runs: Excessive distance can cause voltage drop. Use thicker wire or a higher-voltage transformer.
- Corroded connections: Clean terminals and re-tighten connections.
No Power to Transformer
- Faulty breaker: Test the breaker with a multimeter.
- Loose line connections: Recheck the 120V input wires.
- Blown fuse (if applicable): Some transformers have internal fuses that may need replacement.
Safety Tips and Best Practices
To ensure a safe and long-lasting installation, follow these guidelines:
- Always turn off power before working. Never assume a circuit is dead.
- Use the right tools. Cheap or damaged tools can slip and cause injury.
- Don’t overload the transformer. Match the VA rating to your doorbell’s requirements.
- Keep low-voltage and high-voltage wires separate. Avoid running them in the same conduit unless rated for it.
- Label everything. Future you (or an electrician) will thank you.
- When in doubt, call a pro. Electrical work can be dangerous—don’t risk it.
Conclusion
Hooking up a doorbell transformer to a junction box may seem intimidating at first, but with the right tools, knowledge, and safety precautions, it’s a manageable DIY project. By following this step-by-step guide, you’ve learned how to safely install, wire, and test a transformer that will keep your doorbell working reliably for years.
Remember: safety comes first. Always turn off the power, double-check your connections, and test thoroughly. If something doesn’t feel right, don’t hesitate to consult a licensed electrician.
A properly installed doorbell transformer not only restores functionality but also improves the safety and efficiency of your home’s electrical system. So go ahead—press that button with confidence. Your doorbell is ready to greet your guests.
