How to Identify Doorbell Wires

Identifying doorbell wires doesn’t have to be confusing. This guide walks you through locating, testing, and labeling wires safely so you can install or fix your doorbell with confidence. No electrician needed—just simple tools and clear steps.

Key Takeaways

• Turn off power first: Always shut off the doorbell transformer at the breaker to avoid shocks.
• Use a multimeter: This tool helps confirm voltage and identify live wires safely.
• Look for low-voltage wires: Doorbell wires are typically 16–24 AWG and carry 12–24 volts.
• Trace wires from chime to transformer: Follow the path to understand your wiring layout.
• Label wires during removal: Prevent mix-ups when replacing or upgrading your doorbell.
• Color isn’t always reliable: Wire colors can vary, so test instead of assuming.
• Smart doorbells may need extra power: Some models require a C-wire or power adapter.

How to Identify Doorbell Wires: A Complete DIY Guide

So, you’ve decided to replace your old doorbell or install a shiny new smart doorbell. Great choice! But before you can enjoy that crisp “ding-dong,” you’ll need to figure out which wires do what. Don’t worry—you don’t need to be an electrician to identify doorbell wires. With a few basic tools and some careful steps, you can safely and accurately figure out your doorbell wiring.

In this guide, we’ll walk you through everything you need to know about identifying doorbell wires. Whether you’re troubleshooting a broken chime, upgrading to a video doorbell, or just curious about how it all works, this step-by-step tutorial will give you the confidence to tackle the job yourself.

We’ll cover how to locate your doorbell transformer, trace the wires from the button to the chime, use a multimeter to test voltage, and label everything so you don’t get confused later. Plus, we’ll share practical tips, common mistakes to avoid, and troubleshooting advice for tricky situations.

By the end of this guide, you’ll know exactly how to identify doorbell wires—safely, correctly, and without calling in a pro.

Why Identifying Doorbell Wires Matters

Before we dive into the steps, let’s talk about why this matters. Doorbell systems are simple in theory—press a button, complete a circuit, and the chime rings. But in practice, wiring can be confusing, especially in older homes or when upgrading to modern smart doorbells.

If you mix up the wires, you might:
– Damage your new doorbell
– Cause the chime to stop working
– Create a short circuit
– Even risk a small electrical shock

That’s why taking the time to properly identify doorbell wires is so important. It ensures your installation goes smoothly, your devices work correctly, and you stay safe throughout the process.

Tools You’ll Need

You don’t need a full electrician’s toolkit to identify doorbell wires. Here’s what you’ll need:

• Non-contact voltage tester: This handy tool detects live wires without touching them. It’s great for a quick safety check.
• Multimeter: Essential for measuring voltage and confirming which wire is which. A basic digital multimeter works fine.
• Screwdrivers: Both flathead and Phillips, for removing covers and terminals.
• Wire strippers: In case you need to trim or re-strip wires.
• Electrical tape: For labeling and insulating wires.
• Pen and labels or masking tape: To mark wires so you don’t mix them up.
• Flashlight: For seeing into dark electrical boxes or behind walls.

Most of these tools are probably already in your toolbox. If not, you can pick them up at any hardware store for under $50 total.

Step 1: Turn Off the Power

Safety first! Even though doorbell systems use low voltage, they’re still connected to your home’s electrical circuit through a transformer. That means there’s a small risk of shock—especially if the wiring is old or damaged.

Locate the Doorbell Transformer

The transformer steps down your home’s 120V power to a safer 12–24V for the doorbell. It’s usually found in one of these places:
– Near your electrical panel (breaker box)
– In the attic
– In the basement or crawlspace
– Inside a closet or garage

Look for a small metal or plastic box with wires coming out and a label that says “doorbell” or “transformer.” It often looks like a small gray or black box mounted on a junction box or electrical panel.

Turn Off the Correct Breaker

Once you find the transformer, trace the wires back to the breaker panel. The circuit is usually labeled “doorbell,” “chime,” or “low voltage.” If it’s not labeled, turn off breakers one by one and test the doorbell button until it stops working.

Alternatively, you can turn off the main breaker to be extra safe—but that will cut power to your whole house, so only do this if necessary.

Test for Power

Even after turning off the breaker, use your non-contact voltage tester to double-check. Touch it near the transformer terminals and the doorbell wires. If it beeps or lights up, power is still on—don’t proceed until it’s off.

Step 2: Remove the Doorbell Button

Now that the power is off, it’s time to look at the wires.

Unscrew the Button

Use a screwdriver to remove the doorbell button from the wall. Most buttons are held by two screws. Gently pull it away from the wall—don’t yank it, as the wires are still attached.

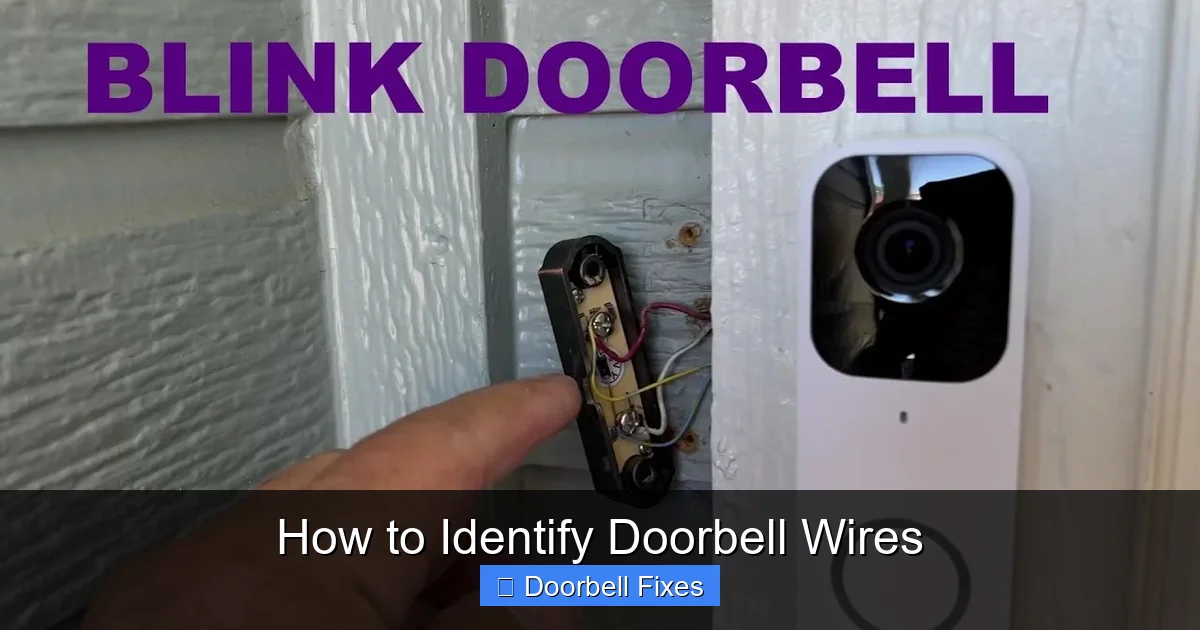

Observe the Wires

You’ll usually see one or two thin wires connected to the back of the button. These are the doorbell wires. They’re typically 16–24 AWG (American Wire Gauge), which is thinner than standard household wiring.

Note: Some older homes may have a single wire with a return path through the ground, but most modern systems use two wires.

Label the Wires

Before disconnecting anything, label the wires with tape or a marker. For example:
– “Front Door – Wire A”
– “Front Door – Wire B”

This is crucial if you have multiple doorbells (like front and back). You don’t want to mix them up when reinstalling.

Step 3: Remove the Chime Unit

The chime (or bell box) is usually inside your home, often near the front door or in a hallway. It’s the device that makes the “ding-dong” sound.

Open the Chime Cover

Most chime units have a front cover that snaps or screws off. Remove it to expose the internal wiring and terminals.

Identify the Terminals

You’ll see several screw terminals labeled something like:
– “Front”
– “Trans”
– “Rear” (if you have a back doorbell)

These labels tell you where each wire connects:
– “Front” = wire from the front doorbell button
– “Rear” = wire from the back doorbell button (if applicable)
– “Trans” = wire from the transformer

Note: Some chimes may use different labels like “T” for transformer or “B” for button.

Label the Chime Wires

Just like with the doorbell button, label each wire before disconnecting. Use the same labels you used at the button (e.g., “Front – Wire A”). This ensures you reconnect everything correctly.

Step 4: Trace the Wiring Path

Now that both ends are exposed, it’s time to understand how the wires connect.

Follow the Wires

Start at the doorbell button and gently pull the wires to see where they go. They usually run through the wall, into the attic or basement, and connect to the chime and transformer.

If the wires are stapled or hidden, don’t force them. Just trace as far as you can.

Locate the Transformer Connection

Go back to the transformer you found earlier. You should see two wires connected to it—these go to the chime. One wire goes to the “Trans” terminal on the chime, and the other completes the circuit.

This confirms the loop: Transformer → Chime → Doorbell Button → Back to Transformer.

Step 5: Use a Multimeter to Test Voltage

Even with the power off, it’s good practice to test the wires when power is restored. This confirms which wire is which and ensures everything is working.

Turn Power Back On (Temporarily)

Flip the breaker back on to restore power to the doorbell circuit. Do this only when you’re ready to test—don’t leave it on while handling wires.

Set Up the Multimeter

Set your multimeter to measure AC voltage (usually marked “V~”). Choose a range higher than 24V, like 200V AC.

Test the Transformer Output

Touch the multimeter probes to the two wires on the transformer. You should see a reading between 12 and 24 volts. If you get 0V, the transformer may be faulty or the breaker isn’t fully on.

Test the Chime Terminals

Now test the “Front” and “Trans” terminals on the chime. You should see the same voltage. This confirms the circuit is complete when the button is pressed.

Test the Doorbell Button Wires

Go back to the doorbell button and touch the probes to the two wires. When the button is not pressed, you should see the full voltage (e.g., 16V). When you press the button, the voltage drops to 0V because the circuit is completed and power flows to the chime.

This test confirms which wires are live and how the system works.

Step 6: Identify Wire Functions

Now that you’ve tested everything, let’s summarize what each wire does.

Transformer Wires

These two wires carry power from the transformer to the chime. One connects to the “Trans” terminal, and the other goes to the common terminal (sometimes labeled “C” or “Common”).

Doorbell Button Wires

These two wires run from the button to the chime. One connects to the “Front” terminal, and the other connects to the common terminal. When you press the button, it completes the circuit, allowing current to flow and ring the chime.

Multiple Doorbells

If you have a front and back doorbell, you’ll have:
– One wire pair for the front (to “Front” terminal)
– One wire pair for the rear (to “Rear” terminal)
– One common wire from the transformer

The common wire is shared between all buttons and the transformer.

Common Wire Color Codes (and Why They’re Not Reliable)

You might expect doorbell wires to follow standard color codes—like red for hot and black for neutral. But in low-voltage systems, colors can vary widely.

Here’s what you might see:
– Red: Often used for the front doorbell wire
– White or gray: Often the common or return wire
– Green: Sometimes used for rear doorbells
– Blue, yellow, or black: Can be used for any function

But here’s the catch: color is not a reliable indicator. Some homes use all white wires. Others have mismatched colors from previous repairs.

That’s why testing with a multimeter is so important. Don’t assume—verify.

Special Considerations for Smart Doorbells

Smart doorbells like Ring, Nest, or Arlo often require more power than traditional doorbells. While they can sometimes run on existing wiring, many perform better with a constant power source.

The Need for a C-Wire

A “C-wire” (common wire) provides continuous power to the doorbell, even when the button isn’t pressed. Most older doorbell systems don’t have a dedicated C-wire—they only have two wires: one from the button and one from the transformer.

If your smart doorbell keeps disconnecting or won’t charge, you may need a C-wire.

Solutions for Missing C-Wires

• Use a C-wire adapter: These devices plug into an outlet and provide constant power. Some smart doorbells include one.
• Install a new transformer: Upgrade to a 24V transformer with a dedicated C-wire output.
• Use a power extender kit: Some brands sell kits that add a C-wire using the existing chime.
• Go wireless: Some smart doorbells run on rechargeable batteries, eliminating the need for wiring.

Always check your doorbell’s power requirements before installing.

Troubleshooting Common Issues

Even with careful identification, things can go wrong. Here’s how to fix common problems.

Doorbell Doesn’t Ring

• Check the transformer: Use a multimeter to confirm it’s outputting 12–24V.
• Test the button: Press it while listening for a click. If no click, the button may be faulty.
• Inspect the chime: Make sure wires are tight and terminals aren’t corroded.
• Look for loose wires: Vibration over time can loosen connections.

Chime Rings Randomly

• Faulty button: A worn-out button can short and ring the chime intermittently.
• Loose wiring: Check all connections at the button, chime, and transformer.
• Transformer issues: A failing transformer can cause erratic behavior.

Multimeter Shows 0V

• Breaker is off: Double-check the correct breaker is on.
• Blown fuse: Some transformers have internal fuses.
• Broken wire: A wire may be cut or disconnected inside the wall.

Smart Doorbell Won’t Power On

• Insufficient voltage: Measure at the doorbell. If below 12V, the transformer may be too weak.
• No C-wire: The doorbell may need constant power. Consider an adapter or battery model.
• Loose connection: Ensure wires are securely attached.

Tips for a Smooth Installation

Here are some pro tips to make your doorbell project easier:

• Take photos: Snap pictures of the wiring before disconnecting anything. Use them as a reference.
• Work in daylight: Natural light makes it easier to see small wires and labels.
• Use zip ties: Bundle loose wires together to keep them organized.
• Don’t force wires: If a wire won’t budge, it may be stapled or trapped. Use a fish tape to gently free it.
• Test before finalizing: Reconnect everything temporarily and test the doorbell before securing it in place.

When to Call a Professional

Most doorbell wiring issues can be handled by a confident DIYer. But if you encounter any of these situations, it’s best to call an electrician:

• You can’t locate the transformer
• The wiring is damaged or frayed
• You’re not comfortable working with electricity
• The system uses high voltage (rare, but possible in older homes)
• You suspect a short circuit or fire hazard

Safety always comes first. There’s no shame in getting help.

Conclusion

Identifying doorbell wires might seem intimidating at first, but it’s a straightforward process once you know the steps. By turning off the power, using a multimeter, labeling wires, and testing the circuit, you can confidently install or repair your doorbell—no electrician required.

Remember: safety is key. Always turn off the power before handling wires, and never assume wire colors mean what you think they do. Test everything with a multimeter to be sure.

Whether you’re upgrading to a smart doorbell or just fixing a broken chime, understanding your doorbell wiring empowers you to take control of your home’s systems. With the tools and knowledge from this guide, you’re ready to tackle the job with confidence.

So grab your screwdriver, fire up that multimeter, and get ready to hear that perfect “ding-dong” again.
