This guide walks you through how to install a 4 wire doorbell from start to finish. You’ll learn wiring basics, safety tips, and troubleshooting advice to ensure a smooth, professional-looking installation.
Key Takeaways
- Turn off power at the breaker: Always shut off electricity before working on doorbell wiring to prevent shocks or damage.
- Understand the 4-wire setup: The four wires typically include two for power (transformer to chime) and two for the button (button to chime).
- Use a voltage tester: Confirm the power is off and verify wire function before connecting anything.
- Label wires during removal: This prevents confusion when reconnecting the new system.
- Choose the right transformer: Ensure your transformer matches the voltage requirements of your new doorbell (usually 16–24V AC).
- Test before finalizing: Always test the doorbell before securing covers or closing walls.
- Call a pro if unsure: If wiring looks damaged or you’re uncomfortable, hire a licensed electrician.
How to Install a 4 Wire Doorbell: A Complete DIY Guide
Upgrading or installing a new doorbell might seem like a small task, but it can make a big difference in your home’s functionality and curb appeal. If you’re working with a 4 wire doorbell system—common in modern homes with smart doorbells or dual chimes—you’re in the right place. This guide will walk you through how to install a 4 wire doorbell safely, efficiently, and correctly, even if you’re a beginner.
Whether you’re replacing an old mechanical chime or installing a new video doorbell like a Ring or Nest, understanding the wiring is key. A 4 wire setup gives you more flexibility and reliability, especially for devices that need constant power. In this guide, we’ll cover everything from tools and safety to step-by-step wiring and troubleshooting.
By the end, you’ll have a working doorbell that looks professional and performs reliably. Let’s get started!
What Is a 4 Wire Doorbell System?

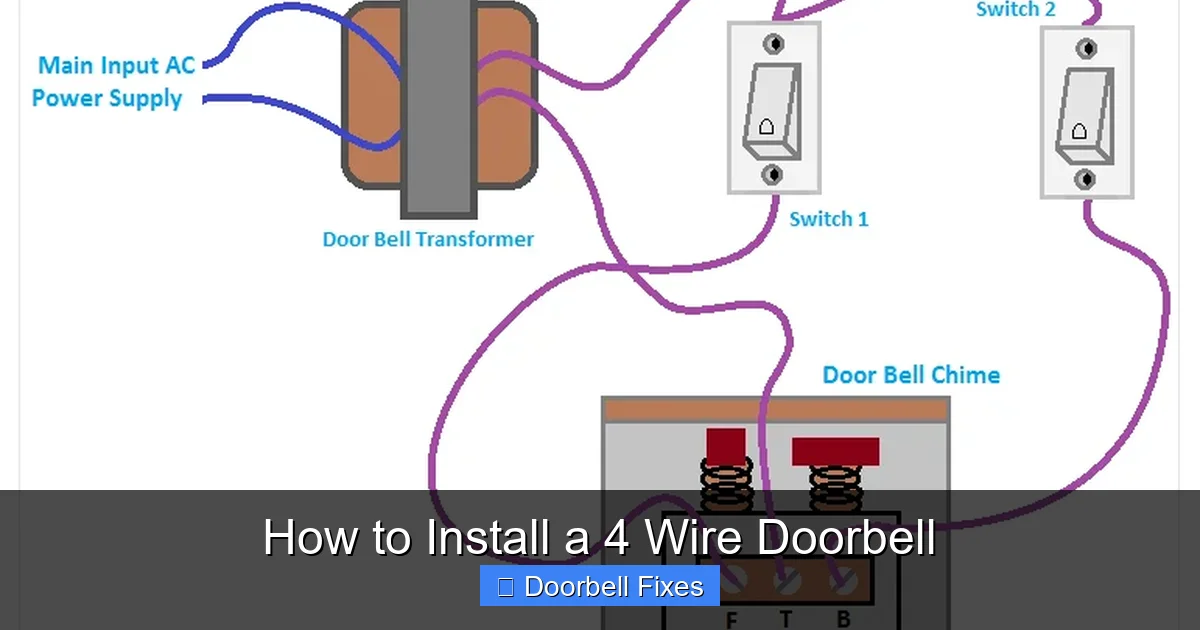

Visual guide about How to Install a 4 Wire Doorbell
Image source: i0.wp.com
Before diving into installation, it’s important to understand what a 4 wire doorbell system is and why it’s used.
Most traditional doorbells use just two wires: one from the transformer to the chime, and one from the button to the chime. But a 4 wire system includes four separate low-voltage wires, typically running between the doorbell button, the chime unit, and the transformer.
Here’s a breakdown of the typical 4 wire setup:
- Front door button wire: Carries signal from the front door button to the chime.
- Transformer wire: Supplies power from the transformer to the chime.
- Rear door button wire (optional): If you have a second doorbell button (e.g., at a back door), this wire connects it to the chime.
- Common wire: Acts as a return path or shared ground, often used in smart doorbells that need constant power.
This setup is especially useful for smart doorbells that require continuous power to stay connected to Wi-Fi and record video. Unlike older mechanical chimes that only need a momentary signal, smart doorbells often need a constant low-voltage supply—hence the need for four wires.
Tools and Materials You’ll Need
Before you begin, gather all the necessary tools and materials. Having everything ready will make the process smoother and safer.
Basic Tools
- Voltage tester (non-contact)
- Screwdrivers (flathead and Phillips)
- Wire strippers
- Needle-nose pliers
- Electrical tape
- Wire nuts (usually included with the doorbell)
- Drill and drill bits (if mounting new hardware)
- Level (for aligning the doorbell button)
Materials
- New 4 wire doorbell kit (includes chime, button, and transformer if needed)
- Low-voltage wire (if extending or replacing existing wires)
- Wall anchors (if mounting on drywall or brick)
- Optional: Fish tape (for running new wires through walls)
Safety Gear
- Safety glasses
- Work gloves
Safety First: Turning Off the Power
This cannot be stressed enough: safety is the most important part of any electrical project. Even though doorbell systems use low voltage (typically 16–24 volts), they are still connected to your home’s electrical circuit via a transformer. Mistakes can damage your doorbell, your home’s wiring, or worse—cause injury.
Step 1: Locate the Doorbell Transformer
The transformer steps down your home’s 120V AC power to a safer 16–24V AC for the doorbell. It’s usually located in one of these places:
- Near the main electrical panel
- In the basement or crawl space
- Inside a closet near the front door
- Behind the existing doorbell chime
Look for a small metal box with wires coming out and a label that says “Doorbell” or “Transformer.”
Step 2: Turn Off the Circuit Breaker
Once you’ve found the transformer, trace the wire back to the breaker panel. The transformer is plugged into a standard outlet or hardwired to a dedicated circuit. Turn off the breaker that controls that circuit.
If you’re unsure which breaker it is, turn off the main breaker to be safe. This cuts power to the entire house, ensuring no electricity is flowing to the doorbell system.
Step 3: Test for Power
Use a non-contact voltage tester to check the wires at the chime and transformer. Touch the tester to the wire terminals—if it beeps or lights up, power is still on. Double-check your breaker and try again.
Only proceed when the tester confirms no voltage is present.
Removing the Old Doorbell (If Applicable)
If you’re replacing an existing doorbell, you’ll need to remove the old components before installing the new one.
Step 1: Remove the Doorbell Button
Unscrew the front doorbell button from the wall. Gently pull it away to expose the wires. You should see two or four wires connected to terminals (usually labeled “Front” and “Trans” or similar).
Step 2: Label the Wires
Before disconnecting anything, label each wire with tape or a marker. For example:
- “Front” – wire from front door button
- “Rear” – wire from back door button (if present)
- “Trans” – wire from transformer
- “Common” – shared return wire (if used)
This step is crucial. Mixing up wires can cause your new doorbell to malfunction or not work at all.
Step 3: Disconnect the Wires
Loosen the terminal screws and remove the wires. If the wires are connected with wire nuts, unscrew the nuts and separate the wires.
Step 4: Remove the Chime Unit
Go inside to the chime location (usually in a hallway or entryway). Remove the cover and unscrew the chime from the wall. Disconnect the wires, again labeling them if they aren’t already.
Set the old components aside. You may want to keep them in case you need to reference the wiring later.
Installing the New Doorbell Button
Now it’s time to install the new doorbell button. This is usually the easiest part of the process.
Step 1: Choose the Right Location
The button should be:
- At a comfortable height (typically 48–52 inches from the ground)
- Near the door frame but not obstructed by trim or plants
- Accessible and visible to visitors
If you’re replacing an old button, you can use the same mounting holes. If not, use a level to mark new ones.
Step 2: Connect the Wires
Take the wires from the wall and strip about 1/4 inch of insulation from the ends using wire strippers.
Most 4 wire doorbell buttons have four terminals:
- Front: Connects to the front door button wire
- Rear: Connects to the rear door button wire (if used)
- Trans: Connects to the transformer wire
- Common: Shared return wire (often used for smart doorbells)
Match the labeled wires to the correct terminals. Tighten the screws securely.
Tip: If your new doorbell doesn’t have a “Common” terminal, you may not need to use that wire. Check the manufacturer’s instructions.
Step 3: Mount the Button
Align the button with the mounting holes and screw it into place. Make sure it’s level and snug against the wall.
Step 4: Secure Loose Wires
Tuck any excess wire back into the wall cavity to prevent damage. Use electrical tape to bundle wires if needed.
Installing the Doorbell Chime
The chime is the indoor unit that makes the sound when the button is pressed. It’s usually installed in a central location like a hallway or living room.
Step 1: Choose a Location
Pick a spot that’s:
- Central and audible throughout the home
- Near an electrical outlet (if the chime is plug-in)
- Away from heat sources or moisture
If replacing an old chime, you can reuse the same location.
Step 2: Connect the Wires
Open the chime cover and locate the terminal block. You’ll see labels like “Front,” “Rear,” “Trans,” and “Common.”
Connect the wires as follows:
- Front: Wire from the front door button
- Rear: Wire from the rear door button (if present)
- Trans: Wire from the transformer
- Common: Shared return wire
Strip the wire ends and insert them into the correct terminals. Tighten the screws firmly.
Important: Double-check the wiring diagram in your doorbell’s manual. Some models may have different labeling.
Step 3: Mount the Chime
Hold the chime against the wall and mark the screw holes. Drill pilot holes if needed, then secure the unit with screws.
Step 4: Attach the Cover
Snap or screw the cover back on. Make sure all wires are tucked inside and nothing is pinched.
Connecting the Transformer
The transformer is the heart of your doorbell system. It converts household voltage to a safe level for the doorbell.
Step 1: Check Voltage Compatibility
Most doorbells require 16–24 volts AC. Check the specifications on your new doorbell and transformer. If your old transformer is 16V and your new doorbell needs 24V, you’ll need to replace it.
Step 2: Install or Replace the Transformer
If you’re using the existing transformer, ensure it’s securely connected to the power source and the low-voltage wires.
If replacing it:
- Turn off the breaker again.
- Disconnect the old transformer.
- Mount the new transformer in the same location.
- Connect the 120V wires (black to black, white to white) to the circuit.
- Connect the low-voltage wires to the doorbell circuit.
Tip: Some transformers plug into an outlet. If so, plug it in and ensure the outlet is on a switched circuit or use a smart plug for control.
Step 3: Secure and Label
Use wire nuts and electrical tape to secure connections. Label the transformer with a tag or sticker so you know what it powers.
Testing the Doorbell
Before you celebrate, it’s time to test your work.
Step 1: Turn the Power Back On
Go to the breaker panel and turn the power back on. Wait a few seconds for the system to initialize.
Step 2: Press the Doorbell Button
Go to the front door and press the button. Listen for the chime inside.
If it works—great! If not, don’t panic. Move to the troubleshooting section below.
Step 3: Test Additional Features
If you installed a smart doorbell, download the app and follow the setup instructions. Test features like:
- Video streaming
- Motion detection
- Two-way audio
- Night vision
Make sure everything functions as expected.
Troubleshooting Common Issues
Even with careful installation, problems can occur. Here’s how to fix the most common issues.
Doorbell Doesn’t Ring
- Check power: Use a voltage tester to confirm the transformer is outputting 16–24V.
- Verify wiring: Double-check that all wires are connected to the correct terminals.
- Test the button: Use a multimeter to check for continuity when the button is pressed.
- Inspect the chime: Some chimes have internal fuses that can blow.
Chime Rings Weakly or Intermittently
- Loose connections: Tighten all terminal screws.
- Low voltage: The transformer may be underpowered. Upgrade to a 24V transformer.
- Wire damage: Check for frayed or corroded wires in the wall.
Smart Doorbell Won’t Connect to Wi-Fi
- Weak signal: Move your router closer or use a Wi-Fi extender.
- Incorrect setup: Re-run the app setup and ensure you’re connecting to 2.4GHz (not 5GHz) Wi-Fi.
- Power issues: Smart doorbells need constant power. If it keeps rebooting, the wiring or transformer may be inadequate.
Multiple Buttons Don’t Work
- Check rear button wiring: Ensure the “Rear” wire is connected at both the button and chime.
- Test each button separately: Isolate the issue to one button or the chime.
Final Tips for a Professional Installation
To make your installation look clean and last for years, follow these best practices:
- Use wire nuts and electrical tape: Secure all connections to prevent shorts.
- Keep wires neat: Bundle and tuck wires into the wall or use wire channels.
- Label everything: Future you (or an electrician) will thank you.
- Take photos: Snap pictures of the wiring before closing walls.
- Follow the manual: Every doorbell is slightly different. Always refer to the manufacturer’s instructions.
When to Call a Professional
While most homeowners can handle a 4 wire doorbell installation, some situations call for a licensed electrician:
- You can’t locate the transformer
- Wires are damaged or frayed inside the wall
- You’re uncomfortable working with electricity
- The breaker keeps tripping
- You’re adding new wires through finished walls
It’s always better to be safe than sorry. A professional can ensure your system is up to code and functioning safely.
Conclusion
Installing a 4 wire doorbell may seem daunting at first, but with the right tools, safety precautions, and step-by-step guidance, it’s a manageable DIY project. You’ve learned how to identify the wires, connect the button and chime, install the transformer, and troubleshoot common issues.
By following this guide, you’ve not only upgraded your home’s entryway but also gained valuable electrical skills. Whether you’re installing a simple mechanical chime or a high-tech video doorbell, a proper 4 wire setup ensures reliable performance and future flexibility.
Remember: safety first, double-check your work, and don’t hesitate to ask for help if needed. Now go enjoy your new doorbell—and the peace of mind that comes with a job well done!
