How to Install a Doorbell Wire

This guide walks you through how to install a doorbell wire from start to finish, whether you’re replacing old wiring or setting up a new doorbell. You’ll learn the tools needed, safety tips, routing techniques, and troubleshooting advice to ensure a reliable connection.

Key Takeaways

• Turn off power first: Always shut off electricity at the breaker before working on doorbell wiring to prevent shocks or damage.
• Use low-voltage wire: Doorbell systems require 16-18 gauge low-voltage wire, not standard household electrical wire.
• Plan your wire route: Map the path from the doorbell button to the chime and transformer before drilling or stapling.
• Test connections early: Use a multimeter to verify voltage and continuity before finalizing installation.
• Secure wires properly: Use cable staples or clips to prevent damage and ensure long-term reliability.
• Label wires at both ends: This prevents confusion when connecting to the chime or transformer.
• Consider wireless alternatives: If running wire is too difficult, modern wireless doorbells offer a reliable no-wire solution.

How to Install a Doorbell Wire: A Complete DIY Guide

Installing a doorbell wire might seem like a small task, but it’s one that requires careful planning, the right tools, and a solid understanding of low-voltage electrical systems. Whether you’re replacing a broken wire, upgrading to a smart doorbell, or installing a doorbell for the first time, knowing how to install a doorbell wire correctly ensures your system works reliably for years.

In this guide, you’ll learn everything from choosing the right wire and tools to routing it safely through walls, connecting it to the chime and transformer, and troubleshooting common issues. We’ll keep things simple, safe, and practical—so even if you’ve never touched a wire stripper before, you’ll feel confident by the end.

Let’s get started.

What You’ll Need

Before you begin, gather all the necessary tools and materials. Having everything ready saves time and prevents mid-project trips to the hardware store.

Essential Tools

• Voltage tester: To confirm the power is off.
• Wire strippers: For cleanly removing insulation from wires.
• Screwdrivers (flathead and Phillips): For removing plates and securing connections.
• Drill and drill bits: For creating holes in walls or door frames.
• Fish tape or wire snake: Helps pull wire through walls or conduits.
• Cable staples or clips: To secure the wire along its route.
• Measuring tape: For accurate placement and routing.
• Pencil or marker: To mark drilling spots.
• Multimeter: To test voltage and continuity.

Materials

• Low-voltage doorbell wire (16 or 18 gauge): Typically 2-conductor (red and white) or 3-conductor if your system requires a third wire.
• Wire nuts or terminal screws: For secure connections.
• Electrical tape: For extra insulation.
• Wall plates or grommets (optional): To protect wires where they pass through walls.

Safety Gear

• Safety glasses
• Work gloves

Understanding Doorbell Wiring Basics

Before you touch a single wire, it’s important to understand how a doorbell system works.

Most traditional doorbells use a low-voltage electrical circuit. Here’s the basic setup:

• Transformer: Steps down your home’s 120V power to 12–24V, which powers the doorbell.
• Doorbell button: When pressed, it completes the circuit, sending power to the chime.
• Chime unit: Receives the signal and produces the ringing sound.
• Wires: Connect the button to the chime and the chime to the transformer.

The wire you’re installing typically runs from the doorbell button, through the wall or along the trim, to the chime inside the house, and then to the transformer—usually located near your electrical panel, furnace, or in the attic.

Smart doorbells (like Ring or Nest) often require a constant power source, so proper wiring is even more critical. Some can run on batteries, but for best performance, hardwiring is recommended.

Step 1: Turn Off the Power

Safety first. Even though doorbell systems use low voltage, the transformer is connected to your home’s main electrical supply. Always turn off the power at the breaker before working.

How to Safely Shut Off Power

1. Locate your home’s electrical panel (breaker box).
2. Find the breaker labeled “doorbell,” “chime,” or “low voltage.” If there isn’t one, look for breakers connected to areas near the doorbell (like the furnace or attic).
3. Switch the breaker to the “off” position.
4. Use a non-contact voltage tester at the doorbell button and chime to confirm no power is present.

Pro Tip: Place a piece of tape over the breaker switch with a note like “Do not turn on – working on doorbell.” This prevents someone else from accidentally restoring power.

Step 2: Remove the Old Doorbell (If Applicable)

If you’re replacing an existing doorbell, start by removing the old unit.

Removing the Doorbell Button

1. Unscrew the doorbell button from the wall.
2. Gently pull it away to expose the wires.
3. Take a photo of the wiring for reference.
4. Loosen the terminal screws and disconnect the wires.
5. Label the wires (e.g., “front door,” “chime”) with tape so you don’t mix them up later.

Removing the Chime Unit

1. Open the chime cover (usually snaps or unscrews).
2. Disconnect the wires from the terminals.
3. Label each wire with its function (e.g., “front,” “rear,” “transformer”).
4. Unscrew the chime from the wall and set it aside.

Note: Some chimes have multiple terminals for front and rear doors. Make sure you know which wire goes where.

Step 3: Plan Your Wire Route

Now it’s time to decide how the new wire will travel from the doorbell button to the chime and transformer.

Common Routing Options

• Through the wall: Most secure and clean-looking. Requires drilling and fishing wire.
• Along baseboards or trim: Easier but less hidden. Use wire clips to keep it tidy.
• Under siding or soffit: For exterior routing, especially in older homes.
• Through the attic or basement: Ideal if you have access and can run wire above or below.

Tips for Choosing the Best Route

• Avoid areas with moisture, heat sources, or moving parts (like hinges).
• Keep wires at least 6 inches away from electrical wires to prevent interference.
• Use existing holes or conduits if possible to minimize drilling.
• Measure the distance so you buy enough wire (add 10% extra for safety).

Example: Routing from Front Door to Living Room Chime

Imagine your front door is on the exterior wall, and the chime is in the living room, 20 feet away.

1. From the doorbell button, drill a small hole through the wall near the door frame.
2. Run the wire inside the wall toward the living room.
3. If the wall is insulated, use a fish tape to guide the wire.
4. Exit the wire near the chime location and connect it to the unit.

Pro Tip: Use a stud finder to avoid drilling into studs. If you must drill through a stud, use a long drill bit and go slowly.

Step 4: Run the New Doorbell Wire

This is the core of the installation. Take your time—rushing can lead to damaged wires or frustrating reroutes.

Step 4.1: Prepare the Wire

1. Cut a length of 16 or 18 gauge low-voltage wire slightly longer than your planned route.
2. Strip about 1/2 inch of insulation from both ends using wire strippers.
3. If using 2-conductor wire, you’ll have a red and white (or black) wire. For 3-conductor, add a green or yellow wire.

Step 4.2: Feed the Wire Through the Wall

1. Insert the wire into the hole at the doorbell location.
2. Use a fish tape to pull the wire through the wall cavity toward the chime.
3. If the fish tape gets stuck, gently wiggle it or try a different path.
4. Once the wire emerges at the chime location, pull it through completely.

Step 4.3: Secure the Wire

1. Use cable staples or adhesive wire clips to fasten the wire along baseboards, trim, or inside walls.
2. Don’t staple too tightly—this can crush the insulation and damage the wire.
3. Leave a little slack at both ends for connections.

Pro Tip: If running wire along the exterior, use outdoor-rated wire and protect it with conduit or wire mold.

Step 5: Connect the Wire to the Doorbell Button

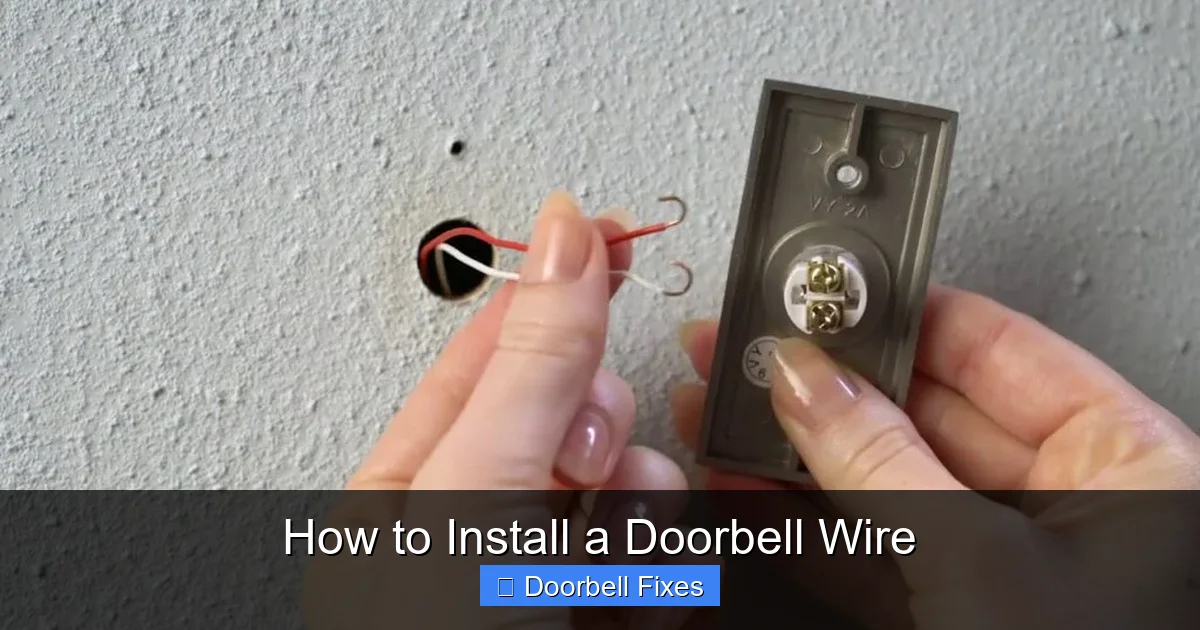

Now that the wire is in place, it’s time to connect it to the button.

How to Wire the Doorbell Button

1. Strip the ends of the two wires (red and white).
2. Loosen the terminal screws on the back of the doorbell button.
3. Wrap the stripped wire ends around the screws (red to one terminal, white to the other).
4. Tighten the screws securely.
5. Push the button back into the wall and screw it in place.

Note: Doorbell buttons are not polarity-sensitive, so it doesn’t matter which wire goes where.

Step 6: Connect the Wire to the Chime

Next, connect the other end of the wire to the chime unit.

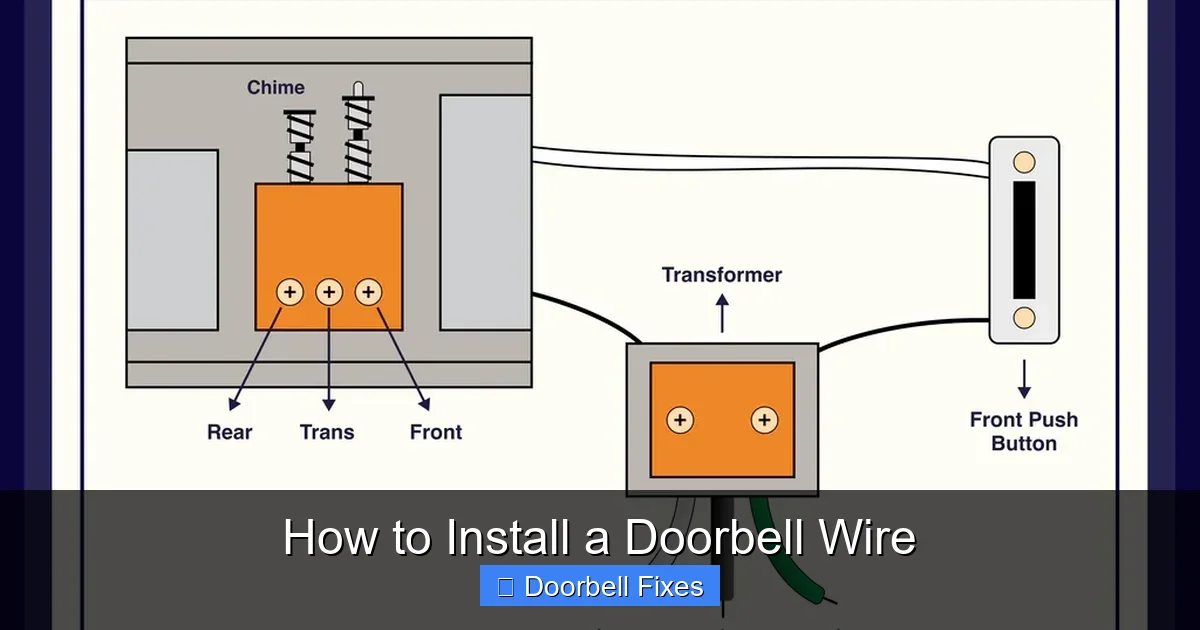

Identifying Chime Terminals

Most chimes have three terminals:

• Front: For the front door button.
• Rear: For a rear or side door button (if applicable).
• Trans: For the wire from the transformer.

Connecting the Wires

1. Strip the ends of the wires from the doorbell button.
2. Connect one wire to the “Front” terminal and the other to the “Trans” terminal.
3. Tighten the screws.
4. If you have a rear door, connect those wires to the “Rear” terminal.
5. Secure the chime to the wall and close the cover.

Pro Tip: If your chime has screw terminals, use a small flathead screwdriver. If it has push-in connectors, insert the stripped wire fully.

Step 7: Connect to the Transformer

The transformer completes the circuit by supplying low-voltage power.

Locating the Transformer

Transformers are usually found:

• Inside the electrical panel.
• Near the furnace or water heater.
• In the attic or basement.
• Behind the chime unit (in some older models).

Wiring the Transformer

1. Turn off the main power at the breaker (again, for safety).
2. Remove the transformer cover.
3. You’ll see two wires: one from the chime (“Trans”) and one from the doorbell button.
4. Connect these to the transformer’s output terminals (usually labeled “C” and “1” or similar).
5. Connect the transformer’s input wires to a 120V circuit (usually via a junction box or directly to the panel).
6. Secure all connections and replace the cover.

Important: Only connect the low-voltage side. The high-voltage side should be handled by a licensed electrician if you’re unsure.

Step 8: Test the Doorbell

Before you celebrate, test the system to make sure everything works.

How to Test

1. Turn the power back on at the breaker.
2. Press the doorbell button.
3. Listen for the chime.
4. If it doesn’t ring, check connections at the button, chime, and transformer.
5. Use a multimeter to test voltage at the chime (should read 12–24V).

Pro Tip: If the chime buzzes instead of ringing, the voltage may be too low. Check the transformer rating and wire gauge.

Troubleshooting Common Issues

Even with careful installation, problems can arise. Here’s how to fix the most common ones.

Doorbell Doesn’t Ring

• Check power: Ensure the breaker is on and the transformer is working.
• Test continuity: Use a multimeter to check if the button completes the circuit when pressed.
• Inspect connections: Loose or corroded wires can break the circuit.
• Replace the button: Buttons wear out over time.

Chime Buzzes or Hums

• Low voltage: The transformer may be underpowered or the wire too long/thin.
• Faulty chime: Internal components may be damaged.
• Short circuit: Check for pinched or exposed wires.

Intermittent Ringing

• Loose wire: Re-tighten all connections.
• Corrosion: Clean terminals with sandpaper or replace wires.
• Faulty transformer: Test output voltage and replace if below 12V.

Smart Doorbell Not Receiving Power

• Insufficient voltage: Smart doorbells often need 16V or higher.
• Old transformer: Upgrade to a 16V or 24V transformer.
• Wire gauge too small: Use 16-gauge wire for longer runs.

Safety Tips and Best Practices

Installing a doorbell wire is generally safe, but follow these guidelines to avoid accidents.

• Always turn off power before working.
• Use insulated tools.
• Never work on live circuits.
• Keep wires away from water and heat sources.
• Label all wires during installation.
• Use wire nuts or terminal screws—never leave bare wires exposed.
• If you’re unsure about the transformer or high-voltage wiring, consult an electrician.

When to Call a Professional

While most homeowners can install a doorbell wire, some situations call for expert help.

• You can’t locate the transformer.
• The wiring involves complex routing through multiple walls or floors.
• You’re uncomfortable working with electricity.
• The system involves high-voltage connections beyond the transformer.
• Your home has aluminum wiring (requires special handling).

A licensed electrician can ensure the job is done safely and up to code.

Alternative: Wireless Doorbell Options

If running wire seems too difficult, consider a wireless doorbell.

Benefits of Wireless Doorbells

• No wiring required.
• Easy to install in minutes.
• Can be placed anywhere within range.
• Many include video, motion detection, and smartphone alerts.

Popular Wireless Models

• Ring Video Doorbell
• Nest Hello
• Amazon Echo Show with Ring
• SimpliSafe Doorbell Camera

Note: Some wireless doorbells still recommend a wired connection for constant power and better performance.

Conclusion

Learning how to install a doorbell wire is a valuable DIY skill that can save you money and improve your home’s functionality. With the right tools, a clear plan, and attention to safety, you can complete this project in a few hours.

Remember to turn off the power, use low-voltage wire, route it carefully, and test your connections. If you run into issues, refer to the troubleshooting section or consider a wireless alternative.

A properly installed doorbell not only adds convenience but also enhances your home’s security and curb appeal. So grab your tools, follow this guide, and enjoy the satisfying ring of a job well done.
