How to Install a Doorbell Wired Doorbell

This guide walks you through how to install a wired doorbell safely and correctly, even if you’re a beginner. You’ll learn about tools, wiring, mounting, and testing to ensure your new doorbell works perfectly.

Key Takeaways

• Turn off power first: Always shut off electricity at the breaker before working on wiring to prevent shocks or damage.
• Check compatibility: Make sure your new doorbell, chime, and transformer are compatible with your home’s voltage (usually 16-24V).
• Use the right tools: A voltage tester, screwdrivers, wire strippers, and a drill are essential for a smooth installation.
• Follow wiring steps carefully: Connect low-voltage wires correctly to the doorbell, chime, and transformer to avoid malfunctions.
• Test before finishing: Always test the doorbell after wiring but before securing covers to catch issues early.
• Secure all components: Mount the doorbell and chime firmly to prevent loose connections or damage over time.
• Know when to call a pro: If you’re unsure about electrical work or your home lacks a transformer, consult a licensed electrician.

How to Install a Wired Doorbell: A Complete Step-by-Step Guide

Installing a wired doorbell might sound intimidating, but with the right tools and a little patience, it’s a project most homeowners can tackle themselves. Whether you’re replacing an old doorbell or installing one for the first time, this guide will walk you through every step—from turning off the power to testing your new chime. By the end, you’ll have a reliable, hardwired doorbell that works every time someone rings it.

Wired doorbells are more dependable than wireless models because they don’t rely on batteries or Wi-Fi. They’re also typically louder and offer better sound quality. Plus, once installed, they require very little maintenance. This guide is designed for beginners, so we’ll keep things simple, safe, and easy to follow. You’ll learn how to identify your existing wiring, choose the right components, and connect everything properly.

Before you begin, remember: safety comes first. We’ll emphasize turning off power, using the right tools, and double-checking connections. Let’s get started!

What You’ll Need

Before diving into the installation, gather all the tools and materials. Having everything ready will save time and reduce frustration.

Tools

• Screwdrivers: Both flathead and Phillips head for removing covers and mounting hardware.
• Voltage tester: Essential for confirming power is off and checking wire connections.
• Wire strippers: To remove insulation from low-voltage wires without damaging the copper.
• Drill and drill bits: For making pilot holes if you need to mount the doorbell or chime in a new location.
• Pencil or marker: For marking screw positions.
• Level: To ensure your doorbell is straight.
• Electrical tape: For securing wire connections (optional, but helpful).

Materials

• Wired doorbell kit: Includes the doorbell button, chime unit, and sometimes a transformer. Choose a model with clear instructions and good reviews.
• Low-voltage wire: Usually 18- or 20-gauge, if you need to extend or replace existing wiring.
• Wire nuts or connectors: For joining wires securely.
• Screws and wall anchors: If your wall material requires them (e.g., drywall, brick, or concrete).

Optional but Helpful

• Fish tape: For pulling wires through walls if you’re running new cable.
• Multimeter: To test voltage at the transformer or chime.
• Ladder: If your doorbell is mounted high on the door frame.

Step 1: Turn Off the Power

Safety is the most important part of any electrical project. Even though doorbells use low voltage, they’re still connected to your home’s electrical system through a transformer. That means there’s a risk of shock if you’re not careful.

Locate Your Circuit Breaker

Go to your home’s main electrical panel (usually in the basement, garage, or utility closet). Look for a breaker labeled “doorbell,” “chime,” or “transformer.” If you don’t see one, you may need to test breakers one by one.

Turn Off the Correct Breaker

Switch off the breaker that controls the doorbell circuit. To be extra safe, use a non-contact voltage tester at the doorbell button or chime to confirm power is off. The tester should not light up or beep.

Label the Breaker (Optional)

If your breaker isn’t labeled, mark it now so you (or others) know which one controls the doorbell. This helps prevent accidentally turning it back on during the project.

Step 2: Remove the Old Doorbell (If Applicable)

If you’re replacing an existing doorbell, start by removing the old unit. This will help you understand the wiring setup and make the new installation easier.

Remove the Doorbell Button

Unscrew the old doorbell button from the wall near your front door. Gently pull it away to expose the wires. You should see two thin wires connected to terminals (usually labeled “Front” or “Trans”).

Disconnect the Wires

Loosen the screws or release the clips holding the wires. Carefully pull the wires free. Don’t cut them yet—you may reuse them.

Remove the Chime Unit

Go inside your home to the chime box (usually in a hallway or near the front door). Unscrew the cover and remove it. You’ll see several wires connected to terminals labeled “Front,” “Trans,” “Rear” (if you have a back doorbell), and sometimes “Common.”

Label the Wires (Important!)

Before disconnecting anything, take a photo or label each wire with tape and a marker. For example: “Front wire,” “Transformer wire,” etc. This prevents confusion when reconnecting.

Disconnect and Remove

Unscrew the wires from the chime terminals and remove the old unit. Set it aside.

Step 3: Check Your Transformer and Wiring

The transformer is the heart of your wired doorbell system. It steps down your home’s 120V power to a safe 16-24V for the doorbell. Most homes already have one, but it’s important to verify it’s working and compatible.

Locate the Transformer

The transformer is usually found in your electrical panel, basement, attic, or near the furnace. It looks like a small metal box with wires coming out. It may be plugged into an outlet or hardwired.

Test the Voltage

Use a multimeter set to AC voltage. Touch the probes to the transformer’s output terminals (the low-voltage side). You should see 16V to 24V. If it reads 0V or much higher, the transformer may be faulty.

Check Wire Gauge and Condition

Inspect the wires running from the transformer to the chime and doorbell. They should be 18- or 20-gauge and in good condition—no fraying, cracks, or burns. If the wires are damaged, you’ll need to replace them.

Ensure Compatibility

Check your new doorbell’s manual for voltage requirements. Most wired doorbells work with 16V transformers, but some high-end models need 24V. If your transformer is too weak, you may need to upgrade it.

Step 4: Install the New Chime Unit

The chime is the indoor unit that makes the sound when someone presses the doorbell. It’s usually mounted on a wall inside your home.

Choose the Location

Pick a spot near the front door, but not too close to the doorbell button. It should be audible throughout the house. Avoid areas with high humidity or heat, like near a furnace or bathroom.

Mount the Chime

Hold the new chime unit against the wall and use a level to make sure it’s straight. Mark the screw holes with a pencil. Drill pilot holes if needed, then secure the mounting plate with screws.

Connect the Wires

Refer to your labels or photo from earlier. Connect the wires to the correct terminals:

• Front: Wire from the front doorbell button.
• Trans: Wire from the transformer.
• Rear: If you have a back doorbell, connect that wire here.
• Common: Some chimes have a common terminal—check your manual.

Tighten the screws securely. If wires are too short, use wire nuts to extend them.

Attach the Chime Cover

Snap or screw the cover onto the mounting plate. Make sure it’s secure and doesn’t rattle.

Step 5: Run or Reuse Wiring to the Doorbell

Now it’s time to get power to the doorbell button outside. You can reuse existing wires or run new ones.

Reuse Existing Wires (Easiest Option)

If the old wires are in good condition and reach the doorbell location, simply reconnect them to the new doorbell. Strip about 1/4 inch of insulation from the ends if needed.

Run New Wires (If Needed)

If the wires are too short or damaged, you’ll need to run new ones. This is more complex and may require drilling through walls.

Plan the Route

Trace the path from the chime to the doorbell location. Avoid electrical wires, plumbing, and structural beams.

Drill Holes

Use a drill bit slightly larger than the wire diameter. Drill from inside to outside, or use a fish tape to pull the wire through.

Feed the Wire

Push the low-voltage wire through the hole. Leave extra length at both ends for connections.

Secure the Wire

Use clips or staples to hold the wire in place along the wall or baseboard. Don’t staple too tightly—this can damage the wire.

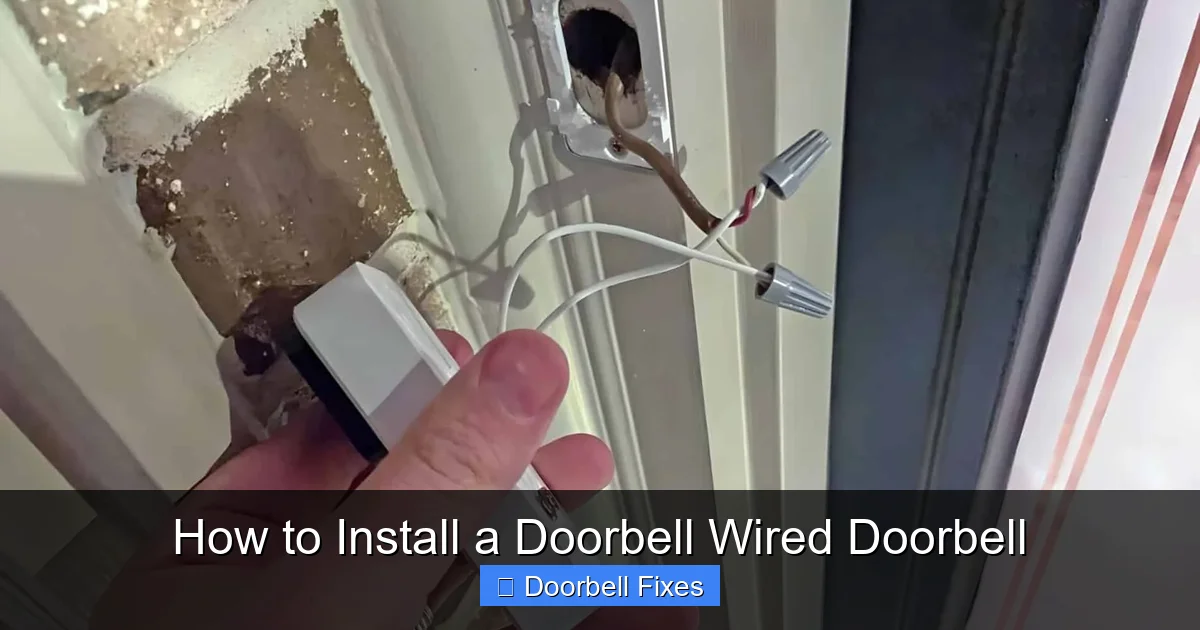

Step 6: Install the Doorbell Button

The doorbell button is the part guests press. It’s mounted on the door frame or wall near the entrance.

Choose the Mounting Spot

Pick a spot about 48 inches from the ground—easy to reach but out of the way. Make sure it’s not blocked by a screen door or decoration.

Mark and Drill

Hold the doorbell button against the wall and mark the screw holes. Drill pilot holes if needed.

Connect the Wires

Strip about 1/4 inch of insulation from the two wires. Connect them to the terminals on the back of the doorbell button. Most buttons are not polarity-sensitive, so it doesn’t matter which wire goes where.

Secure the Button

Screw the doorbell button into place. Make sure it’s tight and doesn’t wobble.

Test the Fit

Press the button gently to ensure it moves smoothly and makes contact.

Step 7: Restore Power and Test the System

You’re almost done! Now it’s time to turn the power back on and see if everything works.

Double-Check Connections

Before turning on the breaker, go back and verify all wire connections at the chime and doorbell. Loose wires are the most common cause of failure.

Turn On the Power

Go to the breaker panel and switch the doorbell circuit back on.

Test the Doorbell

Press the doorbell button. You should hear a clear, consistent chime from inside. If it doesn’t work, don’t panic—troubleshooting is next.

Adjust Volume or Tone (If Available)

Many modern chimes have volume controls or multiple sound options. Use the settings to customize the sound to your preference.

Troubleshooting Common Issues

Even with careful installation, problems can happen. Here’s how to fix the most common issues.

Doorbell Doesn’t Ring

• Check power: Use a voltage tester to confirm the transformer is outputting 16-24V.
• Inspect wires: Look for loose, disconnected, or damaged wires at the chime and doorbell.
• Test the button: Use a multimeter to check if the doorbell button completes the circuit when pressed.
• Replace the chime: If the chime is old or faulty, it may not respond even with correct wiring.

Chime Rings Weakly or Intermittently

• Low voltage: The transformer may be underpowered. Upgrade to a 24V transformer if your doorbell supports it.
• Loose connections: Tighten all wire terminals at the chime and transformer.
• Corroded contacts: Clean the doorbell button contacts with rubbing alcohol and a cotton swab.

Chime Rings Randomly

• Short circuit: Check for pinched or frayed wires that may be touching each other or metal surfaces.
• Faulty button: The doorbell button may be sticking or shorting. Replace it if necessary.
• Transformer issues: A failing transformer can cause erratic behavior. Test and replace if needed.

No Sound, But Light Works (If Applicable)

Some doorbells have LED lights. If the light turns on but there’s no sound, the chime unit is likely defective. Replace it.

Tips for a Professional-Looking Installation

A great installation isn’t just about function—it’s also about appearance. Here are some tips to make your doorbell look clean and professional.

Keep Wires Neat

Use wire clips or conduit to hide and organize wires along walls or baseboards. Avoid loose, dangling cables.

Paint Touch-Ups

If you drilled holes or scratched the wall, touch up the paint to match. This gives a finished look.

Use Matching Screws

Choose screws that blend with your doorbell and wall color. Black screws on a black doorbell look sleek.

Label Wires for Future

Even if you labeled them earlier, consider labeling the wires at the chime with small tags. This helps if you or a future owner need to troubleshoot.

Consider a Backplate

Some doorbells come with decorative backplates that cover gaps around the mounting area. Use one for a cleaner look.

When to Call a Professional

While most homeowners can install a wired doorbell, some situations call for an electrician.

• No existing transformer: If your home doesn’t have a doorbell transformer, installing one requires working with high-voltage wiring—best left to a pro.
• Complex wiring routes: Running wires through finished walls, floors, or ceilings may require specialized tools and skills.
• Old or aluminum wiring: Homes with outdated wiring systems may need upgrades for safety.
• You’re unsure or uncomfortable: If at any point you feel unsure, stop and consult a licensed electrician. It’s better to be safe than sorry.

Conclusion

Installing a wired doorbell is a rewarding DIY project that improves your home’s functionality and curb appeal. By following this guide, you’ve learned how to safely turn off power, remove old components, check your transformer, install the chime and doorbell, and troubleshoot common issues. With the right tools and a careful approach, you can have a reliable doorbell that works perfectly for years.

Remember, the key to success is preparation and patience. Take your time, double-check connections, and don’t skip safety steps. If you run into problems, use the troubleshooting tips to diagnose and fix them. And when in doubt, don’t hesitate to call a professional.

Now that your doorbell is installed, enjoy the convenience of knowing when someone’s at the door—without worrying about dead batteries or weak signals. Welcome to the world of reliable, hardwired doorbells!
