This guide walks you through how to install a lighted doorbell button safely and effectively. You’ll learn the tools needed, wiring basics, and how to test your new illuminated button for reliable performance.
Key Takeaways
- Turn off power first: Always shut off the doorbell transformer or circuit breaker before starting to prevent electric shock.
- Check compatibility: Ensure your new lighted doorbell button works with your existing doorbell system (typically 16–24V AC).
- Use proper tools: A voltage tester, screwdrivers, wire strippers, and a drill (if needed) are essential for a smooth installation.
- Follow wiring steps carefully: Match wires correctly and secure connections to avoid malfunctions or damage.
- Test before finishing: Power on and test the button and light before reattaching the cover to confirm everything works.
- Troubleshoot common issues: If the light doesn’t turn on, check wiring, voltage, or bulb integrity.
- Upgrade for style and safety: A lighted doorbell improves visibility at night and adds a modern touch to your entryway.
How to Install a Lighted Doorbell Button
Upgrading your doorbell to a lighted button is a simple yet impactful home improvement project. Not only does it make your doorbell easier to find in the dark, but it also adds a touch of elegance and modern functionality to your front entrance. Whether you’re replacing an old, non-illuminated button or installing a new one from scratch, this comprehensive guide will walk you through every step of the process—safely and effectively.
In this guide, you’ll learn how to install a lighted doorbell button, including how to turn off power, remove the old button, connect the new one, and test the system. We’ll also cover essential tools, wiring tips, and troubleshooting advice to ensure your installation goes smoothly. By the end, you’ll have a bright, reliable doorbell that works perfectly and looks great.
Why Install a Lighted Doorbell Button?

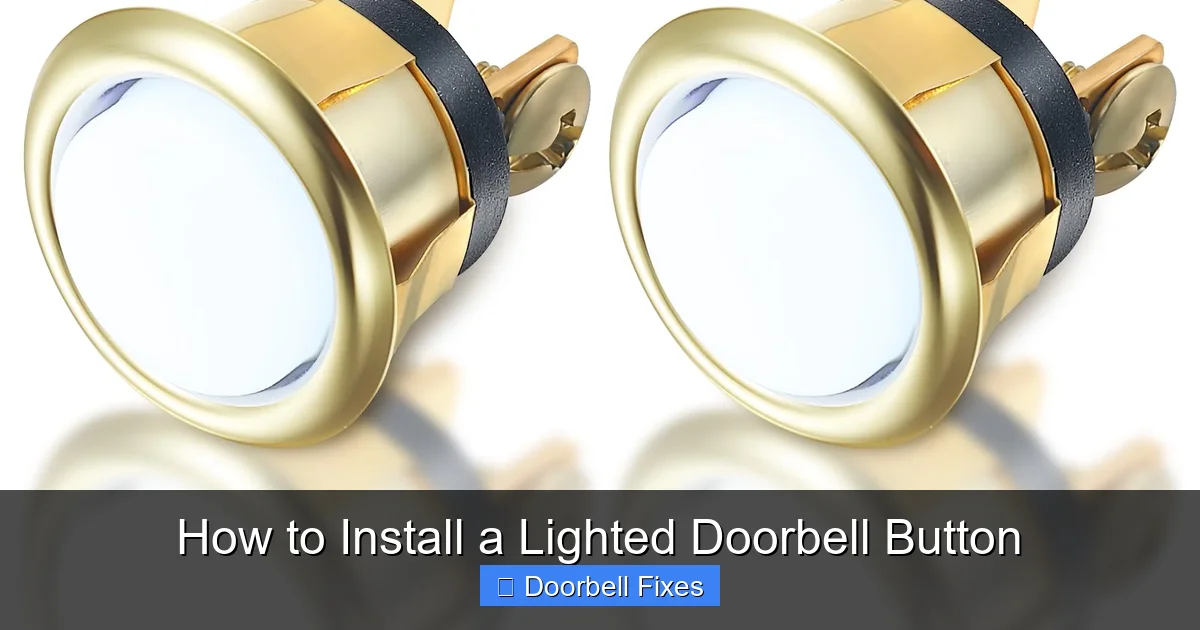

Visual guide about How to Install a Lighted Doorbell Button
Image source: m.media-amazon.com
Before diving into the installation, it’s helpful to understand why a lighted doorbell button is a smart upgrade. Traditional doorbell buttons are often small, dark, and hard to locate at night—especially for guests, delivery drivers, or elderly visitors. A lighted button solves this problem by providing a soft glow that makes the button visible in low-light conditions.
Additionally, many modern lighted doorbell buttons come with features like LED illumination, weather resistance, and sleek designs that complement your home’s exterior. Some models even include nightlight functions that stay on continuously, adding subtle ambient lighting to your entryway.
Beyond aesthetics and convenience, a lighted button can improve safety. A well-lit front door area deters intruders and helps visitors feel more secure when approaching your home after dark.
Tools and Materials You’ll Need
Before starting, gather all the necessary tools and materials. Having everything ready will save time and prevent interruptions during the installation.
You’ll need:
- A new lighted doorbell button (compatible with your system)
- Screwdrivers (Phillips and flathead)
- Voltage tester (non-contact type recommended)
- Wire strippers
- Electrical tape
- Drill and drill bits (if mounting on brick, stucco, or concrete)
- Masonry anchors (if drilling into hard surfaces)
- Pencil or marker
- Safety gloves and goggles
Optional but helpful:
- Wire nuts (if extending or splicing wires)
- Multimeter (for advanced voltage testing)
- Level (to ensure the button is straight)
Always choose a lighted doorbell button that matches your existing doorbell system’s voltage. Most residential doorbells operate on 16–24 volts AC, but it’s wise to check your transformer or existing button for confirmation.
Step 1: Turn Off the Power
Safety is the most important part of any electrical project. Even though doorbell systems use low voltage, there’s still a risk of shock or short-circuiting if wires are mishandled.
Locate the Doorbell Transformer
The doorbell transformer steps down your home’s 120V power to the lower voltage used by the doorbell. It’s usually located in one of these places:
- Near the main electrical panel
- In the basement or crawl space
- Inside a closet near the front door
- Behind the doorbell chime unit
Once you find it, look for a small switch or breaker labeled “doorbell” or “chime.” If you can’t locate it, turn off the main circuit breaker as a precaution.
Test for Power
After turning off the power, use a non-contact voltage tester to confirm that the wires at the doorbell button are not live. Hold the tester near the wires—if it beeps or lights up, power is still on, and you need to find the correct breaker.
Never skip this step. Even low-voltage systems can cause discomfort or damage if mishandled.
Step 2: Remove the Old Doorbell Button
With the power safely off, you can now remove the existing doorbell button.
Unscrew the Button
Use a screwdriver to remove the screws holding the old button to the wall. Most buttons have two screws—one on the top and one on the bottom. Gently pull the button away from the wall.
Disconnect the Wires
You’ll see two small wires connected to the back of the button. These are typically held in place by terminal screws or push-in connectors.
If using terminal screws:
- Loosen the screws slightly
- Pull the wires out carefully
If using push-in connectors:
- Insert a small flathead screwdriver into the release slot next to each wire
- Gently pull the wire out
Label the wires (e.g., “Left” and “Right”) or take a photo before disconnecting to help with reinstallation.
Inspect the Wires
Check the wire ends for damage, fraying, or corrosion. If the insulation is cracked or the copper is exposed, trim the ends with wire strippers and strip about 1/4 inch of insulation to expose fresh wire.
Step 3: Prepare the New Lighted Doorbell Button
Now it’s time to get your new lighted doorbell button ready for installation.
Read the Instructions
Every model is slightly different, so read the manufacturer’s instructions carefully. Some buttons come with mounting templates, while others require specific wiring configurations.
Check the Light Mechanism
Most lighted buttons use an LED that activates when the button is pressed or stays on as a nightlight. Test the light by briefly touching the wires to a 9V battery (if the button is battery-powered) or by following the manufacturer’s test procedure.
If the light doesn’t work, check the bulb (if replaceable) or contact the seller—don’t install a faulty unit.
Prepare the Mounting Area
Clean the wall surface where the button will go. Remove any old adhesive, paint flakes, or debris. If you’re mounting on brick, stucco, or concrete, you may need to drill pilot holes.
Use a level to mark the screw holes accurately. This ensures your button looks straight and professional.
Step 4: Connect the Wires to the New Button
This is the core of the installation. Proper wiring ensures the button and light work correctly.
Identify the Terminals
Most lighted doorbell buttons have two terminal screws labeled “L” and “L” or “1” and “2.” Unlike high-voltage circuits, doorbell wires are not polarized—meaning it doesn’t matter which wire goes where. However, consistency helps avoid confusion.
Attach the Wires
Strip about 1/4 inch of insulation from each wire end if you haven’t already.
Loosen the terminal screws on the new button. Insert one wire under each screw and tighten securely. Make sure the copper is fully under the screw and not exposed.
If your button uses push-in connectors, insert the stripped wire into the appropriate slot until it clicks.
Secure the Connections
Once connected, gently tug on the wires to ensure they’re firmly attached. Loose connections can cause intermittent operation or prevent the light from working.
Wrap the connections with electrical tape for extra security, especially if the wires are exposed.
Step 5: Mount the New Button
With the wires connected, it’s time to secure the button to the wall.
Position the Button
Hold the button against the wall, aligning it with your marked screw holes. Use a level to ensure it’s straight.
Drill Pilot Holes (If Needed)
For wood or drywall, you can often screw directly into the surface. For brick, stucco, or concrete, drill pilot holes using a masonry bit. Insert plastic anchors if required.
Secure with Screws
Drive the screws through the button’s mounting holes and into the wall. Don’t overtighten—this can crack the button or strip the screw holes.
Ensure the button sits flush against the wall with no gaps.
Step 6: Restore Power and Test
Now that everything is installed, it’s time to test your work.
Turn the Power Back On
Go to your electrical panel or transformer and restore power to the doorbell circuit.
Test the Button
Press the doorbell button. You should hear the chime inside your home. If it doesn’t ring, double-check your wiring and power source.
Test the Light
Check that the light turns on. Some models illuminate only when pressed, while others glow continuously. Refer to your manual for expected behavior.
If the light doesn’t work:
- Verify the wires are connected properly
- Check for loose connections
- Ensure the bulb (if replaceable) is functional
- Test the voltage at the button with a multimeter (should read 16–24V AC)
Troubleshooting Common Issues
Even with careful installation, problems can occur. Here’s how to fix the most common issues.
The Doorbell Doesn’t Ring
Possible causes:
- Power is still off—double-check the breaker or transformer
- Wires are reversed or loose—reconnect and tighten
- Faulty button—test with a multimeter or replace
- Transformer is failing—check voltage output
The Light Doesn’t Turn On
Possible causes:
- Incorrect wiring—ensure both wires are connected
- Burnt-out LED or bulb—replace if possible
- Low voltage—measure at the button; if below 16V, check transformer
- Defective button—return or exchange if under warranty
The Button Feels Loose
If the button wobbles:
- Tighten the mounting screws
- Add wall anchors for better support
- Use adhesive caulk around the edges for stability (optional)
The Light Flickers
Flickering usually indicates a loose connection or low voltage. Recheck wire connections and measure voltage. If the transformer is old, consider replacing it.
Safety Tips and Best Practices
To ensure a safe and lasting installation, follow these best practices:
- Always turn off power before working on electrical components
- Use insulated tools to reduce shock risk
- Wear safety gloves and goggles, especially when drilling
- Don’t force wires—gentle handling prevents damage
- Keep wires neat and avoid sharp bends
- Test the system before finalizing the installation
- If unsure, consult a licensed electrician
Remember, even low-voltage systems require respect. Taking your time and following safety steps prevents accidents and ensures a professional result.
Upgrading Your Doorbell System
While installing a lighted button is a great start, you might consider upgrading other parts of your doorbell system for better performance.
Replace the Chime
Older chimes may not work well with modern buttons. Upgrading to a digital chime with multiple tones or volume control can enhance your experience.
Install a Video Doorbell
For added security, consider a video doorbell with a lighted button. These devices connect to Wi-Fi and allow you to see and speak with visitors from your phone.
Upgrade the Transformer
If your doorbell is weak or the light is dim, your transformer may be underpowered. Replacing it with a 16V or 24V model can improve performance.
Maintenance Tips
To keep your lighted doorbell button working well for years:
- Clean the button surface monthly with a damp cloth
- Check for loose screws or wires every six months
- Replace the LED bulb if it burns out (if replaceable)
- Inspect for moisture damage, especially in rainy climates
- Test the button regularly to ensure reliability
Regular maintenance prevents unexpected failures and keeps your entryway looking great.
Conclusion
Installing a lighted doorbell button is a simple, rewarding DIY project that enhances both functionality and curb appeal. With the right tools, careful planning, and attention to safety, you can complete the job in under an hour.
By following this guide, you’ve learned how to install a lighted doorbell button step by step—from turning off power and removing the old unit to wiring the new one and testing the system. You’ve also gained troubleshooting skills and maintenance tips to keep your doorbell in top condition.
A lighted button not only makes your home more welcoming but also improves safety and convenience for everyone who visits. Whether you’re upgrading for style, visibility, or peace of mind, this small change can make a big difference.
So go ahead—press that button with pride. You’ve earned it.
