How to Install a Low Voltage Doorbell: A Complete DIY Guide
Installing a low voltage doorbell is one of the most rewarding home improvement projects you can tackle yourself. Not only does it enhance your home’s curb appeal and security, but it also gives you full control over the look, sound, and functionality of your entryway. Whether you’re replacing an old, broken doorbell or installing one for the first time, this comprehensive guide will walk you through every step—safely and efficiently.
In this guide, you’ll learn how to choose the right doorbell kit, gather the necessary tools, locate and install the transformer, run low voltage wiring, mount the doorbell button and chime, and test the system. We’ll also cover troubleshooting tips and upgrades to help you get the most out of your new doorbell. By the end, you’ll have a reliable, professionally installed doorbell that works flawlessly—without calling an electrician.
Let’s get started!
Understanding Low Voltage Doorbells

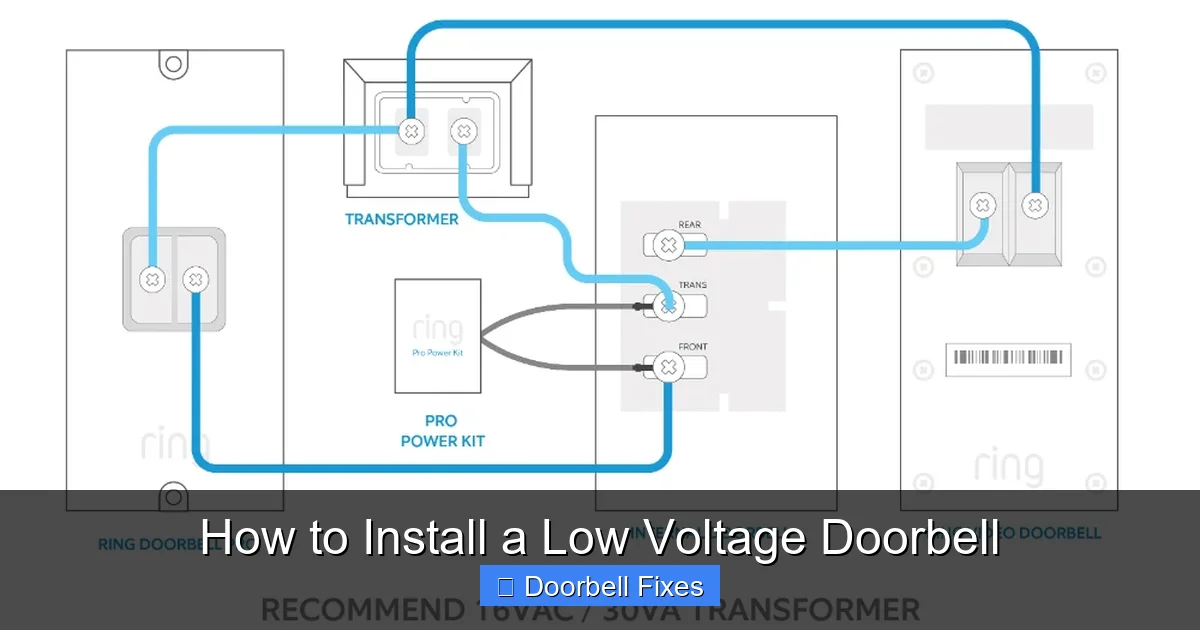

Visual guide about How to Install a Low Voltage Doorbell
Image source: storables.com
Before diving into installation, it’s important to understand what a low voltage doorbell is and how it works. Unlike older doorbells that may have used line voltage (120V), modern doorbells operate on low voltage—typically 8 to 24 volts AC. This makes them safer to install and maintain, especially for DIYers.
A standard low voltage doorbell system consists of three main components:
- The doorbell button: Mounted outside your front (or back) door, this is what visitors press to signal their arrival.
- The chime unit: Installed inside your home, usually in a central location like a hallway or living room, this produces the audible sound when the button is pressed.
- The transformer: This device converts your home’s standard 120V electrical current into the low voltage needed to power the doorbell. It’s typically connected to a nearby electrical junction box or light fixture.
These components are connected via low voltage wiring, which is much thinner and safer to handle than standard electrical wire. Because the system uses low voltage, you don’t need to be a licensed electrician to install it—just follow safety guidelines and take your time.
Tools and Materials You’ll Need
Having the right tools and materials on hand will make your installation smoother and faster. Here’s a checklist of everything you’ll need:
Essential Tools
- Screwdrivers (flathead and Phillips)
- Wire strippers
- Voltage tester (non-contact)
- Drill and drill bits (for mounting)
- Pencil or marker
- Measuring tape
- Electrical tape
- Fish tape or wire puller (if running wire through walls)
- Safety glasses and gloves
Materials
- Low voltage doorbell kit (includes button, chime, and sometimes transformer)
- Doorbell transformer (if not included or replacing an old one)
- 18- or 20-gauge low voltage doorbell wire (usually 2-conductor)
- Wire nuts or terminal screws
- Wall anchors and screws (for mounting)
- Optional: Wire staples or clips (to secure wire along baseboards or moldings)
Most doorbell kits come with the button and chime, but you may need to purchase the transformer and wire separately—especially if you’re replacing an old system. Always check the manufacturer’s specifications to ensure compatibility.
Step 1: Turn Off the Power
Safety is paramount when working with any electrical system—even low voltage ones. Although the doorbell itself uses safe voltage, the transformer is connected to your home’s 120V electrical supply. That means there’s still a risk of electric shock if you’re not careful.
Locate the Correct Circuit Breaker
Start by identifying which circuit powers the area where your doorbell transformer is installed. This is often near a light fixture, outlet, or junction box in your basement, garage, or utility closet. If you’re unsure, turn off the main breaker to be safe—but this will cut power to your entire home.
Test for Power
Once you’ve turned off the breaker, use a non-contact voltage tester to confirm that power is off. Touch the tester to the wires at the transformer location. If it beeps or lights up, the power is still on—double-check your breaker panel.
Never skip this step. Even a small mistake can lead to serious injury or damage to your doorbell components.
Step 2: Choose the Right Location
Where you install your doorbell components affects both functionality and aesthetics. Here’s how to choose the best spots:
Doorbell Button Placement
The button should be mounted:
- At a comfortable height (typically 48 inches from the ground)
- Near the door frame, but not so close that it’s hard to reach
- Protected from direct rain or snow (under an eave or porch)
- Away from direct sunlight if possible (to prevent overheating)
Avoid placing it near metal surfaces or gutters, as this can interfere with wireless models or cause false triggers.
Chime Unit Placement
The chime should be:
- In a central location where the sound can be heard throughout the house
- Mounted on a wall, not inside a cabinet or enclosed space
- At least 6–8 feet away from the door to avoid feedback or echo
- Accessible for future battery changes (if applicable)
Common spots include hallways, living rooms, or near staircases. Avoid bedrooms or quiet areas where the chime might be disruptive.
Transformer Location
The transformer should be:
- Connected to a live 120V circuit (often in a junction box or light fixture)
- Close enough to the chime and button to allow for wiring
- Protected from moisture and extreme temperatures
- Easily accessible for maintenance or replacement
Many homeowners install the transformer in the basement, attic, or garage—near an existing light fixture or outlet.
Step 3: Install the Transformer
The transformer is the heart of your low voltage doorbell system. It steps down your home’s 120V power to the 16V (or similar) needed by the doorbell.
Locate an Existing Junction Box
Most homes already have a doorbell transformer installed, often tucked into a junction box behind a light switch or ceiling fixture. If you’re replacing an old system, you can reuse the existing transformer—just make sure it’s compatible with your new doorbell (check the voltage and amperage).
If you need to install a new transformer:
- Find a junction box with access to 120V power (e.g., a ceiling light in the basement or garage)
- Turn off power at the breaker
- Remove the cover plate and inspect the wiring
Connect the Transformer
Follow these steps:
- Strip about ½ inch of insulation from the ends of the transformer’s black and white wires.
- Connect the black wire to the hot (black) wire in the junction box using a wire nut.
- Connect the white wire to the neutral (white) wire.
- If there’s a ground wire (bare copper or green), connect it to the transformer’s ground screw or wire.
- Tuck the transformer into the junction box and secure it with a mounting bracket or tape (if allowed by code).
- Replace the cover plate.
Run Low Voltage Wires
From the transformer, run two low voltage wires:
- One to the doorbell button
- One to the chime unit
Use 18- or 20-gauge doorbell wire. You can run it through walls, under baseboards, or along moldings. If drilling through walls, use a fish tape to pull the wire through. Secure the wire with staples or clips every few feet to prevent sagging.
Step 4: Install the Doorbell Button
Now it’s time to mount the button outside your door.
Mark the Mounting Spot
Hold the button against the door frame at your chosen height. Use a pencil to mark the screw holes.
Drill Pilot Holes
Drill small pilot holes where you marked. If mounting into brick, stucco, or concrete, use a masonry bit and wall anchors.
Connect the Wires
Strip about ¼ inch of insulation from the two low voltage wires coming from the transformer. Attach them to the terminals on the back of the doorbell button. Most buttons have two screws—it doesn’t matter which wire goes where, as low voltage is not polarity-sensitive.
Mount the Button
Align the button with the pilot holes and secure it with screws. Make sure it’s snug but not over-tightened, which could crack the housing.
Test the Button
Before moving on, briefly turn the power back on and press the button. If the chime rings, great! Turn the power off again before continuing.
Step 5: Install the Chime Unit
The chime is the indoor component that makes the sound.
Mount the Chime
Hold the chime against the wall at your chosen location. Mark the screw holes and drill pilot holes. Use wall anchors if needed.
Connect the Wires
Strip the ends of the two low voltage wires coming from the transformer and the two wires going to the doorbell button. Most chimes have three terminals:
- Front: Connects to the front door button
- Trans: Connects to the transformer
- Rear: Connects to a second button (like a back door), if applicable
If you only have one button, connect:
- One wire from the transformer to the “Trans” terminal
- One wire from the button to the “Front” terminal
- Use a short jumper wire to connect “Trans” and “Front” if your chime requires it (check the manual)
Secure the connections with terminal screws or wire nuts.
Secure the Chime
Attach the chime to the wall using screws. Make sure it’s level and firmly mounted.
Step 6: Test the System
With everything connected, it’s time to test your doorbell.
Turn the Power Back On
Go to your breaker panel and turn the power back on to the circuit.
Press the Button
Go outside and press the doorbell button. Listen for the chime inside. If it rings clearly and consistently, congratulations—your installation is successful!
Check for Issues
If the chime doesn’t ring:
- Double-check all wire connections
- Ensure the transformer is receiving power
- Test the button with a multimeter for continuity
- Verify the chime is compatible with your transformer
If the chime rings weakly or inconsistently, the transformer may be underpowered or the wire gauge too thin.
Troubleshooting Common Problems
Even with careful installation, issues can arise. Here’s how to fix the most common problems:
Doorbell Doesn’t Ring
- Cause: Loose or disconnected wires
- Fix: Recheck all connections at the button, chime, and transformer
- Cause: Faulty transformer
- Fix: Use a multimeter to test output voltage. It should read close to 16V AC. Replace if low or zero.
- Cause: Defective button
- Fix: Test the button with a multimeter. If it doesn’t complete the circuit when pressed, replace it.
Chime Rings Weakly or Intermittently
- Cause: Undersized wire or long wire runs
- Fix: Use 18-gauge wire for runs over 50 feet. Avoid sharp bends or kinks in the wire.
- Cause: Low transformer output
- Fix: Replace with a higher-rated transformer (e.g., 16V 30VA instead of 16V 10VA)
Chime Makes a Buzzing Sound
- Cause: Loose connection or arcing
- Fix: Tighten all terminal screws. Ensure wires are fully inserted and not frayed.
Multiple Buttons, One Doesn’t Work
- Cause: Incorrect wiring at the chime
- Fix: Ensure each button is connected to the correct terminal (Front, Rear, etc.) and that jumpers are properly placed.
Upgrades and Enhancements
Once your basic doorbell is working, consider these upgrades:
Smart Doorbell Integration
Many modern chimes are compatible with smart doorbells like Ring or Nest. You can keep your existing wiring and transformer while adding video, motion detection, and smartphone alerts.
Wireless Extenders
If your chime is too far from the button, a wireless extender can boost the signal and ensure reliable operation.
Multiple Chimes
Install additional chimes in bedrooms or the backyard so you never miss a visitor.
LED Indicators
Some chimes include LED lights that flash when the button is pressed—great for hearing-impaired households.
Maintenance Tips
To keep your doorbell working smoothly:
- Clean the button with a damp cloth every few months to remove dirt and debris
- Check wire connections annually for looseness or corrosion
- Replace the transformer if the chime becomes weak or stops working
- Test the system monthly to catch issues early
Conclusion
Installing a low voltage doorbell is a practical, rewarding project that improves your home’s functionality and security. With the right tools, a clear plan, and attention to safety, you can complete the job in under an hour. From choosing the right location to testing the final system, every step matters—but this guide ensures you’ll get it right the first time.
Remember: always turn off the power, use proper wiring, and test before finalizing. And if you run into trouble, don’t hesitate to consult the manufacturer’s instructions or seek professional help.
Now that you know how to install a low voltage doorbell, you’re ready to upgrade your entryway with confidence. Enjoy your new doorbell—and the peace of mind that comes with a job well done!
