Installing a Ring Doorbell 2 is easier than you think—whether you’re replacing an old doorbell or setting up a new one. This guide walks you through every step, from choosing your power option to finalizing the setup in the Ring app, ensuring a secure and reliable smart doorbell experience.
Key Takeaways
- Choose the right power option: The Ring Doorbell 2 can run on rechargeable batteries or be hardwired to existing doorbell wiring—pick what works best for your home.
- Gather the right tools: You’ll need a screwdriver, drill (optional), level, and possibly a voltage tester if wiring.
- Use the Ring app for setup: The app guides you through mounting, connecting to Wi-Fi, and customizing motion and notification settings.
- Ensure strong Wi-Fi signal: Place the doorbell within range of your router or use a Wi-Fi extender to avoid connectivity issues.
- Test after installation: Always test the doorbell, camera, and two-way audio to confirm everything works before finishing.
- Maintain regularly: Recharge batteries every 6–12 months and clean the lens periodically for clear video.
- Know when to call a pro: If you’re unsure about electrical wiring, consult a licensed electrician for safety.
How to Install a Ring Doorbell 2
So you’ve got your hands on a Ring Doorbell 2—congratulations! You’re about to upgrade your home security with a smart doorbell that lets you see, hear, and speak to visitors from anywhere using your smartphone. Whether you’re replacing an old mechanical doorbell or installing one for the first time, this guide will walk you through the entire process, from unboxing to final testing.
In this comprehensive how-to, you’ll learn how to install a Ring Doorbell 2 using either battery power or existing doorbell wiring. We’ll cover the tools you need, step-by-step mounting instructions, app setup, Wi-Fi connection, and troubleshooting common issues. By the end, you’ll have a fully functional smart doorbell that enhances your home’s safety and convenience.
Let’s get started!
What’s in the Box?
Visual guide about How to Install a Ring Doorbell 2
Image source: i1.wp.com
Before you begin, it’s important to know what comes with your Ring Doorbell 2. Here’s what you should find inside the box:
- Ring Doorbell 2 unit
- Rechargeable battery pack (pre-installed)
- Mounting bracket (angled and flat options)
- Screws and wall anchors
- Security screw and tool
- User manual and quick start guide
- Wire nuts (for wired installation)
Take a moment to lay everything out and ensure nothing is missing. If any parts are damaged or absent, contact Ring customer support before proceeding.
Choosing Your Power Option: Battery vs. Wired
One of the great things about the Ring Doorbell 2 is its flexibility. You can power it in two ways: using the included rechargeable battery or connecting it to your existing doorbell wiring. Let’s break down both options so you can decide which is best for your situation.
Battery-Powered Installation
If your home doesn’t have existing doorbell wiring—or if you prefer a simpler, no-drill setup—the battery option is ideal. The Ring Doorbell 2 comes with a removable lithium-ion battery that lasts about 6 to 12 months on a single charge, depending on usage.
Pros:
- Easy to install—no electrical work required
- Perfect for renters or homes without doorbell wires
- Can be mounted almost anywhere
Cons:
- Battery needs recharging every few months
- May not support continuous recording (only motion-activated)
Wired Installation
If your home already has doorbell wiring (typically low-voltage, 8–24V AC), you can hardwire the Ring Doorbell 2 for continuous power. This eliminates the need to recharge the battery and ensures reliable operation.
Pros:
- No battery maintenance
- Supports more advanced features like pre-roll video
- More stable power supply
Cons:
- Requires access to existing wiring
- May need a voltage tester to confirm compatibility
- Involves minor electrical work
Tip: Even if you hardwire your Ring Doorbell 2, the battery remains installed as a backup. So you’ll still need to charge it occasionally, but far less often.
Tools You’ll Need
Before you start installing, gather the following tools. Most are common household items, but having them ready will make the process smoother.
- Phillips head screwdriver
- Drill with 3/16” drill bit (optional, for mounting)
- Level (to ensure the doorbell is straight)
- Pencil (for marking drill holes)
- Voltage tester (if wiring—highly recommended)
- Smartphone with the Ring app installed
- Ladder (if mounting high on the wall)
If you’re doing a wired installation, you may also want wire strippers and electrical tape, though the included wire nuts usually suffice.
Step 1: Download and Set Up the Ring App
Before mounting your doorbell, download the Ring app on your smartphone. It’s available for free on the Apple App Store and Google Play Store.
Create or Log In to Your Ring Account
Open the app and either create a new account or log in if you already have one. You’ll need to verify your email address and set up two-factor authentication for security.
Add Your Device
Tap the menu icon (three lines) in the top-left corner, then select “Set Up a Device.” Choose “Doorbells” and then “Ring Video Doorbell 2.” The app will guide you through the initial setup, including scanning the QR code on the back of your doorbell.
Tip: Keep your doorbell nearby during setup—you’ll need to press the orange button on the back to put it in pairing mode.
Step 2: Prepare the Mounting Location
Now it’s time to choose where to mount your Ring Doorbell 2. The ideal location is about 4 feet above the ground, facing the front door or walkway. It should have a clear view of the approach and be within range of your Wi-Fi signal.
Check Wi-Fi Signal Strength
Use your phone to check the Wi-Fi signal at the mounting spot. If the signal is weak, consider moving your router, using a Wi-Fi extender, or choosing a different location. A strong connection ensures smooth video streaming and reliable alerts.
Remove the Old Doorbell (If Applicable)
If you’re replacing an existing doorbell, turn off the power at the circuit breaker to avoid electrical shock. Unscrew and remove the old unit, then disconnect the wires. Label them if needed (e.g., “Front” and “Trans”) so you know which is which.
Safety Note: Always turn off power before handling electrical wires. If you’re unsure, consult an electrician.
Test the Voltage (For Wired Installations)
Use a voltage tester to check if your existing doorbell wiring provides 8–24V AC. The Ring Doorbell 2 is compatible with most standard doorbell transformers. If the voltage is too high or too low, you may need a compatible transformer.
Step 3: Choose and Attach the Mounting Bracket
The Ring Doorbell 2 comes with two mounting brackets: a flat one and an angled one (15 degrees). The angled bracket helps improve the camera’s field of view if your door is recessed or the doorbell is mounted on a corner.
Select the Right Bracket
- Use the flat bracket if your doorbell mounts flush against the wall.
- Use the angled bracket if you need to tilt the camera slightly downward or outward.
Mark the Screw Holes
Hold the bracket against the wall at the desired height. Use a level to ensure it’s straight, then mark the screw holes with a pencil.
Drill Pilot Holes (If Needed)
If you’re mounting into brick, concrete, or hard siding, drill pilot holes using a 3/16” drill bit. Insert wall anchors if necessary.
Secure the Bracket
Align the bracket with the marks and screw it into place using the provided screws. Make sure it’s tight and level.

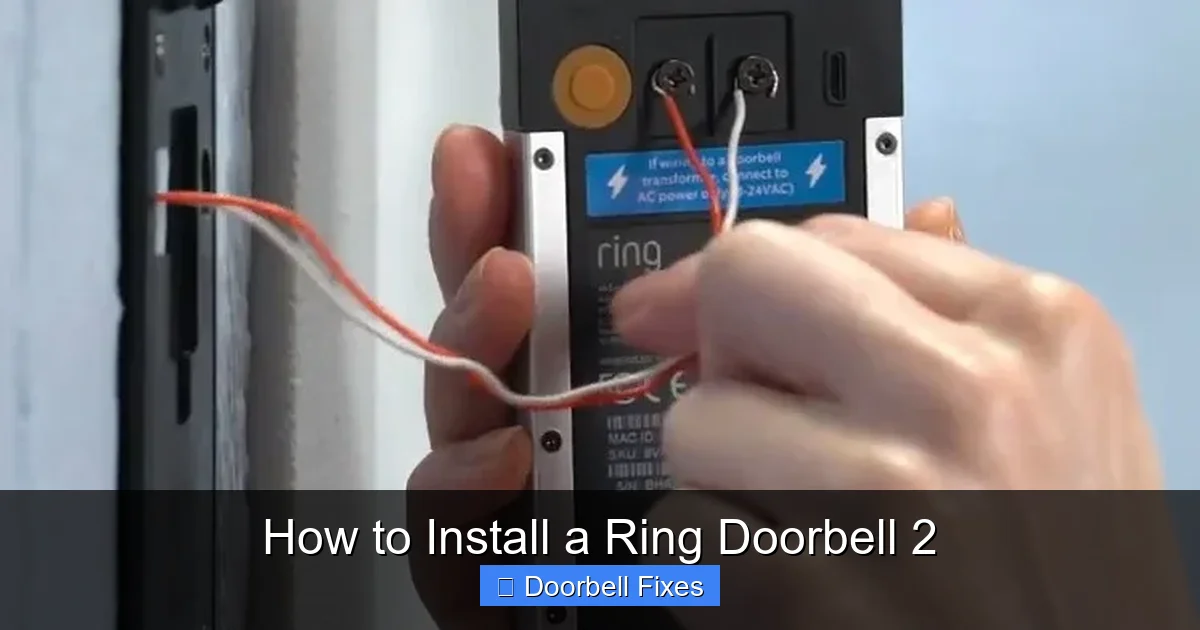

Step 4: Connect the Wires (For Wired Installations)
If you’re using existing wiring, now’s the time to connect it.
Strip the Wire Ends
Use wire strippers to expose about 1/4 inch of copper on each wire. Be careful not to cut the wire.
Attach Wires to the Bracket
The mounting bracket has two terminals labeled “Front” and “Trans.” It doesn’t matter which wire goes where—just connect one wire to each terminal and tighten the screws.
Secure with Wire Nuts (Optional)
For extra safety, you can twist the wires together and cover them with wire nuts, though this isn’t always necessary.
Tip: Even if you’re hardwiring, keep the battery installed. It acts as a backup and helps during initial setup.
Step 5: Attach the Ring Doorbell 2
Now it’s time to mount the doorbell itself.
Align the Doorbell with the Bracket
Slide the Ring Doorbell 2 onto the mounting bracket. You’ll hear a click when it’s securely in place.
Secure with the Security Screw
Use the included security screw and tool to lock the doorbell to the bracket. This prevents theft and tampering.
Note: Don’t overtighten—just snug enough to hold it firmly.
Step 6: Complete Setup in the Ring App
With the doorbell mounted, return to the Ring app to finish the setup.
Connect to Wi-Fi
The app will prompt you to connect your doorbell to your home Wi-Fi network. Select your network and enter the password. The doorbell will take a moment to connect.
Tip: Use a 2.4 GHz network—the Ring Doorbell 2 doesn’t support 5 GHz.
Test the Connection
Once connected, the app will test the signal strength. If it’s weak, consider relocating the doorbell or using a Wi-Fi extender.
Customize Settings
Now you can personalize your doorbell:
- Motion Zones: Define areas where you want motion detection (e.g., driveway but not sidewalk).
- Motion Sensitivity: Adjust how sensitive the sensor is—low, medium, or high.
- Notifications: Choose when to receive alerts (e.g., only when motion is detected).
- Chime Settings: If you have a Ring Chime or Chime Pro, link it here.
Enable Two-Way Talk
Test the microphone and speaker by speaking through the app. You should hear audio clearly and be able to respond.
Step 7: Test Your Ring Doorbell 2
Before calling the job done, test everything to ensure it’s working properly.
Check the Camera Feed
Open the Ring app and view the live feed. Make sure the image is clear, well-lit, and covers the desired area.
Test Motion Detection
Walk in front of the doorbell to trigger motion alerts. You should receive a notification on your phone within a few seconds.
Test Two-Way Audio
Press the talk button in the app and speak. Ask someone nearby to listen—they should hear you clearly.
Test the Doorbell Button
Press the doorbell button. You should hear a chime (if connected) and receive a notification.
Check Night Vision
Turn off the lights and check the video feed. The infrared LEDs should provide a clear black-and-white image.
Troubleshooting Common Issues
Even with careful installation, you might run into a few hiccups. Here’s how to fix the most common problems.
Doorbell Won’t Connect to Wi-Fi
- Ensure you’re using a 2.4 GHz network.
- Move closer to the router during setup.
- Restart your router and try again.
- Reset the doorbell by holding the orange button for 20 seconds.
Poor Video Quality
- Clean the camera lens with a soft, dry cloth.
- Check for obstructions like dirt, spider webs, or condensation.
- Ensure the doorbell is within Wi-Fi range.
Battery Drains Too Fast
- Reduce motion sensitivity or narrow motion zones.
- Turn off unnecessary features like pre-roll.
- Ensure the doorbell isn’t in a high-traffic area triggering constant alerts.
Doorbell Doesn’t Ring the Chime
- Check that the chime is plugged in and linked in the app.
- Verify the doorbell is receiving power (battery or wired).
- Update the Ring app and chime firmware.
Motion Alerts Not Working
- Check motion zones and sensitivity settings.
- Ensure the doorbell is powered and connected.
- Restart the doorbell by removing and reinserting the battery.
Maintenance Tips for Long-Term Use
To keep your Ring Doorbell 2 working smoothly, follow these simple maintenance steps:
- Recharge the battery: Every 6–12 months, or when the app alerts you.
- Clean the lens: Wipe it monthly with a microfiber cloth to prevent smudges.
- Check for firmware updates: The app will notify you when updates are available.
- Inspect the mount: Ensure screws are tight and the unit is secure.
- Test monthly: Press the button and check alerts to confirm functionality.
When to Call a Professional
While most homeowners can install a Ring Doorbell 2 themselves, there are times when it’s best to call in an expert:
- You’re unsure about electrical wiring or voltage.
- Your home doesn’t have existing doorbell wires and you don’t want to use batteries.
- You need a new transformer installed.
- You’re mounting on brick, stone, or another hard surface and lack the tools.
A licensed electrician can ensure safe and proper installation, especially for wired setups.
Conclusion
Installing a Ring Doorbell 2 is a smart way to boost your home’s security and convenience. Whether you choose battery or wired power, the process is straightforward with the right tools and guidance. From downloading the app to testing the final setup, this guide has walked you through every step to ensure a successful installation.
Remember to test all features, maintain your device regularly, and don’t hesitate to reach out to Ring support if you run into issues. With your new smart doorbell in place, you’ll always know who’s at the door—even when you’re miles away.
Welcome to the future of home security!
