How to Install a Ring Doorbell

How to Install a Ring Doorbell

by

This guide walks you through how to install a Ring Doorbell—whether wired or battery-powered—with clear, beginner-friendly steps. You’ll learn about tools needed, mounting, app setup, and common fixes to ensure your smart doorbell works perfectly from day one.

Key Takeaways

  • Choose the right model: Ring offers wired (like Ring Video Doorbell Wired) and battery-powered (like Ring Video Doorbell 4) options—pick based on your home’s wiring and power access.
  • Use the Ring app for setup: The free Ring app (iOS/Android) guides you through installation, Wi-Fi connection, and device pairing.
  • Ensure strong Wi-Fi signal: Place your doorbell within range of your router or use a Wi-Fi extender to avoid connectivity issues.
  • Turn off power before wiring: If installing a wired model, always shut off power at the breaker to prevent electrical shock.
  • Test motion and video settings: After installation, adjust motion zones and sensitivity in the app to reduce false alerts.
  • Secure mounting is key: Use the included level and screws to mount the doorbell straight and firmly to prevent wobbling or damage.
  • Troubleshoot common issues: Problems like low battery, poor video quality, or offline status often have simple fixes—check connections, update firmware, or reset the device.

How to Install a Ring Doorbell: A Complete Step-by-Step Guide

So, you’ve decided to upgrade your home security with a Ring Doorbell—great choice! Whether you’re replacing an old doorbell or installing one for the first time, Ring makes the process surprisingly simple. But like any tech upgrade, a little know-how goes a long way.

In this guide, we’ll walk you through how to install a Ring Doorbell from start to finish. We’ll cover both wired and battery-powered models, explain the tools you’ll need, and share tips to avoid common pitfalls. By the end, you’ll have a fully functional smart doorbell that lets you see, hear, and speak to visitors from anywhere.

Let’s get started!

What You’ll Need Before You Begin

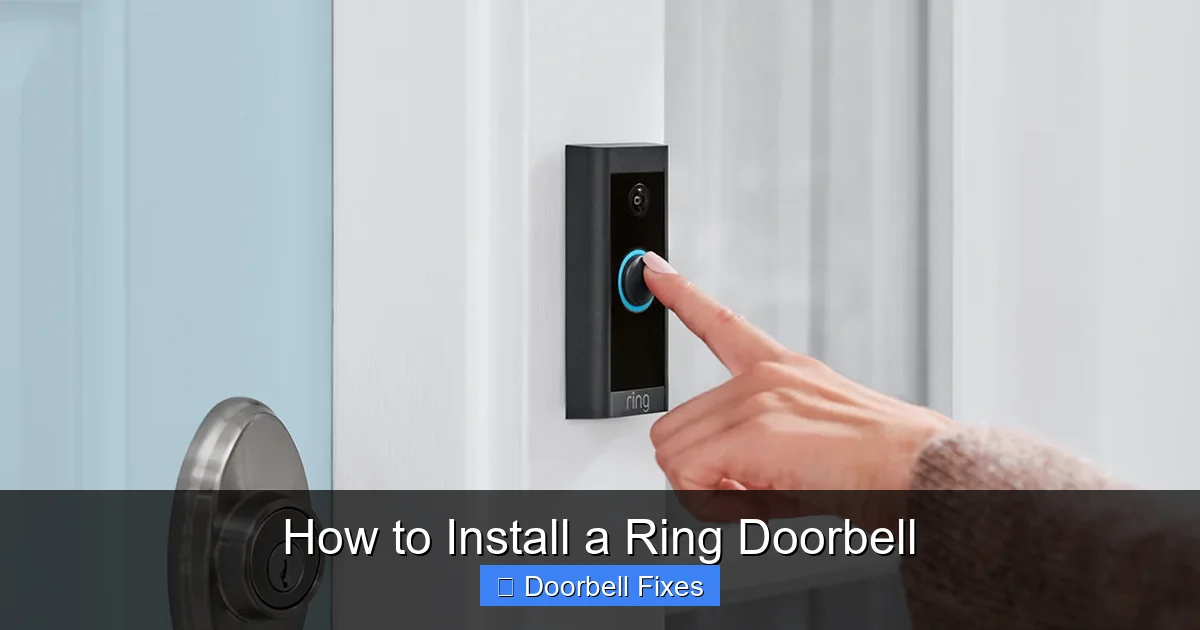

How to Install a Ring Doorbell

Visual guide about How to Install a Ring Doorbell

Image source: images.ctfassets.net

Before you grab your drill and head to the front door, make sure you have everything ready. Preparation saves time and frustration.

Tools and Materials

  • Ring Doorbell (battery or wired model)
  • Smartphone with the Ring app installed (free on iOS and Android)
  • Drill with drill bits (usually 3/32″ or 1/8″)
  • Screwdriver (Phillips head)
  • Level (the Ring kit includes a small one)
  • Pencil or marker
  • Wire strippers (for wired models only)
  • Electrical tape (for wired models)
  • Optional: Voltage tester (to confirm power is off)
  • Optional: Wi-Fi extender (if your front door has weak signal)

Check Your Existing Doorbell (For Wired Models)

If you’re installing a wired Ring Doorbell (like the Ring Video Doorbell Wired or Ring Video Doorbell Pro), you’ll need to check if your existing doorbell wiring is compatible.

Most older doorbells use low-voltage AC wiring (8–24 volts), which works with Ring. But if your system uses high voltage (110V+), you’ll need a transformer or consider a battery-powered model instead.

To check:

  1. Remove your old doorbell button.
  2. Look at the wires—usually two thin wires connected to screws.
  3. Use a multimeter or voltage tester to confirm the voltage (if unsure, consult an electrician).

If you’re going with a battery-powered model (like the Ring Video Doorbell 4 or Ring Video Doorbell Wired Plus), you can skip the wiring checks—no power source needed!

Step 1: Download and Set Up the Ring App

The Ring app is your control center. It guides you through installation, connects your doorbell to Wi-Fi, and lets you customize settings.

Download the App

Go to the App Store (iPhone) or Google Play Store (Android) and search for “Ring.” Download the official Ring app.

Create or Log In to Your Account

If you’re new to Ring, tap “Create Account” and follow the prompts. You’ll need:

  • Email address
  • Password
  • Phone number (for two-factor authentication)

If you already have a Ring account, just log in.

Enable Permissions

The app will ask for access to:

  • Camera (to scan QR codes)
  • Microphone (for two-way talk)
  • Location (to help with setup and alerts)

Allow these permissions—they’re essential for full functionality.

Step 2: Choose Your Installation Type

Ring offers two main installation paths: wired and battery-powered. Your choice affects the setup process.

Battery-Powered Installation

Best for:

  • Homes without existing doorbell wiring
  • Renters or those who don’t want to deal with wires
  • Quick, tool-light setup

Pros:

  • No wiring needed
  • Easy to remove or relocate
  • Works during power outages (battery lasts 6–12 months)

Cons:

  • Requires periodic recharging
  • May not support advanced features like pre-roll (on some models)

Wired Installation

Best for:

  • Homes with existing doorbell wiring
  • Users who want continuous power and advanced features
  • Those who don’t want to recharge batteries

Pros:

  • No battery worries
  • Supports features like pre-roll and enhanced motion detection
  • More reliable for 24/7 recording

Cons:

  • Requires turning off power
  • More complex installation
  • Not ideal for renters

Once you’ve decided, proceed to the appropriate setup steps.

Step 3: Install the Ring Doorbell (Battery-Powered Model)

Let’s start with the easier option—battery-powered installation.

Step 3.1: Charge the Battery

Your Ring Doorbell comes with a rechargeable battery. Before installing:

  1. Remove the battery from the doorbell (press the release tab).
  2. Charge it using the included USB cable and a power adapter.
  3. Wait until the LED light turns green (usually 4–6 hours).

Tip: You can charge the battery while it’s still in the doorbell, but removing it makes handling easier.

Step 3.2: Mount the Base Plate

The base plate holds the doorbell securely to your wall.

  1. Hold the base plate against the wall where you want the doorbell.
  2. Use the included level to make sure it’s straight.
  3. Mark the screw holes with a pencil.
  4. Drill pilot holes (use a 3/32″ bit for most walls).
  5. Secure the base plate with the provided screws.

Tip: If mounting on brick or concrete, use wall anchors for a secure fit.

Step 3.3: Attach the Doorbell

  1. Slide the charged battery into the doorbell until it clicks.
  2. Align the doorbell with the base plate.
  3. Push it down and forward until it locks into place.

You’ll hear a click when it’s secure.

Step 3.4: Open the Ring App and Add the Device

  1. Open the Ring app.
  2. Tap the three-line menu (☰) and select “Set Up a Device.”
  3. Choose “Doorbells.”
  4. Scan the QR code on the back of your doorbell (or enter the serial number manually).
  5. Follow the on-screen prompts to connect to Wi-Fi.

The app will guide you through naming your doorbell (e.g., “Front Door”) and setting up motion zones.

Step 3.5: Test the Doorbell

  1. Press the doorbell button—your phone should receive a notification.
  2. Answer the call to test two-way audio.
  3. Walk in front of the doorbell to test motion detection.

If everything works, you’re done! If not, check the troubleshooting section below.

Step 4: Install the Ring Doorbell (Wired Model)

Now for the wired installation—slightly more involved, but still doable for most DIYers.

Step 4.1: Turn Off Power at the Breaker

Safety first! Before touching any wires:

  1. Go to your electrical panel.
  2. Turn off the breaker that controls your doorbell circuit.
  3. Use a voltage tester on the wires to confirm power is off.

Never skip this step—even low-voltage systems can be dangerous if mishandled.

Step 4.2: Remove the Old Doorbell

  1. Unscrew and remove the old doorbell button.
  2. Carefully pull the wires out of the wall.
  3. Strip about 1/4 inch of insulation from each wire end (if needed).

Keep the wires separated so they don’t touch.

Step 4.3: Install the Ring Mounting Bracket

Ring wired models use a special bracket that connects to the wires.

  1. Hold the mounting bracket against the wall.
  2. Use the level to ensure it’s straight.
  3. Mark the screw holes.
  4. Drill pilot holes and secure the bracket with screws.

Step 4.4: Connect the Wires

  1. Loosen the terminal screws on the back of the bracket.
  2. Insert one wire into each terminal (it doesn’t matter which wire goes where).
  3. Tighten the screws to secure the wires.
  4. Wrap the connections with electrical tape for extra safety.

Tip: If your wires are too short, use wire extenders (available at hardware stores).

Step 4.5: Attach the Doorbell

  1. Align the doorbell with the bracket.
  2. Push it down and forward until it clicks into place.
  3. Secure it with the included security screw (use the small screwdriver).

Step 4.6: Restore Power and Set Up in the App

  1. Go back to the breaker and turn the power back on.
  2. Open the Ring app.
  3. Tap “Set Up a Device” > “Doorbells.”
  4. Scan the QR code and follow the prompts.
  5. Connect to Wi-Fi and customize settings.

Step 4.7: Test the Doorbell

Same as the battery model:

  • Press the button—check for notifications.
  • Test two-way talk.
  • Walk in front to test motion detection.

Step 5: Customize Your Ring Doorbell Settings

Once installed, take time to tweak settings for the best experience.

Adjust Motion Zones

  1. Open the Ring app.
  2. Tap your doorbell > “Device Settings” > “Motion Settings.”
  3. Tap “Motion Zones” and draw areas where you want alerts (e.g., sidewalk, driveway).
  4. Exclude areas like busy streets to reduce false alerts.

Set Motion Sensitivity

  1. In “Motion Settings,” adjust the sensitivity slider.
  2. High sensitivity = more alerts (good for security).
  3. Low sensitivity = fewer alerts (good for reducing noise).

Enable Smart Alerts

Ring can distinguish between people, packages, and animals (with a Ring Protect plan).

  1. Go to “Smart Alerts” in the app.
  2. Toggle on “People Only” or “Package Alerts” if available.

Set Up Chimes

If you have a Ring Chime or Chime Pro:

  1. Plug it into an outlet near your door.
  2. Open the app > “Set Up a Device” > “Chimes.”
  3. Follow the prompts to pair it with your doorbell.

Now you’ll hear a sound inside your home when someone rings the doorbell.

Troubleshooting Common Ring Doorbell Issues

Even with careful installation, problems can happen. Here’s how to fix the most common ones.

Doorbell Won’t Connect to Wi-Fi

  • Make sure you’re within 30–50 feet of your router.
  • Restart your router and the doorbell.
  • Forget the Wi-Fi network in the app and reconnect.
  • Use a Wi-Fi extender if the signal is weak.

Battery Drains Too Fast

  • Reduce motion sensitivity.
  • Limit live view usage.
  • Check for firmware updates in the app.
  • Ensure the doorbell isn’t in a high-traffic area triggering constant alerts.

Video Quality Is Poor

  • Clean the lens with a soft cloth.
  • Check Wi-Fi signal strength.
  • Lower video quality in the app if bandwidth is limited.
  • Ensure the doorbell is mounted securely (vibration can blur video).

Doorbell Goes Offline Frequently

  • Check power source (battery level or wiring connection).
  • Restart the device by removing and reinserting the battery or turning power off/on.
  • Update the app and firmware.

Two-Way Talk Doesn’t Work

  • Check microphone and speaker permissions in your phone settings.
  • Ensure your phone isn’t on silent or Do Not Disturb.
  • Test in a quiet environment—background noise can interfere.

Tips for a Successful Ring Doorbell Installation

Want to avoid headaches? Follow these pro tips:

  • Mount at the right height: 48 inches from the ground is ideal—high enough to prevent tampering, low enough to capture faces.
  • Angle slightly downward: Tilt the doorbell slightly toward the walkway for better motion detection.
  • Use the wedge kit if needed: If your wall is uneven, use the included wedge to angle the doorbell properly.
  • Keep the lens clean: Wipe it monthly with a microfiber cloth to maintain video clarity.
  • Update regularly: Ring pushes firmware updates automatically, but check the app occasionally to ensure you’re on the latest version.
  • Consider a Ring Protect plan: For $3/month, you get video recording, extended history, and advanced alerts.

Conclusion

Installing a Ring Doorbell is a smart, straightforward way to boost your home security. Whether you choose a battery-powered or wired model, the process is designed to be user-friendly—especially with the help of the Ring app.

By following this guide, you’ve learned how to install a Ring Doorbell safely and effectively. You’ve mounted the device, connected it to Wi-Fi, customized settings, and learned how to troubleshoot common issues.

Now, enjoy peace of mind knowing you can see who’s at your door—even when you’re not home. With motion alerts, two-way talk, and HD video, your Ring Doorbell is more than just a doorbell—it’s a smart security hub.

Ready to take the next step? Explore Ring’s ecosystem of cameras, alarms, and smart lights to build a complete home security system.

Welcome to the future of front-door safety.
