Installing a diode on your Ring Doorbell 2 can resolve common chime problems caused by voltage drops or electrical interference. This guide walks you through the process safely and effectively, ensuring your doorbell works smoothly with mechanical chimes.
Key Takeaways
- Why Install a Diode? A diode prevents backflow of electricity, protecting your Ring Doorbell 2 and ensuring consistent performance with mechanical chimes.
- Compatibility Matters: The diode is only needed if you’re using a mechanical chime—digital or electronic chimes typically don’t require one.
- Safety First: Always turn off power at the breaker before working on your doorbell wiring to avoid electric shock.
- Tools You’ll Need: Basic tools include a screwdriver, wire strippers, electrical tape, and the included diode (or a compatible 1N4007).
- Step-by-Step Process: Installing the diode involves identifying the correct wires, connecting the diode in parallel, and securing it with wire nuts or tape.
- Troubleshooting Tips: If your chime still doesn’t work after installation, check wiring, voltage, and chime compatibility with Ring’s requirements.
- When to Skip It: If your Ring app shows “Chime Not Detected” but your chime works manually, the diode may not be the issue—consider power or Wi-Fi problems instead.
How to Install Diode on Ring Doorbell 2
If you’ve recently installed a Ring Doorbell 2 and noticed your mechanical doorbell chime isn’t ringing—or it rings inconsistently—you might need to install a diode. This small but crucial component helps regulate electrical current and prevents voltage drops that can interfere with your doorbell’s performance. Don’t worry—it’s easier than it sounds, and this guide will walk you through every step.
In this comprehensive how-to, you’ll learn why the diode is necessary, how to identify if your setup needs one, and exactly how to install it safely and correctly. Whether you’re a DIY beginner or a seasoned home improver, we’ll keep things simple, clear, and jargon-free. By the end, your Ring Doorbell 2 should work seamlessly with your existing mechanical chime.
Why Do You Need a Diode for Ring Doorbell 2?

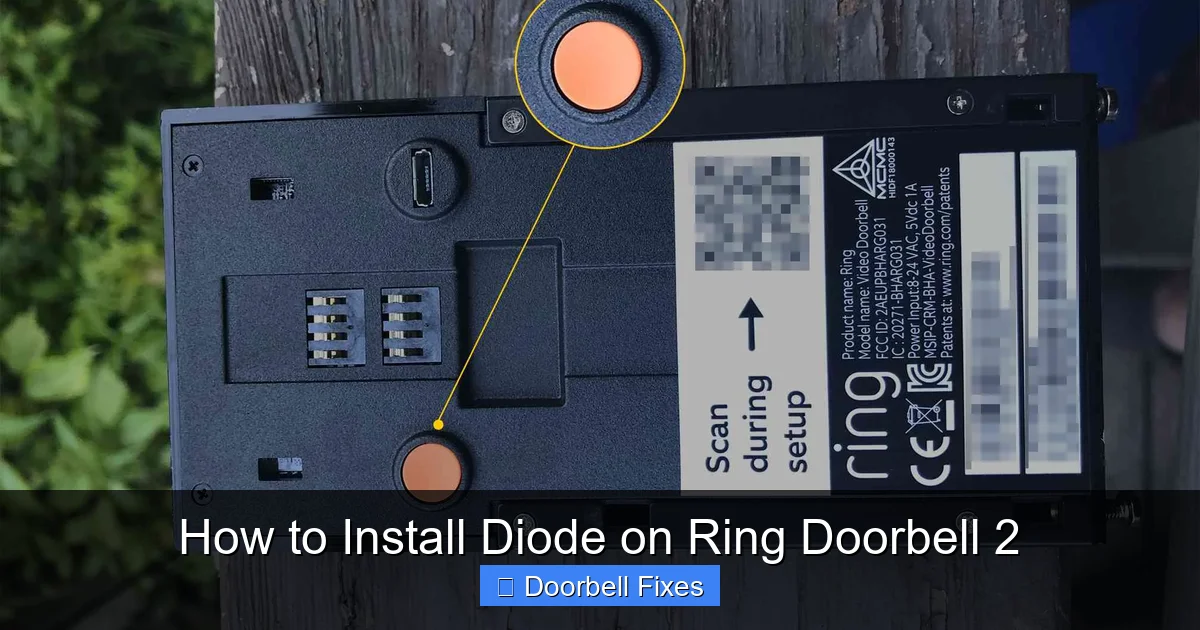

Visual guide about How to Install Diode on Ring Doorbell 2
Image source: robots.net
Before diving into the installation, it’s important to understand why a diode is sometimes required. The Ring Doorbell 2 is designed to work with both mechanical and electronic chimes. However, mechanical chimes—those classic, old-school bells that ring with a physical clapper—can create a problem known as “back EMF” (electromotive force).
When the chime activates, it generates a small surge of electricity that flows backward through the wires. This reverse current can confuse the Ring Doorbell 2, causing it to malfunction, reset, or fail to trigger the chime. The diode acts like a one-way valve for electricity. It allows current to flow toward the chime but blocks any reverse flow, protecting your doorbell and ensuring reliable operation.
Without a diode, you might experience:
– The chime not ringing at all
– Intermittent ringing (only sometimes)
– The Ring Doorbell 2 rebooting unexpectedly
– Error messages in the Ring app like “Chime Not Detected”
Installing a diode resolves these issues in most cases, especially if you have a traditional mechanical chime. If you’re using a digital or electronic chime (like many modern systems), the diode is usually unnecessary—these chimes are designed to work with smart doorbells without additional components.
Is Your Doorbell Setup Right for a Diode?
Not every Ring Doorbell 2 installation needs a diode. Before you start, confirm that your setup actually requires one. Here’s how to tell:
Check Your Chime Type
Open your existing doorbell chime unit (usually located near your front door or in a closet). Look inside:
– Mechanical chime: You’ll see a metal bar or clapper that strikes a bell. These often have two solenoids (coils) and require a diode.
– Electronic/digital chime: You’ll see circuit boards, LEDs, or digital displays. These typically don’t need a diode.
If you’re unsure, check the manufacturer’s label or model number and search online. Ring’s support page also lists compatible chimes.
Test the Doorbell Without the Diode
After installing your Ring Doorbell 2, test it:
– Press the button and see if the chime rings.
– Check the Ring app for any error messages.
– If the chime works but is inconsistent, or if the doorbell resets, a diode may help.
Check Voltage Requirements
Ring Doorbell 2 works best with a transformer that provides 8–24 volts AC and at least 20VA (volt-amperes). Use a multimeter to check the voltage at the doorbell wires. If it’s too low, the diode won’t fix the problem—you’ll need a better transformer.
If your setup uses a mechanical chime and you’re experiencing issues, it’s time to install the diode.
Tools and Materials You’ll Need
Before starting, gather these items to make the process smooth and safe:
- Ring Doorbell 2 diode (included): Ring provides a pre-attached diode with some models. If yours didn’t come with one, you can use a 1N4007 diode (available at hardware stores or online).
- Screwdriver (Phillips and flathead): For removing the chime cover and loosening terminal screws.
- Wire strippers: To expose fresh wire ends if needed.
- Electrical tape: For insulating connections.
- Wire nuts (optional): Some prefer these over tape for secure connections.
- Multimeter (optional but helpful): To check voltage and confirm wiring.
- Safety gloves and goggles: Always a good idea when working with electricity.
Make sure you have the Ring app installed on your phone and that your doorbell is already mounted and connected to Wi-Fi. This guide assumes you’ve completed the initial setup and are now addressing chime issues.
Step-by-Step Guide: Installing the Diode
Now that you’ve confirmed the need for a diode and gathered your tools, let’s get to work. Follow these steps carefully to install the diode safely and correctly.
Step 1: Turn Off the Power
Safety is the most important part of any electrical project. Before touching any wires, turn off the power to your doorbell circuit.
– Go to your home’s main electrical panel (breaker box).
– Locate the breaker that controls your doorbell. It’s often labeled “Doorbell,” “Front Door,” or “Chime.” If not labeled, turn off individual breakers one by one and test the doorbell until it stops working.
– Turn off the correct breaker.
– Use a non-contact voltage tester at the chime or doorbell wires to confirm no power is present. This extra step ensures you won’t get shocked.
Never skip this step—even low-voltage doorbell systems can cause injury or damage if mishandled.
Step 2: Remove the Chime Cover
Now, access your mechanical chime unit.
– Unscrew and remove the front cover of the chime box. Most covers are held by two or four screws.
– Set the cover aside carefully.
– You should now see the internal wiring and two terminal screws labeled “Front” and “Trans” (or “Transformer”).
The “Front” terminal connects to the doorbell button (and your Ring Doorbell 2). The “Trans” terminal connects to the transformer that supplies power.
Step 3: Identify the Wiring
Take a photo of the current wiring before making any changes. This will help you restore everything correctly if something goes wrong.
– Note which wire is connected to “Front” and which to “Trans.”
– The wire from the doorbell (your Ring Doorbell 2) goes to “Front.”
– The wire from the transformer goes to “Trans.”
If you’re unsure, trace the wires back to their sources. The transformer is usually located in a basement, garage, or utility closet.
Step 4: Disconnect the Wires
Loosen the terminal screws and carefully remove the wires.
– Use a screwdriver to loosen the screws on the “Front” and “Trans” terminals.
– Gently pull the wires out.
– If the wires are damaged or frayed, trim them back and strip about 1/2 inch of insulation using wire strippers.
Step 5: Connect the Diode
This is the core of the installation. The diode must be connected in parallel across the chime terminals—meaning it bridges the “Front” and “Trans” wires.
– Take the diode (included with your Ring Doorbell 2 or a 1N4007).
– The diode has a band on one end—this is the cathode (negative side). The other end is the anode (positive).
– Connect the anode (no band) to the “Front” terminal.
– Connect the cathode (banded end) to the “Trans” terminal.
You can do this in two ways:
Option A: Twist and Tape
– Twist the diode’s anode wire around the “Front” wire.
– Twist the cathode wire around the “Trans” wire.
– Secure each connection with electrical tape, wrapping it tightly to prevent exposure.
Option B: Use Wire Nuts
– Strip the ends of the diode wires if they’re not already exposed.
– Twist the diode’s anode wire together with the “Front” wire and cap with a wire nut.
– Repeat with the cathode and “Trans” wire.
– Wrap the wire nuts with electrical tape for extra security.
Make sure the connections are tight and no bare wire is exposed. Loose connections can cause arcing or failure.
Step 6: Reconnect the Wires to the Chime
Now, reattach the wires (with the diode in place) to the chime terminals.
– Insert the “Front” wire (now connected to the diode’s anode) into the “Front” terminal.
– Insert the “Trans” wire (connected to the diode’s cathode) into the “Trans” terminal.
– Tighten the screws securely to hold the wires in place.
Double-check that the diode is correctly oriented—anode to “Front,” cathode to “Trans.” Reversing it will block all current and prevent the chime from working.
Step 7: Secure the Diode
The diode should not be left dangling inside the chime box, as it could touch other components and cause a short.
– Use electrical tape or a small zip tie to secure the diode to the inside of the chime box or to a wire.
– Make sure it’s away from moving parts (like the clapper) and not pinched when you close the cover.
Step 8: Replace the Chime Cover
Once everything is connected and secured:
– Place the chime cover back over the unit.
– Screw it into place.
– Make sure no wires are pinched or exposed.
Step 9: Restore Power and Test
Now it’s time to test your work.
– Go back to the breaker box and turn the power back on.
– Wait a few seconds for the system to reset.
– Press the button on your Ring Doorbell 2.
You should hear a clear, consistent ring from your mechanical chime. If it works, great! The diode has resolved the issue.
Troubleshooting Common Issues
Even with a correctly installed diode, problems can still occur. Here’s how to diagnose and fix common issues:
Chime Still Doesn’t Ring
– Check power: Use a multimeter to verify voltage at the chime terminals. You need at least 8V AC.
– Test the chime manually: Short the “Front” and “Trans” terminals with a screwdriver. If the chime rings, the issue is with the doorbell or wiring.
– Verify diode orientation: Double-check that the banded end (cathode) is on the “Trans” side.
Chime Rings Weakly or Intermittently
– Low voltage: Your transformer may be underpowered. Upgrade to a 16V or 24V, 20VA transformer.
– Loose connections: Recheck all wire connections and tighten them.
– Faulty diode: Try replacing the diode with a new 1N4007.
Ring Doorbell 2 Resets or Shows Errors
– Wi-Fi issues: Ensure your doorbell is within range of your router. Use a Wi-Fi extender if needed.
– Power problems: Ring Doorbell 2 needs consistent power. If voltage drops, consider a Ring Power Adapter or Ring Chime Pro.
– App glitches: Restart the Ring app or reinstall it.
Diode Gets Hot
– This is normal to a small degree—diodes can warm up during operation.
– If it’s too hot to touch, there may be excessive current. Check your transformer and wiring.
When You Don’t Need a Diode
While the diode solves many chime problems, it’s not always the answer. Here are situations where you might not need one:
– You have an electronic chime: These don’t generate back EMF and work fine without a diode.
– Your chime already has a built-in diode: Some modern mechanical chimes include internal protection.
– The issue is Wi-Fi or app-related: If the chime works manually but not via the app, the problem is likely connectivity, not wiring.
– Voltage is too low: No diode can fix insufficient power. Upgrade your transformer first.
Always diagnose the root cause before adding components. A diode won’t help if the real issue is a weak signal or poor Wi-Fi.
Final Tips for a Successful Installation
To ensure your Ring Doorbell 2 works perfectly with your chime:
– Label your wires: Use tape or tags to mark “Front” and “Trans” wires before disconnecting.
– Work in good lighting: Natural light or a headlamp helps you see small components clearly.
– Take your time: Rushing increases the risk of mistakes. Follow each step carefully.
– Keep the diode accessible: If you ever need to remove or replace it, make sure it’s easy to reach.
– Test before closing up: Turn the power back on and test the chime before screwing the cover back on.
Conclusion
Installing a diode on your Ring Doorbell 2 is a simple yet effective fix for mechanical chime issues. By preventing electrical backflow, the diode ensures your doorbell triggers the chime reliably every time. With the right tools, a focus on safety, and this step-by-step guide, you can complete the installation in under 30 minutes.
Remember: only mechanical chimes typically need a diode. If your chime is electronic or digital, skip this step and focus on power or Wi-Fi troubleshooting instead. And always turn off the power before working on any electrical components.
Once installed, your Ring Doorbell 2 will work seamlessly with your home’s existing chime, giving you peace of mind and a fully functional smart doorbell system. If you run into problems, refer back to the troubleshooting section or contact Ring support for help.
Now go enjoy your perfectly ringing doorbell—no more missed visitors or confusing errors!
