Installing a diode on your Ring Doorbell can resolve common chime problems caused by power fluctuations. This guide walks you through the process safely and effectively, even if you’re not an expert. With the right tools and steps, you’ll have your doorbell working perfectly in no time.
Key Takeaways
- Why install a diode? A diode prevents backflow of electricity, protecting your Ring Doorbell and mechanical chime from damage due to voltage spikes.
- Check compatibility first: Only mechanical chimes (not digital or electronic) require a diode. Verify your chime type before starting.
- Turn off power at the breaker: Safety is critical—always shut off power at the circuit breaker before working on wiring.
- Use the correct diode: Ring provides a free diode with select models or you can purchase a 1N4007 diode from hardware stores.
- Proper wiring is key: Connect the diode in parallel with the chime terminals, ensuring correct polarity (banded end to the positive side).
- Test after installation: Restore power and test the doorbell to confirm the chime works and the Ring app receives notifications.
- Troubleshoot if needed: If issues persist, check wiring, diode orientation, or consult Ring support for further help.
How to Install a Diode on Ring Doorbell: A Complete Step-by-Step Guide
If your Ring Doorbell isn’t triggering your doorbell chime—or if the chime sounds weak, delayed, or not at all—you might need to install a diode. This small but powerful component helps regulate electrical flow and protects both your Ring device and your home’s chime mechanism. While it sounds technical, installing a diode is actually a straightforward DIY fix that most homeowners can complete in under 30 minutes.
In this comprehensive guide, we’ll walk you through everything you need to know about how to install a diode on your Ring Doorbell. You’ll learn why diodes are necessary, how to identify if your chime needs one, what tools to gather, and exactly how to wire it safely and correctly. We’ll also cover troubleshooting tips and answer common questions so you can get your doorbell working reliably again.
Whether you’re a first-time DIYer or just need a refresher, this guide is designed to be clear, practical, and easy to follow. Let’s get started!
Why Do You Need a Diode on Your Ring Doorbell?

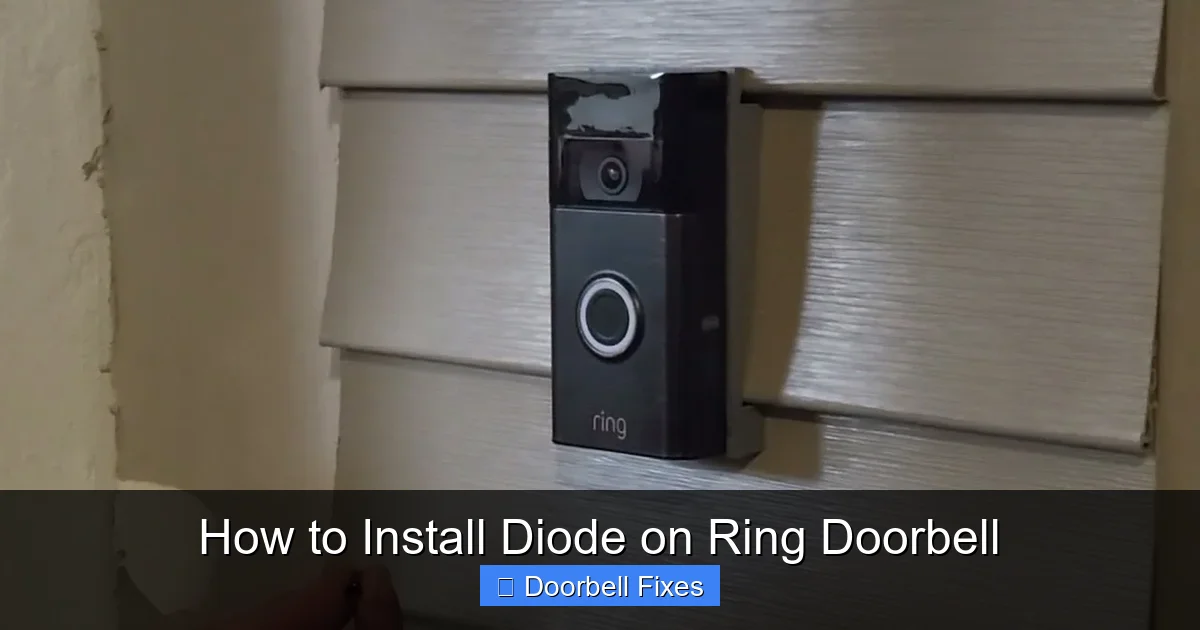

Visual guide about How to Install Diode on Ring Doorbell
Image source: robots.net
Before jumping into the installation, it’s important to understand why a diode is needed in the first place. Ring Doorbells, especially wired models like the Ring Video Doorbell Pro or Pro 2, draw power from your home’s existing doorbell wiring. This wiring also connects to your mechanical chime—the box inside your home that makes the classic “ding-dong” sound.
Here’s the problem: when the doorbell button is pressed, it completes a circuit that sends power to the chime. But when the button is released, the collapsing magnetic field in the chime coil can create a reverse voltage spike—a brief surge of electricity flowing backward through the wires. This backflow can interfere with the Ring Doorbell’s electronics, causing it to malfunction, reset, or fail to send notifications.
A diode acts like a one-way valve for electricity. It allows current to flow in only one direction, blocking any reverse flow. By installing a diode across the chime terminals, you prevent these voltage spikes from damaging your Ring device or disrupting its operation.
Note: Diodes are only needed for mechanical chimes. If you have a digital or electronic chime (often found in newer homes), you likely don’t need a diode. We’ll show you how to check your chime type in the next section.
How to Identify If Your Chime Needs a Diode
Not all Ring Doorbell installations require a diode. To determine whether yours does, you’ll need to inspect your existing doorbell chime.
Step 1: Locate Your Chime Box
The chime box is usually mounted on a wall inside your home, often near the front door or in a hallway. It’s a small rectangular or round device with wires connected to it. It may have a cover that you can remove by unscrewing or snapping it off.
Step 2: Check the Chime Type
Look inside the chime box. Mechanical chimes typically have:
– Two solenoids (small cylindrical coils)
– Metal hammers that strike chime bars
– A physical clapper or striker mechanism
Digital or electronic chimes, on the other hand, usually have:
– A circuit board
– No moving parts
– LED indicators or digital displays
If your chime has moving parts and makes a physical “ding-dong” sound when tested, it’s mechanical—and likely needs a diode. If it’s silent or uses a digital tone, it’s probably electronic and doesn’t require one.
Step 3: Test Your Current Setup
Press your Ring Doorbell button and observe:
– Does the chime sound?
– Does the Ring app show a notification?
– Does the doorbell reset or lose connection?
If the chime doesn’t sound but the Ring app works, or if the doorbell behaves erratically, a diode may solve the issue.
Tools and Materials You’ll Need
Before starting, gather the following items:
- Ring-compatible diode: Ring provides a free diode with certain models (like the Ring Video Doorbell Pro). If you don’t have one, purchase a 1N4007 diode from a hardware store or online (under $5).
- Screwdrivers: A Phillips and flathead screwdriver for removing covers and terminals.
- Wire strippers: To expose fresh wire ends if needed.
- Electrical tape or wire nuts: For securing connections (optional, depending on setup).
- Voltage tester (optional but recommended): To confirm power is off.
- Safety gloves and glasses: For protection, especially when working with electrical components.
Make sure your diode has two wires or leads coming out of it. The diode has a polarity—meaning it must be installed in the correct direction. One end will have a colored band (usually silver or black). This banded end is the cathode (negative side) and must be connected to the positive terminal of the chime.
Step-by-Step: How to Install a Diode on Ring Doorbell
Now that you’ve confirmed your chime is mechanical and gathered your tools, it’s time to install the diode. Follow these steps carefully.
Step 1: Turn Off Power at the Circuit Breaker
Safety first! Even though doorbell voltage is low (typically 8–24V AC), it’s still important to turn off power to avoid accidental shocks or short circuits.
– Go to your home’s main electrical panel.
– Locate the breaker labeled “doorbell,” “chime,” or “front door.” If unsure, turn off the main breaker or test the chime after turning off likely breakers.
– Use a voltage tester on the chime wires to confirm no power is present.
Pro Tip: Take a photo of your breaker panel before turning anything off, so you remember what was on.
Step 2: Remove the Chime Cover
– Unscrew or gently pry off the cover of your chime box.
– Set the screws aside in a small container so you don’t lose them.
Step 3: Locate the Chime Terminals
Inside the chime box, you’ll see two or more terminal screws. The two main terminals are usually labeled “Front” and “Trans” (for transformer). These are the ones connected to your doorbell button and power source.
– The “Front” terminal connects to the doorbell button (and your Ring Doorbell).
– The “Trans” terminal connects to the transformer, which steps down household voltage to safe levels for the doorbell.
Step 4: Identify the Correct Wires
Trace the wires:
– One wire runs from the “Front” terminal to your doorbell button (and Ring device).
– Another wire runs from the “Trans” terminal to the transformer.
These two wires form the circuit. The diode will be connected across these two terminals—in parallel with the chime.
Step 5: Prepare the Diode
Your diode should have two wire leads. If they’re not already stripped, use wire strippers to remove about 1/4 inch of insulation from each end.
Remember: The diode has polarity. The end with the colored band (cathode) must connect to the “Front” terminal (positive side). The other end (anode) connects to the “Trans” terminal.

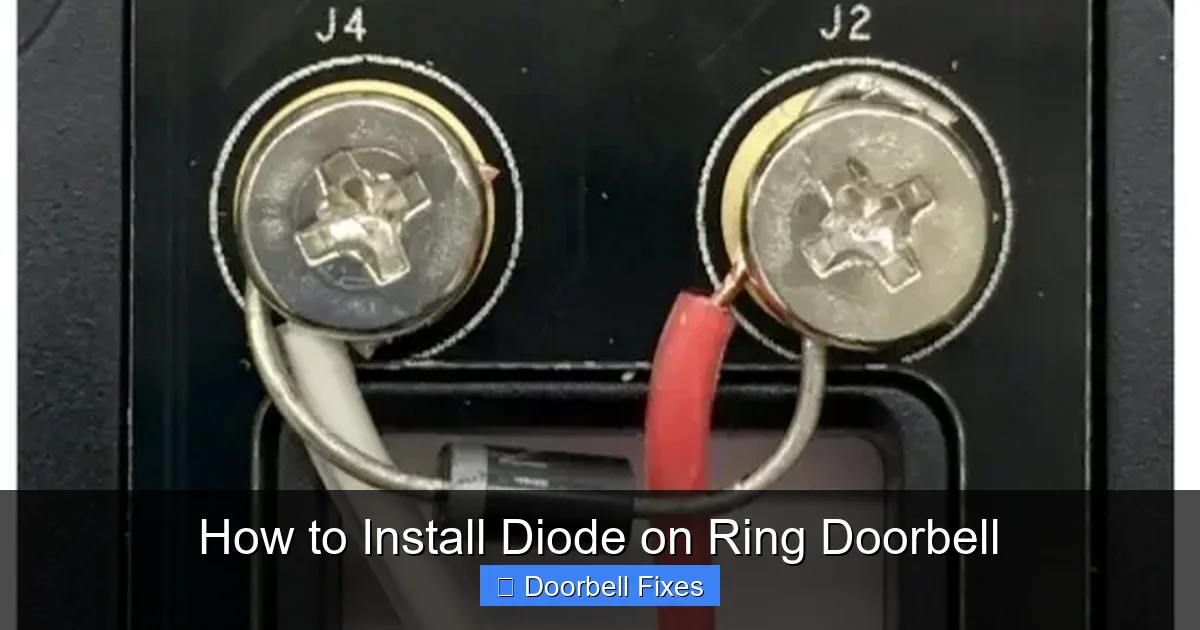

Step 6: Connect the Diode
Now, attach the diode across the chime terminals:
– Twist the stripped end of the diode’s banded (cathode) lead around the wire connected to the “Front” terminal.
– Twist the other (anode) lead around the wire connected to the “Trans” terminal.
– Secure each connection with a wire nut or electrical tape to prevent loosening.
Important: Do not connect the diode directly to the terminal screws. Instead, splice it into the existing wires. This ensures the diode is in parallel with the chime, not in series.
Step 7: Secure and Insulate Connections
– Make sure all wire connections are tight and insulated.
– Tuck the diode and wires neatly inside the chime box to avoid pinching or damage.
– Replace the chime cover and screw it back into place.
Step 8: Restore Power and Test
– Go back to your breaker panel and turn the power back on.
– Wait 30–60 seconds for the Ring Doorbell to reconnect to Wi-Fi.
– Press the doorbell button and listen for the chime.
– Check the Ring app to confirm you receive a notification.
If the chime sounds clearly and the app works, congratulations—you’ve successfully installed the diode!
Troubleshooting Common Issues
Even with careful installation, you might run into problems. Here’s how to fix the most common issues.
Chime Still Doesn’t Work
– Double-check diode orientation: The banded end must go to the “Front” terminal.
– Ensure wires are tightly connected and not loose.
– Verify power is restored at the breaker.
– Test the chime manually by shorting the “Front” and “Trans” terminals with a screwdriver (briefly). If it chimes, the issue is with the doorbell or wiring.
Doorbell Resets or Loses Connection
– This could mean the diode isn’t blocking reverse voltage effectively.
– Confirm you’re using a 1N4007 or equivalent diode.
– Check for loose wires or poor connections.
Weak or Intermittent Chime Sound
– The diode may be installed incorrectly or be defective.
– Try replacing the diode with a new one.
– Ensure the transformer is providing adequate voltage (should be 16–24V AC).
No Notification in Ring App
– The diode shouldn’t affect Wi-Fi, but a power issue might.
– Restart your Ring Doorbell by removing and reinserting the battery (if applicable) or power-cycling it.
– Check your Wi-Fi signal strength at the doorbell location.
Diode Gets Hot
– This is unusual but could indicate a short circuit or incorrect wiring.
– Turn off power immediately and recheck connections.
– Ensure the diode isn’t touching metal parts of the chime box.
Safety Tips and Best Practices
Working with electricity—even low voltage—requires caution. Follow these safety guidelines:
- Always turn off power at the breaker. Never assume the circuit is dead without testing.
- Use insulated tools. This reduces the risk of shock or shorting wires.
- Wear safety glasses. Small parts or wires can snap and cause injury.
- Don’t force connections. If a wire won’t twist easily, strip more insulation or use a wire nut.
- Keep the work area dry. Water and electricity don’t mix.
- Ask for help if unsure. If you’re uncomfortable with any step, consult an electrician.
When to Call a Professional
While installing a diode is a simple task, there are times when it’s best to call a licensed electrician:
– You’re unsure about your chime type or wiring.
– Your home has complex or outdated electrical systems.
– You experience frequent power issues or blown fuses.
– The doorbell still doesn’t work after multiple attempts.
A professional can also upgrade your transformer or chime if needed, ensuring long-term reliability.
Conclusion
Installing a diode on your Ring Doorbell is a quick and effective way to fix chime issues and protect your device from electrical damage. By preventing reverse voltage spikes, the diode ensures smooth operation and extends the life of both your Ring Doorbell and mechanical chime.
With the right tools, a little patience, and this step-by-step guide, you can complete the installation safely and confidently. Remember to turn off power, check your chime type, and install the diode with the correct polarity. Test thoroughly, and don’t hesitate to troubleshoot or seek help if needed.
Now that your Ring Doorbell is working perfectly, you can enjoy peace of mind knowing your home is secure and your doorbell chime will sound every time someone presses the button. Happy DIYing!
