This guide walks you through how to install Doorbell 6 safely and correctly, whether you’re replacing an old doorbell or setting up a new one. You’ll learn wiring basics, mounting tips, app setup, and how to troubleshoot common issues.
Key Takeaways
- Turn off power at the breaker before starting: Safety is critical when working with electrical wiring. Always shut off power to avoid shocks or damage.
- Check compatibility with your existing doorbell system: Doorbell 6 works with most standard 16–24V AC transformers, but verify your setup first.
- Use the included mounting bracket for secure installation: The bracket ensures a tight fit and proper alignment for optimal motion detection and video quality.
- Download the manufacturer’s app before installation: The app guides setup, connects to Wi-Fi, and helps test functionality.
- Test the doorbell after installation: Confirm chime activation, video streaming, and motion alerts work as expected.
- Keep wires neat and tucked away: Use wire nuts and electrical tape to secure connections and prevent loose wires.
- Update firmware regularly: Firmware updates improve performance, security, and add new features over time.
How to Install Doorbell 6: A Complete Step-by-Step Guide
Upgrading your home with a smart doorbell like Doorbell 6 is a smart move. It boosts security, lets you see who’s at the door from anywhere, and even allows two-way conversations. But before you enjoy these features, you need to install it properly. This guide will walk you through how to install Doorbell 6 safely and efficiently—whether you’re replacing an old doorbell or installing one for the first time.
We’ll cover everything from checking compatibility to mounting the device, wiring it up, connecting to your Wi-Fi, and troubleshooting common issues. By the end, you’ll have a fully functional Doorbell 6 that enhances your home’s safety and convenience.
What You’ll Need Before You Start

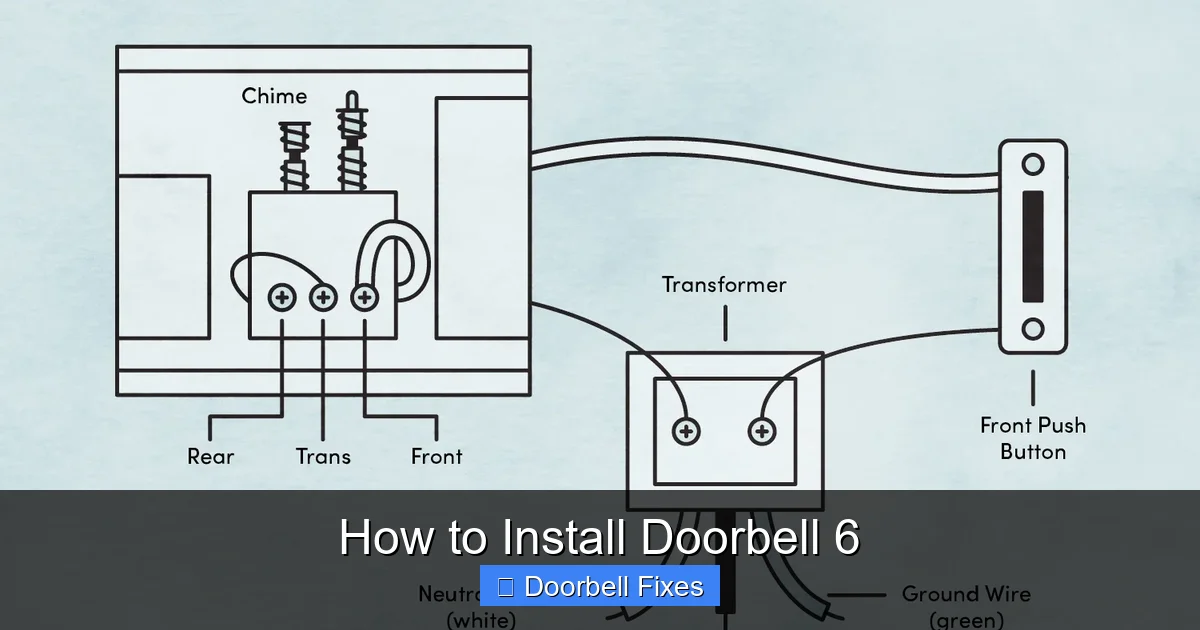

Visual guide about How to Install Doorbell 6
Image source: secure.img1-ag.wfcdn.com
Before diving into the installation, gather the right tools and materials. Having everything ready saves time and prevents frustration.
Tools and Materials
- Doorbell 6 unit (with mounting bracket and screws)
- Smartphone with the manufacturer’s app installed
- Screwdriver (Phillips and flathead)
- Voltage tester (non-contact type recommended)
- Wire strippers (if you need to trim or re-strip wires)
- Electrical tape
- Wire nuts (usually included, but good to have extras)
- Drill and drill bits (if mounting on brick, stucco, or concrete)
- Level (to ensure the doorbell is straight)
- Pencil or marker (for marking drill holes)
- Ladder (if your doorbell is high up)
Check Compatibility
Not all doorbell systems work with Doorbell 6. Most homes have a standard wired doorbell with a transformer that outputs 16–24 volts AC. Doorbell 6 is designed for this range.
To check:
- Locate your existing doorbell transformer. It’s usually near your electrical panel, in the basement, attic, or garage.
- Look for a label that shows the voltage (e.g., “16V” or “24V”).
- If you’re unsure, use a multimeter to test the voltage at the doorbell wires (with power on).
If your transformer is below 16V, the doorbell may not work reliably. If it’s above 24V, it could damage the device. In either case, you may need to upgrade your transformer.
Download the App
Most smart doorbells, including Doorbell 6, require a companion app for setup and control. Download the official app from the App Store (iOS) or Google Play (Android) before starting.
The app will:
- Guide you through installation
- Help connect to Wi-Fi
- Test the doorbell’s functionality
- Allow you to adjust settings like motion zones and chime sounds
Make sure your phone is connected to your home Wi-Fi network during setup.
Step 1: Turn Off the Power
Safety first. Working with electrical wires can be dangerous if the power is on.
Locate Your Circuit Breaker
Find your home’s main electrical panel. Look for a breaker labeled “doorbell,” “chime,” or something similar. If there’s no label, you may need to test breakers one by one.
Turn Off the Correct Breaker
Switch the breaker to the “OFF” position. To double-check, go to your existing doorbell and press the button. If the chime doesn’t ring, the power is off.
Use a Voltage Tester
For extra safety, use a non-contact voltage tester on the doorbell wires. Touch the tester to each wire. If it beeps or lights up, power is still on—double-check your breaker.
Never skip this step. Even low-voltage systems can cause shocks or damage electronics.
Step 2: Remove the Old Doorbell
If you’re replacing an existing doorbell, you’ll need to remove it first.
Unscrew the Faceplate
Use a screwdriver to remove the screws holding the old doorbell to the wall. Gently pull the unit away from the wall.
Disconnect the Wires
You’ll see two wires connected to the back. These are typically labeled “Front” and “Trans” or just have two terminals.
Loosen the screws or release the clamps holding the wires. Carefully pull the wires free. Don’t let them fall back into the wall.
Cap the Wires (Temporarily)
Use wire nuts to cover the exposed ends of the wires. This prevents them from touching each other or the wall, which could cause a short.
Remove the Old Mounting Plate
If the old doorbell had a mounting plate, unscrew and remove it. You’ll replace it with the Doorbell 6 bracket.
Step 3: Prepare the Mounting Area
Now that the old doorbell is gone, it’s time to get the wall ready for the new one.
Clean the Surface
Wipe the area with a dry cloth to remove dust or debris. This helps the new mounting bracket adhere better.
Check for Obstructions
Make sure there are no pipes, wires, or studs behind the wall where you’ll drill. Use a stud finder if needed.
Mark the Mounting Holes
Hold the Doorbell 6 mounting bracket against the wall where you want to install it. Use a pencil to mark the screw holes.
Use a level to ensure the bracket is straight. A crooked doorbell looks unprofessional and can affect camera angle.
Drill Pilot Holes (If Needed)
If you’re mounting on wood, drywall, or siding, you may not need to drill. But for brick, stucco, or concrete, use a masonry drill bit to create pilot holes.
Insert wall anchors if required. This gives the screws a secure grip.
Step 4: Connect the Wires
This is the most technical part, but don’t worry—it’s straightforward.
Strip the Wire Ends (If Necessary)
If the wire ends are frayed or too short, use wire strippers to expose about 1/4 inch of copper. Be careful not to cut the wire.
Connect to the Mounting Bracket
Doorbell 6 comes with a mounting bracket that has two terminal screws. These are usually labeled “Front” and “Trans.”
Attach one wire to each terminal. It doesn’t matter which wire goes where—Doorbell 6 is not polarity-sensitive.
Tighten the screws securely. Loose connections can cause the doorbell to malfunction.
Secure with Wire Nuts (Optional)
Some models include wire nuts for extra security. If yours does, twist the wires together and cap them with a wire nut. Then tape it with electrical tape for added protection.
Tuck Wires Neatly
Gently push the wires back into the wall cavity. Don’t force them—just make sure they’re not pinched when you attach the bracket.
Step 5: Mount the Doorbell 6
Now it’s time to attach the device.
Align the Bracket
Place the mounting bracket over the pilot holes. Line up the screw holes with your pencil marks.
Secure with Screws
Insert the screws through the bracket and into the wall. Tighten them firmly, but don’t over-tighten—this can crack the bracket or wall.
Attach the Doorbell Unit
Slide the Doorbell 6 onto the bracket. It should click into place. Some models have a locking screw on the bottom—tighten this to prevent theft.
Check the Angle
Make sure the camera is pointing straight ahead or slightly downward. You want to capture visitors’ faces, not the sky or ground.
Use the app’s live view to check the camera angle before finalizing.
Step 6: Restore Power and Test
You’re almost done. Now it’s time to turn the power back on and see if everything works.
Turn the Breaker Back On
Go to your electrical panel and switch the doorbell breaker to “ON.”
Wait for the Doorbell to Power Up
The Doorbell 6 should light up and begin initializing. This may take 30–60 seconds.
Open the App
Launch the manufacturer’s app on your phone. It should detect the new device.
Follow the On-Screen Setup
The app will guide you through:
- Connecting to Wi-Fi
- Creating or logging into your account
- Setting up motion zones
- Testing the chime
- Calibrating the camera
Test the Doorbell
Press the button on the doorbell. Your indoor chime should ring (if wired) or the app should notify you (if using a smart chime).
Check the live video feed. Make sure the image is clear and the audio works.
Walk in front of the doorbell to test motion detection. The app should send an alert.
Step 7: Final Adjustments and Settings
Once everything is working, fine-tune your setup.
Adjust Motion Zones
In the app, you can define areas where motion should trigger alerts. For example, you might want to ignore the street but alert you when someone approaches the door.
Set Chime Preferences
Choose whether the chime rings on your existing mechanical chime, a smart speaker, or only in the app.
Enable Two-Way Audio
Test speaking through the app. You should be able to talk to someone at the door.
Set Recording Options
Decide whether to record continuously, only when motion is detected, or on demand.
Update Firmware
Check for firmware updates in the app. These improve performance and security.
Troubleshooting Common Issues
Even with careful installation, problems can happen. Here’s how to fix the most common ones.
Doorbell Won’t Power On
- Double-check that the breaker is on.
- Use a voltage tester to confirm power at the wires.
- Ensure wires are securely connected to the terminals.
- If using a mechanical chime, make sure the chime unit is compatible. Some older chimes don’t work with smart doorbells.
Weak or No Wi-Fi Signal
- Move your router closer or use a Wi-Fi extender.
- Ensure the doorbell is within 30–50 feet of the router.
- Avoid placing the doorbell behind metal doors or thick walls.
- Check for interference from other devices (microwaves, cordless phones).
Video is Blurry or Dark
- Clean the camera lens with a soft, dry cloth.
- Adjust the angle to avoid direct sunlight or backlighting.
- Enable night vision in the app settings.
- Check for obstructions like spider webs or dirt.
Chime Doesn’t Ring
- Verify the chime is compatible with Doorbell 6.
- Check wire connections at both the doorbell and chime unit.
- If using a smart chime, ensure it’s paired with the app.
- Some homes need a resistor (included in some kits) to complete the circuit.
Motion Alerts Are Too Sensitive
- Adjust motion zones in the app to exclude areas like trees or sidewalks.
- Lower the motion sensitivity setting.
- Schedule “quiet hours” when alerts are disabled.
App Won’t Connect to Doorbell
- Make sure your phone and doorbell are on the same Wi-Fi network.
- Restart the app and your phone.
- Reset the doorbell (usually by holding the button for 20 seconds).
- Re-run the setup process in the app.
Maintenance Tips for Long-Term Performance
To keep your Doorbell 6 working well for years, follow these simple maintenance steps.
Clean the Lens Monthly
Dust, rain, and bugs can blur the camera. Wipe the lens gently with a microfiber cloth.
Check Connections Annually
Over time, wires can loosen. Turn off power and inspect the terminals. Tighten if needed.
Update Firmware Regularly
Check the app every few months for updates. These often include bug fixes and new features.
Monitor Battery (If Applicable)
Some Doorbell 6 models are battery-powered. Replace or recharge the battery as needed.
Review Recordings
Periodically check saved clips to ensure the camera angle and motion detection are working as expected.
Conclusion
Installing Doorbell 6 is a rewarding DIY project that enhances your home’s security and convenience. By following this guide, you’ve learned how to install Doorbell 6 safely and correctly—from turning off the power and connecting wires to mounting the device and setting up the app.
Remember to prioritize safety, double-check compatibility, and test everything after installation. With proper setup and occasional maintenance, your Doorbell 6 will provide reliable service for years to come.
Whether you’re a tech-savvy homeowner or a first-time installer, this guide gives you the confidence to get it right the first time. Now, enjoy peace of mind knowing you can see and speak to anyone at your door—no matter where you are.
