This guide walks you through how to install Doorbell 2 safely and correctly, whether you’re replacing an old doorbell or setting up a new one. You’ll learn wiring tips, mounting tricks, and troubleshooting advice to ensure a smooth installation.
Key Takeaways
- Turn off power first: Always switch off the circuit breaker before handling wires to prevent shocks or damage.
- Check compatibility: Ensure your existing doorbell wiring and transformer support Doorbell 2’s voltage requirements (8–24V AC).
- Use the right tools: A screwdriver, voltage tester, drill, and level make the job faster and safer.
- Mount securely: Choose a spot 4–5 feet high and angled slightly toward the walkway for best motion detection.
- Test before finalizing: Power on and test the doorbell through the app before tightening all screws.
- Update firmware: After setup, check for software updates in the app to ensure optimal performance.
- Contact support if stuck: If installation fails, reach out to the manufacturer—don’t force connections.
How to Install Doorbell 2: A Complete Step-by-Step Guide
Installing a smart doorbell like Doorbell 2 can feel intimidating—especially if you’ve never worked with home wiring before. But don’t worry! With the right tools, a little patience, and this detailed guide, you’ll have your new doorbell up and running in under an hour. Whether you’re upgrading from a traditional doorbell or installing one for the first time, this walkthrough covers everything from safety checks to final app setup.
In this guide, you’ll learn:
– How to prepare your workspace and tools
– How to safely remove your old doorbell (if applicable)
– How to test and connect the wiring
– How to mount Doorbell 2 securely
– How to pair it with your smartphone app
– How to troubleshoot common issues
We’ll keep things simple, friendly, and jargon-free. No electrical degree required—just follow along, take your time, and stay safe.
What You’ll Need Before Starting

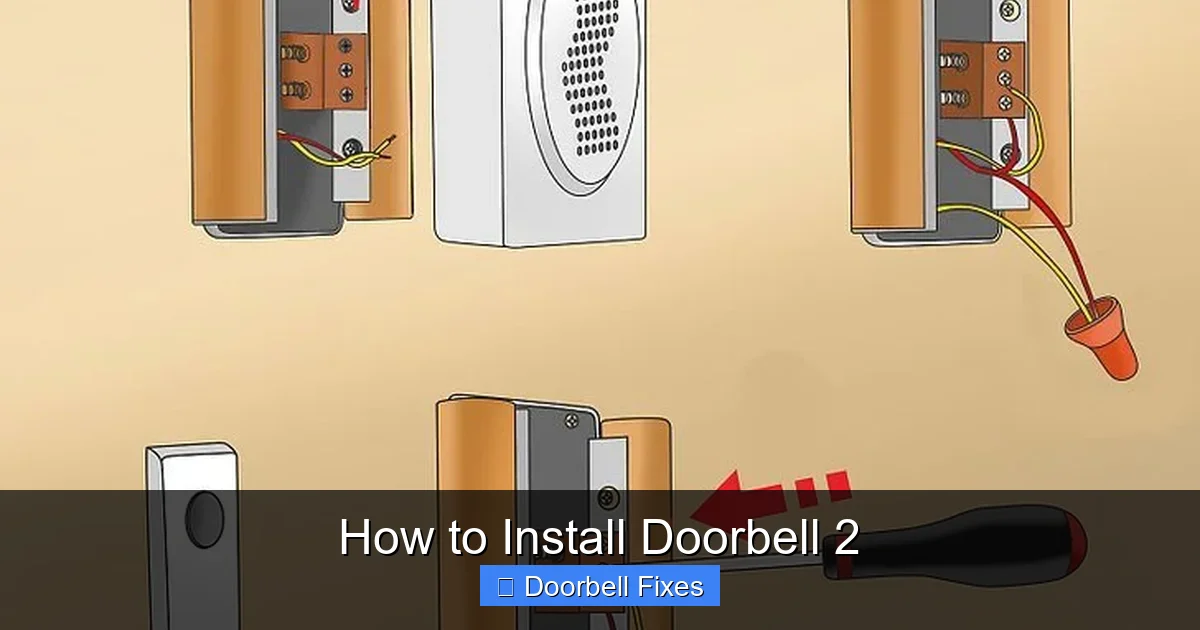

Visual guide about How to Install Doorbell 2
Image source: wikihow.com
Before you touch a single wire, gather all the tools and materials you’ll need. Having everything ready saves time and reduces frustration.
Tools
- Phillips and flathead screwdrivers
- Voltage tester (non-contact type recommended)
- Drill with masonry bits (if mounting on brick or stucco)
- Level (to keep the doorbell straight)
- Wire strippers (optional, if trimming wires)
- Tape measure
- Pencil or marker
Materials
- Doorbell 2 unit (with mounting plate and screws)
- Chime kit (if replacing a mechanical chime)
- Wire nuts (usually included)
- Wall anchors (if not using existing holes)
- Electrical tape (for extra wire protection)
Safety Gear
- Safety glasses (especially when drilling)
- Work gloves (optional, but helpful)
Pro tip: If you’re unsure about your home’s wiring, take a photo of the existing setup before disconnecting anything. This helps if you need to reference it later.
Step 1: Turn Off the Power
Safety first! Working with electricity is never something to rush. Even low-voltage doorbell systems can give a mild shock or damage your new device if mishandled.
Locate Your Circuit Breaker
Go to your home’s main electrical panel (usually in the basement, garage, or utility closet). Look for a breaker labeled “doorbell,” “chime,” or “front door.” If there’s no label, you may need to test breakers one by one.
Switch Off the Correct Breaker
Turn off the breaker that controls your doorbell circuit. To confirm it’s off, go to your existing doorbell and press the button. If the chime doesn’t sound, the power is off.
Double-Check with a Voltage Tester
Even if the chime is silent, use a non-contact voltage tester near the doorbell wires. Touch the tip to the wire terminals—if the tester doesn’t beep or light up, it’s safe to proceed.
⚠️ Never skip this step. A live wire can fry your Doorbell 2 or cause injury.
Step 2: Remove the Old Doorbell (If Applicable)
If you’re replacing an existing doorbell, you’ll need to remove it carefully to access the wires.
Unscrew the Faceplate
Use a screwdriver to remove the screws holding the old doorbell to the wall. Gently pull the unit away from the wall.
Disconnect the Wires
You’ll see two small wires connected to terminals (usually labeled “Front” and “Trans”). Loosen the screws and carefully pull the wires free. Don’t let them fall back into the wall!
Secure the Wires
Twist the exposed ends slightly and wrap them with electrical tape to prevent shorting. Use a small piece of tape to label them if needed (e.g., “Front” and “Transformer”).
Remove the Mounting Plate (Optional)
If the old plate is in the way, unscrew and remove it. You may reuse it if it fits Doorbell 2, but the new plate is usually better designed for alignment.
Step 3: Check Wiring and Transformer Compatibility
Doorbell 2 requires a transformer that outputs between 8 and 24 volts AC. Most homes built after the 1980s meet this standard, but it’s worth checking.
Locate the Transformer
The transformer is usually near your doorbell chime inside the house or in the basement. It’s a small black box with wires leading to the chime and doorbell.
Check the Voltage Rating
Look for a label on the transformer that says “VAC” and a number (e.g., 16V AC). If it’s between 8 and 24, you’re good to go. If it’s lower than 8V, your doorbell may not work reliably.
Test the Wires at the Door
Reconnect the wires temporarily to the old doorbell and turn the power back on briefly. Press the button—if the chime rings, the wires are live and functional. Turn the power off again before proceeding.
💡 Tip: If your transformer is too weak, you may need to upgrade it. Consult an electrician if you’re unsure.
Step 4: Prepare the Mounting Location
Where you mount Doorbell 2 affects both video quality and motion detection. Choose wisely!
Ideal Height and Angle
Mount the doorbell 4 to 5 feet above the ground. This height captures faces clearly and avoids tampering. Angle it slightly toward the walkway so motion sensors detect approaching visitors.
Check for Obstructions
Avoid mounting near doors, windows, or plants that might block the camera or trigger false alerts. Also, ensure the Wi-Fi signal is strong at the location—weak signals cause lag or disconnections.
Mark the Mounting Holes
Hold the Doorbell 2 mounting plate against the wall where you want to install it. Use a level to make sure it’s straight. Mark the screw holes with a pencil.
Drill Pilot Holes (If Needed)
If you’re drilling into wood, brick, or stucco, use a drill bit slightly smaller than your screws to create pilot holes. This prevents cracking and makes screwing easier.
Step 5: Connect the Wires to Doorbell 2
Now it’s time to wire your new doorbell. Don’t worry—it’s simpler than it looks.
Strip the Wire Ends (If Necessary)
If the wire ends are frayed or too short, use wire strippers to expose about 1/4 inch of copper. Be gentle—don’t cut too much.
Attach Wires to the Mounting Plate
Doorbell 2’s mounting plate has two terminal screws. Loosen them slightly, then insert the wires:
– One wire goes to the “Front” terminal
– The other goes to the “Trans” terminal
It doesn’t matter which wire goes where—Doorbell 2 is non-polarized. Tighten the screws securely.
Secure the Wires
Tuck any excess wire neatly into the wall cavity. Use wire nuts or electrical tape to cover exposed connections if needed.
Step 6: Mount Doorbell 2 to the Wall
With the wires connected, it’s time to attach the doorbell.
Align the Mounting Plate
Hold the plate over the pilot holes and align it with your pencil marks. Make sure it’s level.
Secure with Screws
Insert the screws through the plate and into the wall. Tighten them until the plate is snug, but don’t over-tighten—this can crack the plate or wall.
Attach the Doorbell Unit
Slide Doorbell 2 onto the mounting plate until it clicks into place. Give it a gentle tug to ensure it’s secure.
Step 7: Restore Power and Test
You’re almost done! Now it’s time to power up and test.
Turn the Breaker Back On
Return to your electrical panel and switch the doorbell breaker back on.
Wait for the LED
Doorbell 2 will power up and show a solid light (usually white or blue). This means it’s receiving power and initializing.
Test the Button
Press the doorbell button. You should hear a chime (if connected) and see activity in the app.
Step 8: Set Up Doorbell 2 in the App
The final step is pairing your doorbell with your smartphone.
Download the App
If you haven’t already, download the official Doorbell app (available on iOS and Android).
Create or Log In to Your Account
Open the app and sign in. If you’re new, create an account using your email.
Start the Setup Process
Tap “Add Device” or “Set Up New Doorbell.” Follow the on-screen prompts.
Scan the QR Code
Use your phone’s camera to scan the QR code on the back of Doorbell 2 or inside the app. This links the device to your account.
Connect to Wi-Fi
Select your home Wi-Fi network and enter the password. Doorbell 2 supports 2.4 GHz networks (not 5 GHz).
Complete the Setup
The app will guide you through naming your doorbell, setting motion zones, and adjusting notifications. Take your time—these settings improve performance.
Step 9: Final Adjustments and Tips
Once everything is working, make a few final tweaks for the best experience.
Adjust the Angle
If the video is too high or low, loosen the mounting screws slightly and tilt the doorbell. Retighten when satisfied.
Test Motion Detection
Walk in front of the doorbell to test motion alerts. Adjust sensitivity in the app if it’s too sensitive or not sensitive enough.
Update Firmware
Go to the app’s device settings and check for firmware updates. Installing the latest version ensures security and performance improvements.
Set Up Chime (If Using)
If you have a mechanical chime, ensure it’s compatible. Some smart doorbells require a diode or resistor to prevent buzzing. Check the manual.
Troubleshooting Common Installation Issues
Even with careful installation, problems can happen. Here’s how to fix the most common ones.
Doorbell Won’t Power On
- Double-check that the breaker is on.
- Test the voltage at the doorbell wires with a multimeter.
- Ensure wires are securely connected and not shorted.
- Try a different transformer if voltage is too low.
No Chime Sound
- Verify the chime is compatible with Doorbell 2.
- Check wiring at the chime box inside the house.
- Install a diode if the chime buzzes or doesn’t ring.
Weak Wi-Fi Signal
- Move your router closer or use a Wi-Fi extender.
- Ensure the doorbell is within 30–50 feet of the router.
- Avoid mounting near metal surfaces or thick walls.
Blurry or Dark Video
- Clean the camera lens with a microfiber cloth.
- Adjust the angle to reduce glare from sunlight.
- Enable night vision in the app settings.
False Motion Alerts
- Reduce motion sensitivity in the app.
- Exclude areas like trees or busy streets from motion zones.
- Ensure the doorbell isn’t facing direct sunlight or heat sources.
Conclusion
Congratulations! You’ve successfully learned how to install Doorbell 2 from start to finish. Whether you’re enhancing home security, staying connected with visitors, or just upgrading your front door, this smart doorbell adds convenience and peace of mind.
Remember: safety comes first—always turn off the power before working with wires. Take your time, follow the steps, and don’t hesitate to consult the manual or contact customer support if something isn’t working.
With Doorbell 2 installed, you’ll enjoy real-time alerts, crystal-clear video, and two-way communication—all from your smartphone. It’s a small upgrade that makes a big difference.
Now go enjoy your new smart doorbell—and maybe wave hello the next time someone rings!
