How to Install Doorbell PDF: A Complete Step-by-Step Guide

Installing a doorbell might seem like a simple task, but doing it right ensures safety, reliability, and long-term performance. Whether you’re upgrading to a smart video doorbell like Ring or Nest, or replacing an old mechanical chime, following the correct procedure is essential. This comprehensive guide will walk you through how to install doorbell PDF instructions effectively—using official manufacturer guides, best practices, and real-world tips.

You’ll learn how to safely handle electrical wiring, interpret wiring diagrams from PDF manuals, mount your device securely, and troubleshoot common issues. We’ll cover both wired and wireless options, though most modern installations still rely on existing low-voltage wiring. By the end of this guide, you’ll have the confidence to complete the job yourself—or know exactly what to ask a professional.

Why Use the Manufacturer’s PDF Guide?

Before you even pick up a screwdriver, download the official installation PDF for your specific doorbell model. Brands like Ring, Arlo, Eufy, and Honeywell provide detailed, model-specific PDFs that include wiring diagrams, voltage requirements, compatibility checks, and step-by-step visuals.

These PDFs are invaluable because they’re tailored to your exact product. Generic online tutorials may not account for subtle differences between models—like transformer specs or chime compatibility. The PDF often includes QR codes linking to video tutorials, FAQs, and customer support contacts. Always start here.

Tip: Save the PDF to your phone or print a copy. Having it on hand during installation prevents mistakes and speeds up the process.

Tools and Materials You’ll Need

Gather everything before starting. Rushing to find tools mid-installation can lead to unsafe practices or incomplete work.

You’ll typically need:

• Phillips and flathead screwdrivers
• Digital multimeter (essential for testing voltage)
• Wire strippers
• Electrical tape
• Voltage tester pen (non-contact)
• Drill and drill bits (if mounting on brick or concrete)
• Wall anchors (for drywall or masonry)
• Smartphone or tablet (to view the PDF guide)
• Ladder (if your doorbell is high up)

Optional but helpful:

• Wire nuts (if extending or splicing wires)
• Fish tape (for running new wires through walls)
• Level (to ensure straight mounting)

Having these ready saves time and reduces frustration.

Step 1: Turn Off the Power

Safety first. Even though doorbells use low voltage (typically 16–24 volts), they’re still connected to your home’s electrical system via a transformer. Mishandling wires can cause shocks, short circuits, or damage to your doorbell or chime.

Locate Your Breaker Box

Go to your main electrical panel. Look for a breaker labeled “doorbell,” “chime,” or “low voltage.” If there’s no label, you’ll need to test each breaker.

Test the Power

Use a non-contact voltage tester pen near the existing doorbell button. Press the button—if the tester beeps or lights up, power is still on. Flip breakers one by one until the tester no longer reacts when you press the button.

Alternatively, use a digital multimeter. Set it to AC voltage, touch the probes to the two doorbell wires, and check the reading. If it shows 16V or higher, power is live. Turn off the correct breaker and retest to confirm.

Never assume the power is off. Always verify.

Step 2: Remove the Old Doorbell

Once power is confirmed off, it’s time to remove the existing unit.

Unscrew the Faceplate

Use a screwdriver to remove the screws holding the old doorbell button in place. Gently pull the faceplate away from the wall.

Disconnect the Wires

You’ll see two thin wires connected to terminals (usually labeled “Front” and “Trans” or just two screws). Loosen the screws and carefully pull the wires free. Don’t cut them—you’ll reuse them.

Tip: Take a photo of the wiring before disconnecting. This serves as a reference if you get confused later.

Inspect the Wires

Check for fraying, corrosion, or damage. If the wires are brittle or broken, you may need to strip back a bit of insulation or run new wire. Use wire strippers to expose fresh copper if needed.

Step 3: Check Voltage and Compatibility

Not all doorbells work with all systems. Using an incompatible doorbell can cause it to overheat, fail to ring, or damage the chime.

Test Transformer Voltage

Use your multimeter to measure the voltage across the two doorbell wires. Most standard doorbells require 16–24V AC. If your reading is below 16V, your transformer may be underpowered—especially for smart doorbells that need more energy for Wi-Fi and cameras.

If voltage is too low, you may need to upgrade your transformer. This involves turning off power at the breaker, locating the transformer (usually near your doorbell chime or in the basement), and replacing it with a compatible 16V or 24V model.

Check Chime Compatibility

Some smart doorbells require a mechanical chime or a specific type of electronic chime. Check your PDF guide for compatibility notes. For example, Ring doorbells often require a Ring Chime Pro or a compatible mechanical chime. If your chime is incompatible, you may need to bypass it or install a relay.

Step 4: Prepare the New Doorbell

Now it’s time to get your new doorbell ready.

Download and Review the PDF Guide

Open the manufacturer’s PDF installation manual on your phone or tablet. Read through the entire guide before starting. Pay attention to:

• Wiring diagram
• Mounting instructions
• Chime compatibility
• App setup steps

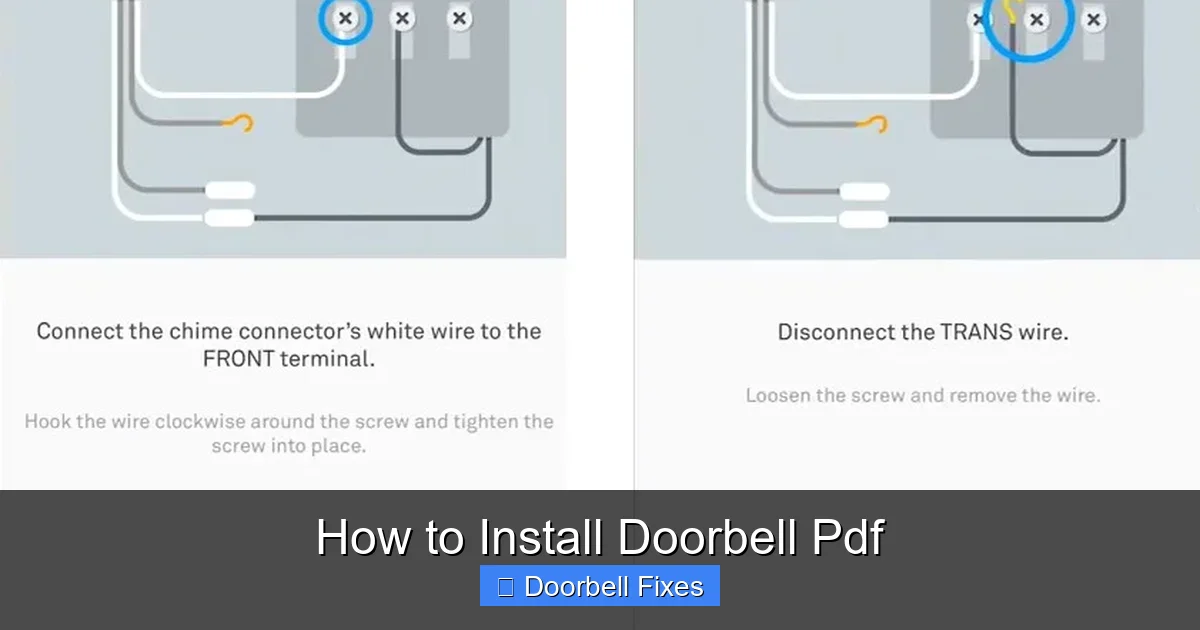

Most PDFs include a wiring schematic showing how to connect the two wires to the new button. Some smart doorbells have three terminals (Front, Trans, and Rear), but most only use two.

Assemble the Mounting Plate

Many doorbells come with a mounting plate that attaches to the wall first. Follow the PDF instructions to assemble it. Some plates are adjustable for angle or depth.

If your doorbell is battery-powered (like some Ring models), you may not need to connect wires at all. But most wired models still require a connection for continuous power.

Step 5: Connect the Wires

This is the most critical step. Incorrect wiring can damage your doorbell or chime.

Strip the Wire Ends

Use wire strippers to remove about 1/4 inch of insulation from each wire end. You need clean, exposed copper to make a solid connection.

Attach to the New Doorbell

Loosen the terminal screws on the new doorbell (or mounting plate). Insert one wire under each screw and tighten securely. It doesn’t matter which wire goes where—doorbell circuits are not polarized.

Tip: Wrap the wires clockwise around the screw before tightening. This prevents them from slipping out.

Secure with Electrical Tape (Optional)

For extra safety, wrap the connections with electrical tape to prevent accidental contact.

Step 6: Mount the Doorbell

Now that the wires are connected, it’s time to attach the doorbell to the wall.

Position the Mounting Plate

Hold the plate against the wall where you want the doorbell. Use a level to ensure it’s straight. Mark the screw holes with a pencil.

Drill Pilot Holes

If mounting on wood, drill small pilot holes. For brick, concrete, or stucco, use a masonry bit and wall anchors. This prevents cracking and ensures a secure fit.

Screw in the Plate

Attach the mounting plate with screws. Make sure it’s tight and flush against the wall.

Attach the Doorbell

Snap or screw the doorbell onto the mounting plate, depending on the model. Some use clips; others require screws.

Step 7: Restore Power and Test

You’re almost done!

Turn the Breaker Back On

Go to your electrical panel and flip the breaker back on.

Test the Doorbell

Press the button. You should hear the chime inside. If using a smart doorbell, open the app and check for a live view or notification.

If nothing happens:

• Double-check wire connections
• Verify power is on (use multimeter)
• Ensure the chime is compatible
• Check the app for setup errors

Adjust Settings via App

Most smart doorbells require app configuration. Follow the PDF guide to connect to Wi-Fi, set motion zones, adjust sensitivity, and test notifications.

Troubleshooting Common Installation Issues

Even with careful installation, problems can arise. Here’s how to fix the most common ones.

Doorbell Doesn’t Ring

• Check power: Use a multimeter to confirm voltage at the button.
• Inspect wires: Loose or corroded connections are common culprits.
• Test chime: Bypass the chime temporarily by connecting the wires directly to a doorbell tester or another known-working chime.
• Transformer issue: Low voltage may mean a failing transformer.

Smart Doorbell Keeps Disconnecting

• Wi-Fi signal weak: Move your router closer or use a Wi-Fi extender.
• Low power: Smart doorbells need steady voltage. Consider installing a Ring Chime Pro or upgrading the transformer.
• App glitches: Reinstall the app and re-pair the device.

False Rings or Random Alerts

• Adjust motion zones in the app.
• Clean the sensor lens.
• Check for loose wiring causing intermittent contact.

Doorbell Overheats

• Voltage too high: Measure with a multimeter. If over 24V, replace the transformer.
• Poor ventilation: Ensure the doorbell isn’t covered or enclosed.

Safety Tips and Best Practices

Installing a doorbell is generally safe, but follow these guidelines to avoid accidents:

• Always turn off power at the breaker—never rely on a wall switch.
• Use insulated tools to reduce shock risk.
• Don’t work in wet conditions or on wet surfaces.
• Keep children and pets away during installation.
• If you’re unsure about wiring, consult an electrician.
• Never force wires—gentle handling prevents damage.

Remember: When in doubt, call a pro. Electrical work can be dangerous if mishandled.

Wireless vs. Wired Doorbells: Which Is Right for You?

While this guide focuses on wired installations, it’s worth comparing options.

Wired Doorbells

• Pros: Reliable power, no battery changes, better for smart features.
• Cons: Requires existing wiring; harder to install if no wires are present.

Wireless (Battery-Powered) Doorbells

• Pros: Easy to install, no wiring needed, great for renters.
• Cons: Batteries need replacing every 6–12 months; may have connectivity issues.

Many smart doorbells offer both options. For example, Ring doorbells can be hardwired or battery-powered. If you have existing wires, hardwiring is usually the better long-term choice.

Final Thoughts: Mastering How to Install Doorbell PDF

Installing a doorbell using a manufacturer’s PDF guide is a smart, safe, and satisfying DIY project. By following the steps in this guide—turning off power, checking compatibility, connecting wires correctly, and testing thoroughly—you’ll ensure a reliable and professional-looking installation.

The key to success is preparation: download the PDF, gather your tools, and take your time. Don’t rush. Double-check every connection. And if something doesn’t work, refer back to the troubleshooting section.

With the right approach, you’ll have a doorbell that works perfectly, enhances your home’s security, and gives you peace of mind. Whether it’s a simple mechanical chime or a high-tech video doorbell, you’ve got this.
