This guide walks you through how to install Doorbell Pro safely and correctly, from turning off power to final app setup. Whether you’re replacing an old doorbell or installing a new one, you’ll get clear, beginner-friendly instructions with troubleshooting tips.
Key Takeaways
- Turn off power first: Always shut off electricity at the breaker before starting to prevent shocks or damage.
- Check compatibility: Ensure your existing wiring and transformer meet Doorbell Pro’s voltage requirements (16–24V AC).
- Use the mounting bracket: Secure the bracket properly to avoid a loose or wobbly doorbell.
- Connect wires correctly: Attach the front and transformer wires to the correct terminals to ensure power flow.
- Download the app: The Ring app is essential for setup, Wi-Fi connection, and customizing settings.
- Test before finalizing: Power on and test the doorbell before securing all screws to catch issues early.
- Troubleshoot common problems: If it won’t power on or connect, check wiring, Wi-Fi, and transformer output.
How to Install Doorbell Pro: A Complete Step-by-Step Guide
Upgrading your home security with a smart doorbell like the Ring Doorbell Pro is a smart move. Not only does it let you see and speak to visitors from your phone, but it also sends instant alerts when someone approaches your door. But before you can enjoy these features, you need to know how to install Doorbell Pro correctly.
Don’t worry—this guide is designed for beginners and DIYers alike. Whether you’re replacing an old mechanical doorbell or installing a new one from scratch, we’ll walk you through every step. From turning off the power to connecting to your Wi-Fi, we’ve got you covered. By the end, you’ll have a fully functional Doorbell Pro that enhances your home’s safety and convenience.
Let’s get started!
What You’ll Need Before You Begin

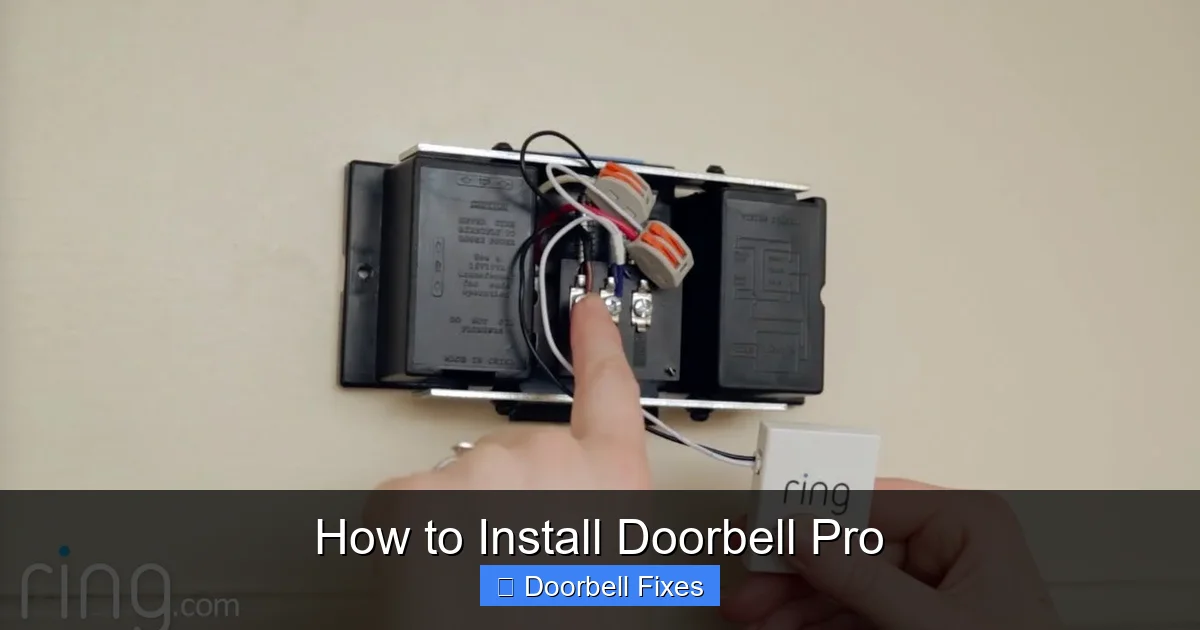

Visual guide about How to Install Doorbell Pro
Image source: smarthomefreak.com
Before you touch a single screw, make sure you have the right tools and materials. Having everything ready will save time and prevent frustration.
Here’s a checklist of what you’ll need:
- Ring Doorbell Pro (obviously!)
- Screwdriver (Phillips head)
- Drill and drill bits (if mounting on brick or concrete)
- Level (to keep the doorbell straight)
- Voltage tester (to confirm power is off)
- Wire strippers (if you need to trim or re-strip wires)
- Smartphone with the Ring app installed
- Wi-Fi network name and password
- Optional: Wire nuts, electrical tape, or a chime kit (if your existing chime isn’t compatible)
It’s also a good idea to read the instruction manual that comes with your Doorbell Pro. While this guide covers everything, the manual may include model-specific tips.
Step 1: Turn Off the Power
Safety first! Working with electrical wiring can be dangerous if you don’t take precautions. The most important step is to turn off the power to your doorbell circuit.
Locate Your Circuit Breaker
Go to your home’s main electrical panel (usually in the basement, garage, or utility closet). Look for the breaker labeled “Doorbell,” “Front Door,” or something similar. If you don’t see a label, you may need to test breakers one by one.
Turn Off the Correct Breaker
Switch the breaker to the “Off” position. To be extra safe, use a non-contact voltage tester at the doorbell location to confirm there’s no power. Simply touch the tester near the wires—if it beeps or lights up, power is still on.
Pro Tip: Take a photo of your breaker panel before turning anything off. This helps you remember which breaker controls the doorbell.
Test the Existing Doorbell
Press the doorbell button to make sure it doesn’t ring. If it does, double-check that you turned off the right breaker.
Step 2: Remove the Old Doorbell (If Applicable)
If you’re replacing an existing doorbell, you’ll need to remove it before installing the Doorbell Pro.
Unscrew the Faceplate
Use your screwdriver to remove the screws holding the old doorbell to the wall. Gently pull the unit away from the wall to expose the wires.
Disconnect the Wires
You’ll see two wires connected to the back of the doorbell—usually labeled “Front” and “Trans” (for transformer). Loosen the screws or pull the wires out of the terminals. Be careful not to let the wires fall back into the wall.
Important: Don’t cut the wires unless absolutely necessary. You’ll need them to power the Doorbell Pro.
Cap the Wires (Temporarily)
Use wire nuts or electrical tape to cover the exposed ends of the wires. This prevents accidental contact while you work.
Step 3: Check Voltage Compatibility
The Ring Doorbell Pro requires a transformer that outputs between 16 and 24 volts AC. If your current transformer is too weak, the doorbell may not work properly or could overheat.
Locate Your Doorbell Transformer
The transformer is usually found in your basement, attic, or near your doorbell chime. It’s a small black box with wires connected to it.
Test the Voltage
Use a multimeter to check the voltage across the two wires. Set the multimeter to AC voltage (V~) and touch the probes to the wire ends. If the reading is below 16V or above 24V, you may need to upgrade your transformer.
Note: Most older homes have 8–12V transformers, which are too low for Doorbell Pro. You’ll need to replace it with a 16–24V transformer (available at hardware stores).
Install a Compatible Transformer (If Needed)
If your transformer is incompatible, turn off the main power and replace it. This step may require basic electrical knowledge. If you’re unsure, consider hiring an electrician.
Step 4: Install the Mounting Bracket
The Doorbell Pro comes with a mounting bracket that holds the device securely to the wall. Proper installation ensures stability and optimal camera angle.
Position the Bracket
Hold the bracket against the wall where you want to install the doorbell. Use a level to make sure it’s straight. The ideal height is about 48 inches from the ground—eye level for most visitors.
Mark the Screw Holes
Use a pencil to mark where the screws will go. If you’re mounting on wood or siding, you can screw directly into the surface. For brick, stucco, or concrete, you’ll need to drill pilot holes and use wall anchors.
Drill and Secure the Bracket
Drill pilot holes if needed, then attach the bracket using the provided screws. Make sure it’s tight and doesn’t wiggle.
Pro Tip: If your doorbell is near a corner, use the angled bracket (included) to improve the camera’s field of view.
Step 5: Connect the Wires
Now it’s time to connect the wires from your wall to the Doorbell Pro.
Strip the Wire Ends (If Needed)
If the wire ends are frayed or too short, use wire strippers to expose about 1/4 inch of copper. This ensures a solid connection.
Attach Wires to the Bracket
The mounting bracket has two terminals: one for the “Front” wire and one for the “Trans” wire. Loosen the screws, insert the wires, and tighten them securely.
Important: It doesn’t matter which wire goes where—Doorbell Pro is non-polarized. But make sure both wires are connected.
Secure the Wires
Tuck any excess wire back into the wall to prevent it from getting pinched when you attach the doorbell.
Step 6: Attach the Doorbell Pro
With the bracket and wires in place, you can now mount the Doorbell Pro.
Align the Device
Hold the Doorbell Pro against the bracket. The bottom of the device should snap into place, while the top attaches with a screw.
Secure with the Security Screw
Use the provided security screw and screwdriver to fasten the top of the doorbell. This prevents theft and ensures it stays in place.
Pro Tip: Don’t overtighten the screw—just snug it enough to hold the device securely.
Step 7: Restore Power and Test
Now that everything is connected, it’s time to turn the power back on and test the doorbell.
Turn On the Breaker
Go back to your electrical panel and switch the doorbell breaker to “On.”
Check for Power
Look at the Doorbell Pro. You should see a light on the front—usually a solid white or blue light—indicating it’s receiving power.
If the light doesn’t turn on, double-check your wiring and breaker. Use a voltage tester to confirm power is reaching the doorbell.
Test the Doorbell
Press the button on the Doorbell Pro. You should hear a chime (if connected to a compatible chime) and see activity in the Ring app.
Step 8: Set Up the Ring App
The Ring app is essential for configuring your Doorbell Pro and accessing its features.
Download the App
If you haven’t already, download the Ring app from the Apple App Store or Google Play Store. Create an account or log in if you already have one.
Add a New Device
Open the app and tap the “+” icon to add a new device. Select “Doorbells” and then “Doorbell Pro.”
Scan the QR Code
Use your phone’s camera to scan the QR code on the back of the Doorbell Pro or inside the app. This links the device to your account.
Connect to Wi-Fi
Follow the on-screen prompts to connect your Doorbell Pro to your home Wi-Fi network. Make sure you’re within range of your router for a strong signal.
Note: Doorbell Pro requires a 2.4 GHz Wi-Fi network. It does not support 5 GHz.
Complete Setup
The app will guide you through naming your doorbell, setting motion zones, and enabling notifications. You can also adjust video quality, night vision, and chime settings.
Step 9: Adjust Settings and Preferences
Once your Doorbell Pro is online, take time to customize it to your needs.
Motion Zones
Set up motion zones to focus on areas like your driveway or walkway. This reduces false alerts from passing cars or animals.
Notification Preferences
Choose when and how you want to receive alerts—push notifications, email, or both. You can also set quiet hours to avoid disturbances at night.
Video Quality
Adjust video resolution and frame rate based on your Wi-Fi speed and data usage. Higher quality uses more bandwidth.
Shared Users
Invite family members to access the doorbell through the app. You can control their permissions—view-only or full access.
Troubleshooting Common Installation Issues
Even with careful installation, problems can happen. Here’s how to fix the most common issues.
Doorbell Won’t Power On
- Check that the breaker is on and the voltage is correct.
- Ensure both wires are securely connected.
- Test the transformer output with a multimeter.
- Try resetting the doorbell by holding the setup button for 20 seconds.
No Chime Sound
- Your existing chime may not be compatible with Doorbell Pro.
- Install the Ring Chime or Chime Pro for wireless alerts.
- Check the chime settings in the Ring app.
Weak Wi-Fi Signal
- Move your router closer or use a Wi-Fi extender.
- Install the Ring Chime Pro, which also acts as a Wi-Fi extender.
- Ensure the doorbell is within 30–50 feet of the router.
Blurry or Dark Video
- Clean the camera lens with a soft cloth.
- Adjust the angle to avoid direct sunlight or glare.
- Enable night vision in the app settings.
Frequent Disconnections
- Check for Wi-Fi interference from other devices.
- Reduce the number of connected devices on your network.
- Update the Ring app and doorbell firmware.
Maintenance Tips for Long-Term Performance
To keep your Doorbell Pro working smoothly, follow these maintenance tips:
- Clean the camera lens and motion sensor monthly.
- Check for loose screws or wiring every few months.
- Update the Ring app and firmware regularly.
- Replace the backup battery (if applicable) every 1–2 years.
- Monitor motion alerts to ensure the sensor is working properly.
Conclusion
Installing a Doorbell Pro is a straightforward project that can significantly boost your home’s security. By following this guide, you’ve learned how to install Doorbell Pro safely and correctly—from turning off the power to setting up the app.
Remember, the key to success is preparation and attention to detail. Always check voltage compatibility, secure the mounting bracket, and test the device before finalizing the installation. And if you run into issues, the troubleshooting section can help you get back on track.
With your Doorbell Pro now up and running, you’ll enjoy peace of mind knowing you can see and speak to anyone at your door—no matter where you are. Welcome to the future of home security!
