How to Install Doorbell & Transformer

This guide walks you through how to install a doorbell and transformer from start to finish. You’ll learn wiring basics, safety tips, and troubleshooting advice to ensure a reliable doorbell system.

Key Takeaways

• Safety first: Always turn off power at the breaker before working on electrical components to prevent shocks or damage.
• Choose the right transformer: Match the transformer voltage (usually 16V) to your doorbell’s requirements for optimal performance.
• Use proper wiring: Low-voltage doorbell wire (18-22 gauge) is essential—avoid using standard household electrical wire.
• Test before finalizing: Always test the doorbell after installation and before securing covers or trim.
• Know when to call a pro: If you’re unsure about wiring or breaker access, consult a licensed electrician.
• Upgrade options: Consider smart doorbells for added features like video, motion detection, and smartphone alerts.
• Maintain regularly: Clean the button and check connections annually to keep your doorbell working reliably.

How to Install Doorbell & Transformer: A Complete DIY Guide

Installing a doorbell and transformer might sound like a job for an electrician, but with the right tools, a bit of patience, and this step-by-step guide, you can do it yourself. Whether you’re replacing an old, broken doorbell or installing one for the first time, this guide will walk you through the entire process—from choosing the right components to testing your new system.

In this guide, you’ll learn how to safely install a doorbell and transformer, understand the wiring basics, and avoid common mistakes. We’ll cover everything from turning off the power to mounting the chime unit and connecting the wires. By the end, you’ll have a fully functional doorbell that works reliably for years to come.

What You’ll Need

Before you begin, gather all the necessary tools and materials. Having everything ready will make the process smoother and safer.

• Doorbell kit (includes button, chime unit, and sometimes a transformer)
• Transformer (if not included or if upgrading)
• Low-voltage doorbell wire (18-22 gauge, typically 2-conductor)
• Screwdrivers (flathead and Phillips)
• Wire strippers
• Voltage tester (non-contact)
• Drill and drill bits (if mounting on brick or concrete)
• Wall anchors (if needed)
• Pencil or marker
• Electrical tape
• Wire nuts (usually included with doorbell kits)
• Ladder (if installing at height)

If you’re installing a smart doorbell, you may also need a smartphone, Wi-Fi access, and the manufacturer’s app. Some smart doorbells require a higher-voltage transformer or a resistor to prevent chime buzzing.

Understanding Doorbell Basics

Before diving into installation, it’s helpful to understand how a doorbell system works. A traditional doorbell consists of three main parts:

• Doorbell button: Mounted outside near the door, it completes the circuit when pressed.
• Transformer: Steps down household voltage (120V) to a safe, low voltage (usually 8V–24V) used by the doorbell.
• Chime unit: Located inside the home, it produces the sound when the circuit is completed.

The transformer is typically installed inside the electrical panel, attic, basement, or near the doorbell chime. It converts high-voltage electricity into low-voltage power that safely runs through the thin doorbell wires.

Most standard doorbells operate on 16 volts, but always check your doorbell’s specifications. Using the wrong voltage can damage the chime or cause it to underperform.

Step 1: Turn Off the Power

Safety is the most important part of any electrical project. Before touching any wires, turn off the power at the main electrical panel.

Locate the Correct Circuit Breaker

Find the breaker that controls the doorbell circuit. It may be labeled “doorbell,” “chime,” or “low voltage.” If it’s not labeled, you may need to test breakers one by one.

Test the Power

Use a non-contact voltage tester to confirm the power is off. Touch the tester to the wires at the doorbell button or chime location. If the tester lights up or beeps, the power is still on—double-check the breaker.

Lock Out the Breaker (Optional but Recommended)

If you’re working alone or with others, use a breaker lock or tag to prevent someone from accidentally turning the power back on.

Step 2: Remove the Old Doorbell (If Applicable)

If you’re replacing an existing doorbell, start by removing the old components.

Remove the Doorbell Button

Unscrew the button from the wall. Gently pull it away to expose the wires. Note how the wires are connected—take a photo if needed.

Disconnect the Wires

Loosen the terminal screws and remove the wires. Label them if possible (e.g., “front,” “trans”) to avoid confusion later.

Remove the Chime Unit

Unscrew the chime from the wall or ceiling. Disconnect the wires and remove the unit. Again, take note of the wiring configuration.

Locate and Inspect the Transformer

The transformer is usually found in the electrical panel, attic, basement, or near the chime. It’s a small metal box with wires connected to it. Check if it’s still functional using a multimeter or replace it if it’s old or damaged.

Step 3: Choose the Right Transformer

The transformer is the heart of your doorbell system. It must match the voltage and power requirements of your doorbell.

Check Doorbell Specifications

Most mechanical doorbells require 16V at 10–30 VA (volt-amperes). Smart doorbells may need more power—check the manufacturer’s instructions.

Replace or Upgrade the Transformer

If your current transformer is old, underpowered, or incompatible with a new smart doorbell, replace it. A 16V, 30VA transformer is a safe choice for most systems.

Install the New Transformer

Turn off the main power. Open the electrical panel and locate an unused knockout. Install the transformer in the panel using a knockout plug and secure it with screws. Connect the primary side (120V) to a breaker or existing circuit using wire nuts. Connect the secondary side (low-voltage) to the doorbell wires.

Tip: If you’re not comfortable working inside the electrical panel, hire a licensed electrician.

Step 4: Run the Doorbell Wire

Low-voltage doorbell wire is thin and flexible, making it easy to run through walls, under trim, or along baseboards.

Plan the Wire Path

Decide the route from the transformer to the chime and then to the doorbell button. Avoid sharp bends or pinching the wire.

Drill Holes (If Needed)

Use a drill to create access holes in walls or floors. A 1/4-inch drill bit is usually sufficient. Be careful not to damage existing wiring or plumbing.

Feed the Wire

Push the wire through the holes using a fish tape or flexible rod. Leave extra wire at each end for connections.

Strip the Wire Ends

Use wire strippers to remove about 1/2 inch of insulation from each wire end. Twist the exposed copper strands to prevent fraying.

Step 5: Install the Doorbell Button

The doorbell button is the part visitors press. It should be mounted at a comfortable height (about 48 inches from the ground) and in a location protected from rain.

Position the Button

Hold the button against the wall and mark the screw holes with a pencil. Use a level to ensure it’s straight.

Drill Pilot Holes

Drill small pilot holes for the mounting screws. If mounting on brick or concrete, use a masonry bit and wall anchors.

Connect the Wires

Attach the two doorbell wires to the terminal screws on the back of the button. It doesn’t matter which wire goes where—doorbell circuits are not polarized.

Secure the Button

Screw the button into place. Make sure it’s snug but not over-tightened, which could crack the housing.

Step 6: Install the Chime Unit

The chime unit produces the sound when the button is pressed. It’s usually mounted in a central location, like a hallway or living room.

Choose a Location

Pick a spot that’s easily heard but not too close to the door. Avoid areas with high humidity or heat.

Mount the Chime

Hold the chime against the wall and mark the screw holes. Drill pilot holes and secure the mounting bracket with screws.

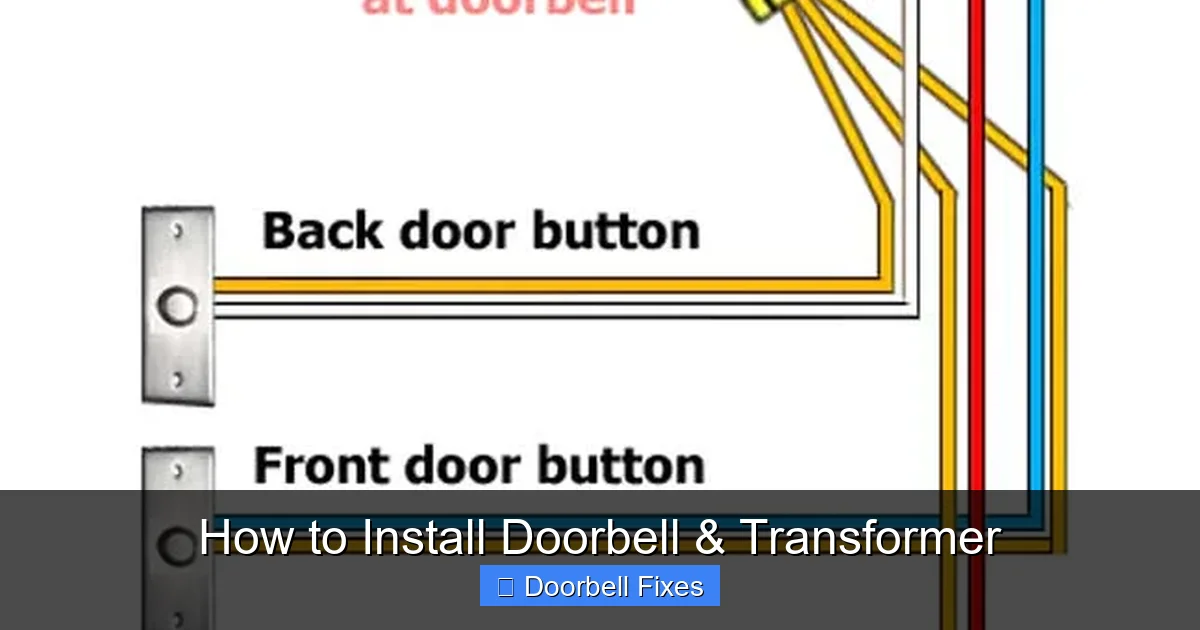

Connect the Wires

Most chimes have three terminals: “Front,” “Trans,” and “Rear” (if you have a second door). Connect the wires as follows:

• Front: Wire from the front doorbell button
• Trans: Wire from the transformer
• Rear: Wire from a rear doorbell button (if applicable)

If you only have two wires, connect one to “Front” and one to “Trans.”

Attach the Chime Cover

Snap or screw the cover onto the mounting bracket. Make sure it’s secure and aligned properly.

Step 7: Test the System

Before finishing up, test the doorbell to ensure everything works.

Turn the Power Back On

Go to the electrical panel and turn the breaker back on.

Press the Doorbell Button

Have someone press the button while you listen for the chime. If it rings, great! If not, proceed to troubleshooting.

Check for Power at the Transformer

Use a multimeter to test the transformer output. It should read close to the rated voltage (e.g., 16V). If it’s low or zero, the transformer may be faulty or incorrectly wired.

Inspect Connections

Double-check all wire connections at the button, chime, and transformer. Loose or reversed wires can prevent the doorbell from working.

Troubleshooting Common Issues

Even with careful installation, problems can occur. Here are some common issues and how to fix them.

Doorbell Doesn’t Ring

• Check power: Ensure the breaker is on and the transformer is working.
• Test continuity: Use a multimeter to check if the circuit is complete when the button is pressed.
• Inspect wires: Look for breaks, loose connections, or corrosion.

Chime Buzzes or Hums

This often happens with smart doorbells that draw more power than the chime can handle. Solutions include:

• Installing a higher-voltage transformer (e.g., 24V)
• Adding a bypass resistor (included with some smart doorbells)
• Replacing the mechanical chime with a digital one

Weak or Intermittent Sound

• Low voltage: The transformer may be underpowered or too far from the chime.
• Long wire runs: Voltage drops over long distances. Use thicker wire or a higher-voltage transformer.
• Loose connections: Tighten all wire terminals.

Button Feels Stiff or Sticks

• Debris: Clean the button mechanism with compressed air.
• Moisture: Ensure the button is sealed and protected from rain.
• Worn parts: Replace the button if it’s old or damaged.

Upgrading to a Smart Doorbell

Smart doorbells offer features like video recording, motion alerts, and two-way audio. However, they often require more power than traditional doorbells.

Check Power Requirements

Most smart doorbells need a 16V–24V transformer with at least 20–30 VA. If your current transformer is 8V or 10V, you’ll likely need to upgrade.

Install a Bypass Resistor

Some smart doorbells include a resistor that you install across the chime terminals. This allows current to flow even when the doorbell is idle, preventing the chime from buzzing.

Connect to Wi-Fi

Follow the manufacturer’s app instructions to connect the doorbell to your home network. Make sure your Wi-Fi signal is strong at the doorbell location.

Test All Features

After installation, test the video, audio, motion detection, and notifications to ensure everything works as expected.

Safety Tips and Best Practices

• Always turn off power before working on electrical components.
• Use a voltage tester to confirm power is off.
• Never work on live wires.
• Label wires during removal to avoid confusion.
• Use the correct gauge wire for doorbell circuits.
• Secure wires with clips or staples to prevent damage.
• Keep doorbell components dry and protected from the elements.
• Replace old or damaged transformers promptly.

Maintenance Tips

To keep your doorbell working reliably:

• Clean the button and chime cover with a soft cloth and mild cleaner.
• Check wire connections annually for looseness or corrosion.
• Test the doorbell monthly to catch issues early.
• Replace batteries in wireless or smart doorbells as needed.
• Inspect the transformer for signs of overheating or damage.

When to Call a Professional

While many homeowners can install a doorbell themselves, some situations require expert help:

• You’re uncomfortable working with electrical panels.
• The wiring is outdated or damaged.
• You can’t locate the transformer.
• The breaker panel is full and can’t accommodate a new transformer.
• You’re installing a complex system with multiple doors or zones.

A licensed electrician can ensure the installation is safe, code-compliant, and reliable.

Conclusion

Installing a doorbell and transformer is a manageable DIY project that can improve your home’s functionality and curb appeal. By following this guide, you’ve learned how to safely turn off power, choose the right components, run wires, and test your system. Whether you’re installing a simple mechanical doorbell or upgrading to a smart model, proper installation ensures long-term reliability.

Remember: safety comes first. Always turn off the power, use the right tools, and don’t hesitate to call a professional if you’re unsure. With a little effort, you’ll have a doorbell that works perfectly every time someone visits.

Now that you know how to install a doorbell and transformer, you can tackle this project with confidence. Enjoy the convenience and security of a working doorbell—and the satisfaction of doing it yourself.
