How to Install Doorbell Wiring in Wall

This guide walks you through how to install doorbell wiring in wall safely and efficiently. You’ll learn the tools needed, how to route wires through walls, and how to connect everything for a reliable doorbell system.

Key Takeaways

• Turn off power at the breaker: Always shut off electricity before working near electrical components to prevent shocks or damage.
• Use low-voltage doorbell wire: Standard 18- or 20-gauge stranded wire is ideal for safe, reliable doorbell connections.
• Plan your wire path carefully: Map out the route from chime to button, avoiding major obstructions like plumbing or electrical lines.
• Fish the wire through walls properly: Use a fish tape or flexible rod to guide wire through wall cavities without damaging drywall.
• Test the system before finishing: Always test the doorbell after wiring but before closing up walls to catch issues early.
• Secure connections with wire nuts: Use proper connectors and electrical tape to ensure safe, long-lasting electrical joints.
• Consider upgrading to smart doorbells: If replacing old wiring, this is a great time to install a modern smart doorbell for added features.

Introduction: Why Install Doorbell Wiring in the Wall?

Installing doorbell wiring in the wall might sound like a daunting task, but with the right tools and a bit of patience, it’s a manageable DIY project for most homeowners. Whether you’re replacing an old, unreliable doorbell, upgrading to a smart doorbell, or building a new home, running wires through the wall gives your doorbell a clean, professional look and improves reliability.

In this comprehensive guide, you’ll learn how to install doorbell wiring in wall step by step. We’ll cover everything from planning your wire route and gathering tools to fishing wires through walls, connecting components, and testing your system. You’ll also find practical tips, safety advice, and troubleshooting help to ensure your doorbell works perfectly when you’re done.

This guide is perfect for beginners and experienced DIYers alike. No advanced electrical knowledge is required—just a willingness to follow instructions carefully and prioritize safety. By the end, you’ll have a fully functional, neatly installed doorbell system that enhances both your home’s functionality and curb appeal.

Tools and Materials You’ll Need

Before you begin, gather all the necessary tools and materials. Having everything ready will save time and prevent frustrating mid-project trips to the hardware store.

Essential Tools

• Voltage tester: To confirm power is off before working.
• Fish tape or flexible rod: For pulling wire through wall cavities.
• Drill with long drill bits: To create entry and exit holes in walls and studs.
• Stud finder: To locate wall studs and avoid drilling into them unnecessarily.
• Wire strippers: For removing insulation from wire ends.
• Screwdrivers (flathead and Phillips): For mounting chime and button.
• Measuring tape: To measure distances and plan wire runs.
• Pencil or marker: For marking drill points and wire paths.
• Utility knife: For cutting drywall or trimming excess wire.
• Electrical tape: For securing wire nuts and insulating connections.
• Wire nuts (low-voltage rated): For connecting wires safely.

Materials

• Low-voltage doorbell wire (18- or 20-gauge stranded): Typically sold in spools of 50, 100, or 200 feet. Choose based on your home’s size.
• Doorbell transformer: Usually 16V AC, mounted near your electrical panel or in the basement.
• Doorbell chime unit: Mechanical or electronic, depending on preference.
• Doorbell button: Wired or smart model.
• Wire staples or clips: To secure wire along baseboards or moldings if needed.
• Drywall patch kit (optional): If you need to repair small holes after fishing wire.

Optional but Helpful

• Cable lubricant: Makes pulling wire through tight spaces easier.
• Wire puller or string: Attached to fish tape to help guide wire.
• Smart doorbell (e.g., Ring, Nest): If upgrading, ensure it’s compatible with your wiring.
• Wireless doorbell kit: If you prefer not to run wires, though this guide focuses on wired installation.

Step 1: Turn Off Power and Locate the Transformer

Safety is the top priority when working with any electrical system—even low-voltage ones. Before touching any wires, you must turn off power to the doorbell circuit.

Find the Doorbell Transformer

The transformer steps down your home’s 120V power to a safe 16V for the doorbell. It’s usually located:

• Near the main electrical panel
• In the basement or crawlspace
• Inside a closet near the front door
• Behind the doorbell chime unit

Look for a small gray or black box with two wires coming out. It may be labeled “doorbell” or “chime.”

Turn Off the Power

1. Go to your electrical panel (breaker box).
2. Locate the breaker labeled “doorbell,” “chime,” or “low voltage.” If not labeled, turn off the main breaker to be safe.
3. Use a voltage tester on the transformer terminals to confirm no power is present.
4. If you’re unsure, consult an electrician.

Tip: Even though doorbell systems use low voltage, the transformer is connected to your home’s main power. Always treat it with caution.

Step 2: Plan Your Wire Route

A successful installation starts with a solid plan. You need to determine the best path for the wire from the doorbell button to the chime unit.

Identify Key Locations

• Doorbell button: Usually mounted on the door frame or siding near the front door.
• Chime unit: Typically installed in a central location like a hallway, living room, or kitchen.
• Transformer: Must be connected to the chime circuit and your home’s power.

Map the Wire Path

1. Measure the distance between the button and chime.
2. Decide whether to run wire through walls, under baseboards, or along trim.
3. Avoid running wire near plumbing, electrical wires, or HVAC ducts to prevent interference or damage.
4. Use a stud finder to locate studs and plan how to drill through them.

Example: If your chime is in the hallway and the button is on the front porch, you might run the wire up through the basement ceiling, across the basement, and up into the hallway wall.

Choose the Best Entry Points

– Drill a small hole (¼ inch) from the outside wall into the button location.
– Drill another hole from the chime location into the wall cavity or basement.
– If going through multiple walls, plan intermediate access points.

Tip: Use a flexible drill bit (also called a flex bit) to drill through studs from one side without removing drywall.

Step 3: Run the Wire Through the Wall

This is the most challenging part of the job, but with the right technique, it’s doable.

Prepare the Fish Tape

1. Insert the fish tape into the hole where the wire will exit (e.g., near the chime).
2. Push it gently through the wall cavity toward the button location.
3. If using a string, attach it to the end of the fish tape to help pull the wire later.

Attach the Doorbell Wire

1. Strip about 6 inches of the outer insulation from the doorbell wire (if it’s sheathed).
2. Twist the individual wires together at one end.
3. Tape the wire securely to the fish tape or string using electrical tape. Make sure the connection is smooth to avoid snagging.

Pull the Wire Through

1. From the button side, gently pull the fish tape until the wire emerges.
2. If the wire gets stuck, try wiggling the fish tape or applying cable lubricant.
3. Once the wire is through, detach it from the fish tape.

Tip: If fishing through multiple walls, use a helper to feed the tape from one side while you pull from the other.

Alternative: Use Existing Holes

If your home has an old doorbell, you may be able to reuse the existing wire path. Simply attach the new wire to the old one and pull it through.

Step 4: Connect the Transformer

The transformer is the heart of your doorbell system. It converts household voltage to the 16V needed for the doorbell.

Locate and Access the Transformer

– If it’s near the breaker panel, remove the cover to access the terminals.
– If it’s in the basement, ensure it’s accessible and not buried behind insulation.

Connect the Wires

1. Identify the two low-voltage terminals on the transformer (usually labeled “T” or “16V”).
2. Strip about ½ inch of insulation from the ends of the doorbell wires.
3. Connect one wire to each terminal. It doesn’t matter which wire goes where.
4. Tighten the screws securely.

Connect to Power

– The transformer has two black wires that connect to your home’s electrical system.
– These should already be connected to a 120V circuit (often a spare breaker or pigtailed into an existing circuit).
– If not, consult an electrician—this part involves high voltage and should be handled by a professional.

Warning: Never work on the high-voltage side of the transformer unless you’re qualified.

Step 5: Install the Doorbell Button

Now it’s time to mount the button and connect the wires.

Mount the Button

1. Hold the button against the wall where you want it.
2. Mark the screw holes with a pencil.
3. Drill pilot holes if needed.
4. Secure the button with screws.

Connect the Wires

1. Strip about ½ inch of insulation from the two wires coming from the wall.
2. Loosen the terminal screws on the back of the button.
3. Wrap each wire clockwise around a screw and tighten.
4. Ensure no bare wire is exposed.

Tip: If the button feels loose, use a small amount of silicone caulk around the edges to seal it against the weather.

Step 6: Install the Chime Unit

The chime is where the doorbell sound comes from. It’s usually mounted indoors on a wall.

Mount the Chime

1. Hold the chime against the wall and mark screw holes.
2. Drill pilot holes and secure with screws or anchors.
3. Ensure it’s level and accessible.

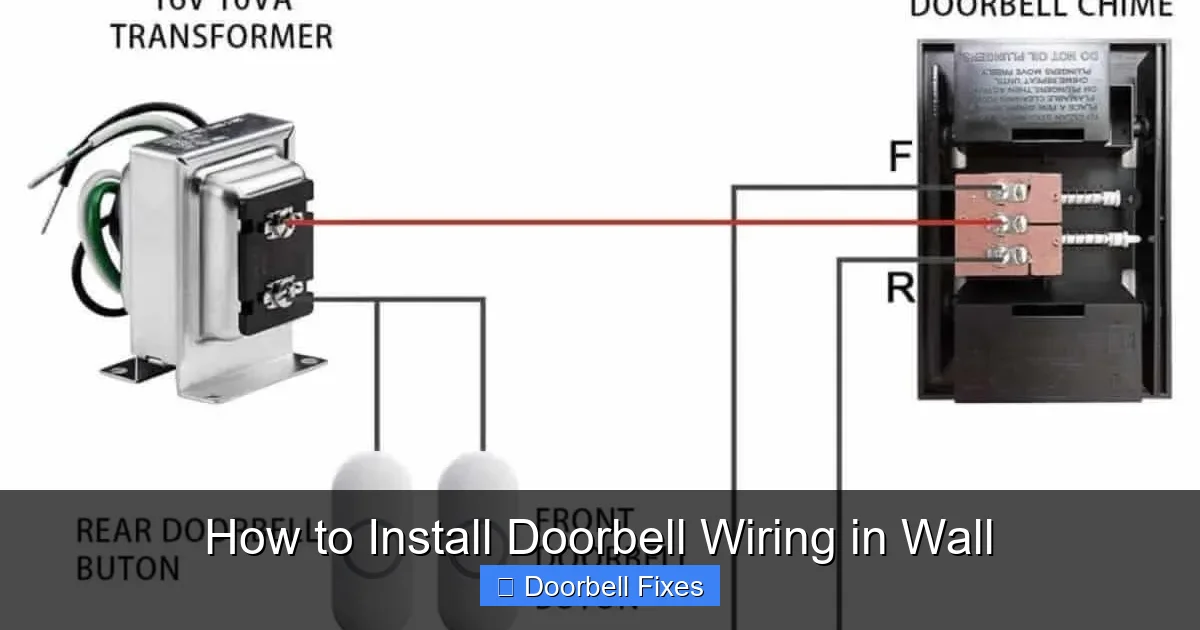

Connect the Wires

1. Strip the ends of the wires coming from the wall.
2. Identify the terminals on the chime: usually labeled “Front,” “Trans,” and “Rear” (if you have a second button).
3. Connect the two wires from the button to the “Front” and “Trans” terminals.
4. Connect the two wires from the transformer to the same “Trans” and “Front” terminals (polarity doesn’t matter).
5. Use wire nuts to secure connections and wrap with electrical tape.

Example: If you have a front and rear doorbell, connect the rear button wires to the “Rear” and “Trans” terminals.

Test the Connection

Before closing everything up, press the doorbell button. You should hear a clear chime. If not, double-check all connections.

Step 7: Secure and Conceal the Wiring

Once everything works, it’s time to tidy up.

Secure Loose Wires

– Use wire staples or clips to fasten wires to studs or baseboards.
– Avoid over-tightening, which can damage the wire.

Patch Small Holes

– If you drilled access holes, patch them with drywall compound.
– Sand smooth and paint to match the wall.

Use Wire Mold (Optional)

– For exposed runs along baseboards, use plastic wire mold to hide and protect the wire.

Troubleshooting Common Issues

Even with careful installation, problems can arise. Here’s how to fix the most common ones.

Doorbell Doesn’t Ring

• Check power: Ensure the transformer is receiving power and the breaker is on.
• Test voltage: Use a multimeter to check for 16V at the chime terminals.
• Inspect connections: Loose or corroded wires can break the circuit.
• Replace the button: Old or faulty buttons are a common failure point.

Weak or Intermittent Sound

• Check wire gauge: Use 18-gauge wire for longer runs to prevent voltage drop.
• Inspect for damage: Look for kinks, cuts, or crushed sections in the wire.
• Upgrade transformer: A 24V transformer may be needed for smart doorbells or long wire runs.

Chime Buzzes But Doesn’t Ring

• Faulty chime unit: Replace the chime if it’s old or damaged.
• Incorrect wiring: Ensure wires are connected to the correct terminals.

Smart Doorbell Not Working

• Check compatibility: Some smart doorbells require a specific voltage or resistor.
• Install a bypass resistor: If the chime doesn’t ring with a smart doorbell, a resistor may be needed to simulate the old circuit.

Safety Tips and Best Practices

– Always turn off power before working on any electrical component.
– Use insulated tools to reduce the risk of shock.
– Label wires as you disconnect them to avoid confusion.
– Don’t overload the circuit—doorbell systems are designed for low power.
– Consult a professional if you’re unsure about any step, especially high-voltage connections.

Conclusion: Enjoy Your New Doorbell System

Installing doorbell wiring in the wall is a rewarding DIY project that improves your home’s functionality and appearance. By following this guide, you’ve learned how to plan your wire route, fish wires through walls, connect the transformer, button, and chime, and troubleshoot common issues.

Remember, safety comes first—always turn off power and double-check connections. With the right tools and a bit of patience, you can achieve a clean, professional installation that lasts for years.

Whether you’re upgrading to a smart doorbell or simply replacing old wiring, this project enhances your home’s value and convenience. Now, every time someone rings the bell, you’ll know it’s working because of your skill and effort.
