Installing doorbell wiring through a brick wall may seem daunting, but with the right tools and careful planning, it’s a manageable DIY project. This guide walks you through every step—from drilling into brick to securing wires and testing your doorbell—so you can complete the job safely and efficiently.
Key Takeaways
- Use the right drill and bits: A hammer drill with a masonry bit is essential for cleanly drilling through brick without damaging the wall.
- Plan your wire route carefully: Map out the shortest, safest path from the doorbell button to the chime, avoiding electrical wires and structural elements.
- Protect the wire with conduit: Running low-voltage doorbell wire through flexible conduit prevents damage and makes future repairs easier.
- Turn off power before working: Even though doorbell systems use low voltage, always disconnect power at the transformer to avoid shocks or short circuits.
- Seal holes to prevent moisture: Use silicone caulk or masonry sealant around drilled holes to keep water out and maintain your home’s insulation.
- Test the system before finishing: Always test the doorbell after wiring but before patching walls or painting to catch issues early.
- Follow local building codes: Check with your municipality to ensure compliance, especially if drilling near gas lines or electrical systems.
How to Install Doorbell Wiring Through Brick Wall
So, you’ve decided to install a doorbell—but your home has a solid brick exterior. No problem! While it might seem intimidating at first, running doorbell wiring through a brick wall is absolutely doable with the right approach. Whether you’re replacing an old system or installing a new one from scratch, this comprehensive guide will walk you through every step, from planning your route to testing your finished setup.
In this guide, you’ll learn how to safely drill through brick, route low-voltage wiring, protect your cables, and ensure a clean, professional-looking installation. We’ll cover the tools you need, safety precautions, common pitfalls to avoid, and even troubleshooting tips if things don’t go as planned. By the end, you’ll have a fully functional doorbell that looks great and works reliably—all without calling in an expensive contractor.
Let’s get started!
Understanding Doorbell Wiring Basics

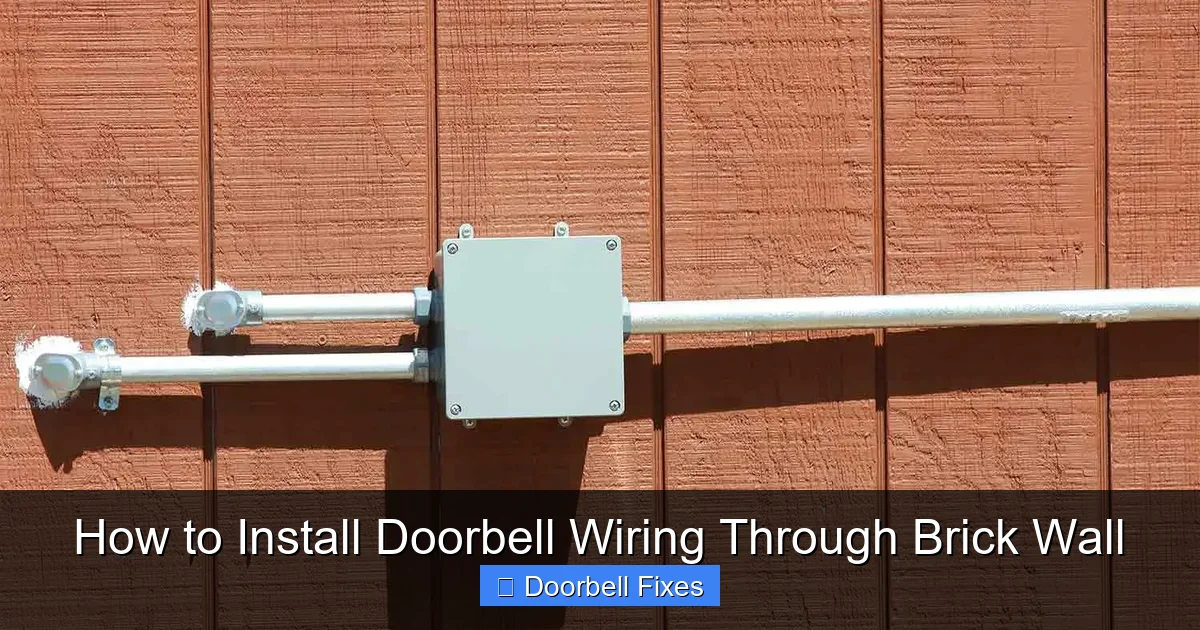

Visual guide about How to Install Doorbell Wiring Through Brick Wall
Image source: i0.wp.com
Before you grab your drill, it’s important to understand how doorbell systems work. Most residential doorbells operate on low voltage—typically 16 to 24 volts AC—which is safe to handle and doesn’t require an electrician. The system consists of three main components:
- The doorbell button: Mounted outside near your front door, this is what visitors press to ring the bell.
- The chime unit: Installed inside your home, usually in a central location like a hallway or living room, this produces the sound when the button is pressed.
- The transformer: This device steps down your home’s 120V household current to the lower voltage needed for the doorbell. It’s typically located near your electrical panel, in the basement, or in a closet.
The wiring connects these components in a simple loop: power flows from the transformer to the chime, then to the button, and back to the transformer. When the button is pressed, it completes the circuit, activating the chime.
Because the voltage is low, doorbell wire is thin and flexible—usually 18- or 20-gauge stranded copper wire. It’s not shielded like electrical wiring, so it must be protected from physical damage and moisture, especially when passing through exterior walls like brick.
Gathering the Right Tools and Materials
Having the right tools makes all the difference. Here’s what you’ll need to install doorbell wiring through a brick wall:
- Hammer drill: Regular drills struggle with brick. A hammer drill combines rotation with a pounding action to break through masonry efficiently.
- Masonry drill bits: Use a carbide-tipped bit sized to match your conduit or wire sleeve (typically 1/4″ to 3/8″).
- Flexible conduit (optional but recommended): PVC or metal conduit protects the wire and makes future replacements easier.
- Doorbell wire: 18- or 20-gauge low-voltage wire, preferably with two conductors (red and white).
- Wire strippers: For preparing connections at the button and chime.
- Screwdrivers: Phillips and flathead for mounting hardware.
- Measuring tape and pencil: For marking drill points and measuring distances.
- Level: To ensure your button and chime are mounted straight.
- Silicone caulk or masonry sealant: To waterproof the drilled hole.
- Fish tape or coat hanger: For pulling wire through walls or conduit.
- Safety gear: Safety glasses, dust mask, and work gloves.
Optional but helpful:
- A stud finder (to avoid drilling into wall studs or electrical wires)
- A vacuum or brush for cleaning up brick dust
- A helper (to feed wire from inside while you drill from outside)
Planning Your Wire Route
Before you start drilling, take time to plan the best path for your wire. A well-planned route saves time, reduces damage, and ensures a clean finish.
Step 1: Locate the Transformer
Start by finding your doorbell transformer. It’s usually mounted near your electrical panel, in the basement, attic, or a utility closet. Look for a small black or gray box with wires leading to it. If you can’t find it, check your breaker panel—some transformers are built into outlet covers.
Once located, confirm it’s working by testing the voltage with a multimeter (should read 16–24V AC). If it’s faulty, replace it before proceeding.
Step 2: Choose the Doorbell Button Location
The button should be mounted at a comfortable height (about 48 inches from the ground) and within easy reach of visitors. Avoid placing it directly over a door frame or in a spot that collects water.
Use a level to mark the mounting holes, then double-check that the location aligns with your planned wire path.
Step 3: Determine the Chime Location
The chime should be in a central, audible location—like a hallway or living room. It needs to be near an electrical outlet (for power) and accessible for wiring.
If you’re replacing an old chime, you can reuse the existing location. Otherwise, choose a spot that’s out of the way but still easy to hear.
Step 4: Map the Wire Path
Now, trace the path from the button to the chime. The goal is to find the shortest, safest route through the brick wall.
Common paths include:
- Through the mortar joint: If possible, drill through the mortar between bricks instead of the brick itself. Mortar is softer and easier to drill, and the hole is less noticeable.
- Through the brick: If no mortar joint is available, drill directly into the brick. Choose a spot that’s not visible from the front (e.g., near the side of the door frame).
- Through the siding or trim: If your brick is covered by wood trim, you may be able to route the wire behind it.
Avoid drilling near windows, gas lines, or electrical outlets. Use a stud finder to check for hidden obstacles inside the wall.
Drilling Through the Brick Wall
Now comes the trickiest part: drilling through brick. With the right technique, it’s straightforward—but rushing can crack the brick or damage your tools.
Step 1: Mark the Drill Point
Use a pencil to mark the exact spot where you’ll drill. Double-check your measurements and alignment. If drilling through mortar, aim for the center of the joint.
Step 2: Put on Safety Gear
Brick dust is fine and can irritate your lungs and eyes. Wear safety glasses, a dust mask, and gloves before starting.
Step 3: Start Drilling
Set your hammer drill to the “hammer” mode (not just rotation). Insert the masonry bit and begin drilling slowly at a 90-degree angle to the wall.
- Apply steady, gentle pressure—let the drill do the work.
- Don’t force it. If it binds, pull back slightly and continue.
- Drill in short bursts to prevent overheating the bit.
Once you’ve drilled through the exterior brick, switch to a longer bit if needed to reach the interior wall. You may need to drill from both sides if the wall is thick.
Step 4: Clean the Hole
Use a vacuum or brush to remove dust from the hole. This ensures a clean path for the wire and helps the sealant adhere properly.
Running the Wire Through the Wall
With the hole drilled, it’s time to feed the wire through.
Step 1: Prepare the Wire
Cut a length of doorbell wire long enough to reach from the button to the chime, plus a few extra feet for slack. Strip about 1/2 inch of insulation from each end.
Step 2: Use Conduit (Recommended)
If you’re using flexible conduit, thread the wire through it before inserting it into the wall. This protects the wire from moisture and makes future replacements easier.
Insert the conduit into the drilled hole from the outside, pushing it through until it reaches the interior wall. You may need a helper to guide it from inside.
Step 3: Fish the Wire
If not using conduit, attach the wire to a fish tape or straightened coat hanger. Feed it through the hole from the outside, then guide it to the chime location inside.
For interior walls, you may need to remove baseboards or drill additional small holes to route the wire along baseboards or under flooring.
Step 4: Leave Slack
Leave about 6–12 inches of extra wire at both ends. This gives you room to make connections and adjust the button or chime later.
Installing the Doorbell Button and Chime
With the wire in place, it’s time to mount the hardware.
Step 1: Mount the Button
Position the doorbell button over the mounting holes. Feed the wires through the back of the button and secure it to the wall with screws.
Connect the wires to the terminal screws (usually marked “Front” and “Trans”). It doesn’t matter which wire goes where—doorbell circuits are not polarized.
Step 2: Mount the Chime
At the chime location, connect the wires to the corresponding terminals (usually labeled “Front,” “Trans,” and “Rear” if you have a second button). Again, polarity doesn’t matter.
Secure the chime to the wall using the provided screws. Make sure it’s level and firmly attached.
Step 3: Connect to the Transformer
Run the other end of the wire to the transformer. Connect one wire to the “Front” terminal and the other to the “Common” or “Trans” terminal.
If your transformer is in a junction box, make sure all connections are secure and insulated with wire nuts.
Sealing and Finishing Touches
To protect your home and ensure longevity, seal the drilled hole.
Step 1: Apply Sealant
Fill the hole around the wire or conduit with silicone caulk or masonry sealant. Smooth it with your finger or a putty knife for a clean finish.
This prevents water, insects, and drafts from entering your home.
Step 2: Paint or Touch Up (Optional)
If you drilled through a visible brick, consider painting the sealant to match the brick color. Use exterior masonry paint for best results.
Step 3: Test the System
Turn the power back on and press the doorbell button. The chime should sound immediately.
If it doesn’t work, check all connections, ensure the transformer is powered, and verify the wire isn’t damaged.
Troubleshooting Common Issues
Even with careful planning, problems can arise. Here’s how to fix the most common issues:
Doorbell Doesn’t Ring
- Check the transformer voltage with a multimeter.
- Ensure all wire connections are tight and not corroded.
- Test the button with a continuity tester—if it’s faulty, replace it.
Weak or Intermittent Sound
- This may indicate a loose connection or damaged wire.
- Inspect the wire for cuts or kinks, especially where it passes through the wall.
- Replace the wire if necessary.
Button Gets Stuck or Stiff
- Moisture may have entered the button. Remove it and let it dry.
- Apply a small amount of silicone lubricant to the button mechanism.
- Ensure the mounting surface is flat and the button isn’t under tension.
Drilled Hole Is Too Large
- Use expanding foam or a rubber grommet to fill the gap before applying sealant.
- This also improves insulation and prevents pests.
Safety Tips and Best Practices
Working with power tools and wiring requires caution. Follow these safety guidelines:
- Always turn off power at the transformer before making connections.
- Never drill blindly—use a stud finder to avoid hitting electrical wires or pipes.
- Wear safety glasses and a dust mask when drilling brick.
- Keep children and pets away from the work area.
- Dispose of brick dust and debris properly.
- If you’re unsure about any step, consult a professional.
Conclusion
Installing doorbell wiring through a brick wall is a rewarding DIY project that enhances your home’s functionality and curb appeal. While it requires patience and the right tools, the process is straightforward when broken down into manageable steps.
By planning your route, using a hammer drill and masonry bit, protecting the wire with conduit, and sealing the hole properly, you’ll create a clean, durable installation that lasts for years. Remember to test your system before finishing, and don’t hesitate to troubleshoot if issues arise.
With this guide, you’re equipped to tackle the job confidently—no contractor needed. So grab your tools, take your time, and enjoy the satisfaction of a job well done. Your new doorbell is just a few drills away!
