Installing a resistor for your Ring Doorbell can resolve common chime problems caused by low voltage or incompatible transformers. This guide walks you through the process safely and effectively, ensuring your doorbell works smoothly with your existing doorbell chime.
Key Takeaways
- Resistors fix chime compatibility: A resistor helps stabilize voltage, allowing your Ring Doorbell to work with mechanical chimes that require higher power.
- Check your transformer first: Before installing a resistor, verify your doorbell transformer provides 16–24V AC and at least 20VA.
- Use the right resistor: Ring recommends a 30-ohm, 20-watt resistor for most installations.
- Turn off power before starting: Always shut off power at the breaker to avoid electrical shock.
- Install across chime terminals: The resistor connects in parallel with your existing doorbell chime, not in series with the doorbell.
- Test after installation: Press the button to confirm the chime sounds and the Ring app shows activity.
- Call a pro if unsure: If you’re uncomfortable with electrical work, hire a licensed electrician.
How to Install Resistor for Ring Doorbell
If your Ring Doorbell isn’t triggering your doorbell chime—or if the chime sounds weak, inconsistent, or not at all—you might need to install a resistor. This simple component can solve a common compatibility issue between modern smart doorbells and older mechanical chime systems.
In this guide, you’ll learn exactly how to install a resistor for your Ring Doorbell, why it’s necessary, and how to do it safely. Whether you’re a DIY enthusiast or a homeowner looking to fix a frustrating problem, this step-by-step walkthrough will help you get your doorbell working perfectly with your existing chime.
We’ll cover everything from checking your electrical setup to testing the final installation. By the end, you’ll understand how resistors work in doorbell circuits, what tools you need, and how to troubleshoot if things don’t go as planned.
Let’s get started!
Why Do You Need a Resistor for Your Ring Doorbell?

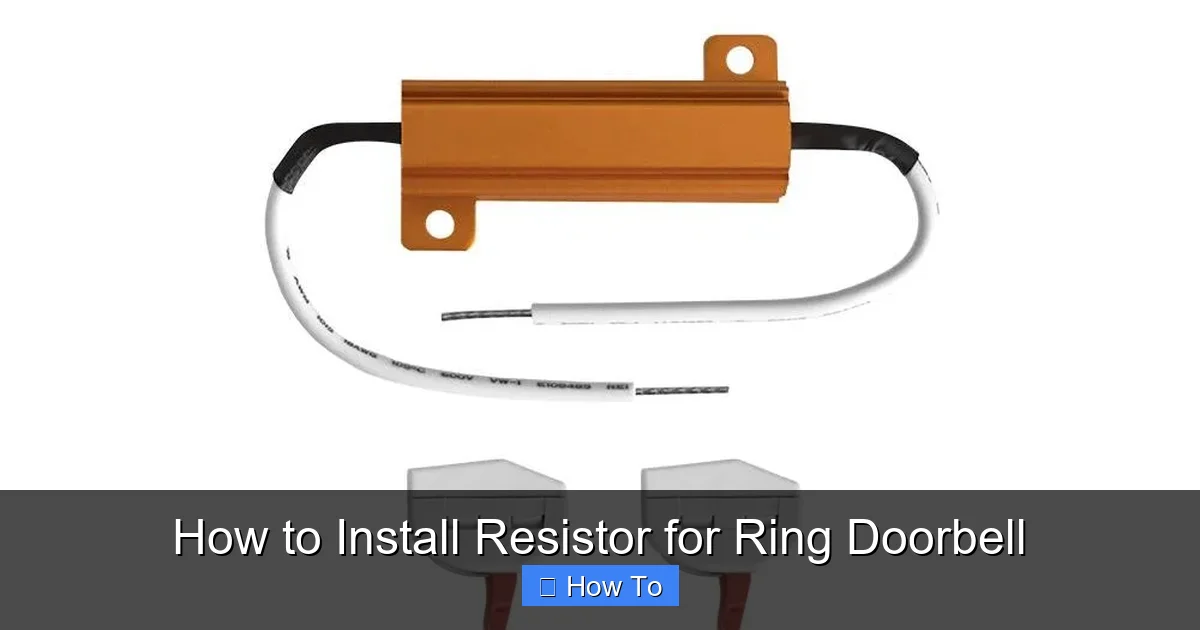

Visual guide about How to Install Resistor for Ring Doorbell
Image source: justsmarter.net
Ring Doorbells are designed to work with a wide range of doorbell systems, but they can struggle with older mechanical chimes. These chimes often require more power than the Ring Doorbell can provide on its own. When the voltage drops too low, the chime may not ring, ring weakly, or only work intermittently.
This is where a resistor comes in. A resistor doesn’t increase voltage, but it helps maintain a stable current flow in the circuit. By installing a resistor across the chime terminals, you create a parallel path for electricity. This allows enough current to flow through the chime to activate it, while still letting the Ring Doorbell function properly.
Think of it like adding a small detour in a road. The main traffic (electricity) still goes to the doorbell, but the detour (resistor) ensures the chime gets enough power to ring.
Without a resistor, your Ring Doorbell might still send notifications to your phone, but the physical chime inside your home won’t sound. That defeats the purpose of having a doorbell!
Tools and Materials You’ll Need
Before you begin, gather the following tools and materials. Having everything ready will make the installation faster and safer.
- Ring Doorbell resistor: A 30-ohm, 20-watt resistor (available from Ring or electronics suppliers like Amazon or Home Depot).
- Screwdrivers: Phillips and flathead screwdrivers for removing covers and terminals.
- Wire strippers: To remove insulation from wires if needed.
- Electrical tape: For insulating connections.
- Voltage tester: To confirm power is off before working.
- Safety gloves and goggles: Optional but recommended for protection.
- Ladder: If your doorbell is mounted high.
You may also need a multimeter to check your transformer’s voltage, but we’ll cover that in the next section.
Step 1: Check Your Doorbell Transformer
Before installing a resistor, it’s crucial to verify that your doorbell transformer is providing enough power. A weak or incompatible transformer is often the root cause of chime problems—even more so than the need for a resistor.
Locate Your Transformer
Most doorbell transformers are hidden in a basement, attic, garage, or near your electrical panel. They’re small, rectangular devices that convert standard 120V household current down to 16–24V AC, which is safe for doorbells.
Look for a small box with wires running to your doorbell and chime. It may be labeled “Doorbell” or “Transformer.”
Test the Voltage
Turn off power to the transformer at the breaker. Use a multimeter set to AC voltage. Touch the probes to the two wires coming from the transformer (usually labeled “Front” and “Trans” or similar).
A working transformer should read between 16V and 24V AC. If it’s below 16V, the transformer may be underpowered or failing. If it’s above 24V, it could damage your Ring Doorbell.
Check the VA Rating
The transformer should also have a VA (volt-ampere) rating of at least 20VA. This indicates how much power it can deliver. Older homes often have 8VA or 10VA transformers, which are too weak for Ring Doorbells.
If your transformer is underpowered, replace it with a 16V or 24V, 20VA or higher model. This may solve the problem without needing a resistor.
Step 2: Turn Off the Power
Safety first! Always turn off power before working on electrical components.
Find the Correct Breaker
Go to your main electrical panel and locate the breaker that controls your doorbell circuit. It may be labeled “Doorbell,” “Chime,” or “Front Door.” If not, turn off breakers one by one and test the doorbell button until it no longer lights up or sends a signal.
Verify Power Is Off
Use a non-contact voltage tester near the doorbell and chime wires. Touch the tester to the wires—if it beeps or lights up, power is still on. Double-check your breaker and try again.
Never assume the power is off. Always test.
Step 3: Remove the Doorbell and Chime Covers
Now that the power is off, you can safely access the wiring.
Remove the Ring Doorbell
Use a screwdriver to loosen the mounting screws on your Ring Doorbell. Gently pull it away from the wall. You’ll see two wires connected to the back—usually labeled “Front” and “Trans.”
Take a photo of the wiring before disconnecting anything. This will help you reconnect everything correctly later.
Remove the Chime Cover
Go inside your home and locate the doorbell chime—usually near the front door. Remove the cover by unscrewing it or gently prying it open.
Inside, you’ll see two or more terminals. The most common setup has three terminals: “Front,” “Trans,” and “Rear” (for a second doorbell). For this installation, we’ll focus on the “Front” and “Trans” terminals.
Step 4: Install the Resistor
This is the core of the installation. The resistor must be connected in parallel with the chime, not in series with the doorbell.
Understand the Wiring
Your doorbell circuit works like this:
– Power comes from the transformer to the “Trans” terminal on the chime.
– From there, it goes to the doorbell button.
– When you press the button, electricity flows back through the “Front” terminal, completing the circuit and ringing the chime.
The Ring Doorbell interrupts this flow slightly, which can prevent the chime from getting enough power. The resistor creates a secondary path, ensuring the chime still receives sufficient current.
Connect the Resistor
Take your 30-ohm, 20-watt resistor. It will have two wire leads.
1. Connect one lead to the “Front” terminal on the chime.
2. Connect the other lead to the “Trans” terminal.
You can use wire nuts, terminal screws, or crimp connectors. Make sure the connections are tight and secure.
Secure the Resistor
The resistor may get warm during operation, so don’t let it touch any flammable materials. Use electrical tape or a zip tie to secure it to the chime housing or nearby wiring.
Avoid placing it directly on the chime mechanism itself, as heat could damage it over time.
Step 5: Reconnect the Doorbell
Now that the resistor is in place, reconnect your Ring Doorbell.
Reattach the Wires
Refer to the photo you took earlier. Reconnect the two wires from the wall to the back of the Ring Doorbell. It doesn’t matter which wire goes where—Ring Doorbells are not polarity-sensitive.
Mount the Doorbell
Slide the doorbell back onto the mounting bracket and tighten the screws. Make sure it’s secure and level.
Step 6: Restore Power and Test
You’re almost done! Now it’s time to test your work.
Turn the Power Back On
Go to your electrical panel and flip the breaker back on.
Test the Doorbell
Press the doorbell button. You should hear the chime ring clearly inside your home.
Also, check the Ring app on your phone. You should receive a notification and see live video.
If the chime rings and the app works, congratulations—you’ve successfully installed the resistor!
Troubleshooting Common Issues
Even with careful installation, problems can occur. Here’s how to fix the most common ones.
Chime Still Doesn’t Ring
– Double-check resistor connections. Are both leads securely attached to “Front” and “Trans”?
– Verify the resistor is the correct type (30-ohm, 20-watt).
– Test the transformer voltage again—low voltage could still be the issue.
– Try bypassing the chime temporarily. Connect the doorbell wires directly to the transformer. If the doorbell works, the chime itself may be faulty.
Chime Rings Weakly or Intermittently
– The resistor may be undersized. Ensure it’s 20 watts—lower wattage resistors can overheat and fail.
– Check for loose wire connections. Tighten all terminals.
– Your chime may be worn out. Consider replacing it with a newer model.
Doorbell Doesn’t Send Notifications
– This is likely unrelated to the resistor. Check Wi-Fi signal strength at the doorbell location.
– Make sure the Ring app is updated and notifications are enabled.
– Reboot the doorbell by removing it from the mount for 10 seconds, then reattaching.
Resistor Gets Too Hot
– A 20-watt resistor may get warm, but it shouldn’t be too hot to touch.
– If it’s overheating, the wattage may be too low. Replace it with a higher-wattage resistor (e.g., 30-watt).
– Ensure it’s not touching any flammable materials.
Safety Tips and Best Practices
Working with electricity can be dangerous if you’re not careful. Follow these tips to stay safe:
- Always turn off power at the breaker. Never rely on the doorbell button to cut power.
- Use insulated tools. This reduces the risk of shock.
- Don’t work in wet conditions. Water and electricity don’t mix.
- If you’re unsure, call an electrician. There’s no shame in hiring a professional—safety is worth the cost.
- Keep children and pets away. During installation, keep the work area clear.
When to Call a Professional
While installing a resistor is a relatively simple task, some situations call for expert help:
– You can’t locate the transformer.
– Your electrical panel is outdated or hard to access.
– You’re uncomfortable working with wires.
– The chime still doesn’t work after installation.
– You suspect faulty wiring or a damaged chime.
A licensed electrician can diagnose and fix complex issues quickly and safely.
Conclusion
Installing a resistor for your Ring Doorbell is a smart, cost-effective way to ensure your doorbell chime works reliably. By following this guide, you’ve learned how to check your transformer, safely install the resistor, and troubleshoot common problems.
Remember: the resistor doesn’t increase voltage—it stabilizes the current flow so your chime gets enough power to ring. Always prioritize safety, double-check your connections, and test thoroughly.
With your Ring Doorbell now working in harmony with your chime, you can enjoy peace of mind knowing you’ll never miss a visitor again.
If you found this guide helpful, share it with friends or leave a comment below. And if you run into any issues, don’t hesitate to reach out to Ring support or a local electrician.
Happy installing!
