This guide walks you through how to install Ri G Doorbell 2 safely and correctly, whether you’re replacing an old doorbell or setting up a new one. You’ll learn wiring basics, app pairing, and how to avoid common mistakes for a smooth, professional result.
Key Takeaways
- Turn off power first: Always shut off electricity at the breaker before handling wires to prevent shocks or damage.
- Check compatibility: Ensure your existing doorbell transformer meets the 16–24V AC requirement for Ri G Doorbell 2.
- Use the right tools: A screwdriver, voltage tester, and drill (if needed) make installation faster and safer.
- Download the app early: The Ri G Home app is essential for setup, live view, and notifications—install it before mounting.
- Secure mounting matters: Use the included wedge or corner kit if your wall isn’t flat for a level, stable fit.
- Test after install: Always test chime, Wi-Fi, and motion detection before finishing to catch issues early.
- Update firmware: Keep your doorbell updated via the app for the latest features and security patches.
How to Install Ri G Doorbell 2: A Complete Step-by-Step Guide
So you’ve got your hands on the Ri G Doorbell 2—a sleek, smart upgrade that brings HD video, two-way audio, motion alerts, and real-time notifications right to your phone. Whether you’re replacing an old mechanical doorbell or installing one for the first time, this guide will walk you through every step of the process. By the end, you’ll have a fully functional, securely mounted doorbell that keeps your home safe and connected.
In this guide, you’ll learn how to install Ri G Doorbell 2 safely and correctly, including checking electrical compatibility, wiring the device, mounting it on your wall, pairing it with the Ri G Home app, and troubleshooting common issues. We’ll keep things simple, practical, and jargon-free so even first-time DIYers can follow along with confidence.
Let’s get started!
What You’ll Need Before You Begin

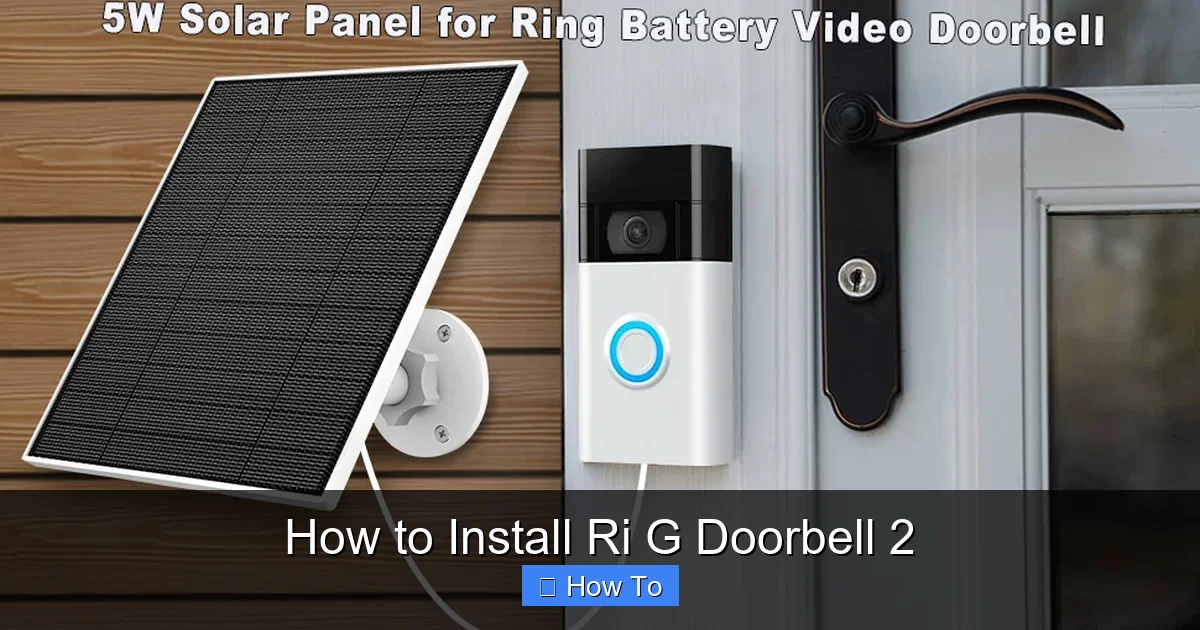

Visual guide about How to Install Ri G Doorbell 2
Image source: m.media-amazon.com
Before you touch a single wire, gather all the tools and materials you’ll need. Having everything ready saves time and reduces frustration.
You’ll need:
- Ri G Doorbell 2 (obviously!)
- Smartphone with the Ri G Home app installed
- Screwdriver (Phillips head)
- Voltage tester (non-contact type recommended)
- Drill and drill bits (if mounting on brick, concrete, or hard surfaces)
- Wall anchors (if not included or if your wall requires them)
- Wire strippers (optional, if wires need trimming)
- Ladder (if your doorbell is high up)
- Safety gloves and glasses (for drilling or working near electrical components)
Pro tip: If you’re replacing an existing doorbell, take a photo of the wiring setup before disconnecting anything. This will help you remember how things were connected.
Step 1: Turn Off the Power
Safety first! Working with electricity can be dangerous if you’re not careful. Even though doorbell systems use low voltage, they’re still connected to your home’s electrical circuit and can cause shocks or damage your new doorbell if mishandled.
Locate Your Circuit Breaker
Go to your main electrical panel (usually in the basement, garage, or utility closet). Look for the breaker labeled “doorbell,” “chime,” or “front door.” If there’s no label, you may need to test breakers one by one.
Turn Off the Correct Breaker
Switch the breaker to the “OFF” position. To be extra sure, use a non-contact voltage tester near the doorbell wires. If the tester doesn’t beep or light up, the power is off.
Never skip this step. Even a small shock can be harmful, and you don’t want to fry your new doorbell with a power surge.
Step 2: Remove Your Old Doorbell (If Applicable)
If you’re replacing an existing doorbell, you’ll need to remove it carefully to access the wiring.
Unscrew the Faceplate
Use your screwdriver to remove the screws holding the old doorbell to the wall. Gently pull the unit away from the wall.
Disconnect the Wires
You’ll see two wires connected to the back—usually labeled “Front” and “Trans.” Loosen the screws holding these wires and gently pull them free. Don’t cut them unless absolutely necessary. You’ll reuse them for the Ri G Doorbell 2.
Cap the Wires (Temporarily)
Twist a wire nut over each exposed wire to prevent them from touching each other or the wall. This prevents short circuits while you work.
Remove the Mounting Bracket
If your old doorbell used a mounting bracket, unscrew and remove it. You’ll install the new Ri G bracket in the next step.
Step 3: Check Electrical Compatibility
Not all doorbell systems are compatible with smart doorbells. The Ri G Doorbell 2 requires a transformer that outputs between 16 and 24 volts AC (alternating current). Most modern homes meet this requirement, but it’s worth checking.
Locate Your Doorbell Transformer
The transformer is usually found in your basement, attic, or near your chime unit. It’s a small black box with wires leading to your doorbell and chime.
Check the Voltage Rating
Look for a label on the transformer that says something like “16V AC” or “24V AC.” If it’s within the 16–24V range, you’re good to go. If it’s lower (like 8V or 10V), your Ri G Doorbell 2 may not work properly or could overheat.
If your transformer is incompatible, you’ll need to replace it. This is a job for a licensed electrician unless you’re experienced with electrical work.
Test the Voltage (Optional but Recommended)
Use a multimeter to test the voltage across the two doorbell wires. Set the meter to AC voltage, touch the probes to the wires, and check the reading. It should be between 16 and 24 volts.
Pro tip: If your chime is mechanical (with physical hammers), the Ri G Doorbell 2 should work fine. If you have a digital chime, check the Ri G compatibility list online—some digital chimes require a bypass resistor.
Step 4: Install the Mounting Bracket
The Ri G Doorbell 2 comes with a sturdy mounting bracket that secures the device to your wall. Proper installation ensures a tight fit and prevents wobbling.
Position the Bracket
Hold the bracket against the wall where you want to install the doorbell. Make sure it’s level using a spirit level. The ideal height is about 48 inches from the ground—eye level for most visitors.
Mark the Screw Holes
Use a pencil to mark where the screw holes will go. If you’re drilling into wood or drywall, you can screw directly in. For brick, concrete, or stucco, you’ll need to drill pilot holes and use wall anchors.
Drill Pilot Holes (If Needed)
Use a drill bit slightly smaller than your wall anchors. Drill carefully to avoid cracking the surface. Insert the anchors into the holes.
Secure the Bracket
Align the bracket with the holes and screw it into place using the provided screws. Make sure it’s tight and doesn’t wiggle.
Use a Wedge or Corner Kit (If Needed)
If your wall isn’t flat or your doorbell is on a corner, use the included wedge or corner mounting kit. These accessories help angle the doorbell for better visibility and reduce blind spots.
Attach the wedge to the bracket before mounting, then secure everything to the wall.
Step 5: Connect the Wires
Now it’s time to connect the doorbell wires to the Ri G Doorbell 2. This step is simple, but it’s important to do it correctly.
Strip the Wire Ends (If Needed)
If the wire ends are frayed or too short, use wire strippers to expose about 1/4 inch of copper. Don’t strip too much—just enough to make a solid connection.
Attach Wires to the Bracket
The Ri G mounting bracket has two terminal screws labeled “Front” and “Trans.” It doesn’t matter which wire goes where—the doorbell is non-polarized. Loosen the screws, insert the wires, and tighten them securely.
Make sure the wires are snug and not touching each other. Loose connections can cause poor performance or no power at all.
Double-Check Connections
Give each wire a gentle tug to ensure it’s secure. If it comes loose, retighten the screw.
Step 6: Attach the Ri G Doorbell 2
With the bracket and wires in place, it’s time to mount the doorbell itself.
Align the Doorbell
Hold the Ri G Doorbell 2 against the bracket. The bottom of the device should snap into place, and the top will secure with a screw.
Secure with the Security Screw
Use the provided security screw and screwdriver to fasten the top of the doorbell to the bracket. This prevents theft and ensures a tight fit.
Don’t overtighten—just snug enough to hold it firmly.
Check the Angle
Look at the doorbell from the side. It should be level and facing straight ahead (or slightly downward if using a wedge). Adjust the bracket if needed before final tightening.
Step 7: Restore Power and Test the Chime
Now that everything is connected, it’s time to turn the power back on and see if it works.
Turn the Breaker Back On
Go to your electrical panel and flip the doorbell breaker to “ON.”
Listen for the Chime
Press the button on your Ri G Doorbell 2. You should hear your indoor chime ring. If it doesn’t, double-check your wiring and transformer voltage.
If the chime doesn’t work:
- Make sure the wires are securely connected.
- Verify the transformer voltage is correct.
- Check if your chime is compatible (especially if digital).
- Try installing a bypass resistor (available from Ri G or hardware stores).
Pro tip: If you don’t have a chime or prefer silent operation, you can disable the chime in the Ri G Home app and rely on phone notifications instead.
Step 8: Set Up the Ri G Home App
The app is the brain of your smart doorbell. It lets you view live video, talk to visitors, receive alerts, and customize settings.
Download the App
Search for “Ri G Home” in the App Store (iOS) or Google Play Store (Android). Download and install it on your smartphone.
Create an Account
Open the app and sign up with your email address. Verify your account via the confirmation email.
Add Your Doorbell
Tap the “+” icon and select “Add Device.” Choose “Doorbell” and follow the on-screen instructions.
Scan the QR Code
The Ri G Doorbell 2 has a QR code on the back or in the app setup guide. Use your phone’s camera to scan it. This pairs the device with your account.
Connect to Wi-Fi
Select your home Wi-Fi network and enter the password. The doorbell supports 2.4 GHz networks only—5 GHz won’t work. Make sure your phone is on the same network.
Complete Setup
The app will guide you through naming your doorbell (e.g., “Front Door”), setting up motion zones, and enabling notifications. Take your time to customize these settings.
Step 9: Test All Features
Before you call the job done, test everything to make sure it’s working properly.
Live View
Open the app and tap “Live View.” You should see a clear, real-time video feed from your doorbell.
Two-Way Audio
Tap the microphone icon and speak. You should hear your voice through the doorbell’s speaker. Ask someone to stand outside and test the audio both ways.
Motion Detection
Walk in front of the doorbell. You should receive a push notification on your phone within a few seconds.
Night Vision
Turn off the lights or wait for dusk. The doorbell should switch to night mode automatically, showing a clear black-and-white image.
Recording and Alerts
Check if motion events are being recorded and saved to the cloud (if you have a subscription). Review the event history in the app.
If any feature isn’t working, go back to the app settings or check your Wi-Fi signal strength.
Step 10: Final Adjustments and Tips
Now that your Ri G Doorbell 2 is up and running, here are a few final tips to get the most out of it.
Adjust Motion Sensitivity
In the app, go to Settings > Motion Detection. Lower the sensitivity if you’re getting too many alerts from passing cars or trees. Increase it if you’re missing visitors.
Set Up Motion Zones
Define specific areas where you want motion alerts (e.g., your driveway or front steps). This reduces false alarms from sidewalks or streets.
Enable Smart Alerts
Turn on person detection if available. This feature distinguishes between people, animals, and vehicles, so you only get alerts when it matters.
Check Firmware Updates
Go to Device Settings > Firmware Update. Install any available updates to improve performance and security.
Clean the Lens Regularly
Dust, dirt, and fingerprints can blur the video. Wipe the lens gently with a microfiber cloth every few weeks.
Consider a Solar Charger (Optional)
If you’re worried about battery life (though the Ri G Doorbell 2 is hardwired), you can add a solar panel accessory for backup power.
Troubleshooting Common Issues
Even with careful installation, problems can happen. Here’s how to fix the most common ones.
Doorbell Won’t Power On
- Check that the breaker is on.
- Test the transformer voltage.
- Ensure wires are securely connected.
- Try swapping the wires (though polarity doesn’t matter, sometimes it helps).
No Chime Sound
- Verify chime compatibility.
- Install a bypass resistor if using a digital chime.
- Check wire connections at the chime unit.
Weak Wi-Fi Signal
- Move your router closer or use a Wi-Fi extender.
- Ensure the doorbell is within 100 feet of the router.
- Switch to a less congested Wi-Fi channel.
Delayed or Missed Alerts
- Check motion sensitivity and zones.
- Ensure your phone isn’t in Do Not Disturb mode.
- Restart the doorbell and app.
Video Quality Is Poor
- Clean the lens.
- Check lighting conditions—avoid pointing directly at bright lights.
- Update firmware.
Conclusion
Installing the Ri G Doorbell 2 is a straightforward project that can significantly enhance your home’s security and convenience. By following this guide, you’ve safely wired the device, mounted it securely, connected it to your Wi-Fi, and customized it through the app. You now have a smart doorbell that lets you see, hear, and speak to anyone at your door—no matter where you are.
Remember to keep the app updated, test features regularly, and adjust settings as needed. With proper care, your Ri G Doorbell 2 will provide reliable service for years to come.
If you run into issues, don’t hesitate to consult the Ri G support page or contact customer service. And if you’re not comfortable working with electricity, it’s always wise to hire a professional.
Now go enjoy your new smart doorbell—and peace of mind!
