This guide walks you through how to install Ring 1 Doorbell safely and correctly, whether you’re replacing an old doorbell or setting one up for the first time. You’ll learn about tools needed, wiring basics, app configuration, and common pitfalls to avoid.
Key Takeaways
- Check compatibility first: Ensure your existing doorbell wiring and transformer meet Ring’s voltage requirements (8–24V AC) before installation.
- Gather the right tools: You’ll need a screwdriver, drill (optional), voltage tester, and possibly a level and wire strippers.
- Turn off power at the breaker: Always shut off electricity to the doorbell circuit to prevent shocks or damage.
- Use the Ring app for setup: The free Ring app guides you through Wi-Fi connection, device registration, and motion settings.
- Test after installation: Confirm the doorbell chimes, sends notifications, and records video properly before finishing.
- Consider a Ring Chime or Chime Pro: If your mechanical chime isn’t compatible, use a wireless Ring Chime for reliable alerts.
- Troubleshoot common issues: Weak Wi-Fi, no power, or failed pairing can often be fixed with simple adjustments.
How to Install Ring 1 Doorbell: A Complete Step-by-Step Guide
So, you’ve decided to upgrade your home security with the Ring Video Doorbell (1st Gen). Great choice! The Ring 1 Doorbell is a reliable, affordable smart doorbell that lets you see, hear, and speak to visitors from anywhere using your smartphone. Whether you’re replacing an old wired doorbell or installing one for the first time, this guide will walk you through the entire process—safely and efficiently.
By the end of this guide, you’ll know exactly how to install Ring 1 Doorbell, from checking compatibility to final testing. We’ll cover everything: tools, wiring, app setup, troubleshooting, and pro tips to ensure your new doorbell works flawlessly. No prior experience? No problem. We keep things simple, clear, and jargon-free.
Let’s get started!
What You’ll Need Before You Begin

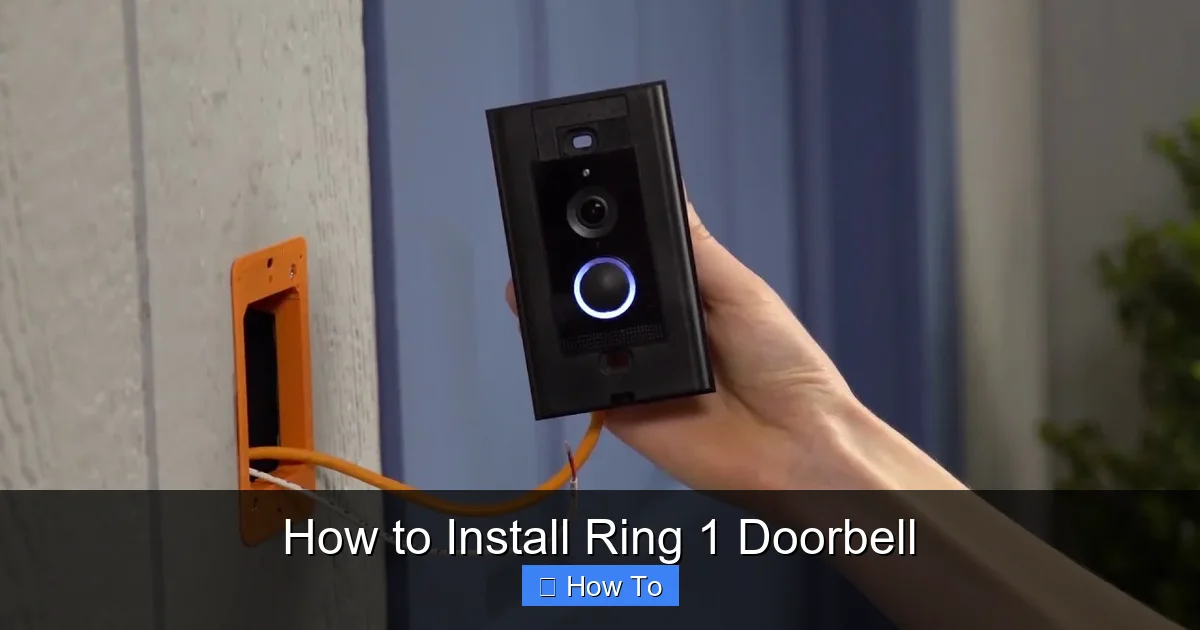

Visual guide about How to Install Ring 1 Doorbell
Image source: i.ytimg.com
Before touching any wires or mounting hardware, make sure you have all the necessary tools and materials. Rushing this step can lead to frustration—or even damage to your doorbell or home wiring.
Tools and Materials Checklist
- Ring Video Doorbell (1st Gen) – included in the box
- Screwdriver (Phillips head, usually #2)
- Drill and drill bits (optional, for mounting on brick or stucco)
- Voltage tester (non-contact type recommended)
- Wire strippers (if you need to trim or re-strip wires)
- Level (to ensure the doorbell is straight)
- Pencil or marker (for marking drill holes)
- Smartphone or tablet with the Ring app installed
- Stable Wi-Fi connection (2.4 GHz network required)
- Ladder (if your doorbell is mounted high)
Check Your Existing Doorbell System
The Ring 1 Doorbell is designed to work with most existing wired doorbell systems, but not all. Here’s what to verify:
Transformer Voltage: Your doorbell transformer should output between 8 and 24 volts AC. Most older homes have 16V transformers, which are perfect. If you’re unsure, use a multimeter or voltage tester to check the wires at the doorbell.
Wiring: You need at least two wires connected to your current doorbell (usually labeled “Front” and “Trans”). If you only have one wire or no wires at all, the Ring 1 won’t work unless you run new wiring—or consider a battery-powered model like the Ring Video Doorbell 2 or 3.
Chime Compatibility: The Ring 1 works with most mechanical chimes (the kind with a physical striker). If you have a digital chime (electronic sound), it may not be compatible. In that case, you can use a Ring Chime (sold separately) as a wireless alternative.
Wi-Fi Signal Strength: Your doorbell needs a strong 2.4 GHz Wi-Fi signal. If your router is far from the front door, consider using a Wi-Fi extender or the Ring Chime Pro, which also boosts signal.
Step 1: Turn Off the Power
Safety first! Electricity and water don’t mix, and neither do live wires and fingers.
Locate Your Circuit Breaker
Go to your home’s main electrical panel (usually in the basement, garage, or utility closet). Look for the breaker labeled “Doorbell,” “Front Door,” or something similar. If there’s no label, you may need to test breakers one by one.
Turn Off the Correct Breaker
Switch the breaker to the “OFF” position. To double-check, go to your existing doorbell and press the button. If the chime doesn’t sound, the power is off. If it still rings, turn off additional breakers until it stops.
Pro Tip: Use a non-contact voltage tester at the doorbell wires to confirm no electricity is flowing. Touch the tester near the wires—if it beeps or lights up, power is still on.
Step 2: Remove Your Old Doorbell
Now that the power is off, it’s time to remove the existing doorbell.
Unscrew the Old Plate
Use your screwdriver to remove the screws holding the old doorbell plate to the wall. Gently pull the plate away from the wall. You should see two wires connected to terminals (usually labeled “Front” and “Trans”).
Disconnect the Wires
Loosen the terminal screws and carefully pull the wires free. Don’t let them fall back into the wall—tape them to the wall or hold them with a clip.
Inspect the Wires
Check the wire ends. If they’re frayed, burnt, or too short, use wire strippers to trim and expose fresh copper (about 1/4 inch). Clean, solid connections are key to reliable power.
Step 3: Install the Ring Doorbell Mounting Plate
The Ring 1 comes with a mounting plate that attaches to your wall. This plate holds the doorbell securely and hides the wires.
Position the Mounting Plate
Hold the mounting plate against the wall where you want the doorbell. Use a level to make sure it’s straight. Mark the screw holes with a pencil.
Tip: The ideal height is about 48 inches from the ground—eye level for most visitors.
Drill Pilot Holes (If Needed)
If you’re mounting on wood, you can screw directly into the wall. For brick, stucco, or concrete, drill pilot holes using a masonry bit. Insert wall anchors if necessary.
Secure the Plate
Line up the plate with your marks and screw it into place. Make sure it’s tight and level.
Step 4: Connect the Wires to the Ring Doorbell
Now it’s time to connect your home’s doorbell wires to the Ring 1.
Thread the Wires Through the Plate
Feed the two wires through the center hole in the mounting plate.
Attach the Wires to the Doorbell
The Ring 1 has two terminals on the back: “Front” and “Trans.” Loosen the screws, insert the wires, and tighten them securely. It doesn’t matter which wire goes where—Ring’s design is polarity-independent.
Important: Don’t let the bare wire ends touch each other. This can cause a short circuit.
Snap the Doorbell onto the Plate
Align the doorbell with the mounting plate and press firmly until it clicks into place. Give it a gentle tug to ensure it’s secure.
Step 5: Turn the Power Back On
With the doorbell mounted and wired, it’s time to restore power.
Flip the Breaker Back On
Return to your electrical panel and turn the doorbell breaker back to “ON.”
Test the Power
Go to your doorbell and press the button. You should hear your indoor chime ring. If it doesn’t, double-check your wiring and breaker.
Note: The Ring 1 doesn’t have a physical button that lights up like newer models, but you’ll know it’s receiving power when it connects to the app.
Step 6: Set Up the Ring Doorbell Using the App
The Ring app is your control center for the doorbell. It’s available for free on iOS and Android.
Download and Open the Ring App
Search for “Ring” in your app store and install it. Open the app and create an account if you don’t have one.
Tap “Set Up a Device”
Select “Doorbells” and then “Ring Video Doorbell (1st Gen).” Follow the on-screen prompts.
Scan the QR Code
Use your phone’s camera to scan the QR code on the back of the doorbell or inside the battery compartment (even though the Ring 1 is wired, it has a backup battery).
Connect to Wi-Fi
Choose your 2.4 GHz Wi-Fi network and enter the password. The app will send the network info to the doorbell.
Tip: If the connection fails, move closer to your router or use the Ring Chime Pro to extend the signal.
Complete the Setup
The app will guide you through naming your doorbell, setting motion zones, enabling notifications, and testing the live view.
Step 7: Test Your Ring Doorbell
Before you call it a day, make sure everything works.
Test the Live View
Open the Ring app and tap “Live View.” You should see a clear video feed from your doorbell.
Test Motion Detection
Walk in front of the doorbell to trigger motion alerts. Check that you receive a notification on your phone.
Test the Doorbell Button
Press the button on the doorbell. Your indoor chime should ring, and you should get a notification.
Check Audio Quality
Speak into the app while in Live View and ask someone to listen at the doorbell. Adjust microphone and speaker settings if needed.
Troubleshooting Common Installation Issues
Even with careful installation, problems can happen. Here’s how to fix the most common ones.
Doorbell Won’t Power On
- Double-check that the breaker is on.
- Use a voltage tester to confirm power at the wires.
- Ensure wires are securely connected and not touching.
- Try reseating the doorbell on the mounting plate.
No Chime Sound
- Verify your chime is mechanical (not digital).
- Check that the wires are connected to the correct terminals at the chime unit inside your home.
- Consider using a Ring Chime for wireless alerts.
Weak or No Wi-Fi Connection
- Move your router closer or use a Wi-Fi extender.
- Switch to a less congested Wi-Fi channel.
- Use the Ring Chime Pro, which acts as a Wi-Fi booster.
App Can’t Find the Doorbell
- Make sure the doorbell is powered and the QR code was scanned correctly.
- Restart the app and try setup again.
- Reset the doorbell by holding the orange button for 20 seconds.
Video Quality Is Poor
- Clean the camera lens with a soft cloth.
- Ensure strong Wi-Fi signal.
- Adjust motion sensitivity in the app to reduce blur.
Final Tips for a Smooth Experience
Now that your Ring 1 Doorbell is installed, here are a few extra tips to get the most out of it:
- Update firmware regularly: The Ring app will notify you of updates—install them to improve performance and security.
- Adjust motion zones: Customize which areas trigger alerts to avoid false alarms from passing cars or trees.
- Use two-factor authentication: Protect your account by enabling 2FA in the Ring app settings.
- Check battery level: Even though the Ring 1 is wired, it has a backup battery. Monitor it in the app and replace if needed.
- Clean the lens monthly: Dust and dirt can blur video—wipe it gently with a microfiber cloth.
Conclusion
Congratulations! You’ve successfully learned how to install Ring 1 Doorbell like a pro. From checking compatibility and turning off the power to wiring, mounting, and app setup, you’ve completed every step with confidence.
The Ring 1 Doorbell is a smart, affordable way to enhance your home security. With live video, two-way talk, and motion alerts, you’ll always know who’s at your door—even when you’re not home.
Remember, if you run into issues, the Ring support team and online community are great resources. And don’t forget to test your system regularly to ensure it’s working perfectly.
Now go enjoy your new peace of mind—one ring at a time.
