Installing a Ring Camera Doorbell is simpler than you think. This guide walks you through every step—from choosing the right model to final setup and testing. Get your smart doorbell up and running in under an hour with clear, beginner-friendly instructions.
Key Takeaways
- Choose the right Ring model: Wired, battery, or hardwired options suit different homes and power needs.
- Check your existing doorbell setup: Ensure compatibility with wiring, voltage, and chime before installation.
- Use the Ring app for guided setup: The app walks you through mounting, connecting, and configuring your device.
- Secure mounting is essential: Proper angle and height (48 inches) ensure optimal video coverage and motion detection.
- Test after installation: Verify live view, motion alerts, and two-way audio to confirm everything works.
- Troubleshoot common issues: Wi-Fi signal, power problems, or app glitches can usually be fixed with simple steps.
- Enable smart features: Customize motion zones, notifications, and linked devices for a personalized experience.
How to Install the Ring Camera Doorbell
So, you’ve decided to upgrade your home security with a Ring Camera Doorbell—great choice! Whether you’re replacing an old doorbell or installing one for the first time, Ring offers a smart, user-friendly solution that lets you see, hear, and speak to visitors from anywhere using your smartphone. But how do you actually install it?
Don’t worry—this guide will take you through the entire process, step by step. We’ll cover everything from choosing the right model to mounting, wiring (if needed), app setup, and troubleshooting. By the end, you’ll have a fully functional Ring Doorbell that enhances your home’s safety and convenience.
Let’s get started!
Step 1: Choose the Right Ring Doorbell Model

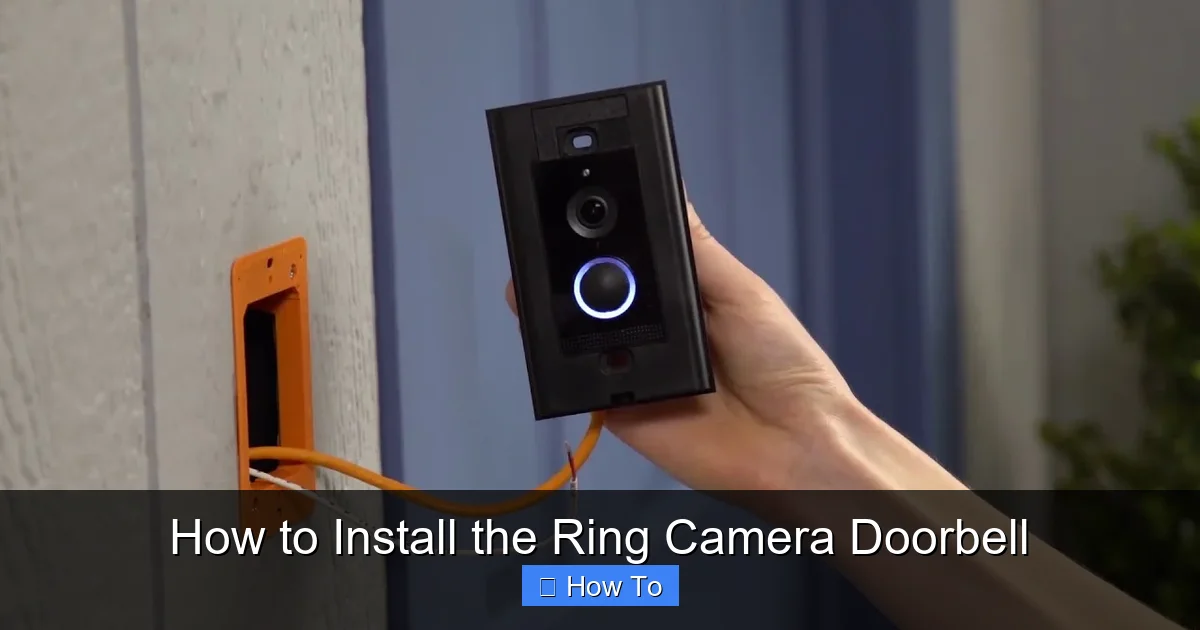

Visual guide about How to Install the Ring Camera Doorbell
Image source: i.ytimg.com
Before you begin installation, it’s important to pick the Ring Doorbell that best fits your home and lifestyle. Ring offers several models, each with different power options and features. Here’s a quick breakdown:
Ring Video Doorbell (Wired)
This model connects directly to your existing doorbell wiring. It’s ideal if you already have a wired doorbell and want continuous power without worrying about battery changes. It supports 1080p HD video, two-way audio, and motion detection.
Ring Video Doorbell (Battery)
Perfect for homes without existing wiring or if you prefer a wireless setup. This version runs on a rechargeable battery and can be installed almost anywhere. It offers the same core features as the wired version but requires occasional charging.
Ring Video Doorbell Pro / Pro 2
These are premium models with advanced features like 1536p HD video, customizable motion zones, and enhanced night vision. They require hardwired installation and are best for users who want top-tier performance.
Ring Video Doorbell Wired (No Chime)
Designed for homes with digital chimes or intercom systems. It doesn’t require a mechanical chime and connects directly to your home’s low-voltage wiring.
Ring Video Doorbell Elite
This is a professional-grade model that uses Power over Ethernet (PoE) for power and data. It’s typically installed by professionals and is best for larger homes or commercial use.
Pro Tip: If you’re unsure which model to choose, visit Ring’s website and use their compatibility checker. It will ask about your current doorbell setup and recommend the best fit.
Step 2: Gather Your Tools and Materials
Once you’ve selected your Ring Doorbell model, gather the tools and materials you’ll need. Most Ring kits come with the essentials, but having a few extras on hand makes the process smoother.
What’s Included in the Box
– Ring Video Doorbell unit
– Mounting bracket
– Screws and anchors
– Wire nuts (for wired models)
– Security screw and tool
– Chime connector (for wired models with mechanical chimes)
– Instruction manual
Tools You’ll Need
– Drill (with 3/16” drill bit)
– Screwdriver (Phillips head)
– Level (to ensure straight mounting)
– Voltage tester (for wired models)
– Smartphone with the Ring app installed
– Ladder (if mounting high)
Optional but Helpful: A stud finder (if mounting into brick or concrete), electrical tape, and a helper to hold the device during installation.
Step 3: Check Your Existing Doorbell Setup
Before removing your old doorbell, it’s crucial to assess your current setup—especially if you’re installing a wired model.
Check the Wiring
Turn off power to your doorbell at the circuit breaker. Remove the existing doorbell button and check if there are two wires connected. Most traditional doorbells use low-voltage wiring (8–24V AC).
Use a voltage tester to confirm the power is off and to check the voltage. Ring recommends a minimum of 8V and a maximum of 24V. If your voltage is too high or too low, you may need a transformer upgrade (more on that later).
Check the Chime
Open your indoor chime box and see if it’s mechanical (with physical strikers) or digital (electronic). Wired Ring Doorbells require a mechanical chime unless you use a Ring Chime or Chime Pro accessory.
If you have a digital chime, you’ll need to bypass it or use a battery-powered Ring Doorbell instead.
Measure the Mounting Area
The ideal height for a Ring Doorbell is 48 inches from the ground. This ensures a clear view of visitors and packages. Make sure there’s enough space on the door frame or wall for the mounting bracket.
Also, consider the angle. Ring recommends a slight downward tilt (about 15 degrees) to capture people approaching the door.
Step 4: Turn Off Power and Remove the Old Doorbell
Safety first! Always turn off power before working with electrical wiring.
Turn Off the Circuit Breaker
Locate the breaker that controls your doorbell (often labeled “doorbell,” “chime,” or “front door”). Flip it to the OFF position. Use a non-contact voltage tester to double-check that power is off at the doorbell.
Remove the Old Doorbell Button
Unscrew the old doorbell from the wall. Gently pull it away to expose the wires. Loosen the terminal screws and disconnect the wires. Label them (e.g., “Front” and “Trans”) so you know which is which.
Important: Don’t let the wires fall back into the wall. Use electrical tape to secure them to the doorbell or hold them with a helper.
Step 5: Install the Mounting Bracket
Now it’s time to mount the Ring Doorbell. The bracket ensures a secure fit and proper alignment.
Position the Bracket
Hold the mounting bracket against the wall at 48 inches high. Use a level to make sure it’s straight. Mark the screw holes with a pencil.
If you’re mounting into wood, you can screw directly into the surface. For brick, stucco, or concrete, use the included anchors and drill pilot holes.
Drill and Secure
Drill pilot holes at the marked spots. Insert the anchors (if needed), then screw the bracket into place. Make sure it’s tight and doesn’t wobble.
Adjust the Angle (Optional)
Some Ring brackets allow for angle adjustment. If your door is recessed or you want a better view of the walkway, use the included wedge kit to tilt the bracket slightly.
Step 6: Connect the Wires (For Wired Models)
If you’re installing a wired Ring Doorbell, now’s the time to connect the wires.
Prepare the Wires
Strip about 1/4 inch of insulation from the ends of the two doorbell wires. This ensures a solid connection.
Attach to the Bracket
Most Ring mounting brackets have built-in wire channels. Feed the wires through the back of the bracket and out the front.
Connect to the Doorbell
The Ring Doorbell has two terminals labeled “Front” and “Trans.” Connect one wire to each terminal. It doesn’t matter which wire goes where—Ring’s system is polarity-independent.
Tighten the terminal screws securely. If your model includes wire nuts, use them to cap the connections for extra safety.
Install the Chime Connector (If Needed)
If you have a mechanical chime, connect the included chime connector to the chime terminals. This allows the Ring Doorbell to trigger the chime when someone presses the button.
Follow the instructions in the Ring app or manual for proper wiring.
Step 7: Attach the Ring Doorbell
With the bracket and wires in place, it’s time to mount the Ring Doorbell.
Align and Secure
Hold the Ring Doorbell against the bracket. Slide it down until it clicks into place. You should hear a satisfying snap.
Insert the Security Screw
Use the included security screw and tool to secure the bottom of the doorbell. This prevents theft and ensures the device stays in place.
Pro Tip: Don’t overtighten the screw—just snug it enough to prevent removal.
Step 8: Power On and Set Up via the Ring App
Now that the hardware is installed, it’s time to configure your Ring Doorbell using the Ring app.
Download the Ring App
If you haven’t already, download the Ring app from the App Store (iOS) or Google Play (Android). Create an account or log in if you already have one.
Turn the Power Back On
Go to your circuit breaker and turn the power back on. The Ring Doorbell should light up, indicating it’s receiving power.
Add the Device in the App
Open the Ring app and tap the “+” icon to add a new device. Select “Doorbells” and follow the on-screen instructions.
The app will guide you through:
– Scanning the QR code on the back of the doorbell
– Connecting to your Wi-Fi network
– Naming your device (e.g., “Front Door”)
– Setting up motion zones and alerts
Test the Connection
Once setup is complete, test the live view. You should see a clear video feed from your doorbell. Tap the microphone icon to test two-way audio—speak and listen for clarity.
Step 9: Customize Settings and Features
Your Ring Doorbell is now installed, but you can enhance its functionality with smart settings.
Set Motion Zones
In the app, go to Device Settings > Motion Settings > Motion Zones. Draw custom zones to focus on areas like your driveway or porch. This reduces false alerts from passing cars or trees.
Adjust Motion Sensitivity
Choose from Low, Medium, or High sensitivity. Start with Medium and adjust based on how often you receive alerts.
Enable Smart Alerts
Turn on notifications for motion and doorbell presses. You can also set quiet hours to avoid disturbances at night.
Link to Other Devices
Connect your Ring Doorbell to Alexa, Google Assistant, or other smart home devices. For example, you can have your Echo Show display the doorbell feed when someone rings.
Subscribe to Ring Protect (Optional)
For video recording and cloud storage, consider a Ring Protect plan. It starts at $3.99/month and lets you save and share videos.
Step 10: Test and Troubleshoot
After installation, it’s important to test everything and address any issues.
Test Live View
Open the app and check the live feed. Make sure the image is clear, especially at night with infrared night vision.
Test Two-Way Audio
Press the talk button and speak. Ask someone outside to listen and respond. Check for clarity and delay.
Test Motion Detection
Walk in front of the doorbell to trigger motion. You should receive a notification within a few seconds.
Common Issues and Fixes
- No power or device won’t turn on: Check the circuit breaker and wiring connections. Ensure voltage is within 8–24V.
- Weak Wi-Fi signal: Move your router closer or use a Wi-Fi extender. Ring recommends at least 2 Mbps upload speed.
- Chime not ringing: Verify the chime connector is properly installed. Test the chime manually.
- Blurry or dark video: Clean the lens with a soft cloth. Ensure the doorbell is mounted at the correct height and angle.
- App not connecting: Restart the app and your phone. Re-add the device if necessary.
Conclusion
Congratulations—you’ve successfully installed your Ring Camera Doorbell! You now have a powerful tool to monitor your home, communicate with visitors, and deter potential intruders—all from your smartphone.
Remember, the key to a smooth installation is preparation: choosing the right model, checking your wiring, and following the steps carefully. With the Ring app’s intuitive setup and helpful troubleshooting tools, even beginners can get professional results.
Take a moment to explore all the features, from motion zones to smart alerts, and customize your doorbell to fit your lifestyle. And if you ever run into issues, Ring’s support team and online community are great resources.
Enjoy your smarter, safer home!
