This guide walks you through how to install the Video Doorbell 2 with clear, beginner-friendly steps. From checking compatibility to final testing, you’ll have your smart doorbell up and running in under an hour.
Key Takeaways
- Check compatibility first: Ensure your existing doorbell wiring and voltage meet the Video Doorbell 2 requirements to avoid installation issues.
- Turn off power safely: Always shut off the power at the breaker before removing your old doorbell to prevent electrical shock.
- Use the mounting bracket correctly: The bracket ensures a secure fit and proper angle for optimal video coverage and motion detection.
- Download the app early: The companion app guides setup, connects to Wi-Fi, and helps you test the doorbell before final mounting.
- Test before finalizing: Power on and test the doorbell temporarily before securing it permanently to catch any issues early.
- Adjust motion zones: Customize motion detection areas in the app to reduce false alerts from passing cars or pedestrians.
- Keep tools handy: A screwdriver, drill, level, and voltage tester make the process smoother and safer.
How to Install the Video Doorbell 2: A Complete Step-by-Step Guide
So, you’ve just unboxed your new Video Doorbell 2—congratulations! You’re about to upgrade your home security with crisp HD video, two-way audio, and real-time alerts straight to your phone. But before you can see who’s at the door from your couch (or beach vacation), you’ll need to install it properly.
Don’t worry—this guide will walk you through how to install the Video Doorbell 2 from start to finish. Whether you’re a DIY newbie or a seasoned home improver, we’ve got you covered. We’ll cover everything: checking compatibility, turning off power, mounting the device, connecting wires, setting up the app, and troubleshooting common issues.
By the end of this guide, your Video Doorbell 2 will be securely mounted, connected to your Wi-Fi, and ready to keep an eye on your front door 24/7. Let’s get started!
What You’ll Need Before You Begin

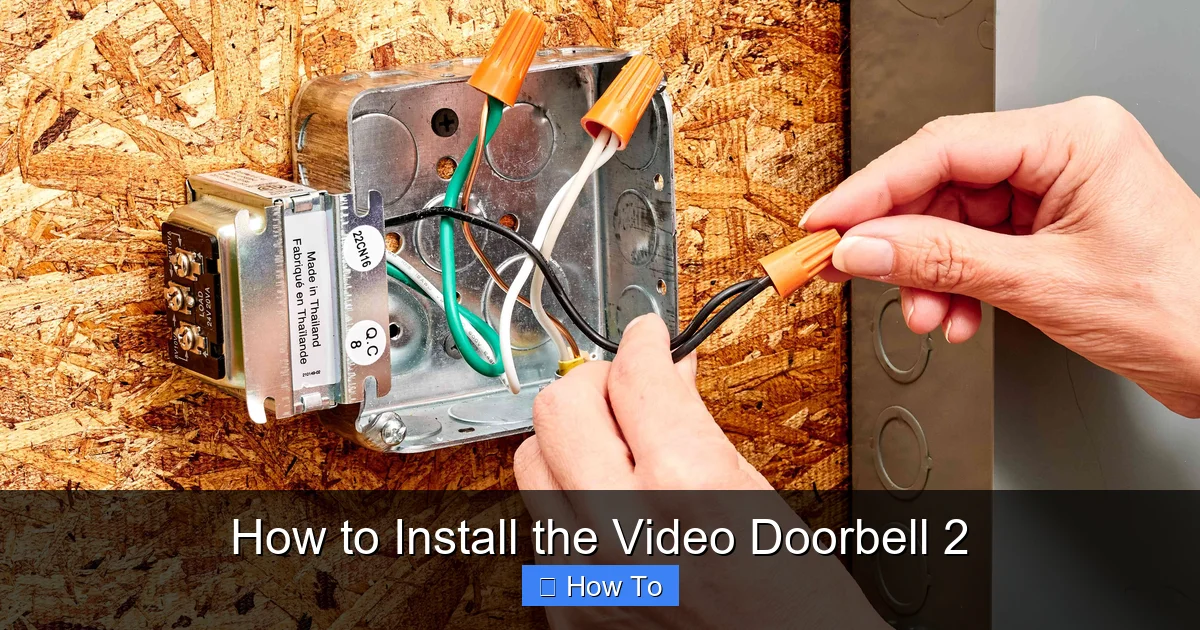

Visual guide about How to Install the Video Doorbell 2
Image source: i.ytimg.com
Before you touch a single screw, gather your tools and materials. Having everything ready will save time and frustration.
You’ll need:
- A compatible smartphone or tablet (iOS 12.0+ or Android 7.0+)
- The Video Doorbell 2 unit (obviously!)
- The included mounting bracket and screws
- A Phillips-head screwdriver
- A drill (optional, but helpful for brick or concrete)
- A level (to keep things straight)
- A voltage tester (to confirm power is off)
- Your Wi-Fi network name and password
- The Ring app (download it from the App Store or Google Play)
If your doorbell is hardwired, you’ll also need access to your home’s electrical panel to turn off the power. If you’re unsure about wiring, consider consulting an electrician—better safe than sorry.
Step 1: Check Compatibility
Not all doorbells are created equal. Before you start tearing things off your wall, make sure your current setup works with the Video Doorbell 2.
Check Your Existing Doorbell Wiring
The Video Doorbell 2 is designed to work with most standard wired doorbell systems. It requires:
- A transformer that provides 8–24 volts AC
- At least 16 volts for optimal performance
- Two wires connected to the doorbell button (usually labeled “Front” and “Trans”)
If you already have a wired doorbell, there’s a good chance it’s compatible. But if you’re unsure, use a voltage tester to check the wires at the doorbell. Turn off the power first (we’ll cover that next), then touch the probes to the two wires. If you get a reading between 8 and 24 volts, you’re good to go.
What If You Don’t Have Wiring?
No wires? No problem. The Video Doorbell 2 can also work with the Ring Plug-In Adapter (sold separately). This lets you plug the doorbell into an outdoor outlet instead of hardwiring it. Just make sure the outlet is within reach and protected from the elements.
Alternatively, if you’re going fully wireless, consider the Ring Video Doorbell 3 or 4, which use rechargeable batteries. But for this guide, we’re focusing on the wired Video Doorbell 2.
Step 2: Turn Off the Power
Safety first! Working with electricity can be dangerous if you’re not careful.
Locate Your Breaker Box
Find your home’s main electrical panel (usually in the basement, garage, or utility closet). Look for the circuit breaker labeled “Doorbell,” “Front Door,” or something similar. If you can’t find it, turn off the main breaker to be safe.
Test the Power
Even if you’ve flipped the breaker, always double-check with a voltage tester. Remove your existing doorbell button (we’ll cover that next), then touch the tester to the two wires. If the tester lights up or beeps, the power is still on—go back and flip the correct breaker.
Never skip this step. A small shock might not hurt, but it’s not worth the risk.
Step 3: Remove Your Old Doorbell
Now that the power is off, it’s time to remove the old doorbell.
Unscrew the Faceplate
Use your screwdriver to remove the screws holding the old doorbell button in place. Gently pull the faceplate away from the wall. You should see two wires connected to the back.
Disconnect the Wires
Loosen the screws holding the wires (or pull them out if they’re push-in connectors). Be careful not to let the wires slip back into the wall. You can tape them to the wall temporarily to keep them in place.
If the wires are frayed or damaged, trim them with wire strippers and expose about 1/4 inch of fresh copper.
Remove the Old Mounting Plate
If your old doorbell had a mounting plate, unscrew it from the wall. You’ll replace it with the new Ring bracket.
Step 4: Install the Mounting Bracket
The mounting bracket is the foundation of your installation. If it’s not secure, your doorbell could wobble or fall.
Position the Bracket
Hold the Ring mounting bracket against the wall where you want the doorbell. Use a level to make sure it’s straight. The ideal height is about 48 inches from the ground—eye level for most visitors.
Mark the Screw Holes
Use a pencil to mark where the screws will go. If you’re mounting on wood or siding, you can screw directly into the surface. For brick, stucco, or concrete, you’ll need a drill and wall anchors.
Drill Pilot Holes (If Needed)
If you’re using anchors, drill small pilot holes at the marked spots. Tap the anchors into place with a hammer.
Secure the Bracket
Line up the bracket with the holes and screw it into place. Make sure it’s tight and doesn’t move when you wiggle it.
Adjust the Angle (Optional)
The Video Doorbell 2 comes with angled mounting brackets (15° and 30°) if you need to tilt the camera for better coverage. For example, if your door is set back from the sidewalk, a 15° tilt can help capture more of the approach.
Attach the angled bracket to the main bracket before securing it to the wall.
Step 5: Connect the Wires
Now it’s time to connect your doorbell to power.
Thread the Wires Through the Bracket
Feed the two doorbell wires through the center hole in the mounting bracket.
Attach the Wires to the Doorbell
On the back of the Video Doorbell 2, you’ll see two terminals labeled “Front” and “Trans.” Loosen the screws, insert the wires, and tighten them down. It doesn’t matter which wire goes where—the doorbell is not polarity-sensitive.
Make sure the wires are snug and not touching each other.
Secure the Doorbell to the Bracket
Slide the doorbell onto the bracket until it clicks into place. You should hear a satisfying snap. Give it a gentle tug to make sure it’s locked in.
Step 6: Power On and Test
Before you finalize everything, let’s make sure it works.
Turn the Power Back On
Go back to your breaker box and flip the doorbell circuit back on. Wait about 30 seconds for the doorbell to power up.
Check the LED Light
The LED on the front of the doorbell should light up. It will flash blue during setup, then turn solid when connected.
If nothing happens, double-check your wiring and breaker. You may need to reseat the wires or test the voltage again.
Step 7: Set Up the Ring App
The Ring app is your control center for the Video Doorbell 2. It’s where you’ll receive alerts, view live video, and adjust settings.
Download and Open the App
If you haven’t already, download the Ring app from the App Store (iOS) or Google Play (Android). Open it and create an account or log in.
Add a New Device
Tap the three-line menu (☰) in the top-left corner, then select “Set Up a Device.” Choose “Doorbells” and follow the on-screen prompts.
Scan the QR Code
The app will ask you to scan the QR code on the back of your doorbell. Hold your phone steady until it recognizes the code.
Connect to Wi-Fi
Select your home Wi-Fi network and enter the password. The doorbell will connect to your network. This may take a minute or two.
Name Your Doorbell
Give your doorbell a name, like “Front Door” or “Main Entrance.” This helps if you have multiple Ring devices.
Test the Features
Once connected, test the live view, two-way audio, and motion detection. Press the doorbell button (or simulate a press in the app) to see if you get a notification.
Step 8: Adjust Settings and Motion Zones
Now that your doorbell is working, customize it to fit your needs.
Set Up Motion Zones
In the app, go to Device Settings > Motion Settings > Motion Zones. Draw zones on the video feed to define where you want motion detected. For example, you might want alerts when someone approaches the door but ignore the street.
This reduces false alerts from passing cars or animals.
Adjust Motion Sensitivity
You can also adjust how sensitive the motion sensor is. High sensitivity catches more movement but may trigger false alarms. Start with medium and tweak as needed.
Enable Smart Alerts
Ring’s Smart Alerts use AI to distinguish between people, packages, and animals. Enable these in the app to get more accurate notifications.
Set Up Chimes
If you have a Ring Chime or Chime Pro, link it to your doorbell so it rings inside your home. This is especially helpful if your Wi-Fi signal is weak near the door.
Step 9: Finalize the Installation
Once everything is working, it’s time to secure the doorbell for good.
Tighten the Security Screw
On the bottom of the doorbell, you’ll find a small security screw. Use the included Allen wrench to tighten it. This prevents thieves from easily removing your doorbell.
Check the View
Stand back and look at the camera angle. Make sure it covers the area you want—like the walkway, porch, or driveway. Adjust the bracket if needed.
Clean the Lens
Use a soft, dry cloth to wipe the camera lens. Smudges or dirt can blur your video.
Troubleshooting Common Issues
Even with careful installation, problems can happen. Here’s how to fix the most common ones.
Doorbell Won’t Power On
- Double-check that the breaker is on.
- Test the voltage at the wires—should be 8–24V AC.
- Ensure wires are securely connected and not touching.
- Try reseating the doorbell on the bracket.
Poor Wi-Fi Connection
- Move your router closer or use a Wi-Fi extender.
- Place a Ring Chime Pro near the door—it acts as a Wi-Fi booster.
- Avoid installing near metal surfaces or thick walls.
Blurry or Dark Video
- Clean the lens with a microfiber cloth.
- Check for obstructions like spiderwebs or dirt.
- Ensure the doorbell isn’t facing direct sunlight or bright lights at night.
False Motion Alerts
- Narrow the motion zones in the app.
- Lower the motion sensitivity.
- Trim bushes or trees that sway in the wind.
Doorbell Button Doesn’t Work
- Make sure the button is fully seated on the bracket.
- Check that the wires are tight and not loose.
- Test the button in the app under “Device Health.”
Maintenance Tips for Long-Term Use
To keep your Video Doorbell 2 working smoothly:
- Clean the lens and sensor monthly.
- Check for firmware updates in the app.
- Inspect wires and connections annually.
- Replace the security screw if it gets stripped.
- Monitor battery health if using a plug-in adapter.
Conclusion
Installing the Video Doorbell 2 is easier than you might think—especially with this step-by-step guide. From checking compatibility to adjusting motion zones, you now have the knowledge to set up your smart doorbell safely and effectively.
Remember: always turn off the power before working with wires, use the app to test everything, and customize settings to reduce false alerts. With your Video Doorbell 2 in place, you’ll enjoy peace of mind knowing you can see and speak to anyone at your door—no matter where you are.
Now go enjoy that extra layer of security. Your future self will thank you.
