Installing your Ring Doorbell is easier than you think, whether you’re using a wired or battery-powered model. This guide walks you through every step—from choosing the right spot to final app setup—so you can secure your home in under an hour.
Key Takeaways
- Choose the right model: Ring offers wired (like Ring Video Doorbell Pro) and battery-powered options (like Ring Video Doorbell 4)—pick based on your home’s wiring and power access.
- Pick the perfect location: Install your doorbell 4–5 feet above the ground and angled slightly toward your walkway for optimal motion detection and video quality.
- Gather the right tools: You’ll need a drill, screwdriver, level, and possibly a voltage tester—especially for wired models.
- Use the Ring app: The app guides you through setup, Wi-Fi connection, and device pairing—download it before you start.
- Test after installation: Always test your doorbell’s live view, motion alerts, and chime to ensure everything works before finishing up.
- Consider a Ring Chime: If your existing doorbell chime isn’t compatible, a Ring Chime or Chime Pro boosts sound and extends Wi-Fi range.
- Maintain your device: Clean the lens monthly and check battery levels (if applicable) to keep your Ring Doorbell working smoothly year-round.
How to Install Your Ring Doorbell
So, you’ve got your new Ring Doorbell in hand and you’re ready to boost your home security. Great choice! Ring Doorbells are popular for a reason—they’re user-friendly, offer crisp video, and integrate seamlessly with your smartphone. But before you can start getting motion alerts and answering your door from the couch, you’ll need to install it properly.
Don’t worry—this isn’t a complicated process. Whether you’re installing a battery-powered model like the Ring Video Doorbell (2nd Gen) or a hardwired version like the Ring Video Doorbell Pro 2, this step-by-step guide will walk you through everything you need to know. We’ll cover planning, tools, installation, app setup, and troubleshooting—so you can get your doorbell up and running safely and efficiently.
By the end of this guide, you’ll not only have a fully functional Ring Doorbell, but you’ll also understand how to maintain it and get the most out of its features. Let’s get started!
Step 1: Choose the Right Ring Doorbell Model

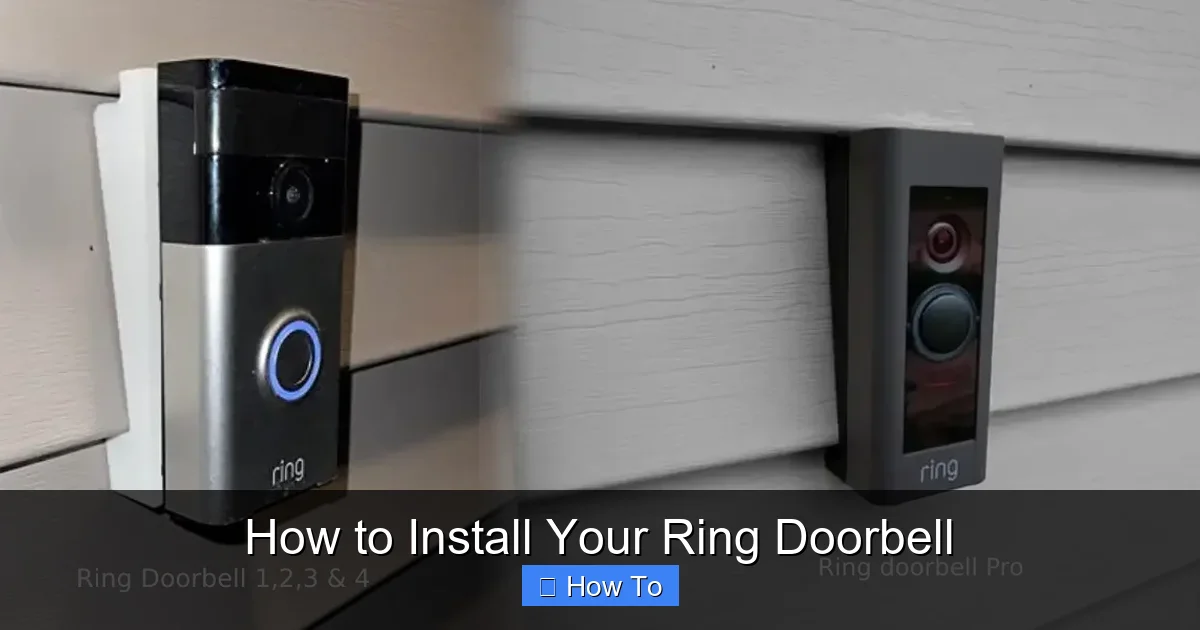

Visual guide about How to Install Your Ring Doorbell
Image source: smarthomefreak.com
Before you even think about drilling holes, make sure you’ve picked the right Ring Doorbell for your home. Ring offers several models, each with different power options, features, and installation requirements.
Battery-Powered Models
These are ideal if your home doesn’t have existing doorbell wiring or if you prefer a wireless setup. Popular options include:
- Ring Video Doorbell (2nd or 3rd Gen): Affordable, easy to install, and offers 1080p HD video.
- Ring Video Doorbell 4: Includes color pre-roll video, so you can see what happened just before motion was detected.
- Ring Video Doorbell Wired: A budget-friendly wired option that still uses the same app and features.
Hardwired Models
These require existing doorbell wiring and are best if you want continuous power without worrying about battery changes. Examples include:
- Ring Video Doorbell Pro 2: Offers advanced motion detection, 1536p HD video, and customizable motion zones.
- Ring Video Doorbell Elite: Powered via Ethernet, ideal for tech-savvy users with strong network setups.
Hybrid Options
Some models, like the Ring Video Doorbell (3rd Gen), can be used with or without wires. This gives you flexibility—install it battery-powered now and wire it later if you decide to upgrade.
Tip: Check your current doorbell setup. If you have a working doorbell with wires, you can likely use a wired Ring model. If not, go battery-powered for a cleaner, simpler install.
Step 2: Gather Your Tools and Materials
You don’t need to be a DIY expert to install a Ring Doorbell, but having the right tools makes all the difference. Here’s what you’ll need:
Basic Tools
- Drill and drill bits: For mounting the bracket and securing screws.
- Screwdriver (Phillips and flathead): For tightening screws and connecting wires.
- Level: To ensure your doorbell is straight—no one wants a crooked camera!
- Pencil or marker: For marking drill spots.
- Measuring tape: To find the ideal height (4–5 feet from the ground).
Optional but Helpful
- Voltage tester: Essential if you’re installing a wired model—ensures power is off before you touch wires.
- Wire strippers: If you need to trim or re-strip old doorbell wires.
- Wall anchors: Useful if you’re drilling into brick, concrete, or other hard surfaces.
- Smartphone or tablet: To run the Ring app during setup.
What’s in the Box?
Your Ring Doorbell package should include:
- The doorbell unit
- Mounting bracket
- Screws and anchors
- Security screw and tool
- Optional faceplates (color options)
- Installation guide
Pro Tip: Charge your battery fully before installation if you’re using a battery-powered model. Most Ring batteries take 5–6 hours to charge via USB.
Step 3: Choose the Best Installation Location
Where you mount your Ring Doorbell affects everything—from video quality to motion detection accuracy. Here’s how to pick the perfect spot.
Height Matters
Mount your doorbell 4 to 5 feet above the ground. This height captures most visitors’ faces clearly and reduces the chance of tampering. Avoid placing it too high (like near the roof) or too low (near the door handle).
Angle Toward the Walkway
Your doorbell should face the path people take to your door. If your front walkway is to the left, angle the doorbell slightly left. This ensures motion is detected early and video captures the full approach.
Avoid Obstructions
Keep the camera lens clear of:
- Overhanging plants or shrubs
- Mailboxes or decorative items
- Bright lights or direct sunlight (can cause glare)
Check Wi-Fi Signal
Your Ring Doorbell needs a strong Wi-Fi connection. Use the Ring app’s “Wi-Fi Signal” tool (available during setup) to test signal strength at your chosen location. If it’s weak, consider:
- Moving your router closer
- Using a Wi-Fi extender
- Installing a Ring Chime Pro (which also boosts Wi-Fi)
Consider the Chime Location
If you’re using a wired model, your existing doorbell chime should be compatible. But if it’s old or doesn’t work with Ring, you may need a Ring Chime (sold separately) to hear alerts inside your home.
Example: Sarah installed her Ring Doorbell too close to a bright porch light. At night, the video was washed out. After moving it 6 inches to the left, the footage became much clearer.
Step 4: Turn Off Power (For Wired Models)
If you’re installing a wired Ring Doorbell, safety first—turn off the power to your existing doorbell.
Locate Your Doorbell Transformer
Most doorbells are powered by a low-voltage transformer, usually located in your basement, garage, or electrical panel. It converts 120V household current to 8–24V for the doorbell.
Turn Off the Circuit
- Go to your electrical panel (breaker box).
- Find the breaker labeled “Doorbell,” “Chime,” or similar.
- Switch it to the OFF position.
Test the Power
Use a voltage tester on the doorbell wires to confirm no current is flowing. If you don’t have a tester, gently touch the wires together—if they spark, power is still on.
Warning: Never work on live wires. If you’re unsure, consult an electrician.
Step 5: Remove Your Old Doorbell (If Applicable)
If you’re replacing an existing doorbell, you’ll need to remove it first.
Unscrew the Old Unit
Use a screwdriver to remove the screws holding your current doorbell to the wall. Gently pull it away from the wall—wires will be attached.
Disconnect the Wires
Loosen the terminal screws and pull the wires free. Don’t cut them—you’ll need them for your Ring Doorbell (if wired).
Cap the Wires
Twist wire nuts onto the exposed ends to prevent short circuits. Tuck them safely into the wall.
Tip: Take a photo of the wiring before disconnecting. This helps if you need to reconnect or troubleshoot later.
Step 6: Install the Mounting Bracket
The mounting bracket holds your Ring Doorbell securely to the wall. Proper installation ensures stability and correct camera angle.
Position the Bracket
Hold the bracket against the wall at your chosen height (4–5 feet). Use a level to make sure it’s straight. Mark the screw holes with a pencil.
Drill Pilot Holes
Drill small pilot holes where you marked. This prevents the wall from cracking, especially on brick or concrete.
Secure the Bracket
Insert wall anchors if needed, then screw the bracket into place. Make sure it’s tight and level.
Connect the Wires (Wired Models Only)
If you’re installing a wired model:
- Thread the doorbell wires through the center hole of the bracket.
- Connect the wires to the terminals on the back of the Ring Doorbell (polarity doesn’t matter).
- Tighten the screws to secure the wires.
Note: Battery-powered models don’t require wiring—just snap the unit onto the bracket.
Step 7: Attach the Ring Doorbell
Now it’s time to mount the actual device.
Snap It Into Place
Align the Ring Doorbell with the mounting bracket and press firmly until it clicks. You should hear a secure snap.
Secure with the Security Screw
Use the included security screw and tool to lock the doorbell in place. This prevents theft—without the tool, the unit can’t be easily removed.
Pro Tip: If you’re using a faceplate (like black or bronze), attach it before snapping on the doorbell.
Step 8: Set Up the Ring App
The Ring app is your control center—it’s where you’ll connect to Wi-Fi, adjust settings, and view live video.
Download the App
Get the Ring app from the App Store (iOS) or Google Play (Android). Create a free account if you don’t have one.
Add Your Device
- Open the app and tap “Set Up a Device.”
- Select “Doorbells” and choose your model.
- Follow the on-screen prompts.
Scan the QR Code
Use your phone’s camera to scan the QR code on the back of your Ring Doorbell. This pairs the device with your account.
Connect to Wi-Fi
Enter your Wi-Fi network name and password. The app will test the connection and confirm signal strength.
Test the Doorbell
Once connected, tap “Test Live View” to see video from your doorbell. Wave at the camera—you should see yourself in real time.
Adjust Settings
Customize:
- Motion zones (so you’re not alerted by passing cars)
- Motion sensitivity
- Notification preferences
- Video quality and recording options
Tip: Enable “Snapshot Capture” to take still images between recordings—great for checking who stopped by when you weren’t home.
Step 9: Test and Fine-Tune
Don’t skip this step! Testing ensures everything works as expected.
Test the Chime
Press the doorbell button. You should hear a chime inside your home. If not:
- Check if your existing chime is compatible (see Ring’s compatibility list).
- Install a Ring Chime or Chime Pro.
Test Motion Detection
Walk in front of the doorbell. You should receive a push notification on your phone. Adjust motion zones if needed.
Check Night Vision
Turn off the lights and check the live view. The infrared LEDs should provide clear black-and-white footage.
Review Recordings
If you have Ring Protect (a paid subscription), check that recordings are saving properly.
Example: After installing his Ring Doorbell, Mark noticed motion alerts from his driveway. He adjusted the motion zones to exclude the street and now only gets alerts from the front walkway.
Troubleshooting Common Issues
Even with careful installation, you might run into a few hiccups. Here’s how to fix them.
Doorbell Won’t Connect to Wi-Fi
- Move closer to your router during setup.
- Restart your router and try again.
- Ensure your Wi-Fi is 2.4 GHz (most Ring models don’t support 5 GHz).
No Chime Sound
- Check if your existing chime is compatible.
- Install a Ring Chime.
- Verify the doorbell is receiving power (for wired models).
Poor Video Quality
- Clean the lens with a soft, dry cloth.
- Adjust the angle to reduce glare.
- Ensure strong Wi-Fi signal.
Battery Drains Too Fast
- Reduce motion sensitivity.
- Turn off unnecessary features like pre-roll.
- Use a solar charger (sold separately).
Device Keeps Disconnecting
- Check for Wi-Fi interference (microwaves, cordless phones).
- Update the Ring app and firmware.
- Reset the device and re-pair it.
Maintenance Tips for Long-Term Use
Your Ring Doorbell will last for years with a little care.
Clean the Lens Monthly
Dust, dirt, and fingerprints can blur video. Use a microfiber cloth to gently wipe the lens.
Check Battery Levels
For battery models, the app shows battery percentage. Recharge when it drops below 20%.
Update Firmware
Ring automatically updates firmware, but make sure your app is up to date to receive the latest features and security patches.
Inspect Mounting
Every few months, check that the doorbell is still securely attached and level.
Review Settings Seasonally
Adjust motion zones in winter (when trees are bare) or summer (when foliage blocks the view).
Conclusion
Installing your Ring Doorbell is a smart, straightforward way to enhance your home security. Whether you’re using a battery-powered model for flexibility or a wired version for constant power, the process is designed to be user-friendly—even for beginners.
From choosing the right model and location to mounting the bracket, connecting wires (if needed), and setting up the app, each step builds toward a reliable, high-performing smart doorbell. And with the Ring app, you’ll have real-time alerts, crystal-clear video, and peace of mind—all from your smartphone.
Remember to test your device thoroughly after installation and maintain it regularly to keep it working at its best. And if you run into issues, the troubleshooting tips in this guide will help you get back on track quickly.
Now that you know how to install your Ring Doorbell, you’re ready to protect your home like a pro. So grab your tools, download the app, and get started—your front door will thank you.
