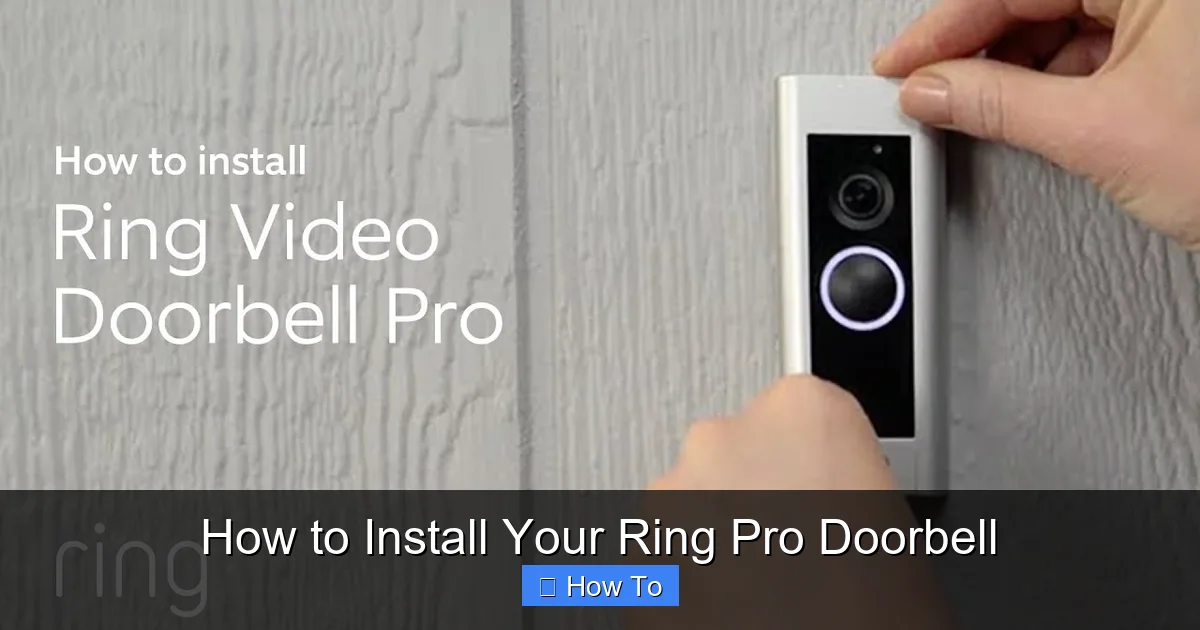

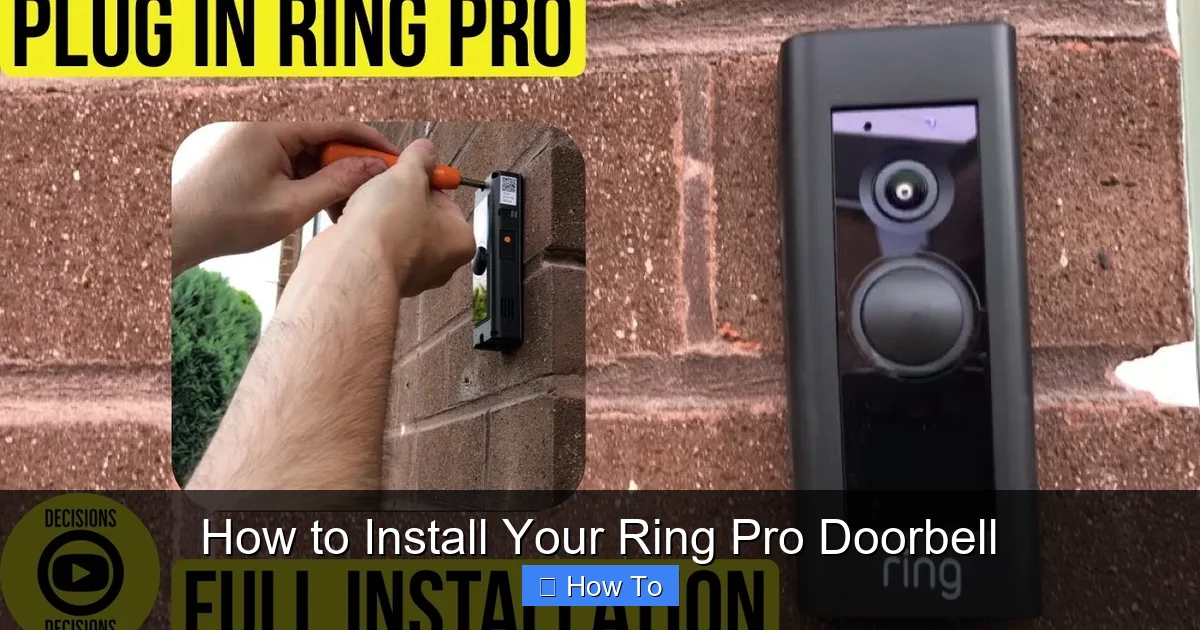

How to Install Your Ring Pro Doorbell

This guide walks you through how to install your Ring Pro Doorbell safely and correctly, from checking compatibility to final setup. You’ll learn wiring tips, app configuration, and how to test your new smart doorbell for reliable performance.

Key Takeaways

• Check compatibility first: Ensure your existing doorbell wiring and transformer meet Ring Pro’s voltage requirements (16–24V AC) to avoid damage or malfunction.
• Turn off power at the breaker: Always shut off electricity at the circuit breaker before handling wires to prevent shocks or electrical hazards.
• Use the included Pro Power Kit: This device ensures stable power delivery and protects your doorbell from voltage spikes—don’t skip this step.
• Follow the Ring app setup: The app guides you through Wi-Fi connection, device registration, and motion zone customization for optimal performance.
• Test after installation: Verify live view, motion detection, and two-way audio work properly before finishing the job.
• Secure mounting is crucial: Use the correct angle mount if needed to ensure the camera captures your desired field of view.
• Troubleshoot common issues: If your doorbell won’t power on or connect, check wiring, Wi-Fi signal strength, and transformer output.

Introduction: Why Install a Ring Pro Doorbell?

Upgrading to a Ring Pro Doorbell isn’t just about convenience—it’s about peace of mind. With 1080p HD video, advanced motion detection, two-way audio, and seamless integration with other Ring devices, the Ring Pro offers top-tier home security right at your front door. Whether you’re replacing an old mechanical doorbell or installing a smart one for the first time, this guide will walk you through how to install your Ring Pro Doorbell safely, correctly, and efficiently.

In this comprehensive how-to guide, you’ll learn everything from checking your home’s electrical compatibility to mounting the device and configuring it via the Ring app. We’ll cover essential safety steps, wiring tips, app setup, and troubleshooting common issues. By the end, you’ll have a fully functional smart doorbell that enhances your home’s security and lets you see, hear, and speak to visitors from anywhere.

No prior electrical experience? No problem. We’ll keep things simple, clear, and jargon-free. Just follow each step carefully, and you’ll have your Ring Pro up and running in under an hour.

What You’ll Need Before You Begin

Before diving into the installation, gather all the tools and materials. Having everything ready will save time and prevent frustration.

Included in the Box

• Ring Pro Doorbell
• Pro Power Kit (essential for proper voltage regulation)
• Mounting bracket (standard and corner options)
• Screws and anchors
• Wire labels
• User manual and quick start guide

Tools You’ll Need

• Screwdriver (Phillips head)
• Voltage tester (non-contact recommended)
• Drill (if mounting into brick, concrete, or hard surfaces)
• Level (to ensure the doorbell is straight)
• Smartphone or tablet with the Ring app installed
• Wi-Fi network with 2.4 GHz or 5 GHz band (Ring Pro supports both)

Optional but Helpful

• Wire strippers (if you need to trim or re-strip wires)
• Electrical tape
• Ladder (if your doorbell is high up)
• Helper (to hold the device while you wire it)

Pro tip: Download the Ring app on your smartphone before starting. It’s available for free on the App Store (iOS) and Google Play (Android). You’ll need it for setup, so having it ready speeds up the process.

Step 1: Check Compatibility and Power Requirements

Not all homes are ready for the Ring Pro Doorbell out of the box. The Ring Pro requires a specific electrical setup to function properly. Skipping this step can lead to poor performance, frequent disconnections, or even damage to the device.

Check Your Existing Doorbell Wiring

Most homes with a traditional doorbell have two low-voltage wires running from the chime to the doorbell button. These wires carry power from the transformer to the button. The Ring Pro uses these same wires for power, but it needs a minimum voltage to operate.

To check compatibility:

• Remove your existing doorbell button by unscrewing it from the wall.
• Carefully pull the wires out just enough to expose the copper ends.
• Use a multimeter or voltage tester to measure the voltage across the two wires.

The Ring Pro requires 16 to 24 volts AC to work properly. If your transformer outputs less than 16V, the doorbell may not power on or may behave erratically. If it’s above 24V, you risk damaging the device.

Test Your Transformer

The transformer is usually located in your basement, garage, or utility closet. It converts standard household voltage (120V) down to low voltage (16–24V) for the doorbell system.

To test it:

• Turn off power at the breaker.
• Locate the transformer (look for a small box with wires labeled “doorbell” or “chime”).
• Use a multimeter to check the output voltage between the two terminals.

If your transformer is under 16V, you’ll need to replace it with a compatible 16–24V AC transformer. Ring sells a compatible transformer, or you can purchase one from a hardware store. Look for a 16V or 24V, 30VA (volt-ampere) transformer for best results.

Why the Pro Power Kit Is Essential

The Ring Pro includes a Pro Power Kit, which is not optional—it’s required. This small device connects to your existing doorbell chime and regulates power flow to the Ring Pro. Without it, the doorbell may not receive consistent power, leading to reboots or failure to connect.

The Pro Power Kit also protects your chime from voltage spikes and ensures the mechanical or digital chime still works when someone presses the button. It’s a critical component for safe and reliable operation.

Step 2: Turn Off Power and Remove the Old Doorbell

Safety first! Working with electrical wires—even low-voltage ones—can be dangerous if you don’t take precautions.

Turn Off the Circuit Breaker

Locate your home’s main electrical panel (breaker box). Find the breaker that controls your doorbell circuit. It may be labeled “doorbell,” “chime,” or “front door.” If not, turn off the breaker for the area where your doorbell is located (usually the hallway or entryway).

Once turned off, use a non-contact voltage tester to confirm there’s no power at the doorbell wires. Touch the tester to each wire—if it beeps or lights up, power is still on. Double-check your breaker or try turning off additional breakers.

Pro tip: Place a piece of tape over the breaker switch with a note like “Do not turn on—working on doorbell.” This prevents someone else from accidentally restoring power while you’re working.

Remove the Old Doorbell Button

Unscrew the existing doorbell button from the wall. Gently pull it away to expose the two wires connected to the back. Most buttons are held in place with two screws.

Take a photo of the wiring before disconnecting anything. This will help you remember which wire goes where when installing the Ring Pro.

Loosen the terminal screws on the old button and carefully remove the wires. If the wires are short or frayed, use wire strippers to expose fresh copper (about 1/4 inch). Avoid cutting too much—you’ll need enough length to reach the new mounting bracket.

Label the wires with the included wire labels (e.g., “Front” and “Trans”) to avoid confusion later. This is especially helpful if you have multiple doorbells or complex wiring.

Step 3: Install the Pro Power Kit

The Pro Power Kit is the secret to a stable Ring Pro installation. It ensures your doorbell gets consistent power while allowing your existing chime to work normally.

Locate Your Doorbell Chime

The chime is the box inside your home that makes the “ding-dong” sound. It’s usually mounted on a wall in a hallway, kitchen, or living room. Open the front cover to access the wiring.

Inside, you’ll see two or more wires connected to terminals labeled “Front,” “Trans,” and sometimes “Rear” (if you have a second doorbell).

Connect the Pro Power Kit

Follow these steps carefully:

• Disconnect the wire labeled “Front” from the chime terminal.
• Connect this wire to one of the terminals on the Pro Power Kit.
• Take the short wire (pigtail) included with the Pro Power Kit and connect it to the same terminal on the chime where the “Front” wire was originally attached.
• Connect the other end of the pigtail to the second terminal on the Pro Power Kit.
• Secure all connections with wire nuts or terminal screws.

The Pro Power Kit should now be wired in parallel with your chime. It acts as a bridge, allowing power to flow to the Ring Pro while keeping the chime functional.

Close the chime cover and ensure all wires are secure and not pinched.

Test the Chime (Optional)

Before proceeding, you can briefly turn the power back on to test if the chime still works. Press the old doorbell button (if still connected) or touch the two wires together. You should hear the chime sound.

If it doesn’t work, double-check your wiring. Make sure the Pro Power Kit is connected correctly and the wires are tight. Turn the power back off before continuing.

Step 4: Mount the Ring Pro Doorbell

Now it’s time to install the Ring Pro itself. Proper mounting ensures optimal video quality, motion detection, and durability.

Choose the Right Mounting Bracket

The Ring Pro comes with two mounting options:

• Standard bracket: For flat walls with no obstructions.
• Corner bracket: For mounting on the corner of a house or angled surface.

Use the standard bracket unless your door is set back or you need to angle the camera to capture more of the walkway or driveway.

Position the Bracket

Hold the mounting bracket against the wall where you want to install the doorbell. The ideal height is about 48 inches (4 feet) from the ground—this ensures the camera captures faces clearly and avoids glare from the sun.

Use a level to make sure the bracket is straight. Mark the screw holes with a pencil.

If you’re mounting into wood or drywall, the included screws should work fine. For brick, concrete, or stucco, use a drill to create pilot holes and insert wall anchors before screwing in the bracket.

Connect the Wires

Thread the two doorbell wires through the center hole in the mounting bracket. Then, connect them to the terminals on the back of the Ring Pro:

• Loosen the terminal screws on the Ring Pro.
• Insert one wire into each terminal (it doesn’t matter which wire goes where—Ring Pro is not polarity-sensitive).
• Tighten the screws to secure the wires.

Pro tip: Leave a little slack in the wires so you can easily remove the doorbell later for maintenance or battery replacement (if using a battery model—though the Pro is hardwired).

Attach the Doorbell to the Bracket

Align the Ring Pro with the mounting bracket and slide it into place. You’ll hear a click when it’s securely attached.

Use the included security screw and screwdriver (or a standard Phillips head) to fasten the bottom of the doorbell. This prevents theft and ensures it stays in place.

Adjust the Angle (If Needed)

If you’re using the corner bracket or want to tilt the camera slightly downward, adjust the angle before tightening all screws. The Ring app will help you fine-tune the view during setup.

Step 5: Set Up the Ring App and Connect to Wi-Fi

With the hardware installed, it’s time to configure your Ring Pro using the Ring app. This step links your doorbell to your Wi-Fi network and enables all smart features.

Download and Open the Ring App

If you haven’t already, download the Ring app from the App Store or Google Play. Create a Ring account or log in if you already have one.

Add a New Device

In the app, tap the three-line menu (☰) and select “Set Up a Device.” Choose “Doorbells” and then “Ring Video Doorbell Pro.”

The app will guide you through the setup process. Make sure your phone is connected to your home Wi-Fi network (2.4 GHz or 5 GHz).

Scan the QR Code

Use your phone’s camera to scan the QR code on the back of the Ring Pro. This links the device to your account.

If the QR code is damaged or unreadable, you can enter the serial number manually. It’s printed on the back of the device.

Connect to Wi-Fi

The app will prompt you to select your Wi-Fi network and enter the password. Ring Pro supports both 2.4 GHz and 5 GHz networks, but 2.4 GHz is recommended for better range and wall penetration.

Wait while the doorbell connects to your network. This may take a minute or two. You’ll see a progress bar in the app.

Test the Connection

Once connected, the app will ask you to test the live view. Tap “Start Live View” to see the camera feed. If you see a clear image, the connection is successful.

If the live view fails, check your Wi-Fi signal strength at the doorbell location. Weak signals can cause disconnections. Consider using a Wi-Fi extender if needed.

Step 6: Customize Settings and Motion Zones

Now that your Ring Pro is online, personalize it to suit your needs. The app offers powerful customization options to reduce false alerts and improve security.

Set Up Motion Zones

Go to “Device Settings” > “Motion Settings” > “Motion Zones.” You’ll see a grid overlay on your camera view. Drag the corners to define areas where you want motion detection.

For example, you might want alerts when someone approaches your front door but ignore motion from the street or sidewalk. Adjust the zones accordingly.

Adjust Motion Sensitivity

Slide the sensitivity bar to control how easily the doorbell triggers alerts. High sensitivity detects small movements (like leaves blowing), while low sensitivity only picks up larger motions (like a person walking).

Start with medium sensitivity and adjust based on your experience.

Enable Smart Alerts

Ring Pro uses advanced algorithms to distinguish between people, packages, and vehicles. Enable “People Only Mode” to reduce false alerts from animals or moving branches.

You can also set up “Package Alerts” to notify you when a delivery is detected.

Configure Chime Settings

If you have a Ring Chime or Chime Pro, link it to your doorbell so it rings inside your home. You can choose different sounds and volumes for different events.

Set Up Shared Users

Invite family members or trusted neighbors to access the doorbell. Go to “Shared Users” and enter their email addresses. They’ll receive an invitation to join your Ring account.

Troubleshooting Common Installation Issues

Even with careful installation, problems can arise. Here’s how to fix the most common issues.

Doorbell Won’t Power On

If the Ring Pro doesn’t light up or respond:

• Double-check that power is turned on at the breaker.
• Verify the Pro Power Kit is installed correctly.
• Test the transformer voltage—should be 16–24V AC.
• Ensure wires are securely connected and not loose.

No Live View or Poor Video Quality

If the camera feed is blank or choppy:

• Check Wi-Fi signal strength at the doorbell location.
• Move your router closer or use a Wi-Fi extender.
• Ensure your internet speed meets Ring’s requirements (minimum 2 Mbps upload).
• Restart the doorbell by removing and reattaching it to the bracket.

Chime Doesn’t Ring

If your indoor chime doesn’t sound when the button is pressed:

• Confirm the Pro Power Kit is wired correctly.
• Check that the chime is compatible with Ring Pro (most mechanical chimes are).
• Test the chime with the old doorbell button (if still connected).

Frequent Disconnections

If the doorbell keeps going offline:

• Ensure your Wi-Fi network is stable.
• Avoid placing the doorbell near metal surfaces or large appliances that cause interference.
• Update the Ring app and doorbell firmware.

False Motion Alerts

If you’re getting too many alerts:

• Adjust motion zones to exclude busy areas like streets or trees.
• Lower motion sensitivity.
• Enable “People Only Mode.”

Conclusion: Enjoy Your Smart Doorbell

Congratulations! You’ve successfully learned how to install your Ring Pro Doorbell and configured it for optimal performance. From checking compatibility and wiring the Pro Power Kit to mounting the device and customizing settings, you’ve completed every step with confidence.

Your Ring Pro is now ready to protect your home, notify you of visitors, and give you peace of mind whether you’re at home or away. Remember to periodically check the app for firmware updates and clean the camera lens with a soft cloth to maintain clear video quality.

With its sleek design, advanced features, and reliable performance, the Ring Pro Doorbell is a smart investment in your home’s security. Enjoy the convenience of seeing who’s at your door—anytime, anywhere.
