How to Know Voltage of Doorbell

Knowing the voltage of your doorbell is essential for repairs, upgrades, or installing smart doorbells. This guide walks you through safe, accurate methods to test doorbell voltage using a multimeter, visual inspection, and manufacturer labels—no guesswork needed.

Key Takeaways

• Safety first: Always turn off power at the breaker before testing to avoid electric shock.
• Use a multimeter: A digital multimeter is the most accurate tool for measuring doorbell voltage.
• Check the transformer: Most doorbells use 8–24V AC; the transformer label often shows the output voltage.
• Look for labels: Doorbell chimes and transformers usually have voltage ratings printed on them.
• Test at the chime: Measuring voltage at the chime terminals gives the most reliable reading.
• Know your system type: Wired doorbells use low-voltage AC; wireless models run on batteries.
• When to call a pro: If you’re unsure or dealing with high voltage, consult a licensed electrician.

How to Know Voltage of Doorbell: A Complete Step-by-Step Guide

If you’re installing a new smart doorbell, troubleshooting a silent chime, or simply curious about your home’s electrical setup, knowing how to know voltage of doorbell is a crucial skill. Doorbell systems may seem simple, but they involve low-voltage wiring, transformers, and specific electrical requirements that vary from home to home. Getting the voltage right ensures your doorbell works reliably and prevents damage to sensitive components—especially with modern video doorbells that require consistent power.

In this comprehensive guide, you’ll learn everything you need to safely and accurately determine the voltage of your doorbell system. Whether you’re a DIY enthusiast or a homeowner tackling a weekend project, we’ll walk you through the tools, steps, and safety precautions to get it right. By the end, you’ll be able to confidently test your doorbell voltage, interpret the results, and make informed decisions about upgrades or repairs.

Why Knowing Your Doorbell Voltage Matters

Before diving into the how-to, it’s important to understand why voltage matters in the first place. Doorbell systems are typically low-voltage, meaning they operate on 8 to 24 volts of alternating current (AC). This is much safer than standard household outlets (120V AC), but it’s still essential to verify the exact voltage for several reasons:

• Compatibility: Smart doorbells like Ring, Nest, or Eufy often require a specific voltage range (usually 16–24V AC). If your system is too low, the doorbell may not charge or function properly.
• Preventing Damage: Connecting a device to a voltage it’s not designed for can cause overheating, malfunction, or permanent damage.
• Troubleshooting: A doorbell that doesn’t ring or a chime that’s weak could be due to low voltage. Testing helps pinpoint the issue.
• Upgrades and Replacements: When replacing a transformer or chime, you need to match the voltage to avoid system failure.

In short, knowing how to know voltage of doorbell isn’t just a technical detail—it’s a practical necessity for maintaining a functional and safe entry system.

Tools You’ll Need

To test your doorbell voltage accurately, you’ll need a few basic tools. Most of these are affordable and commonly found in home toolkits:

• Digital Multimeter: This is the most important tool. It measures voltage, current, and resistance. Look for one with AC voltage detection (usually labeled “V~” or “ACV”).
• Screwdriver: A flathead or Phillips screwdriver to remove the doorbell button or chime cover.
• Insulated Gloves (optional but recommended): For added safety when handling wires.
• Flashlight: To see labels and connections in dim areas like closets or basements.
• Electrical Tape: To safely cap wires if you need to disconnect them temporarily.

You don’t need to be an electrician to use these tools—just follow the steps carefully and prioritize safety.

Step 1: Identify Your Doorbell Type

Not all doorbells are the same. Before testing voltage, determine whether you have a wired or wireless system.

Wired Doorbell Systems

These are the most common and use low-voltage AC power from a transformer connected to your home’s electrical system. They consist of:

• A doorbell button at the front door
• Low-voltage wires running through the walls
• A chime unit inside the house
• A transformer that steps down household voltage (120V) to 8–24V

Wired systems are ideal for testing voltage because they rely on consistent power.

Wireless Doorbell Systems

These use batteries (usually AA or 9V) to power the button and chime. They don’t require wiring or a transformer. If your doorbell is wireless, you don’t need to test voltage—just replace the batteries when needed.

Tip: If your doorbell has a camera, Wi-Fi, or a rechargeable battery (like many smart models), it’s likely designed to work with a wired low-voltage system. Even if it’s battery-powered, some models recommend a wired connection for continuous power.

Step 2: Locate the Doorbell Transformer

The transformer is the heart of your doorbell’s power supply. It converts standard household voltage (120V AC) into the low voltage (8–24V AC) needed for the doorbell. Finding it is key to understanding your system’s voltage.

Where to Look

Transformers are usually hidden in one of these locations:

• Electrical panel (breaker box): Often mounted near the main panel or in a junction box nearby.
• Basement or crawl space: Look for a small metal box with wires coming in and out.
• Utility closet or furnace room: Common in newer homes.
• Attic: Less common, but possible in some installations.

How to Identify the Transformer

The transformer will have:

• Two thick wires (usually black and white) connected to the 120V household circuit
• Two thin wires (often red and white) leading to the doorbell button and chime
• A label with voltage and amperage ratings (e.g., “16V AC, 10VA”)

Example: If the label says “16V AC, 15VA,” your doorbell system is designed for 16 volts. This is a strong indicator of the voltage—but you should still test it to confirm.

Step 3: Check Labels on the Chime and Button

Before using tools, do a quick visual inspection. Many doorbell components have voltage ratings printed directly on them.

Inspect the Chime Unit

Remove the cover of your indoor chime (usually held by screws or clips). Look inside for a label that says something like:

• “16V AC”
• “8–24V AC”
• “Transformer: 10VA”

This tells you the required input voltage. If it says “16V,” your system should deliver around 16 volts.

Check the Doorbell Button

Remove the button from the wall (unscrew it gently). Some buttons have voltage ratings printed on the back, though this is less common. More importantly, note the wire colors—red and white wires typically carry the low-voltage signal.

Tip: If you see a label that says “Do not exceed 24V,” your system is likely 16V or 24V. Avoid assuming—always verify with a multimeter.

Step 4: Turn Off Power (Safety First!)

Even though doorbell systems use low voltage, safety should always come first. The transformer is connected to your home’s 120V circuit, which can be dangerous if mishandled.

Steps to Safely Disable Power

1. Go to your main electrical panel (breaker box).
2. Locate the breaker labeled “Doorbell,” “Transformer,” or “Low Voltage.” If there isn’t one, look for a breaker that controls the area where the transformer is located (e.g., basement or utility room).
3. Turn off the breaker. If you’re unsure which one it is, turn off the main breaker to be safe.
4. Use a non-contact voltage tester to confirm power is off at the transformer or chime.

Important: Never work on live wires unless you’re experienced. Even low-voltage systems can cause shocks or damage equipment if shorted.

Step 5: Use a Multimeter to Test Voltage

Now it’s time to get accurate. A digital multimeter is the best tool to know voltage of doorbell precisely.

Set Up Your Multimeter

1. Turn the multimeter dial to the AC voltage setting (usually marked “V~” or “ACV”).
2. If your multimeter has a range setting, choose a range higher than expected (e.g., 200V AC for a 16V system).
3. Insert the red probe into the “VΩmA” port and the black probe into the “COM” port.

Test at the Chime Terminals

This is the most reliable place to measure voltage because it reflects the power actually reaching the doorbell.

1. Remove the chime cover and locate the two terminal screws (usually labeled “Front” and “Trans” or “Transformer”).
2. Turn the power back on at the breaker (you’ll need power to get a reading).
3. Touch the multimeter probes to the two terminals:
   • Red probe to one terminal
   • Black probe to the other
4. Read the display. It should show a voltage between 8 and 24 volts AC.

Example Reading: If the display shows “16.2,” your doorbell is receiving 16.2 volts—perfect for most smart doorbells.

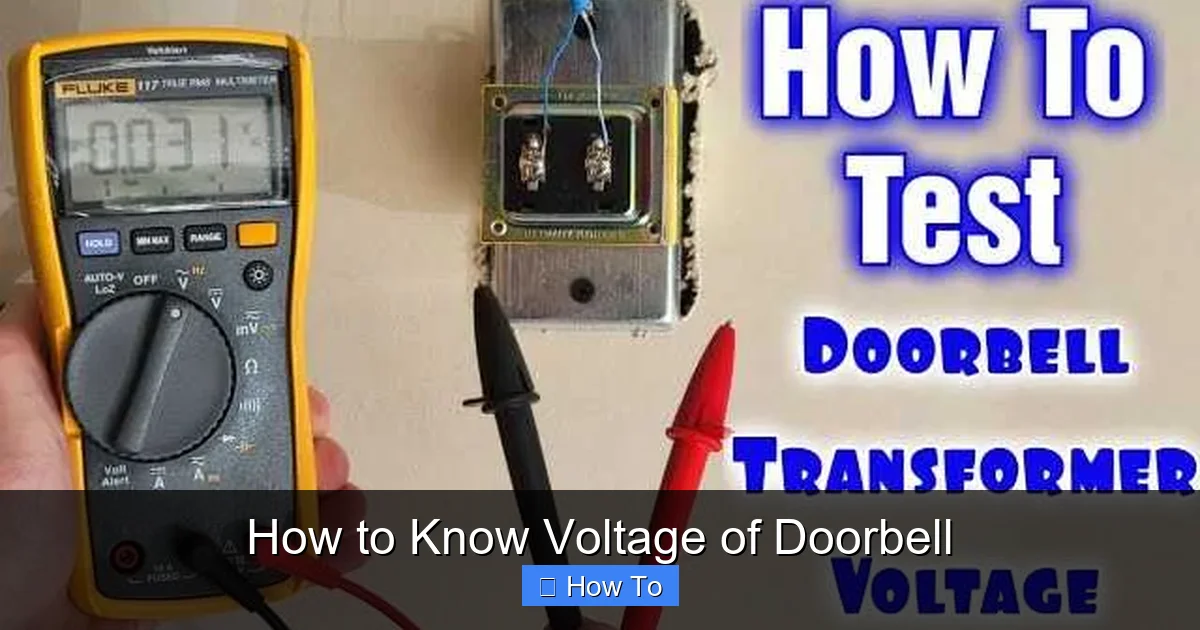

Alternative: Test at the Transformer

If you can’t access the chime, you can test at the transformer output terminals (the two thin wires). Follow the same steps:

• Turn on power
• Touch probes to the two low-voltage wires
• Read the voltage

Note: Voltage at the transformer may be slightly higher than at the chime due to wire resistance, especially over long distances.

Step 6: Interpret Your Results

Once you have a voltage reading, here’s what it means:

• 8–12V AC: Low voltage. May not power smart doorbells reliably. Consider upgrading the transformer.
• 16V AC: Ideal for most wired doorbells and compatible with most smart models.
• 24V AC: Higher voltage, often used in commercial systems or homes with long wire runs. Check device compatibility.
• 0V or very low: Indicates a problem—broken wire, faulty transformer, or disconnected circuit.

Tip: If your reading is significantly lower than the transformer label (e.g., label says 16V but you read 10V), there may be a wiring issue or the transformer is failing.

Step 7: Troubleshooting Common Voltage Issues

Even with the right tools, you might encounter problems. Here’s how to handle common scenarios.

No Voltage Reading

If your multimeter shows 0V:

• Double-check that power is on at the breaker.
• Ensure the multimeter is set to AC voltage.
• Test the transformer output directly.
• Check for loose or disconnected wires at the chime or transformer.
• The transformer may be faulty and need replacement.

Voltage Too Low

If voltage is below 16V and you’re installing a smart doorbell:

• Upgrade to a 16V or 24V transformer (match the VA rating).
• Shorten wire runs if possible.
• Use thicker gauge wire (18 AWG or lower) to reduce resistance.

Voltage Too High

If voltage exceeds 24V:

• Do not connect sensitive devices.
• Replace the transformer with one that matches your doorbell’s requirements.
• High voltage can damage chimes and smart doorbells.

Intermittent or Fluctuating Voltage

This suggests a loose connection or failing transformer:

• Tighten all wire connections.
• Inspect wires for corrosion or damage.
• Replace the transformer if problems persist.

Step 8: Upgrade or Replace Components (If Needed)

Once you know your voltage, you can make informed decisions about upgrades.

Replacing the Transformer

If your voltage is too low or the transformer is old:

1. Turn off power at the breaker.
2. Disconnect the old transformer (note wire positions).
3. Install a new transformer with matching voltage and sufficient VA (e.g., 16V, 10VA or 15VA).
4. Reconnect wires and restore power.
5. Test voltage again to confirm.

Tip: Choose a transformer with a VA rating equal to or higher than the original. For example, replace a 10VA with a 15VA for better performance.

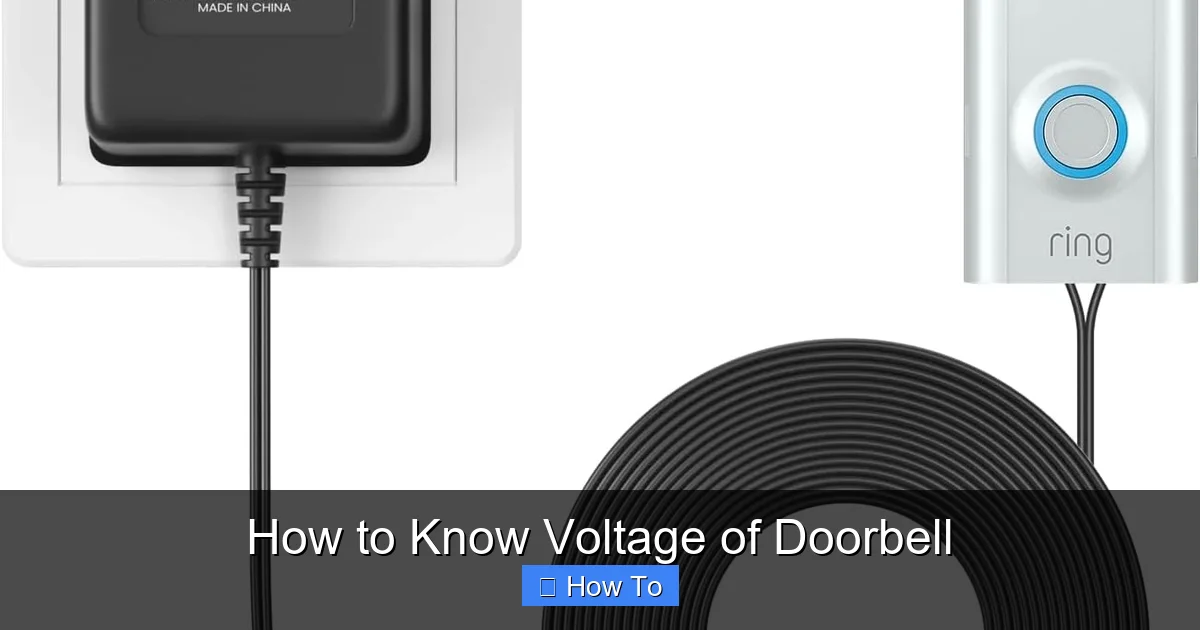

Installing a Smart Doorbell

Most smart doorbells require 16–24V AC. If your system meets this, you can install directly. If not:

• Use a compatible transformer.
• Or install a doorbell booster or power kit (included with many smart doorbells).
• Some models allow battery backup, but wired power is recommended for reliability.

When to Call a Professional

While testing voltage is a DIY-friendly task, some situations call for an electrician:

• You’re uncomfortable working with electricity.
• The transformer is hard to reach or integrated into the main panel.
• You suspect faulty wiring or frequent power issues.
• Your home has an older electrical system (pre-1980s).
• You’re upgrading to a high-power system (e.g., multiple chimes or video doorbells).

A licensed electrician can safely install, test, and certify your doorbell system—giving you peace of mind.

Final Tips for Accurate Voltage Testing

To ensure reliable results every time:

• Always test with the doorbell button pressed (this completes the circuit and gives a true load reading).
• Use a quality multimeter—cheap models may give inaccurate readings.
• Keep probes clean and secure on terminals.
• Record your readings for future reference.
• Label your transformer and chime with the voltage for easy identification later.

Conclusion

Knowing how to know voltage of doorbell is a valuable skill that empowers you to maintain, upgrade, and troubleshoot your home’s entry system with confidence. By using a multimeter, checking labels, and following safety protocols, you can accurately determine whether your doorbell is receiving the right amount of power. Whether you’re installing a sleek new video doorbell or fixing a silent chime, this knowledge ensures compatibility, safety, and reliability.

Remember: most doorbells run on 8–24V AC, with 16V being the sweet spot for modern devices. Always prioritize safety, double-check your readings, and don’t hesitate to consult a professional if needed. With the steps in this guide, you’re well-equipped to handle any doorbell voltage challenge that comes your way.
