This guide walks you through how to mount Ring Video Doorbell 3 safely and correctly, whether you’re replacing an old doorbell or installing one for the first time. You’ll get clear instructions, helpful tips, and troubleshooting advice to ensure your smart doorbell works perfectly from day one.
Key Takeaways
- Choose the right location: Mount your Ring Video Doorbell 3 at a height of 48 inches and within Wi-Fi range for optimal performance and visibility.
- Gather the correct tools: You’ll need a drill, screwdriver, level, and possibly a voltage tester—especially if hardwiring.
- Decide between wired and battery installation: The Ring Video Doorbell 3 supports both options; choose based on your home setup and power access.
- Use the mounting bracket correctly: The adjustable bracket allows for angled views—use it to avoid glare or obstructed sightlines.
- Test before finalizing: Always check Wi-Fi signal, motion detection, and video quality before securing the doorbell in place.
- Secure your device: Use the included security screw to prevent theft and ensure long-term stability.
- Update firmware post-installation: Keep your doorbell secure and functional by enabling automatic updates in the Ring app.
How to Mount Ring Video Doorbell 3: A Complete Step-by-Step Guide
So, you’ve just unboxed your new Ring Video Doorbell 3—congratulations! You’re about to upgrade your home security with motion alerts, two-way talk, and HD video right at your front door. But before you can start seeing who’s knocking, you need to mount it properly. Don’t worry—this guide will walk you through how to mount Ring Video Doorbell 3 like a pro, whether you’re replacing an old doorbell or installing one from scratch.
In this comprehensive guide, you’ll learn everything from choosing the perfect spot to testing your connection and securing your device. We’ll cover both wired and battery-powered setups, share practical tips to avoid common mistakes, and help you troubleshoot any issues that come up. By the end, your Ring Video Doorbell 3 will be securely mounted, fully functional, and ready to protect your home.
Let’s get started!
What You’ll Need Before You Begin

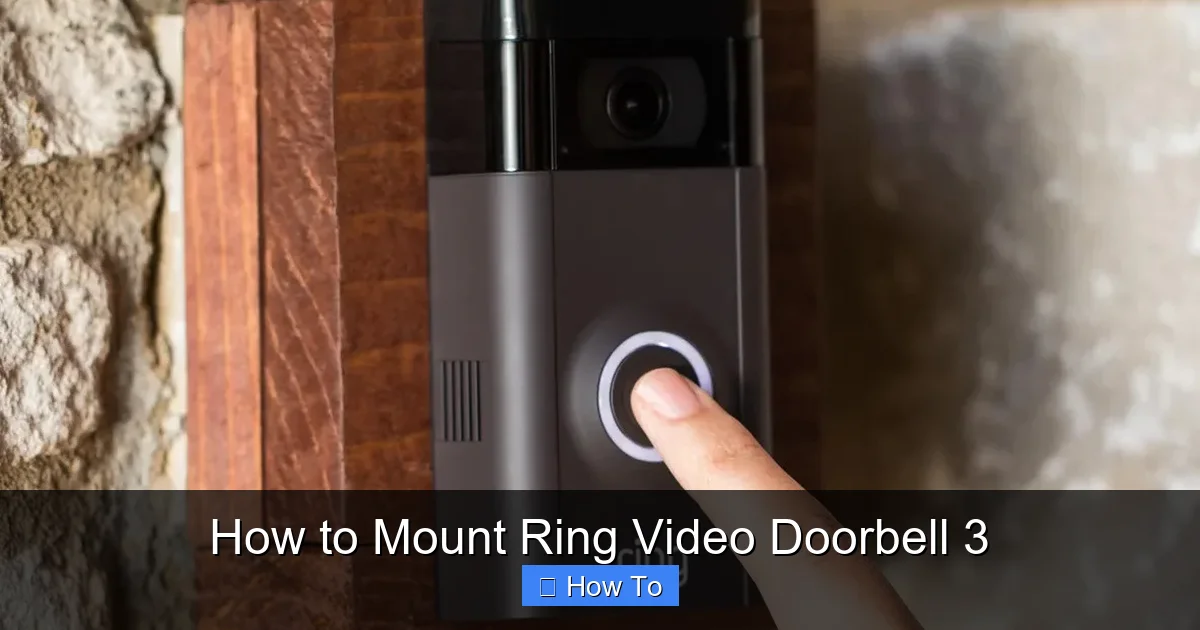

Visual guide about How to Mount Ring Video Doorbell 3
Image source: storables.com
Before you grab your drill, take a moment to gather all the tools and materials you’ll need. Having everything ready will make the installation smoother and faster.
Here’s a checklist:
- Ring Video Doorbell 3 (obviously!)
- Mounting bracket (included in the box)
- Screws and anchors (also included)
- Drill with a 3/16” drill bit (for masonry or wood)
- Screwdriver (Phillips head)
- Level (to ensure a straight mount)
- Voltage tester (if hardwiring—highly recommended)
- Smartphone with the Ring app installed
- Ladder (if mounting above ground level)
- Pencil (for marking drill spots)
- Optional: Wire strippers (if connecting existing doorbell wires)
Pro tip: If you’re replacing an existing doorbell, turn off the power at the breaker box before touching any wires. Safety first!
Step 1: Choose the Right Location
The success of your Ring Video Doorbell 3 starts with where you place it. A poor location can lead to blind spots, weak Wi-Fi, or constant false alerts.
Ideal Height and Angle
Ring recommends mounting your doorbell at 48 inches (4 feet) from the ground. This height captures most visitors’ faces clearly and reduces the chance of tampering.
Avoid placing it too high (like near the roof) or too low (near the ground). Both can distort the camera view or make it easy to reach.
Wi-Fi Signal Strength
Your doorbell needs a strong Wi-Fi connection to stream video and send alerts. Before drilling, check your signal strength at the mounting spot.
Use your phone to walk to the location and open a video streaming app. If it buffers or loads slowly, your Wi-Fi might be weak there.
If needed, consider installing a Wi-Fi extender or moving your router closer. Ring also offers the Ring Chime Pro, which boosts Wi-Fi specifically for your doorbell.
Field of View
The Ring Video Doorbell 3 has a 155-degree diagonal field of view. You want this to cover your walkway, driveway, or front yard—not just the door.
Avoid mounting it facing direct sunlight, bright lights, or reflective surfaces like windows. These can cause glare or overexposure in your videos.
If your door is recessed or you want to angle the view, use the included wedge or corner mount (sold separately) to adjust the camera’s direction.
Step 2: Decide Between Wired or Battery Installation
The Ring Video Doorbell 3 gives you flexibility: you can power it with batteries or connect it to existing doorbell wires. Each option has pros and cons.
Battery-Powered Installation
This is the easiest method—no wires, no drilling into electrical systems. Perfect for renters or homes without existing doorbell wiring.
- Pros: Simple setup, portable, no electrical work required.
- Cons: Batteries need recharging every 6–12 months (depending on usage).
To use batteries, simply insert the rechargeable battery pack into the back of the doorbell. No wiring needed.
Hardwired (Wired) Installation
If you have existing doorbell wires, you can hardwire your Ring Video Doorbell 3 for continuous power. This eliminates battery maintenance.
- Pros: No battery swaps, reliable power, can power a Ring Chime.
- Cons: Requires electrical knowledge, must turn off power first.
Ring recommends a transformer with 16–24 volts AC and at least 20VA (volt-amperes). Most modern doorbells meet this, but older homes may need an upgrade.
Hybrid Option: Battery + Wires
You can also install the doorbell with wires connected but still use the battery as a backup. This gives you the best of both worlds—continuous power with battery backup during outages.
Step 3: Remove Your Old Doorbell (If Applicable)
If you’re replacing an existing doorbell, you’ll need to remove it first.
Turn Off the Power
Go to your home’s breaker box and turn off the circuit that powers your doorbell. Use a voltage tester on the wires to confirm they’re dead before touching them.
Never skip this step—electrical shock is a real risk.
Unscrew and Disconnect
Use a screwdriver to remove the old doorbell from the wall. Carefully disconnect the wires, but don’t cut them. Leave them exposed so you can reuse them.
Label the wires (e.g., “Front” and “Trans”) with tape if needed. This helps when connecting to your Ring doorbell.
Patch the Wall (Optional)
If the old mounting holes are too large or in the wrong spot, fill them with spackle or wall filler. Let it dry, then sand smooth. This gives you a clean surface for the new mount.
Step 4: Install the Mounting Bracket
The mounting bracket is the backbone of your installation. It holds the doorbell securely and allows for angle adjustments.
Position the Bracket
Hold the bracket against the wall at 48 inches high. Use a level to make sure it’s straight. Mark the screw holes with a pencil.
If you’re using a wedge or corner mount, attach it to the bracket first, then position the whole assembly.
Drill Pilot Holes
Use a 3/16” drill bit to create pilot holes where you marked. This prevents the wall from cracking, especially on brick or stucco.
If you’re mounting into drywall without a stud, use the included wall anchors for extra support.
Secure the Bracket
Line up the bracket with the holes and screw it into place using the provided screws. Don’t overtighten—this can strip the screws or damage the bracket.
Double-check that the bracket is level and firmly attached.
Step 5: Connect the Wires (For Hardwired Setup)
If you’re hardwiring, now’s the time to connect the wires.
Strip the Wire Ends
Use wire strippers to remove about 1/4 inch of insulation from each wire. This exposes the copper for a solid connection.
Attach to Terminal Screws
On the back of the Ring Video Doorbell 3, you’ll see two terminal screws labeled “Front” and “Trans.”
Loosen the screws, insert the wires, and tighten them securely. It doesn’t matter which wire goes where—Ring’s design is polarity-free.
Tuck Wires Neatly
Gently push the wires back into the wall cavity to avoid pinching them when you attach the doorbell.
Step 6: Attach the Ring Video Doorbell 3
Now for the fun part—mounting the doorbell itself.
Slide Onto the Bracket
Align the doorbell with the bracket and slide it down until it clicks into place. You should feel it lock securely.
Secure with the Security Screw
Use the included security screw and screwdriver to fasten the doorbell to the bracket. This prevents theft and ensures it stays put.
Don’t skip this step—without the security screw, your doorbell can be easily removed by hand.
Step 7: Power On and Set Up in the Ring App
With the doorbell mounted, it’s time to power it up and configure it.
Insert the Battery (If Using)
If you’re using batteries, insert the charged battery pack into the back of the doorbell. Make sure it clicks in place.
Turn the Power Back On (If Hardwired)
Go back to the breaker box and restore power to the doorbell circuit.
Open the Ring App
Launch the Ring app on your smartphone. If you don’t have it, download it from the App Store or Google Play.
Tap “Set Up a Device” and follow the on-screen instructions.
The app will guide you through connecting to Wi-Fi, naming your doorbell, and testing the camera and microphone.
Test the Features
Once connected, test the following:
- Live View: Tap the camera icon to see real-time video.
- Two-Way Talk: Press the talk button and speak—can you hear and be heard?
- Motion Detection: Walk in front of the doorbell to trigger an alert.
- Night Vision: Check video quality in low light.
If everything works, you’re all set!
Step 8: Adjust Settings and Optimize Performance
Your doorbell is installed, but there’s more you can do to get the most out of it.
Customize Motion Zones
In the Ring app, go to Device Settings > Motion Settings > Motion Zones. Draw zones to focus on areas like your driveway or walkway, and ignore others like the street.
This reduces false alerts from passing cars or animals.
Set Up Smart Alerts
Enable person detection to only get alerts when a person is detected—not every leaf that blows by.
You can also schedule quiet hours when you don’t want notifications.
Enable Automatic Updates
Go to Device Health > Firmware and turn on automatic updates. This keeps your doorbell secure and up to date with the latest features.
Add Shared Users
Invite family members to access the doorbell through the app. They can view live video, receive alerts, and talk to visitors.
Troubleshooting Common Installation Issues
Even with careful planning, things can go wrong. Here’s how to fix common problems.
Doorbell Won’t Turn On
- Battery not charged: Plug in the battery for at least 5 hours.
- Wires not connected: Double-check terminal screws and power at the breaker.
- Weak Wi-Fi: Move closer to the router or use a Wi-Fi extender.
Poor Video Quality
- Dirty lens: Wipe the camera with a soft, dry cloth.
- Glare or backlighting: Adjust the angle or use a wedge mount.
- Low bandwidth: Pause other devices using the network.
Motion Alerts Not Working
- Motion zones too small: Expand the zones in the app.
- Sensitivity too low: Increase motion sensitivity in settings.
- Obstruction: Make sure nothing is blocking the sensor (like a plant or decoration).
Doorbell Keeps Disconnecting
- Weak signal: Check signal strength in Device Health.
- Interference: Move cordless phones or microwaves away from the doorbell.
- Firmware outdated: Update the firmware manually in the app.
Maintenance Tips to Keep Your Doorbell Working
To ensure long-term performance, follow these simple maintenance steps:
- Clean the lens monthly: Use a microfiber cloth to remove dust and smudges.
- Check battery level: Recharge when the app shows low battery.
- Inspect mounting: Make sure the doorbell is still secure and level.
- Update firmware: Keep automatic updates on.
- Review recordings: Periodically check your event history for anomalies.
Conclusion
Mounting your Ring Video Doorbell 3 doesn’t have to be intimidating. With the right tools, a clear plan, and this step-by-step guide, you can install it safely and correctly in under an hour.
Whether you choose battery or wired power, the key is careful planning—pick the right spot, test your Wi-Fi, and secure the device properly. Once it’s up and running, you’ll enjoy peace of mind knowing you can see, hear, and speak to anyone at your door—from anywhere in the world.
Remember to customize your settings, keep your firmware updated, and perform regular maintenance. Your Ring Video Doorbell 3 is more than a camera—it’s a smart security solution that grows with your needs.
So go ahead, mount that doorbell, and start protecting your home the smart way.
