This guide walks you through how to mount a Ring Wired Doorbell safely and correctly. You’ll learn the tools needed, wiring basics, and how to test your setup for reliable performance.
Key Takeaways
- Step-by-step: Easy to follow instructions
How to Mount Ring Wired Doorbell: A Complete Step-by-Step Guide
So you’ve decided to upgrade your home security with a Ring Wired Doorbell. Great choice! Not only does it offer crisp HD video, two-way talk, and motion alerts, but it also integrates seamlessly with other Ring devices and Alexa. But before you can answer your door from your phone, you need to install it properly.
This guide will walk you through every step of mounting your Ring Wired Doorbell—from checking compatibility to final testing. Whether you’re a DIY beginner or a seasoned home improver, we’ll keep things simple, safe, and stress-free. By the end, you’ll have a fully functional smart doorbell that keeps you connected and your home secure.
Let’s get started!
What You’ll Need Before You Begin

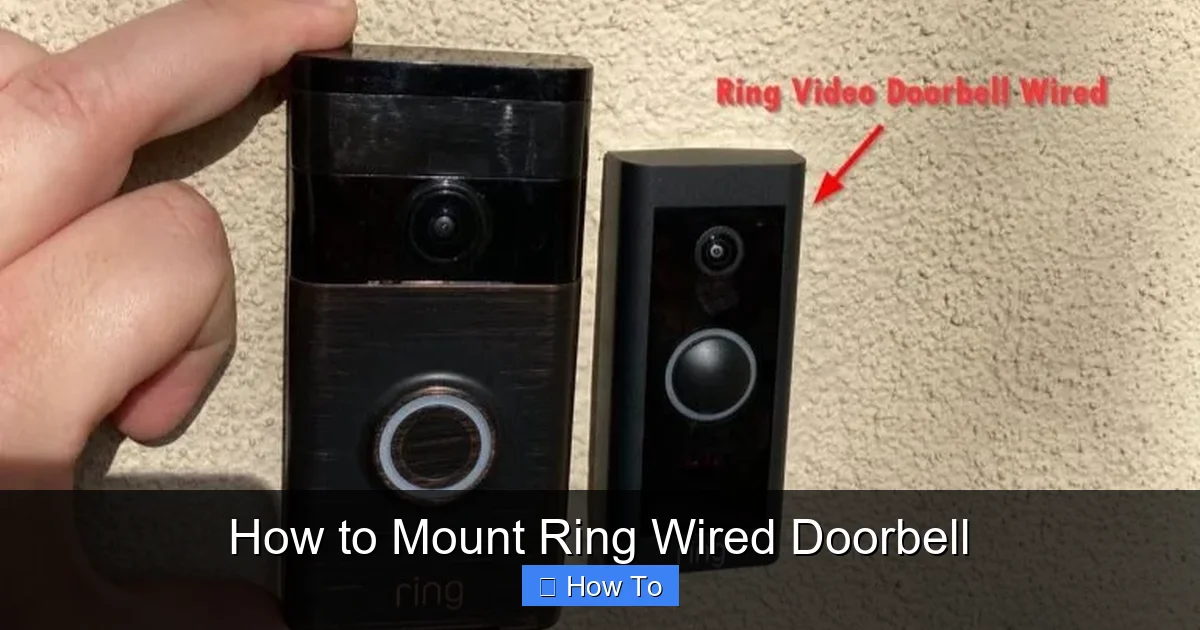

Visual guide about How to Mount Ring Wired Doorbell
Image source: justsmarter.net
Before you grab your tools and head to the front door, make sure you have everything on hand. Rushing out mid-installation to buy a missing screw or adapter is frustrating—and avoidable.
Here’s a checklist of what you’ll need:
- Ring Wired Doorbell kit: Includes the doorbell unit, mounting bracket, screws, wire nuts, and optional wedge or corner mount.
- Screwdriver: A Phillips head is usually sufficient, but a flathead may help with tight spaces.
- Voltage tester: Essential for confirming power is off and checking transformer voltage.
- Drill and drill bits (optional): Only if you need to create new mounting holes or run wires.
- Wire strippers (optional): Useful if your existing wires are frayed or too short.
- Smartphone with Ring app installed: Download the free Ring app from the App Store or Google Play.
- Ladder (if needed): For reaching high doorframes or brick walls.
- Safety gear: Gloves and safety glasses are recommended, especially when drilling.
Having these tools ready will save time and reduce frustration. Now, let’s make sure your home is ready for the Ring Wired Doorbell.
Check Compatibility: Is Your Doorbell System Ready?
Not all doorbell systems are created equal. The Ring Wired Doorbell requires a few specific conditions to work properly. Skipping this step could lead to a doorbell that won’t power on—or worse, damage the device.
Transformer Voltage Requirements
The most critical factor is your doorbell transformer. Ring recommends a transformer that outputs 16 to 24 volts AC and at least 30VA (volt-amperes). Most older homes have 8–16V transformers, which are too weak.
To check your transformer:
- Locate your doorbell transformer. It’s usually near your electrical panel, in the basement, attic, or garage.
- Look for a label that lists voltage (V) and VA. If it says 16V or higher and 30VA or more, you’re good to go.
- If you’re unsure, use a multimeter or voltage tester to measure the voltage across the doorbell wires at the chime or doorbell button.
If your transformer is below 16V, you’ll need to upgrade it. Ring sells a compatible transformer, or you can hire an electrician. Don’t skip this—underpowered transformers cause flickering, poor performance, or no power at all.
Existing Wiring
The Ring Wired Doorbell uses your existing doorbell wires to power the device. You’ll need at least two wires connected to your current doorbell button. If your doorbell is wireless or battery-only, this model won’t work—consider the Ring Battery Doorbell instead.
Check that the wires are intact and reach the mounting location. If they’re frayed or too short, you may need to extend them or rewire. Use wire strippers to clean up the ends if needed.
Chime Compatibility
The Ring Wired Doorbell works with most mechanical and digital chimes. However, some very old or high-impedance chimes may not work properly. Ring provides a compatibility list in the app and on their website.
If your chime doesn’t work after installation, you may need to install a Ring Chime or Chime Pro, which plugs into a wall outlet and connects wirelessly.
Turn Off the Power: Safety First
This step cannot be stressed enough: always turn off the power before working with electrical wires. Even low-voltage doorbell systems can cause shocks or short circuits if mishandled.
Locate Your Circuit Breaker
Go to your main electrical panel and find the breaker that controls your doorbell. It may be labeled “doorbell,” “chime,” or “low voltage.” If not, you can test by turning off breakers one by one and checking when the doorbell stops working.
Turn Off the Breaker
Switch the breaker to the “off” position. Use a voltage tester on the doorbell wires to confirm no power is flowing. Touch one probe to each wire—if the tester doesn’t light up or beep, you’re safe to proceed.
Label the Wires (Optional but Helpful)
Before disconnecting anything, label the wires with tape or a marker. For example, “Front Door” or “Chime.” This helps avoid confusion when reconnecting later.
Now that the power is off and you’ve confirmed safety, it’s time to remove your old doorbell.
Remove Your Existing Doorbell
Whether you’re replacing a traditional button or an old smart doorbell, the process is similar.
Unscrew the Old Button
Use your screwdriver to remove the screws holding the old doorbell button to the wall. Gently pull the button away from the wall to expose the wires.
Disconnect the Wires
Loosen the terminal screws or pull the wires out of the back of the button. Be careful not to let the wires slip back into the wall. If they do, you may need a fish tape or wire puller to retrieve them.
Inspect the Wiring
Check the condition of the wires. Are they frayed? Corroded? Too short? If so, trim them back with wire strippers and expose fresh copper. You’ll need about ½ inch of bare wire for a secure connection.
Now that the old doorbell is out, you’re ready to install the Ring mounting bracket.
Install the Mounting Bracket
The mounting bracket holds your Ring Wired Doorbell securely and ensures proper alignment. Ring includes a standard bracket, but you can also use the optional wedge or corner mount for better angles.
Position the Bracket
Hold the bracket against the wall where you want to install the doorbell. It should be at a comfortable height—typically 48 inches from the ground—and aligned with your door.
Use a level to make sure it’s straight. Mark the screw holes with a pencil.
Drill Pilot Holes (If Needed)
If you’re mounting into wood or drywall, you may not need to drill. But for brick, stucco, or concrete, use a masonry bit to drill pilot holes. This prevents cracking and makes screwing easier.
Secure the Bracket
Insert the included screws into the holes and tighten them with a screwdriver. Make sure the bracket is snug and doesn’t wobble.
Use a Wedge or Corner Mount (Optional)
If your door is recessed or you want a better viewing angle, use the wedge or corner mount. These attach to the bracket and tilt the doorbell slightly downward or sideways.
For example, if your door is set back from the wall, a 15-degree wedge can help capture more of the walkway. Attach it to the bracket before securing the doorbell.
Connect the Wires to the Ring Doorbell
Now comes the electrical part—but don’t worry, it’s simpler than it looks.
Prepare the Wires
Strip about ½ inch of insulation from the ends of your doorbell wires if you haven’t already. Twist the bare copper strands to keep them neat.
Attach Wires to the Doorbell
The Ring Wired Doorbell has two terminals labeled “Front” and “Trans.” It doesn’t matter which wire goes where—the device is polarity-insensitive.
Loosen the terminal screws, insert one wire under each screw, and tighten. Make sure the wires are secure and not touching each other.
Secure the Doorbell to the Bracket
Slide the doorbell onto the mounting bracket until it clicks into place. Give it a gentle tug to ensure it’s locked in.
Turn the Power Back On and Test
With everything connected, it’s time to restore power and see if your doorbell works.
Restore Power at the Breaker
Go back to your electrical panel and turn the breaker back on.
Check for Power
The Ring Wired Doorbell should light up with a solid white or blue LED. If it doesn’t, double-check your wiring and transformer voltage.
Test the Doorbell
Press the button on the doorbell. Your indoor chime should ring, and the LED should flash. If the chime doesn’t work, see the troubleshooting section below.
Set Up the Ring App
Now that the hardware is installed, it’s time to connect your doorbell to your phone.
Open the Ring App
Launch the Ring app on your smartphone. If you don’t have an account, create one using your email and password.
Add a New Device
Tap the menu (three lines) in the top-left corner, then select “Set Up a Device.” Choose “Doorbells” and follow the prompts.
Scan the QR Code
The app will ask you to scan the QR code on the back of your doorbell. Hold your phone steady until it recognizes the code.
Connect to Wi-Fi
Select your home Wi-Fi network and enter the password. The doorbell will connect to your network. This may take a minute.
Complete Setup
Follow the app’s instructions to name your doorbell (e.g., “Front Door”), set up motion zones, and adjust notification settings. You can also link it to Alexa for voice alerts.
Adjust Settings and Test Features
Once setup is complete, take a few minutes to customize your doorbell.
Test Video and Audio
Open the live view in the app and check the video quality. Speak through the app to test two-way audio. Make sure there’s no lag or distortion.
Adjust Motion Zones
In the app, go to Device Settings > Motion Settings. Draw zones to focus on your walkway and ignore busy streets or trees.
Set Notification Preferences
Choose when you want alerts—motion, doorbell press, or both. You can also set quiet hours to avoid disturbances at night.
Check Night Vision
Test the doorbell at night or in low light. The infrared LEDs should provide clear black-and-white video.
Troubleshooting Common Issues
Even with careful installation, problems can arise. Here’s how to fix the most common ones.
Doorbell Won’t Power On
- Check the breaker: Make sure power is restored.
- Test the transformer: Use a multimeter to confirm 16–24V AC.
- Inspect wiring: Ensure wires are securely connected and not shorted.
- Try a different location: If possible, test the doorbell on another circuit.
Chime Doesn’t Ring
- Check chime compatibility: Some digital chimes need a resistor. Ring sells a Chime Kit with a resistor.
- Use Ring Chime: Plug a Ring Chime into an outlet for wireless alerts.
- Verify wiring: Ensure wires are connected to the correct terminals at the chime.
Poor Wi-Fi Connection
- Move your router: Or use a Wi-Fi extender to boost signal.
- Check signal strength: The app shows Wi-Fi strength. Aim for “Good” or “Excellent.”
- Reduce interference: Keep the doorbell away from microwaves, cordless phones, and metal objects.
Blurry or Dark Video
- Clean the lens: Wipe with a soft, dry cloth.
- Adjust angle: Use the wedge or corner mount for better lighting.
- Check for obstructions: Trim bushes or remove stickers blocking the camera.
Maintenance Tips for Long-Term Performance
To keep your Ring Wired Doorbell working smoothly:
- Clean the lens monthly: Dust and dirt can blur video.
- Check connections annually: Ensure wires are tight and terminals are corrosion-free.
- Update firmware: The app will notify you of updates—install them for new features and security.
- Test motion alerts: Walk in front of the doorbell to confirm detection.
Conclusion
Mounting a Ring Wired Doorbell is a straightforward project that enhances your home’s security and convenience. By following this guide—checking compatibility, turning off power, installing the bracket, connecting wires, and setting up the app—you’ll have a reliable smart doorbell in under an hour.
Remember, safety comes first. Always test voltage and double-check connections. And if you run into issues, the troubleshooting tips above will help you resolve them quickly.
With your Ring Wired Doorbell installed, you’ll never miss a visitor, package, or unexpected guest again. Welcome to smarter home security!
