Finding your doorbell transformer doesn’t have to be a mystery. This guide walks you through common hiding spots, simple testing methods, and safety tips to locate and verify your transformer—no electrician needed.
Key Takeaways
- Doorbell transformers are small but essential: They step down household voltage (120V) to a safe 16–24V for your doorbell system.
- Common locations include the basement, attic, garage, or near the furnace: Start your search in utility areas where electrical components are typically installed.
- Turn off power before handling any wiring: Always switch off the circuit breaker to avoid electric shock when inspecting or testing.
- Use a multimeter to test voltage output: A working transformer should show 16–24V AC; anything lower may indicate a faulty unit.
- Look for a small black or gray box with wires: Transformers are usually mounted on electrical boxes or junction boxes and may be labeled.
- If you can’t find it, trace the doorbell wires: Follow the low-voltage wires from the chime back to their source—they’ll lead you to the transformer.
- When in doubt, consult a licensed electrician: If the transformer is buried behind walls or you’re unsure about wiring, professional help is safest.
How to Find Doorbell Transformer Location
If your doorbell isn’t ringing, one of the first things to check is the transformer. But here’s the catch: most people have no idea where their doorbell transformer is located. It’s not something you see every day, and it’s often tucked away in an out-of-sight spot. The good news? Finding it isn’t as hard as it seems—once you know where to look.
In this guide, you’ll learn exactly how to find your doorbell transformer, whether you’re troubleshooting a silent chime or planning to upgrade your doorbell system. We’ll cover the most common hiding places, how to test if your transformer is working, and what to do if it needs replacing. No electrical degree required—just a little patience and the right tools.
By the end of this guide, you’ll be able to locate your transformer confidently, verify its function, and take the next steps toward fixing or upgrading your doorbell. Let’s get started.
What Is a Doorbell Transformer?
Before we dive into finding it, let’s quickly explain what a doorbell transformer does. Your home’s electrical system runs on 120 volts—way too much for a delicate doorbell circuit. The transformer’s job is to step down that high voltage to a safer, lower voltage, usually between 16 and 24 volts AC. This low-voltage power is what runs through the thin wires to your doorbell button and chime.
Think of the transformer as the “power adapter” for your doorbell. Without it, your doorbell wouldn’t work. And if it fails, your doorbell stops working—even if the button and chime are perfectly fine.
Most transformers are small, rectangular boxes—about the size of a deck of cards—and are usually painted black or gray. They’re mounted on electrical junction boxes, near your furnace, or inside your electrical panel. Some newer smart doorbells come with plug-in transformers that go directly into an outlet, but traditional wired systems rely on a hardwired transformer hidden somewhere in your home.
Understanding this helps because it tells you two things:
1. The transformer is connected to your home’s main power supply.
2. It’s connected to the low-voltage wires that run to your doorbell.
That means it’s likely located somewhere central—where power and wiring converge.
Why You Might Need to Find the Transformer
There are several reasons you might need to locate your doorbell transformer:
- Your doorbell isn’t working: A dead transformer is a common cause of doorbell failure.
- You’re installing a new doorbell: Smart doorbells like Ring or Nest often require a compatible transformer with enough power.
- You’re replacing an old chime: Upgrading your chime may require checking if your current transformer can handle the load.
- You’re troubleshooting wiring issues: If wires are damaged or loose, the transformer is the starting point for repairs.
- You’re doing home renovations: Knowing where the transformer is helps avoid accidentally cutting wires or damaging components.
In short, whether you’re fixing, upgrading, or just curious, knowing where your transformer is saves time and frustration.
Common Doorbell Transformer Locations
Now for the main event: where is your doorbell transformer most likely hiding? While every home is different, there are several common spots where electricians typically install them. Start your search in these areas.
1. Basement or Crawl Space
The basement is one of the most common locations for a doorbell transformer. Why? It’s central, out of the way, and close to other electrical components. Look near the furnace, water heater, or main electrical panel.
What to look for: A small black or gray box mounted on a junction box or directly on a stud. It may have two wires coming out—one going to the doorbell button, the other to the chime. Some transformers are tucked behind insulation or drywall, so check carefully.

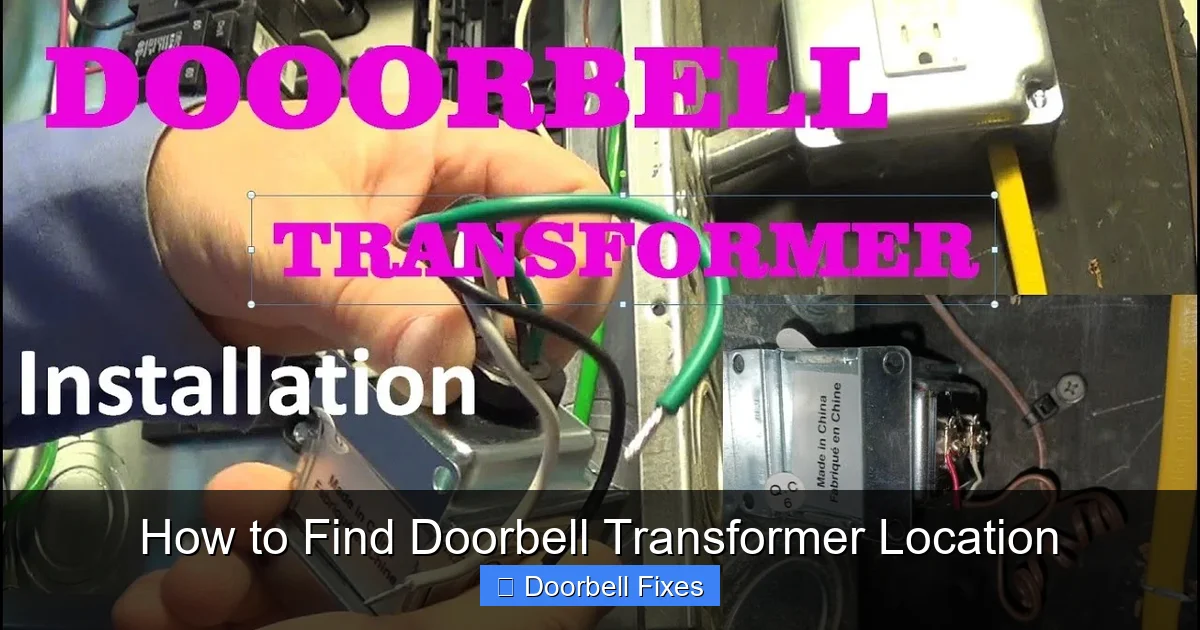

Visual guide about How to Find Doorbell Transformer Location
Image source: i.ytimg.com
2. Attic
If your home doesn’t have a basement, the attic is the next most likely spot. Electricians often run wires through the attic because it’s accessible during construction and provides a clear path to exterior walls where doorbells are installed.
What to look for: Check near the access panel or along the edges of the attic where wires enter from the walls. The transformer may be zip-tied to a joist or mounted on a wooden block. Be cautious—attics can be hot, cramped, and filled with insulation.
3. Garage
Garages are another popular location, especially in homes without basements. The transformer might be mounted near the garage door opener, on a wall near the electrical panel, or even inside the ceiling.
What to look for: Look for a small box with wires running into the wall or ceiling. If your garage has an electrical subpanel, check there first.
4. Near the Furnace or HVAC System
Many electricians install the transformer near the furnace because it’s a central point in the home’s mechanical system. The wires can easily run from there to the front door.
What to look for: Check the side of the furnace, the nearby wall, or the electrical junction box used for HVAC wiring. The transformer may be mounted with screws or zip ties.
5. Inside the Electrical Panel (Breaker Box)
Some transformers are mounted directly inside the main electrical panel. This is less common but still possible, especially in older homes.
What to look for: Open your breaker panel (safely—more on that later) and look for a small black box with two wires connected to a breaker or neutral bar. It may be labeled “doorbell” or “bell.”
6. Behind the Doorbell Chime
In some homes, the transformer is installed behind the chime unit itself, especially if the chime is located in a central hallway or utility closet.
What to look for: Remove the chime cover and inspect the wiring. If you see a small box with wires spliced into the circuit, that’s likely the transformer.
7. Utility Closet or Laundry Room
These rooms often house electrical components because they’re functional and out of sight. Check near the washing machine, dryer, or water heater.
What to look for: Look for a small box mounted on the wall or inside a cabinet. It may be tucked behind appliances, so move things carefully.
How to Safely Search for the Transformer
Before you start pulling panels or crawling into attics, safety comes first. Here’s how to search safely and effectively.
Turn Off the Power
Even though the transformer outputs low voltage, it’s still connected to your home’s 120V circuit. To avoid electric shock, turn off the power at the breaker panel.
Steps:
- Locate your main electrical panel (usually in the basement, garage, or utility room).
- Look for a breaker labeled “doorbell,” “bell,” or “chime.” If there isn’t one, turn off the main breaker to be safe.
- Use a non-contact voltage tester to confirm the power is off before touching any wires.
Gather the Right Tools
You don’t need much, but having the right tools makes the job easier.
- Flashlight: Many transformer locations are dark.
- Non-contact voltage tester: Confirms power is off.
- Multimeter: Tests voltage output (more on this later).
- Screwdriver: For removing covers or panels.
- Ladder: For reaching high spots like attics or ceilings.
Work Methodically
Don’t rush. Start in the most likely locations and work your way through the list. If you can’t find it in the basement, move to the attic, then the garage, and so on.
Tip: If you’re still stuck, try the “wire tracing” method (explained below).
How to Trace Doorbell Wires to Find the Transformer
If you’ve checked all the common spots and still can’t find the transformer, it’s time to follow the wires.
Step 1: Remove the Doorbell Button
Start at the front door. Unscrew the doorbell button and gently pull it away from the wall. You’ll see two thin wires connected to the back.
Note: These are low-voltage wires, so it’s safe to handle them—but keep the power off just in case.
Step 2: Identify the Wires
The two wires are usually labeled “front” and “trans” or “transformer.” The “front” wire goes to the chime, and the “trans” wire goes back to the transformer.
Tip: If there’s no label, don’t worry. You can trace both wires—they’ll both lead back to the transformer eventually.
Step 3: Follow the Wires Into the Wall
Gently pull the wires to see where they go. They may disappear into the wall, under the siding, or into the attic. Use a flashlight to look for wire paths.
Pro tip: If the wires go into the wall, check the attic or basement directly above or below that spot. That’s likely where they emerge.
Step 4: Locate the Chime Unit
Next, find your doorbell chime—usually in a hallway, kitchen, or living room. Remove the cover and inspect the wiring.
What to look for: Two or more wires connected to terminals labeled “Front,” “Trans,” “Rear,” etc. The “Trans” wire should lead back to the transformer.
Step 5: Trace the “Trans” Wire
Follow the “Trans” wire from the chime. It may run along baseboards, through walls, or into the ceiling. Use a wire tracer tool if you have one, or gently pull the wire to see where it goes.
Note: If the wire disappears into a wall, check the nearest utility area—basement, attic, or garage.
Step 6: Find the Transformer
Eventually, the wire will lead you to a small box—the transformer. It’s usually mounted on a junction box, stud, or electrical panel.
Success! Once you find it, take a photo or label it so you can find it faster next time.
How to Test Your Doorbell Transformer
Finding the transformer is only half the battle. You also need to know if it’s working. Here’s how to test it safely.
Step 1: Turn the Power Back On
After confirming the transformer’s location, turn the breaker back on. This will restore power so you can test the output.
Step 2: Set Up Your Multimeter
A multimeter measures voltage, current, and resistance. For this test, you’ll use the AC voltage setting.
Steps:
- Turn the multimeter dial to “V~” or “ACV.”
- Insert the red probe into the “V” or “Ω” port and the black probe into the “COM” port.
- Set the range to 200V AC (or auto-range if your meter has it).
Step 3: Test the Output Voltage
Now, test the voltage across the transformer’s output terminals.
Steps:
- Locate the two low-voltage wires coming out of the transformer.
- Touch the red probe to one wire and the black probe to the other.
- Read the display. A working transformer should show 16–24V AC.
What the readings mean:
- 16–24V AC: Transformer is working properly.
- 0V or very low voltage: Transformer is faulty or not receiving power.
- 120V AC: You’re testing the input side—switch to the output wires.
Step 4: Test the Input Voltage (Optional)
If the output is low, check if the transformer is receiving power.
Steps:
- Turn off the breaker again.
- Locate the two input wires (usually black and white) connected to the transformer.
- Turn the breaker back on.
- Use the multimeter to test between the input wires. You should see ~120V AC.
If input is 120V but output is 0V: The transformer is bad and needs replacing.
Troubleshooting Common Issues
Even after finding and testing the transformer, you might run into problems. Here’s how to handle the most common ones.
Transformer Is Burnt or Smelly
If the transformer smells burnt or looks charred, it’s failed. This can happen due to age, power surges, or overloading.
Solution: Replace the transformer. Turn off the power, disconnect the wires, and install a new one with the same voltage and wattage rating.
Transformer Is Humming Loudly
A faint hum is normal, but a loud buzz could mean a loose core or internal fault.
Solution: Tighten any mounting screws. If the noise continues, replace the transformer.
Transformer Is Behind Drywall or Insulation
Some transformers are buried behind walls or buried in attic insulation. This makes them hard to access.
Solution: If it’s working, leave it. If it needs replacing, consider installing a new one in an accessible location, like near the chime or in the garage.
No Breaker Labeled “Doorbell”
Not all breakers are labeled. If you can’t find a doorbell breaker, turn off the main breaker or test each one individually.
Tip: Use a circuit breaker finder tool to identify which breaker controls the doorbell circuit.
Smart Doorbell Requires More Power
Smart doorbells like Ring or Nest often need 16–24V and 30VA (volt-amperes) of power. Older transformers may only provide 10VA.
Solution: Upgrade to a higher-wattage transformer. Check your doorbell’s specs and replace accordingly.
When to Call a Professional
While most homeowners can find and test a transformer, some situations require a licensed electrician.
- You can’t locate the transformer after thorough searching.
- The transformer is buried behind finished walls.
- You’re uncomfortable working with electricity.
- The wiring is damaged or outdated.
- You need to upgrade the electrical panel or add a new circuit.
Remember: Electricity is dangerous. When in doubt, call a pro.
Conclusion
Finding your doorbell transformer might seem like a daunting task, but with the right approach, it’s totally doable. Start by checking common locations like the basement, attic, or garage. Use the wire-tracing method if you’re stuck. Always turn off the power before handling any wiring, and use a multimeter to test the output.
Once you’ve found and tested your transformer, you’ll be able to fix doorbell issues, upgrade to a smart doorbell, or simply have peace of mind knowing where this important component is located.
And now that you know how to find doorbell transformer location, you’re one step closer to mastering home maintenance. Happy troubleshooting!
