This guide teaches you how to measure doorbell voltage multimeter safely and effectively. You’ll learn the tools needed, step-by-step instructions, and how to interpret results to keep your doorbell working properly.
Key Takeaways
- Always turn off power at the breaker before working on electrical systems: Safety is the top priority when measuring doorbell voltage to avoid shocks or damage.
- Use a digital multimeter set to AC voltage: Doorbells typically run on low-voltage AC (16–24V), so your multimeter must be configured correctly.
- Locate the doorbell transformer for accurate readings: The transformer steps down household voltage to safe levels for the doorbell circuit.
- Test at the chime unit or button terminals: Measuring at these points helps identify whether the issue is with the button, wiring, or transformer.
- Interpret voltage readings to diagnose problems: Low or no voltage indicates a faulty transformer, broken wire, or loose connection.
- Never touch bare wires with wet hands or in damp conditions: Even low-voltage systems can be dangerous under certain circumstances.
- Keep a log of readings for future troubleshooting: Recording voltage measurements helps track changes over time and spot recurring issues.
Introduction: Why Measuring Doorbell Voltage Matters
Your doorbell seems simple—press a button, hear a chime. But behind that everyday convenience lies a small electrical system that can fail for many reasons. When your doorbell stops working, one of the first things to check is the voltage. Knowing how to measure doorbell voltage multimeter helps you diagnose whether the problem is with the button, the wiring, the chime unit, or the transformer.
This guide walks you through the entire process, from gathering tools to interpreting your multimeter readings. Whether you’re a DIY enthusiast or just trying to fix a silent doorbell, you’ll learn how to do it safely and accurately. We’ll cover everything you need to know, including safety precautions, step-by-step instructions, and troubleshooting tips. By the end, you’ll be confident in your ability to test and maintain your doorbell system.
Understanding Your Doorbell System
Before you start measuring voltage, it helps to understand how a typical doorbell system works. Most residential doorbells use a low-voltage electrical circuit powered by a transformer. This transformer connects to your home’s main electrical panel and steps down the standard 120V AC power to a safer 16–24V AC, which powers the doorbell button and chime.

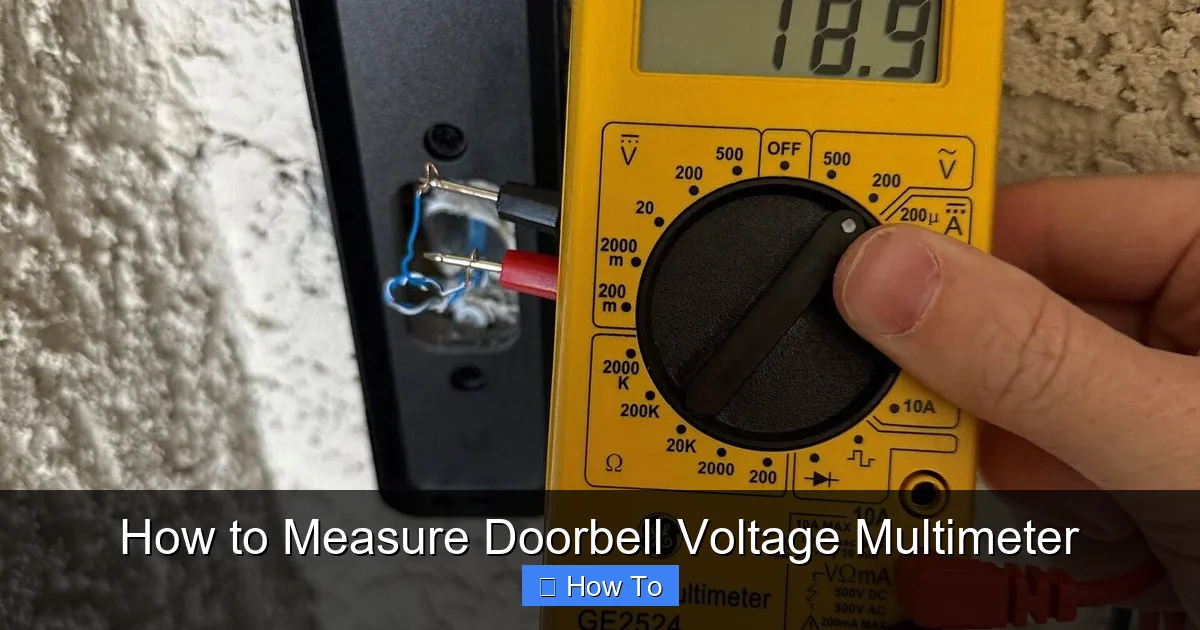

Visual guide about How to Measure Doorbell Voltage Multimeter
Image source: storables.com
The system has three main components:
- Doorbell button: Located outside your door, this completes the circuit when pressed.
- Chime unit: Inside your home, this produces the ringing sound.
- Transformer: Usually hidden in the basement, attic, or near the electrical panel, it converts high voltage to low voltage.
Wires connect these components in a loop. When the button is pressed, electricity flows through the circuit, activating the chime. If any part of this system fails—like a broken wire, a dead transformer, or a faulty button—the doorbell won’t work. Measuring the voltage helps pinpoint where the issue lies.
Tools and Materials You’ll Need
To measure doorbell voltage with a multimeter, you don’t need fancy equipment. Here’s a list of what you’ll need:
- Digital multimeter: A basic model with AC voltage measurement capability (most do). Avoid analog meters—they’re less accurate and harder to read.
- Screwdriver (flathead or Phillips): To remove the doorbell button or chime cover.
- Insulated gloves (optional but recommended): For added safety, especially if you’re unsure about the wiring.
- Flashlight: To see in dark areas like basements or attics where the transformer might be.
- Notepad and pen: To record your voltage readings for future reference.
Make sure your multimeter is in good working condition. Check the battery and test it on a known live circuit (like an outlet) to confirm it’s functioning properly before using it on your doorbell.
Safety First: Essential Precautions
Even though doorbells use low voltage, electrical safety should never be overlooked. Here are key safety tips to follow:
Turn Off Power at the Breaker (When Possible)
While doorbell circuits are low voltage, the transformer is connected to your home’s main electrical system. Before accessing the transformer or any wiring near the panel, turn off the corresponding breaker. Use a non-contact voltage tester to confirm the power is off.
Avoid Wet or Damp Conditions
Never work on electrical components with wet hands or in rainy weather. Moisture increases the risk of shock, even with low-voltage systems.
Don’t Touch Bare Wires
Always handle wires by their insulated parts. If a wire is frayed or exposed, turn off the power and repair it before testing.
Use Proper Tools
Ensure your multimeter probes are in good condition—no cracked insulation or exposed metal. Damaged probes can cause short circuits or shocks.
Work with a Partner if Unsure
If you’re not confident working with electricity, ask someone experienced to assist. It’s better to be safe than sorry.
Step 1: Locate the Doorbell Transformer
The transformer is the heart of your doorbell system. It’s usually mounted near your electrical panel, in the basement, attic, or garage. Look for a small metal box with wires coming out and a label that says “Doorbell” or “Bell.”
How to Find It
- Start at your main electrical panel. Look for a small breaker labeled “Doorbell” or “Bell.”
- If there’s no label, turn off breakers one by one and test the doorbell until it stops working—that’s the right circuit.
- Follow the low-voltage wires from the doorbell button or chime unit. They often lead back to the transformer.
Once located, note its position. You may need to access it later if voltage readings are low or zero.
Step 2: Set Up Your Multimeter
Your multimeter must be configured correctly to measure AC voltage. Here’s how to set it up:
Select the AC Voltage Setting
Turn the dial to the AC voltage symbol (usually marked as “V~” or “VAC”). Choose a range higher than 24V—most multimeters auto-range, but if yours doesn’t, set it to 200V AC.
Insert the Probes
Plug the black probe into the COM (common) port and the red probe into the VΩmA port (for voltage, resistance, and current).
Test the Multimeter
Touch the probes to a known live outlet (with caution) to ensure the meter reads around 120V. This confirms it’s working properly.
Step 3: Measure Voltage at the Doorbell Button
The doorbell button is a good starting point for testing. It’s accessible and often the source of problems like corrosion or loose connections.
Remove the Button Cover
Use a screwdriver to unscrew and remove the doorbell button from the wall. Be gentle—don’t pull too hard on the wires.
Expose the Terminals
You’ll see two small screws or terminals where the wires connect. These are the points where voltage is present when the circuit is complete.
Touch the Multimeter Probes
With the button disconnected (to avoid shorting), touch the black probe to one terminal and the red probe to the other. Do not press the button during this test.
Read the Display
A healthy doorbell system should show 16–24V AC. If you see 0V or a very low reading (under 10V), the issue may be with the transformer or wiring.
Tip: If the voltage is low, try pressing the button while measuring. Sometimes a faulty button causes voltage drop.
Step 4: Measure Voltage at the Chime Unit
The chime unit is another critical testing point. It receives power from the transformer and sends it to the button.
Remove the Chime Cover
Unscrew the front panel of the chime unit, usually located near your front door inside the house.
Locate the Terminal Screws
You’ll see two or more screws labeled “Front,” “Trans,” or “Rear.” The “Front” terminal connects to the front doorbell button, and “Rear” to a second button (if you have one). The “Trans” terminal connects to the transformer.
Test Between “Front” and “Trans”
Touch the multimeter probes to the “Front” and “Trans” terminals. This measures the voltage supplied to the front button.
Check the Reading
Again, expect 16–24V AC. If the voltage is correct here but not at the button, the problem is likely in the wiring between the chime and the button.
Example: If you measure 20V at the chime but 5V at the button, there’s significant voltage drop—possibly due to corroded wires or a long wire run.
Step 5: Test the Transformer Directly
If voltage is low or absent at both the button and chime, the transformer may be faulty.
Access the Transformer
Go to the location where you found the transformer. It will have two low-voltage wires (usually red and white) and two high-voltage wires (black and white) connected to your home’s electrical system.
Measure Across the Low-Voltage Terminals
Set your multimeter to AC voltage and touch the probes to the two low-voltage output terminals. Do not touch the high-voltage side.
Interpret the Results
- 16–24V AC: Transformer is working. Issue is elsewhere.
- 0V or very low voltage: Transformer is likely dead and needs replacement.
- Voltage fluctuates: Could indicate a loose connection or overloaded circuit.
Note: Some transformers have a fuse inside. If voltage is zero, check for a blown fuse and replace it if necessary.
Interpreting Your Multimeter Readings
Understanding what your multimeter shows is key to diagnosing doorbell issues.
Normal Voltage (16–24V AC)
This means the transformer and wiring are functioning. If the doorbell still doesn’t work, the problem is likely the button or chime unit.
Low Voltage (Below 10V)
Indicates a weak transformer, long wire run, or corroded connections. Consider replacing the transformer or upgrading to a higher-voltage model (e.g., 24V).
No Voltage (0V)
The circuit is open. Check for blown fuses, tripped breakers, or disconnected wires. Also verify the transformer is receiving power.
Fluctuating Voltage
Could mean a loose wire or intermittent connection. Inspect all connections and tighten them.
Pro Tip: Compare readings over time. A gradual drop in voltage may signal a failing transformer before it completely dies.
Troubleshooting Common Doorbell Problems
Once you’ve measured the voltage, use these tips to fix common issues.
Doorbell Doesn’t Ring
- Check voltage at the button and chime. If normal, test the button with a continuity tester or replace it.
- If voltage is low, inspect wires for damage or corrosion.
Chime Rings Weakly or Intermittently
- Low voltage can cause weak ringing. Upgrade to a 24V transformer if currently using 16V.
- Check for loose connections at the chime terminals.
Multiple Doorbells Not Working
- Test each button separately. A faulty button can disrupt the entire circuit.
- Ensure the transformer can handle the load—multiple chimes may require a higher-wattage transformer.
Transformer Hums but No Voltage
- This often means the transformer is overloaded or shorted. Disconnect all wires and test again.
- If still no output, replace the transformer.
When to Call a Professional
While measuring doorbell voltage is a DIY-friendly task, some situations require expert help.
- You’re uncomfortable working near electrical panels.
- The transformer is hardwired and you’re not experienced with electrical work.
- You find damaged wiring inside walls or ceilings.
- Voltage readings are inconsistent or you suspect a short circuit.
Electricians can safely replace transformers, run new wires, or upgrade your system. Don’t risk injury—call a pro when in doubt.
Maintaining Your Doorbell System
Regular maintenance prevents future issues.
- Test voltage annually, especially before winter when usage increases.
- Clean doorbell buttons with a dry cloth to prevent dirt buildup.
- Inspect wires during home renovations or painting.
- Replace old transformers every 10–15 years, even if they seem to work.
Keeping a log of voltage readings helps you spot trends and catch problems early.
Conclusion: Master Doorbell Voltage Testing with Confidence
Learning how to measure doorbell voltage multimeter empowers you to diagnose and fix common doorbell issues without calling a technician. By following this guide, you’ve gained the knowledge to safely test voltage at the button, chime, and transformer, interpret readings, and take action based on your findings.
Remember, safety comes first—always turn off power when possible and use proper tools. With a little practice, you’ll be able to keep your doorbell working reliably for years to come. Whether you’re troubleshooting a silent chime or upgrading your system, your multimeter is a powerful tool in your DIY arsenal.
