Measuring doorbell voltage is essential for troubleshooting chimes, installing smart doorbells, or ensuring proper power supply. This guide walks you through the process using a multimeter, covering safety, tools, and step-by-step instructions.
Key Takeaways
- Safety first: Always turn off power at the breaker before working on doorbell wiring to avoid electric shock.
- Use a multimeter: A digital multimeter is the most accurate tool for measuring doorbell voltage—set it to AC voltage (V~).
- Typical voltage range: Most doorbells operate on 8–24 volts AC, supplied by a transformer connected to your home’s electrical system.
- Locate the transformer: It’s usually near your main electrical panel, furnace, or in a basement or garage.
- Test at the chime unit: Measuring voltage at the doorbell chime terminals gives the most accurate reading of actual power delivery.
- Low voltage? Check connections: Loose wires, corroded terminals, or a failing transformer can cause insufficient voltage.
- Smart doorbells need stable power: If installing a video doorbell, ensure voltage meets manufacturer specs to avoid malfunctions.
How to Measure Doorbell Voltage
If your doorbell isn’t ringing, your smart doorbell keeps disconnecting, or you’re installing a new chime system, one of the first things to check is the voltage. Measuring doorbell voltage is a simple yet crucial diagnostic step that can save you time, money, and frustration. Unlike standard household outlets that deliver 120 volts, doorbells run on low-voltage AC power—typically between 8 and 24 volts. This makes them safer to work with, but it also means you need the right tools and knowledge to test them properly.
In this comprehensive guide, you’ll learn exactly how to measure doorbell voltage safely and accurately using a multimeter. We’ll walk you through identifying your doorbell system, locating the transformer, setting up your tools, and interpreting your readings. Whether you’re a DIY homeowner, a renter troubleshooting a silent chime, or an installer setting up a Ring or Nest doorbell, this guide has you covered.
By the end, you’ll know how to confirm your doorbell is getting the right amount of power—and what to do if it’s not. Let’s get started.
Understanding Your Doorbell System

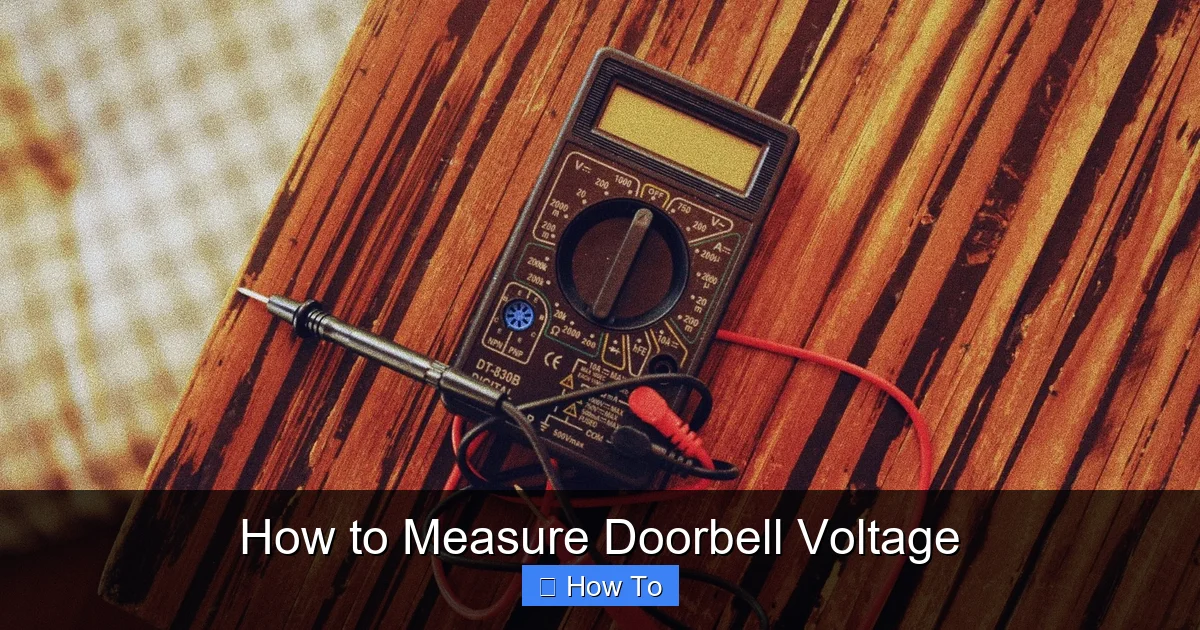

Visual guide about How to Measure Doorbell Voltage
Image source: portablepowerguides.com
Before you grab your multimeter, it helps to understand how a typical doorbell system works. Most residential doorbells are part of a low-voltage electrical circuit that includes three main components:
- The doorbell button: Mounted outside your door, this completes the circuit when pressed.
- The chime unit: Located inside your home, it produces the ringing sound when power flows through it.
- The transformer: This device steps down your home’s 120-volt AC power to a safer 8–24 volts AC for the doorbell circuit.
The transformer is usually hidden away—common spots include inside the electrical panel, near the furnace, in the basement, or in a utility closet. It’s often a small metal box with wires running out of it and labeled “Doorbell” or “Bell.”
When you press the doorbell button, it closes the circuit, allowing current to flow from the transformer, through the chime, and back—triggering the sound. If any part of this circuit is faulty—like a weak transformer, corroded wires, or a loose connection—the voltage drops, and your doorbell may not work.
That’s why measuring doorbell voltage is so important. It tells you whether the problem is power-related or something else, like a broken button or chime mechanism.
Tools You’ll Need
You don’t need a professional electrician’s toolkit to measure doorbell voltage. Here’s what you’ll need:
- Digital multimeter: This is essential. Look for one with an AC voltage setting (usually marked V~). Analog multimeters work too, but digital ones are easier to read and more accurate.
- Screwdriver: A flathead or Phillips, depending on your chime unit’s screws.
- Insulated gloves (optional but recommended): For added safety, especially if you’re unsure about the wiring.
- Flashlight: To see inside dark electrical panels or behind chime units.
- Voltage tester pen (optional): Useful for a quick check to confirm live wires before using the multimeter.
Most of these tools are inexpensive and available at hardware stores or online. If you already own a multimeter, you’re halfway there.
Safety First: Precautions Before You Begin
Even though doorbells use low voltage, safety should always come first. Here are key precautions to follow:
Turn Off the Power
Although doorbell circuits are low voltage, the transformer is connected to your home’s main electrical system. To be safe, turn off the circuit breaker that powers the doorbell transformer. This is usually labeled “Doorbell,” “Bell,” or “Transformer” in your breaker panel. If you can’t find it, turn off the main breaker to be extra cautious.
Use Proper Tools
Always use a multimeter with insulated probes and avoid touching the metal tips while testing. Wear insulated gloves if you’re uncomfortable working near electrical components.
Work in a Dry Area
Never work on electrical systems with wet hands or in damp conditions. Moisture increases the risk of shock.
Don’t Force Connections
If wires are stuck or terminals are tight, gently wiggle them loose. Forcing them can damage the chime or wiring.
Taking these steps ensures you stay safe while getting accurate results.
Step 1: Locate the Doorbell Chime Unit
The best place to measure doorbell voltage is at the chime unit itself. This is where the power from the transformer reaches the doorbell circuit, so it gives you the most accurate reading of what’s actually being delivered.
Find the Chime
Look for a rectangular or round box mounted on a wall inside your home, usually near the front door. It may have buttons labeled “Front,” “Back,” or “Side” if you have multiple doorbells.
Remove the Cover
Use your screwdriver to remove the cover. Most chime units have two or four screws. Set them aside so you don’t lose them.
Identify the Terminals
Inside, you’ll see two or more screw terminals. The most common setup has:
- “Front” terminal: Connects to the front doorbell button.
- “Trans” or “Transformer” terminal: Connects to the transformer (power source).
- “Rear” or “Side” terminal (if applicable): For additional buttons.
The two main terminals you’ll test are “Front” and “Trans.” These carry the voltage from the transformer to the chime.
Step 2: Set Up Your Multimeter
Now it’s time to prepare your multimeter for measuring AC voltage.
Turn On the Multimeter
Press the power button. Most digital multimeters turn on automatically when you rotate the dial.
Select AC Voltage Mode
Turn the dial to the AC voltage setting, usually marked “V~” or “ACV.” If your multimeter has multiple voltage ranges (e.g., 20V, 200V), choose the one that includes your expected voltage—like 200V for a 16V doorbell.
Insert the Probes
Plug the black probe into the “COM” port and the red probe into the “VΩmA” or “V” port. These are standard on most multimeters.
Test the Multimeter (Optional but Recommended)
To ensure your multimeter is working, test it on a known live outlet. Set it to AC voltage, insert the probes into the outlet slots, and confirm it reads around 120V. This verifies your tool is functioning correctly.
Step 3: Measure the Voltage at the Chime
With everything set up, it’s time to take the measurement.
Reconnect Power (Carefully)
Turn the breaker back on to restore power to the transformer. This allows current to flow through the circuit so you can measure voltage.
Touch the Probes to the Terminals
Place the black probe on the “Trans” (transformer) terminal and the red probe on the “Front” terminal. Make sure the metal tips make solid contact with the screw heads or wire ends.
Read the Display
The multimeter will show a number—this is the voltage. Most doorbells should read between 16 and 24 volts AC. Some older systems may run as low as 8V, but anything below 12V may cause weak or inconsistent ringing.
Record the Reading
Write down the voltage. If it’s within the expected range, your power supply is likely fine. If it’s too low or zero, there’s a problem.
Step 4: Interpret Your Results
Now that you have a voltage reading, what does it mean?
Normal Voltage (16–24V AC)
If your reading is in this range, the transformer is working correctly, and power is reaching the chime. The issue may be with the doorbell button, chime mechanism, or wiring between the button and chime.
Low Voltage (Below 12V AC)
This suggests a problem. Possible causes include:
- A failing transformer
- Loose or corroded wire connections
- Long wire runs with voltage drop
- A short circuit in the wiring
Zero Voltage
If the multimeter reads 0V, the circuit is open. Check:
- Is the breaker on?
- Are the wires securely connected?
- Is the transformer receiving power?
- Is the doorbell button stuck open (preventing current flow)?
Fluctuating or Inconsistent Readings
If the voltage jumps around, there may be a loose connection or a faulty transformer. Re-tighten all terminals and test again.
Step 5: Test the Transformer Directly (Optional)
If you suspect the transformer is the issue, you can test it directly.
Locate the Transformer
Find the small metal box connected to your home’s wiring. It may be inside the electrical panel, near the furnace, or in a closet.
Identify the Output Wires
Look for two low-voltage wires (usually white and red or black) coming out of the transformer. These connect to the doorbell circuit.
Measure Across the Wires
Set your multimeter to AC voltage. Touch one probe to each wire. You should get a reading close to the transformer’s rated output (e.g., 16V, 24V).
Compare Readings
If the transformer outputs 16V but the chime only gets 8V, there’s a voltage drop in the wiring—likely due to long distances or poor connections.
Step 6: Troubleshooting Common Issues
Even with accurate voltage readings, problems can persist. Here’s how to fix common issues.
Doorbell Doesn’t Ring
- Check the button: Remove the doorbell button and test continuity with your multimeter. If it doesn’t close the circuit when pressed, replace it.
- Inspect wiring: Look for frayed, loose, or corroded wires between the button and chime.
- Test the chime: If voltage is good but the chime doesn’t ring, the internal mechanism may be faulty. Replace the chime unit.
Weak or Intermittent Ringing
- Low voltage: Replace the transformer if it’s old or underpowered.
- Loose connections: Tighten all terminal screws at the chime and transformer.
- Long wire runs: Use thicker gauge wire (18 AWG or lower) for runs over 50 feet.
Smart Doorbell Not Staying Connected
- Insufficient power: Video doorbells like Ring or Nest require stable 16–24V. If voltage drops below 14V, the device may reboot or disconnect.
- Use a dedicated transformer: Some smart doorbells come with their own transformer. Install it to ensure consistent power.
- Bypass the chime (if needed): Some models allow you to wire the doorbell directly to the transformer, skipping the mechanical chime.
Tips for Accurate Measurements
To get the most reliable results when measuring doorbell voltage, keep these tips in mind:
- Test with the button pressed: Voltage may drop when the circuit is under load. Press the doorbell button while measuring to simulate real use.
- Use fresh batteries in your multimeter: Weak batteries can cause inaccurate readings.
- Avoid touching probe tips: Your body can interfere with the measurement. Hold the probes by the insulated handles.
- Clean terminal contacts: Use a small brush or sandpaper to remove corrosion from screw terminals.
- Label wires before disconnecting: Take a photo or use tape to mark which wire goes where, so you can reconnect them correctly.
When to Call a Professional
While measuring doorbell voltage is a DIY-friendly task, some situations call for an electrician:
- You’re uncomfortable working with electrical systems.
- The transformer is hardwired into the main panel and you’re unsure how to safely access it.
- You detect burning smells, melted wires, or signs of overheating.
- Multiple circuits are affected, suggesting a larger electrical issue.
- You’ve tried troubleshooting but the doorbell still doesn’t work.
A licensed electrician can safely diagnose and repair complex issues, especially those involving the main electrical panel.
Conclusion
Measuring doorbell voltage is a simple, effective way to diagnose power-related issues with your doorbell system. With just a multimeter and a few basic tools, you can determine whether your chime is receiving the correct voltage—and take action if it’s not.
By following this guide, you’ve learned how to locate the chime unit, set up your multimeter, take accurate readings, and interpret the results. You’ve also gained troubleshooting tips for common problems like weak ringing, smart doorbell disconnects, and silent chimes.
Remember: safety comes first. Always turn off power when working near electrical components, and don’t hesitate to call a professional if you’re unsure.
Whether you’re fixing an old doorbell or installing a new smart model, knowing how to measure voltage ensures your system runs reliably. Now you’re equipped to keep your doorbell working—and your home secure.
