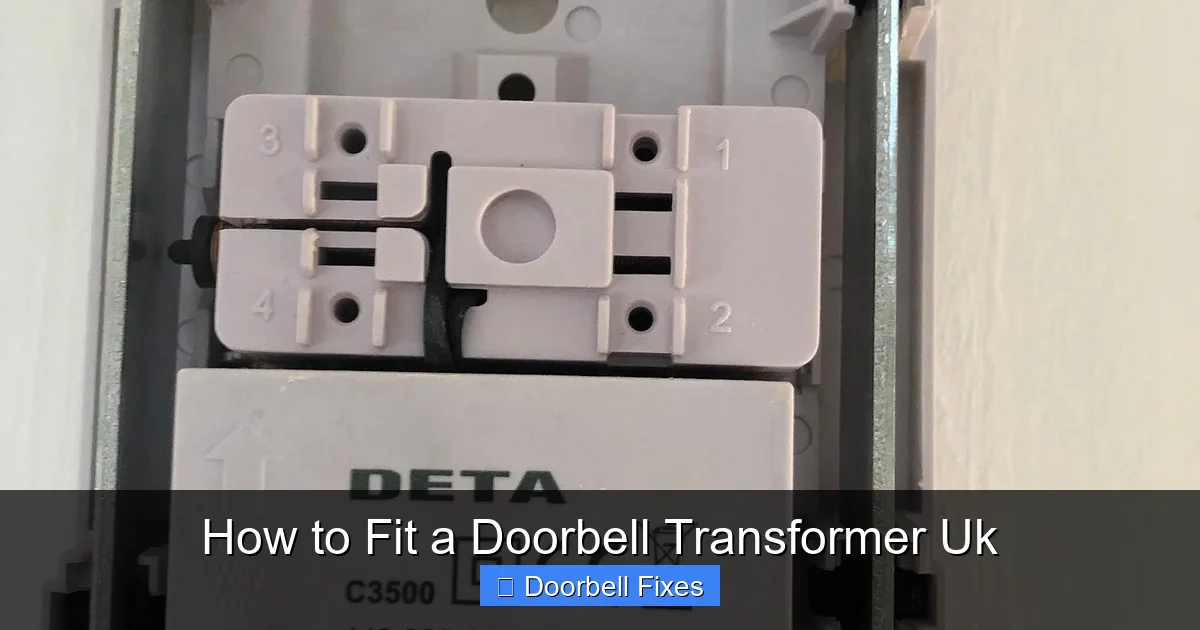

How to Fit a Doorbell Transformer UK: A Complete Step-by-Step Guide
If your doorbell has stopped working or you’re installing a new one, the problem might be a faulty or missing transformer. In the UK, most wired doorbells run on low-voltage electricity supplied by a doorbell transformer. This small but essential device converts your home’s 230V mains power into the safer 8–16V AC needed to power the chime and button.
Fitting a doorbell transformer might sound intimidating, but with the right tools, knowledge, and safety precautions, it’s a job many confident DIYers can handle. This guide will walk you through the entire process—from understanding what a doorbell transformer does, to choosing the right one, installing it safely, and testing your system. Whether you’re replacing an old unit or setting up a new doorbell from scratch, you’ll find everything you need right here.
By the end of this guide, you’ll know how to fit a doorbell transformer UK-style, ensuring your doorbell works reliably and safely for years to come.
What Is a Doorbell Transformer and Why Do You Need One?

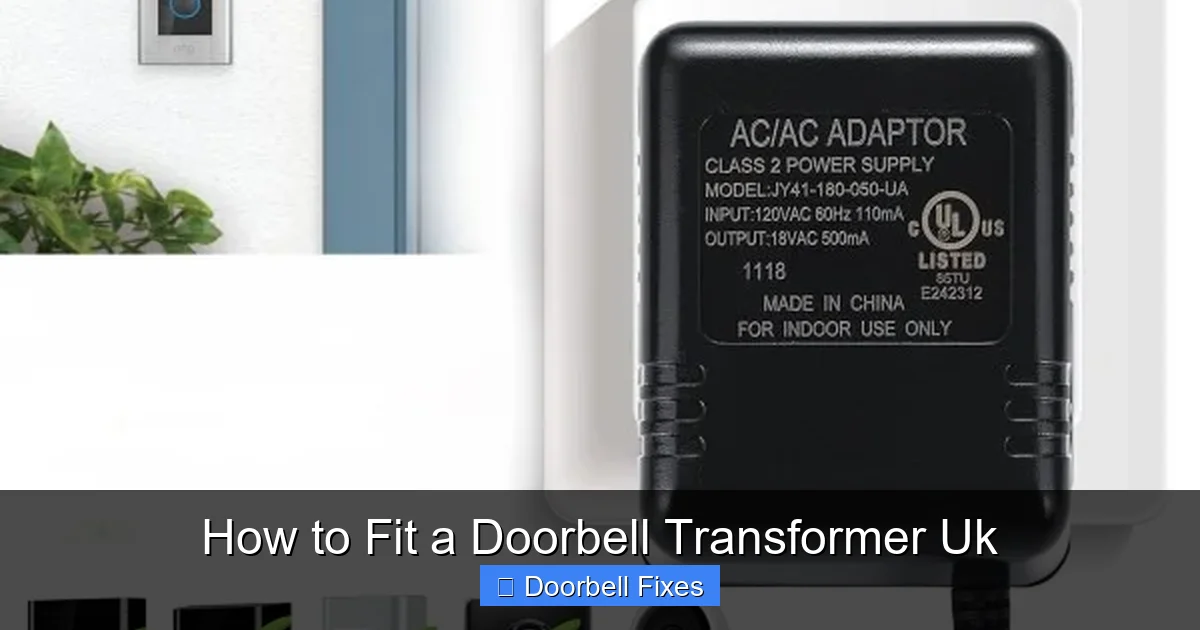

Visual guide about How to Fit a Doorbell Transformer Uk
Image source: miro.medium.com
A doorbell transformer is a small electrical device that steps down the standard UK mains voltage (230V AC) to a much lower, safer voltage—typically between 8 and 16 volts AC. This low voltage powers your doorbell chime and the push button at your front door.
Most modern wired doorbells in the UK use this low-voltage system because it’s safer, more energy-efficient, and less prone to interference than older high-voltage systems. The transformer is usually hidden away in a loft, under the stairs, inside a junction box, or near the consumer unit.
Without a working transformer, your doorbell simply won’t function—even if the wiring and button are in perfect condition. Common signs of a faulty transformer include:
– No sound when the button is pressed
– A weak or intermittent chime
– The doorbell working only occasionally
If you’ve ruled out battery issues (for wireless models) or wiring faults, the transformer is often the culprit.
Tools and Materials You’ll Need
Before you begin, gather all the necessary tools and materials. Having everything ready will make the job smoother and safer.
You’ll need:
– A replacement doorbell transformer (8–16V AC, 10–15VA recommended)
– Screwdrivers (flathead and Phillips)
– Wire strippers
– Electrical insulation tape
– Low-voltage bell wire (2-core 0.5mm², if extending or replacing cables)
– Voltage tester or multimeter (to confirm power is off)
– Drill and wall plugs (if mounting the transformer)
– Safety gloves and goggles
– Ladder (if working in a loft or high location)
Optional but helpful:
– Cable clips or conduit (to secure wiring)
– Label maker or masking tape (to label wires)
– Torch or work light (for dark areas like lofts)
Always ensure your tools are in good condition and suitable for electrical work. Never use damaged screwdrivers or frayed cables.
Step 1: Turn Off the Power
Safety is the most important part of any electrical job. Before touching any wires or components, you must turn off the power supply.
Locate Your Consumer Unit
In the UK, your consumer unit (also called a fuse box or distribution board) controls all the circuits in your home. Find it—it’s usually in a hallway, under the stairs, or in a utility room.
Switch Off the Relevant Circuit
Look for a circuit breaker labeled “lighting,” “socket,” or possibly “doorbell” or “accessories.” If there’s no specific label, you may need to turn off the main switch to cut power to the entire house. This is the safest option if you’re unsure.
Test for Power
Use a voltage tester or multimeter to confirm that the power is off. Touch the tester to the wires where the transformer connects. If the tester doesn’t light up or beep, the power is off. Never assume—always test.
Safety Tip
Place a note on the consumer unit or tell others in the house that you’re working on the electrics and not to turn the power back on.
Step 2: Locate the Existing Transformer (If Replacing)
If you’re replacing an old transformer, you’ll need to find where it’s installed. Common locations include:
– Inside the loft, near the ceiling rose or light fitting
– Under the stairs, inside a cupboard or junction box
– Behind the doorbell chime unit
– Near the consumer unit
Follow the Wiring
Start at the doorbell chime inside your home. Trace the two thin wires (usually white and red or brown and blue) back to their source. These low-voltage wires will lead you to the transformer.
Check the Label
Once found, check the transformer for a label indicating its voltage and VA rating. For example, “12V AC, 10VA.” This helps you choose the correct replacement.
Take a Photo
Before disconnecting anything, take a clear photo of the wiring setup. This will help you reconnect everything correctly later.
Step 3: Choose the Right Transformer
Not all transformers are the same. Using the wrong one can damage your doorbell or cause it to underperform.
Voltage and VA Rating
Most UK doorbells use:
– Voltage: 8V, 12V, or 16V AC
– Power: 10VA to 15VA (volt-amperes)
Check your doorbell chime unit for a label that specifies the required voltage and VA. If you can’t find it, a 12V AC, 10VA transformer is a safe bet for most standard doorbells.
Plug-In vs. Hardwired
There are two main types:
– **Plug-in transformers:** These plug directly into a standard 13A socket. Easy to install but less discreet.
– **Hardwired transformers:** These are connected directly to the mains wiring and mounted in a junction box or enclosure. More permanent and neater.
For a clean, professional look, hardwired is usually preferred—especially if you’re installing a new system.
Where to Buy
You can buy doorbell transformers from:
– DIY stores (B&Q, Screwfix, Wickes)
– Electrical wholesalers
– Online retailers (Amazon, Screwfix, Toolstation)
Look for brands like Honeywell, Friedland, or generic UK-compliant models. Ensure the transformer is CE or UKCA marked and complies with BS EN 61558 safety standards.
Step 4: Remove the Old Transformer (If Applicable)
If you’re replacing an existing transformer, carefully disconnect it.
Disconnect the Low-Voltage Wires
Unscrew the terminals on the transformer where the bell wire connects. Note which wire goes where (usually marked “common” and “bell” or “C” and “B”). Label them if needed.
Disconnect the Mains Wires
The transformer will also have two wires connected to the mains supply (usually brown [live] and blue [neutral], with a green/yellow earth if applicable). Carefully unscrew these terminals.
Remove the Transformer
Unscrew the transformer from its mounting bracket or junction box. Be gentle—don’t damage surrounding wiring.
Inspect the Wiring
Check the condition of the existing bell wire. If it’s frayed, cracked, or damaged, now is the time to replace it.
Step 5: Install the New Transformer
Now it’s time to fit your new transformer. Follow these steps carefully.
Choose the Mounting Location
Pick a dry, accessible location near the doorbell circuit. Ideal spots include:
– Inside a loft, near a ceiling rose
– In a junction box under the stairs
– Inside a cupboard with access to mains wiring
Avoid damp areas, direct sunlight, or places with high heat.
Mount the Transformer
If your transformer comes with a mounting bracket, screw it securely to a joist, wall, or inside a junction box. Use appropriate wall plugs if fixing to plasterboard.
Connect the Mains Wiring
This is the most critical step. You’ll be working with 230V mains electricity, so take extra care.
– Connect the **live (brown)** wire to the **L** terminal on the transformer.
– Connect the **neutral (blue)** wire to the **N** terminal.
– If there’s an **earth (green/yellow)** wire, connect it to the earth terminal (if present).
Double-check your connections. Loose or incorrect wiring can cause short circuits or fire hazards.
Secure the Connections
Tighten all terminal screws firmly. Use electrical insulation tape to cover any exposed copper if necessary.
Connect the Low-Voltage Wires
Now connect the two bell wires to the low-voltage terminals on the transformer. These are usually labeled “C” (common) and “B” (bell), but polarity doesn’t matter for AC systems—either wire can go to either terminal.
Strip about 10mm of insulation from each wire and insert them into the terminals. Tighten the screws.
Tuck Wires Neatly
Use cable clips or conduit to secure the low-voltage wires along their route to the doorbell chime and button. Keep them away from sharp edges or heat sources.
Step 6: Test the System
Before you close up any panels or put everything back, test your doorbell.
Turn the Power Back On
Go to your consumer unit and switch the relevant circuit back on. If you turned off the main switch, turn it back on now.
Press the Doorbell Button
Go to your front door and press the button. You should hear a clear, consistent chime inside.
Listen for Issues
If the chime is weak, intermittent, or silent:
– Check all connections are tight
– Confirm the transformer is the correct voltage
– Test the button and chime separately
Use a Multimeter (Optional)
If you have a multimeter, you can test the output voltage at the transformer terminals. Set it to AC voltage and touch the probes to the low-voltage terminals. You should see a reading close to the rated voltage (e.g., 12V).
Step 7: Secure and Finish
Once everything is working, tidy up and secure the installation.
Close Junction Boxes or Panels
If you installed the transformer in a junction box or behind a panel, screw the cover back on securely.
Label the Transformer (Optional)
Use a label or marker to note the location and type of transformer. This helps future DIYers or electricians.
Dispose of the Old Transformer
Take the old transformer to a local recycling centre or electrical waste point. Do not throw it in general waste.
Troubleshooting Common Issues
Even with careful installation, problems can arise. Here’s how to fix the most common ones.
Doorbell Doesn’t Ring
– Check the power is on at the consumer unit
– Test the transformer output with a multimeter
– Inspect the button for dirt or damage
– Ensure all wires are connected properly
Chime is Weak or Faint
– The transformer may be underpowered—upgrade to a higher VA rating
– Long wire runs can cause voltage drop—use thicker wire or shorten the distance
– Corroded terminals can reduce conductivity—clean with a small brush
Transformer Gets Hot
– A slightly warm transformer is normal, but if it’s hot to the touch, it may be overloaded
– Check the VA rating matches your chime’s requirements
– Ensure it’s not covered or in a confined space
Buzzing or Humming Sound
– This can happen if the transformer is loosely mounted or vibrating
– Secure it firmly to a solid surface
– Check for loose wires causing arcing
Intermittent Operation
– Loose connections are the usual cause—retighten all terminals
– Test the doorbell button with a multimeter for continuity
– Check for damaged or corroded wiring
When to Call a Qualified Electrician
While fitting a doorbell transformer is generally safe for DIYers, there are times when you should call a professional.
– You’re unsure about identifying live and neutral wires
– Your consumer unit is outdated or hard to access
– You need to run new mains wiring
– You’re not confident working with electricity
– The installation involves modifying fixed wiring in a way that requires certification under Part P of the Building Regulations
In the UK, any work that involves new or altered fixed electrical wiring in kitchens, bathrooms, or outdoors may need to be notified to your local building control body. While a simple transformer replacement usually doesn’t require notification, it’s always safer to consult a qualified electrician if in doubt.
Safety Tips and Best Practices
To ensure a safe and successful installation, follow these best practices:
– Always turn off the power and test before working
– Use insulated tools and wear safety gloves
– Never work on live circuits
– Keep water and electricity far apart
– Label wires before disconnecting them
– Use the correct wire gauges—0.5mm² is standard for doorbell wiring
– Avoid overloading the transformer—match VA rating to your chime
– Keep the transformer accessible for future maintenance
Conclusion
Fitting a doorbell transformer in the UK is a practical DIY project that can save you time and money. With the right tools, a clear plan, and strict attention to safety, you can replace or install a transformer in under an hour.
Remember: always turn off the power, choose the correct transformer, and test your system thoroughly. If you’re ever unsure, don’t hesitate to consult a qualified electrician.
A working doorbell isn’t just convenient—it’s a small but important part of home security and daily life. By following this guide, you’ll ensure yours is reliable, safe, and ready to welcome visitors for years to come.
